Description
- Programmable Red/Green Round Button with "EXIT" & "SALIDA"
- Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
- No moving parts for heavy-duty use, Timed or toggle output
- The LED ring around the button changes from green to red or red to green when the button is pressed
- Relay rated 2.5A@24VDC with two individually programmable outputs (NO/NC)

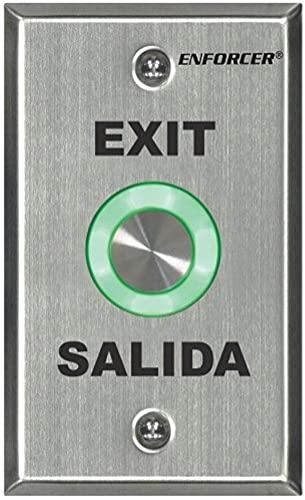

Seco-Larm SD-6276-SS1Q Enforcer Piezoelectric Illuminated RTE Wall Plate with Timer, Single-gang; Programmable Red/Green Round Button with "EXIT" & "SALIDA"; Timed or Toggle Output
Key Features
- Programmable Red/Green Round Button, with "EXIT" & "SALIDA"
- Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
- No moving parts for heavy duty use
- LED ring around button changes from green to red or red to green when the button is pressed
- Timed or toggle output
- Relay rated 2.5A@24VDC with two individually programmable outputs (NO/NC)
Specifications
- Type: RTE Plates with piezoelectric pushbuttons
- Operating Voltage: 12~24 VDC
- Current Draw: 100mA@12VDC
- Contact Rating: 2.5A@24VDC
- Ring LED Default - Standby: Red
- Ring LED Default - Active: Green
- Output Time: 1~30 s, Toggle
- IP Rating: Weatherproof IP65
- Operating Temperature: 32~158F (0~70C)
- Material: Stainless steel
- Weight: 3.5-oz (99g)
