Description
- Unique design accommodates both wood and metal doors, Fail-secure operation
- Reversible for right or left-handed doors, Durable stainless-steel faceplate
- Miniature lock body for easier installation, Corrosion-resistant case and moving parts
- Complete mounting hardware included, Screw terminals for ease of wiring
- 1,000-lb (453kg) Jaw strength, Tested to 500,000 cycles

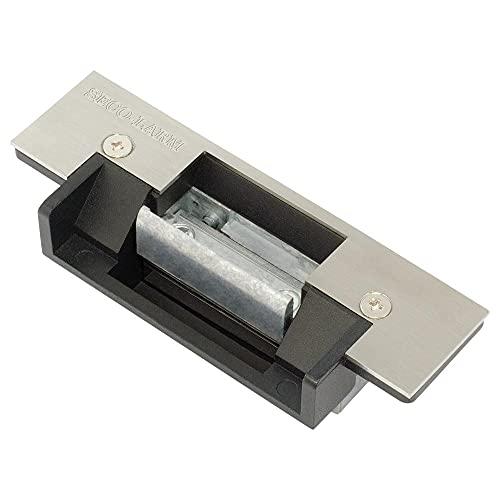

Seco-Larm SD-995A-A1Q Electric Door Strike with Horizontal Adjustment for Wood & Metal Doors; 1/4" Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc
SECO-LARM SD-995A-A1Q Electric Door Strike with Horizontal Adjustment for Wood & Metal Doors; 1/4" Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc
Key Features
1/4" Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc Unique design accommodates both wood and metal doors Fail-secure operation Reversible for right or left-handed doors Durable stainless-steel faceplate Miniature lock body for easier installation Corrosion-resistant case and moving parts Complete mounting hardware included Screw terminals for ease of wiring 1,000-lb (453kg) Jaw strength Tested to 500,000 cycles Optional ANSI Faceplate SD-995RE-21Q (Sold separately)
Specifications
Operation: Fail-secure Operating Voltage: 8~16 VAC/12VDC Current Draw: 800mA@16VAC, 750mA@12VDC Jaw Strength: 1,000-lb (453kg) Latch Throw: 5/8" (16mm) Design: Reversible Non-Handed Strike Depth: 1-1/2" overall (38mm) Adjustable Keeper: Max. 1/4" (6mm) Keeper depth: 21/32" (16.8mm) Latch depth: 3/4" (19mm) Operating Temperature: 14F~113F (-10~45C) Dimensions: 4-7/8"x1-1/4"x1/8" (124x32x3.2 mm) (Faceplate) Weight: 10.3-oz (292g)
