Description
- Rugged construction: Heavy-duty stainless-steel faceplate with a coated steel backing
- 12~24 VAC/VDC Operation, auto-adjusting
- Up to 1,000 user codes and/or proximity cards for output #1, 100 for output #2, and 100 for output #3
- Egress input lets users exit without keying in the code
- Vandal resistant, suitable for wall, post, or gooseneck mounting

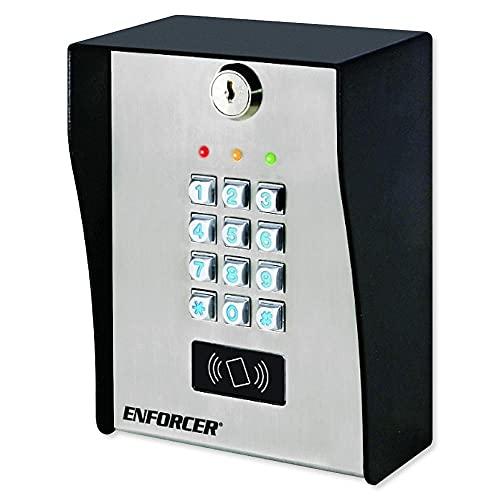

Seco-Larm SK-3133-PPQ Heavy-Duty Outdoor Access Control Keypad with Proximity Reader, Heavy-duty Stainless-Steel Faceplate with a Coated Steel Backing, 12~24 VAC/VDC Operation, IP66 Weatherproof
This keypad features rugged construction with a heavy-duty stainless-steel faceplate and a coated steel backing to withstand the elements. Key Features Rugged construction: Heavy-duty stainless-steel faceplate with a coated steel backing Built-in proximity card reader 12~24 VAC/VDC Operation, auto-adjusting IP66 Weatherproof rating Up to 1,000 user codes and/or proximity cards for output #1, 100 for output #2, and 100 for output #3 Up to 50 temporary visitor codes Egress input lets users exit without keying in the code Vandal resistant, suitable for wall, post, or gooseneck mounting Specifications Type: Heavy-Duty, Outdoor, Stand-Alone Keypad Operating Voltage: 12~24 VAC/VDC Current Draw - Standby: 55mA@12VDC Current Draw- Relays Active: 220mA@12VDC Relay Output - #1: 5A@24VDC Relay Output - #2: 1A@24VDC Relay Output - #3: 1A@24VDC Egress Inputs: N.O. Ground (P.B) Operating Temperature: -4~158F (-20~70C) Dimensions: 5-1/4"x7-1/16"x3-3/8" (133x180x85 mm) Weight: 3-lb 12-oz (1.7kg)
