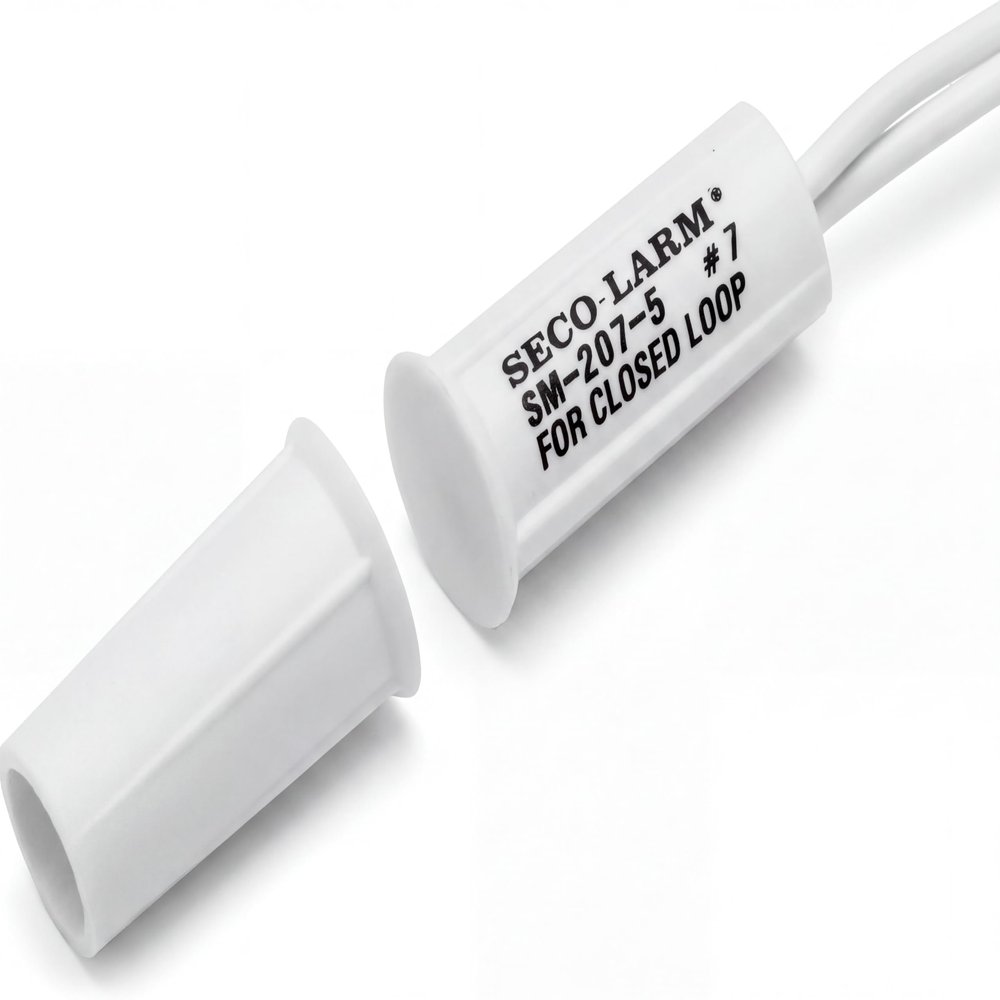

Seco-Larm SM-207-5Q/W Concealed-Mount Magnetic Contact, White, Stubby 3/4" Door & Window Alarm Sensor, Press-Fit Recessed Reed Switch, N/O Closed Loop, 3/8" Gap, Pre-Wired Leads

Description

• Concealed Low-clearance Design: Designed for sliding doors and windows where installation space is limited, with stubby 3/4-inch switch and magnet components that fit tight-clearance applications
• Press-fit Recessed Installation: 3/8-inch press-fit mount supports clean, concealed placement inside frames for a discreet, professional wired alarm installation
• Reliable Wired Alarm Contact: Includes 15-inch pre-wired #22 leads for convenient connection to compatible wired alarm circuits
• Long-life Reed Switch: SPST reed switch features deactivated rhodium on gold under-plating and a protective glue/epoxy compound to help support long service life and dependable operation
• Built for Closed-Loop Circuits: Designed for closed-loop applications with N/O electrical configuration and a 3/8-inch operation gap for accurate contact performance
• Durable Materials for Demanding Use: Constructed with a high-impact ABS plastic and epoxy compound case for durability in residential or commercial security installations
• Wide Operating Temperature Range: Rated for operation from -15F to +160F (-25C to +70C), making it suitable for varied indoor installation environments

The Seco-Larm SM-207-5Q/W Concealed-Mount Magnetic Contact is a compact wired alarm contact designed for sliding doors and windows where mounting space is restricted. Its stubby 3/4-inch switch and magnet make it especially useful in limited-clearance installations that require dependable performance without a bulky visible sensor. Key Features: Designed for sliding doors and windows where installation space is limited Stubby 3/4-inch switch and magnet components that fit tight-clearance applications 3/8-inch press-fit mount supports clean, concealed placement inside frames for a discreet, professional wired alarm installation Includes 15-inch pre-wired #22 leads for convenient connection to compatible wired alarm circuits SPST reed switch features deactivated rhodium on gold under-plating and a protective glue/epoxy compound to help support long service life Designed for closed loop applications with N/O electrical configuration and a 3/8-inch operation gap Constructed with a high-impact ABS plastic and epoxy compound case
Specifications: Color: White Installation type: Concealed recessed press-fit mount Mounting diameter: 3/8 inch Switch type: SPST reed switch Circuit type: Closed loop Electrical configuration: N/O Operation gap: 3/8 inch Lead wires: 15-inch pre-wired #22 leads Contact rating: 1.0A at 10VDC max Power rating: 10W max Switch life: 50 million cycles at 0.1mA at 5VDC Switch plating: Deactivated rhodium on gold under-plating Housing material: High-impact ABS plastic/epoxy compound case Switch dimensions: 0.75 x 0.44 x 0.38 inches Magnet dimensions: 0.75 x 0.44 x 0.38 inches
