Description
- Shenzhen Qifan Communication Equipment Co., Ltd. was founded in 2009. We mainly focus on Antenna Researching ,Signal Electrical Production,Household Electric Appliances. We have awarded ISO9001 certification. Whats more, our products are earning positive reputation of market and have been widely used in China, Europe and the United States.
- Superior performance aluminum die cast grid UV stable light Gray powder coat finish All weather operation easy to assemble
- Rf connector: n-type Female survival Wind speed: 148mile/hrs temperature: -40c+80c humidity: 100%at25c
- Beam width/horizontal: 14 Beam width/vertical: 10 F/B ratio-db: >30 max Input power: 200W

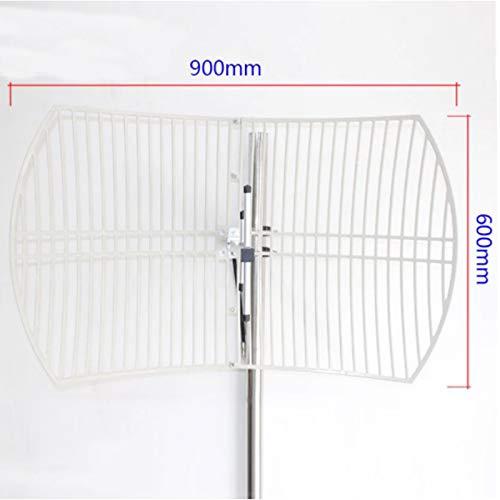

Specifications : Category : base station Grid Antennas . Frequency range- MHz : 824~960. Bandwidth-MHz : 70. Gain-dBi : 16. Horizontal Beamwidth- : 16. Vertical Beamwidth- : 16. Front to Back Ratio-dB : 30. VSWR : 1.5. Nominal impedance- : 50. Polarization : Vertical. Maximum power-W : 100. Dimensions-mm : 600900. Weight-kg : 3.2. Wind strength-m/s : 60. Connector : N Femal. Mounting Mast Diameter-mm : 35~50.
