Description

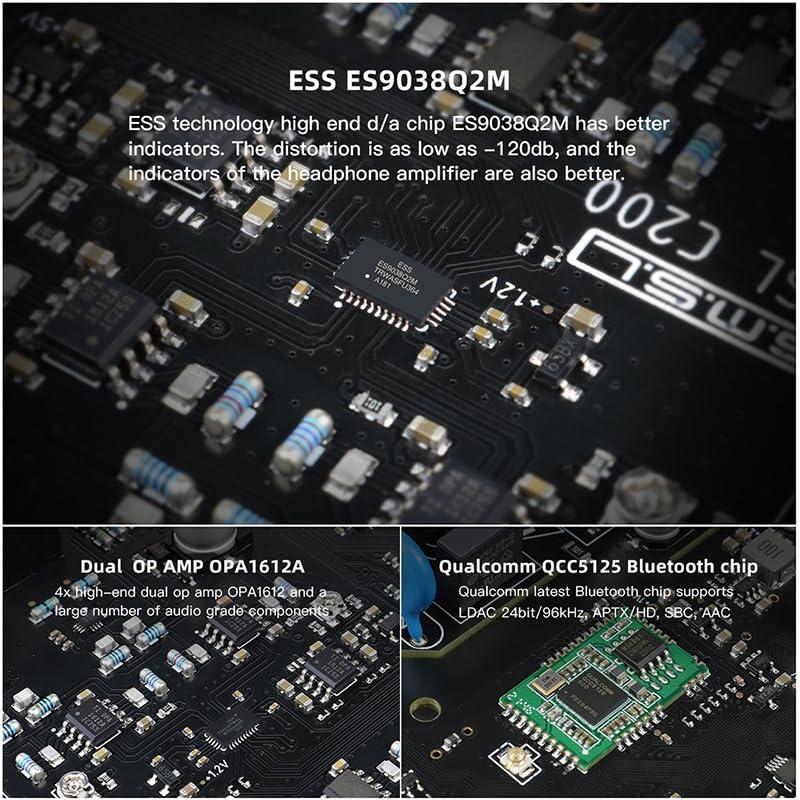

- ESS ES903802MESS technology high end d/a chip ES9038Q2M has betterindicators, The distortion is as low as -120db, and the indicators of the headphone amplifier are also better.
- Second Generation XMos chipThe second generation XMOS supports Native DSD512,PCM supports up to 32bit/768khz, the optical and coaxialsupports Dop64.

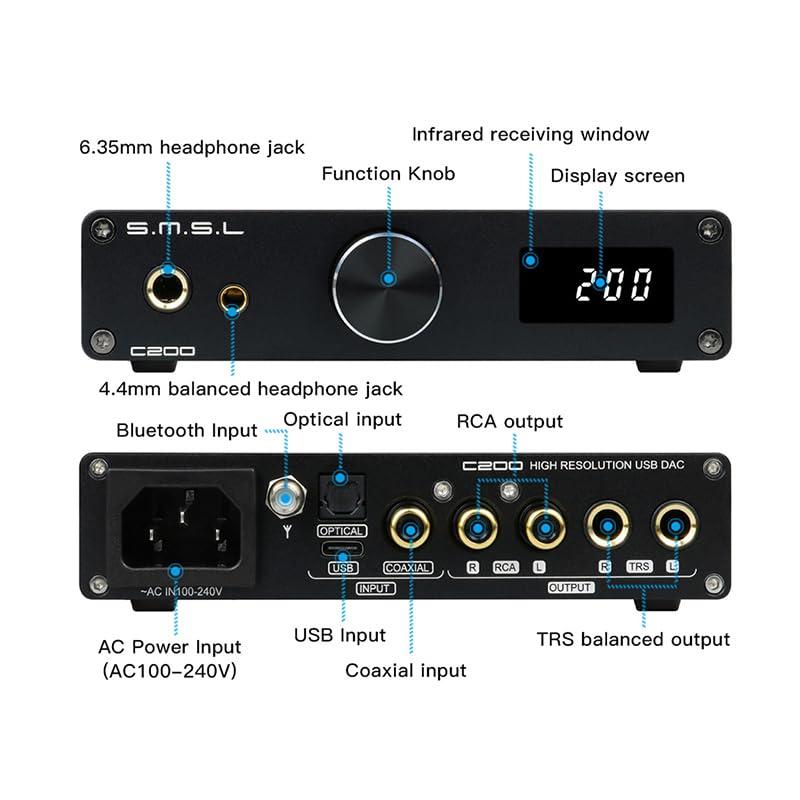

- 4.4mm balanced /6.35mm Headphone JackC200 has 4.4mm balanced /6.35mm headphone jackproviding High / Low gain options.
- Built in Ac adapterC200 uses a built-in AC adapter. Compared with the externalpower supply, it does not occupy land and is beautiful.
- USB INPUTU1.1MODE: All USB devices can be connected without driver.It can support the connection of various gameconsoles, such as XBOX, PS4, PS5 and soon USB1.1 only supports up to 24bit/96kHz. U2.0 MODE: USB2.0 needs to install the drive when connecting to the WIN system,and supports high-standard sampling rate.
Specification:

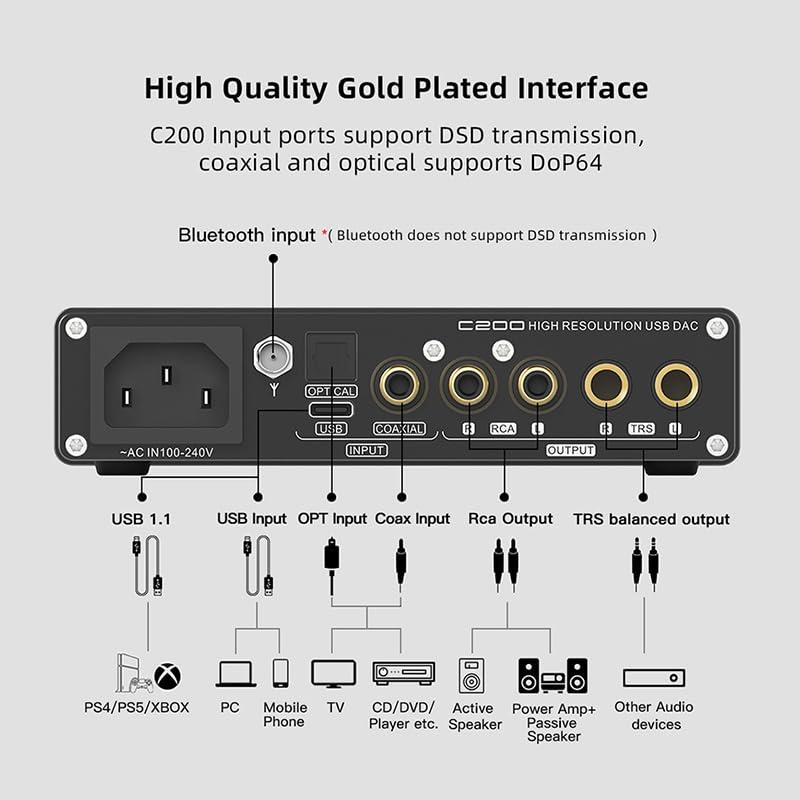

Input: USB / Optical / Coaxial / Bluetooth
Output: 6.35mm headphone / 4.4mm headphone / TRS / RCA
Output Level: TRS 4.0Vrms
RCA 2.0Vrms
Headphone output power: 16 2.6Wx2
32 1.3Wx2
Headphone Gain: low gain 0dB
high gain 11dB
THD+N: line out 0.0001% (-120dB)
HP out 0.00013% (-117dB)
Dynamic range: TRS 126dB
RCA 125dB
HP out 123dB
SNR: TRS 126dB
RCA 124dB
HP out 123dB
Output impedance: Line out 100
HP out Near 0
USB transmissio: USB1.1, USB2.0(Asynchronization)
USB compatibility: Windows 7/8/8.1/10/11(Needs Driver) AndroidMac OSX10.6 or LaterLinux(Driverless)
Bit depth: USB 1bit16~32bit
Optical / Coaxial 1bit16~24bit
Sampling rate: USB PCM 44.1~768kHz
DSD 2.8224~22.5792MHz
Optical / Coaxial PCM 44.1~192kHz
DSD DSD64(DoP)
Bluetooth specification: 5.0
LDAC: 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD: 24bit/48 kHz_576kbps
aptX : 16bit/44.1 kHz_352kbps
SBC: 16bit/44.1 kHz_328kbps
AAC: 16bit/44.1 kHz_320kbps
Power Consumption: 5W
Standby power: <0.5W
Size : 139x32x147.5mm(WxHxD)
Weight: 510g / 1.12Ibs
