Description
- During normal operation, the regulator should be checked regularly by charcoal brush and make sure that the brush and contact parts wont be more than the wide of two wires.
- Check the insulation resistance regularly, the insulation resistance between coil and base shouldnt be less than 2mm.
- Please connect the ground line to regulator case. After operation, turn the hand wheel pointed to zero place and cut off the power.
- The output voltage is lower,the output power is lower,the load power is lower.
- Our products have lifetime free warranty and replacement parts policy, if you encounter any problems during use, please feel free to contact us. Our customer service department will help you solve any problems.
Specification:

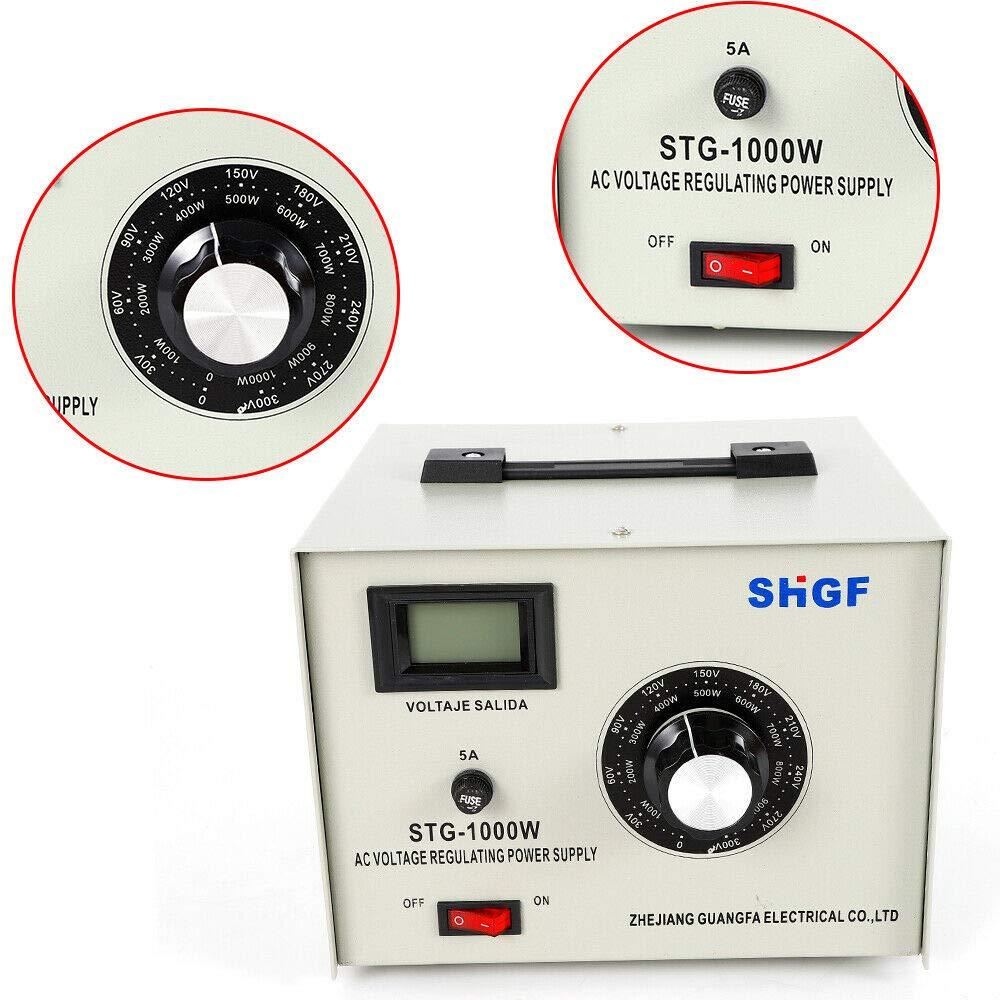

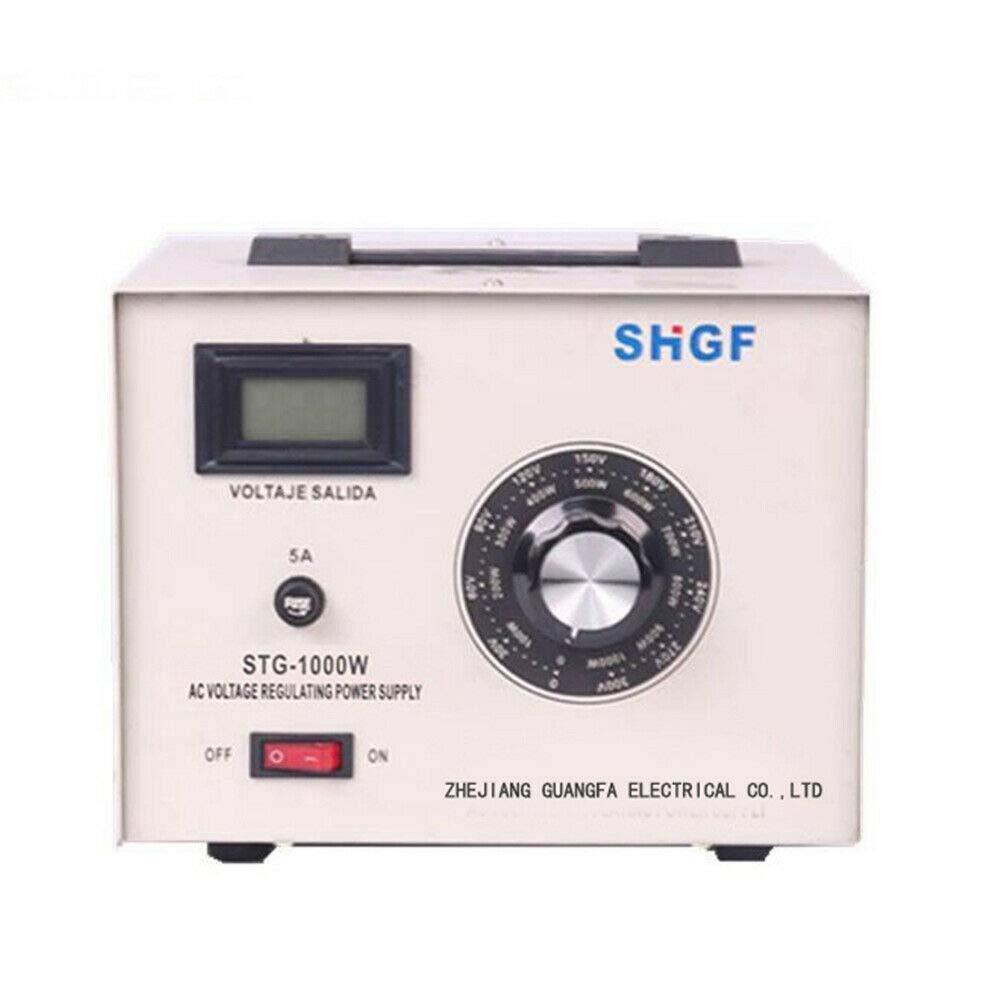

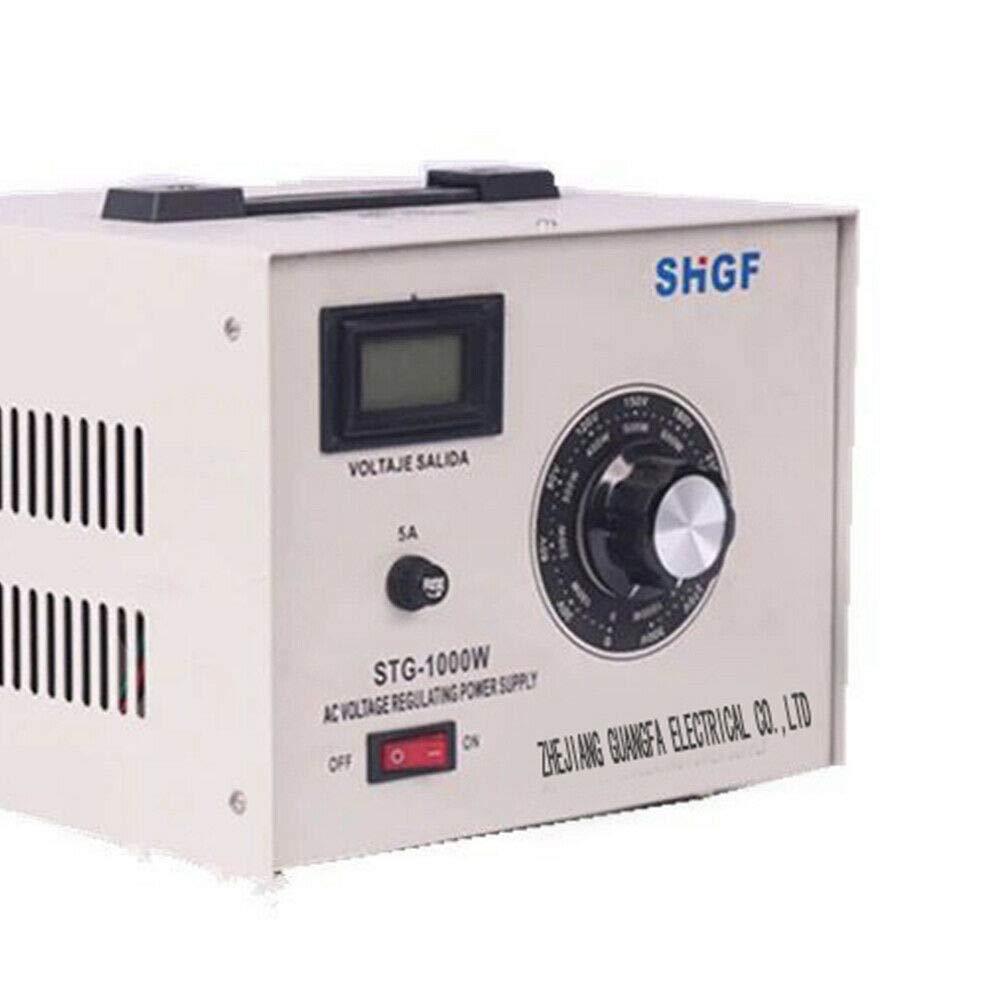

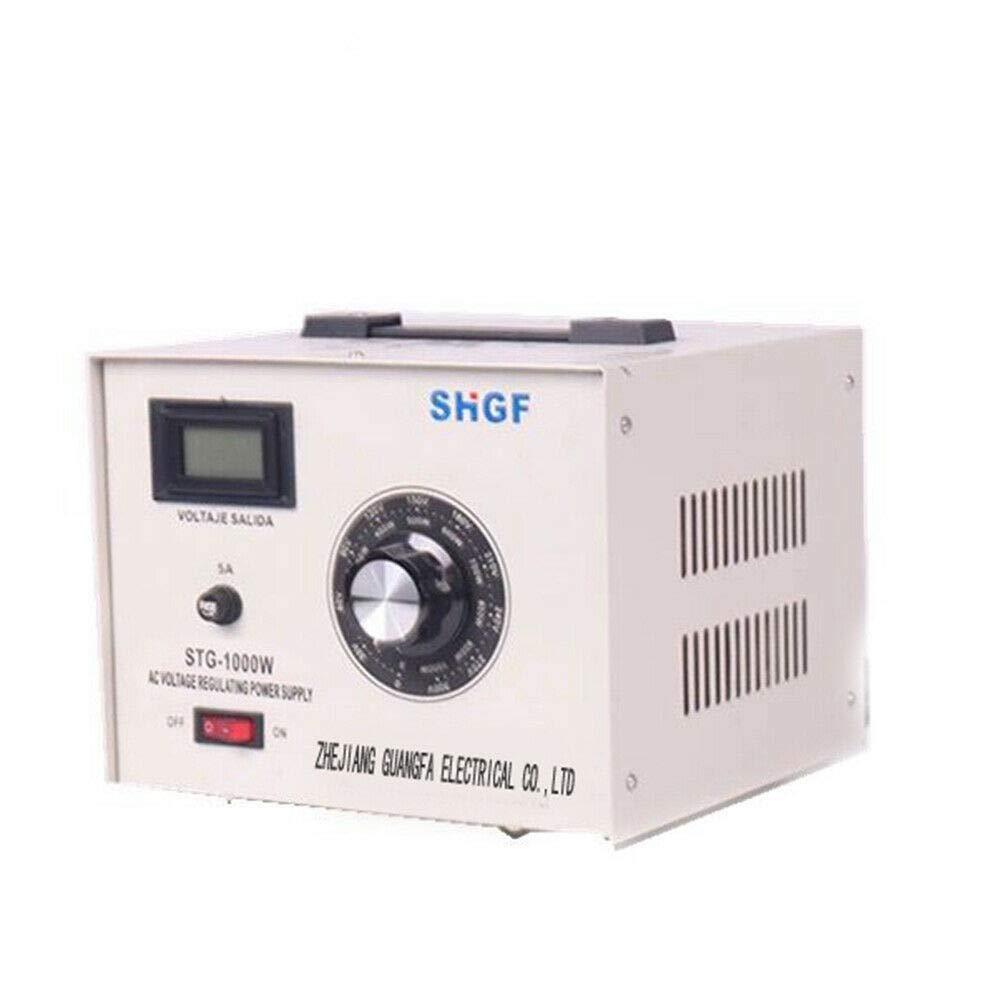

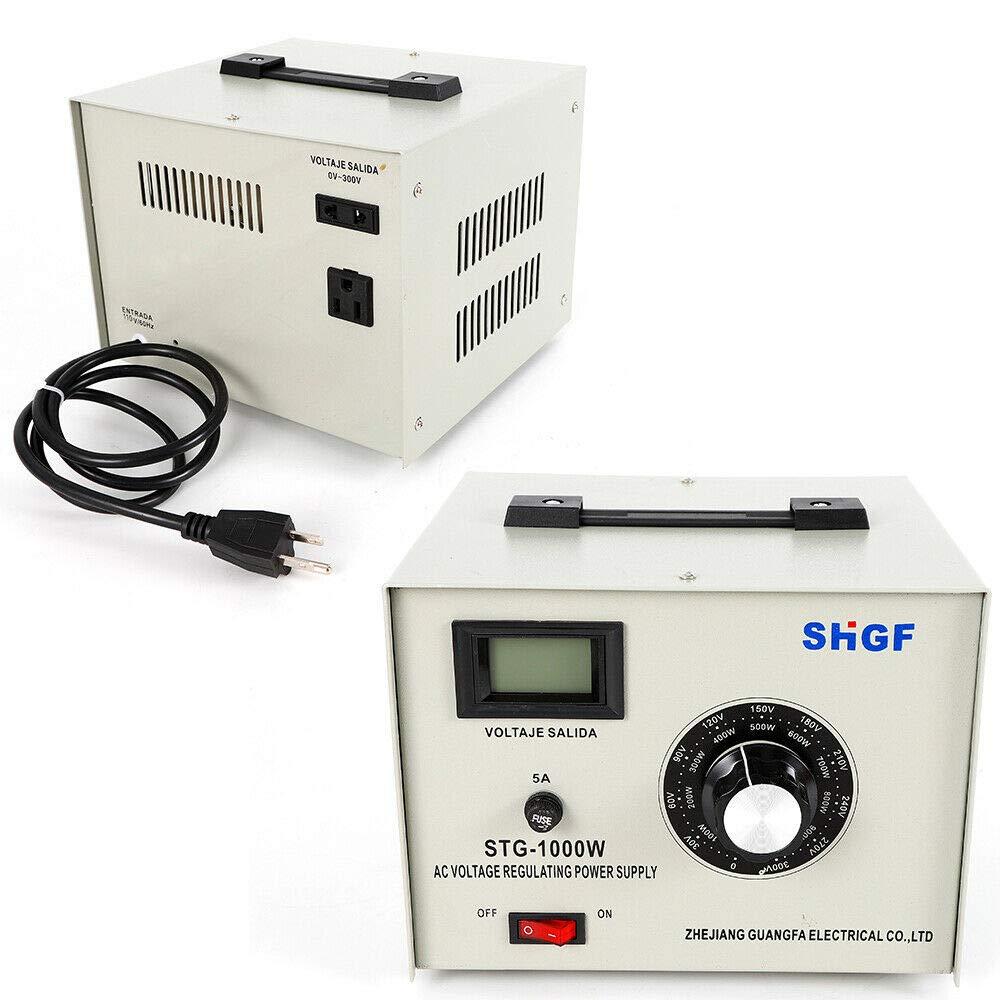

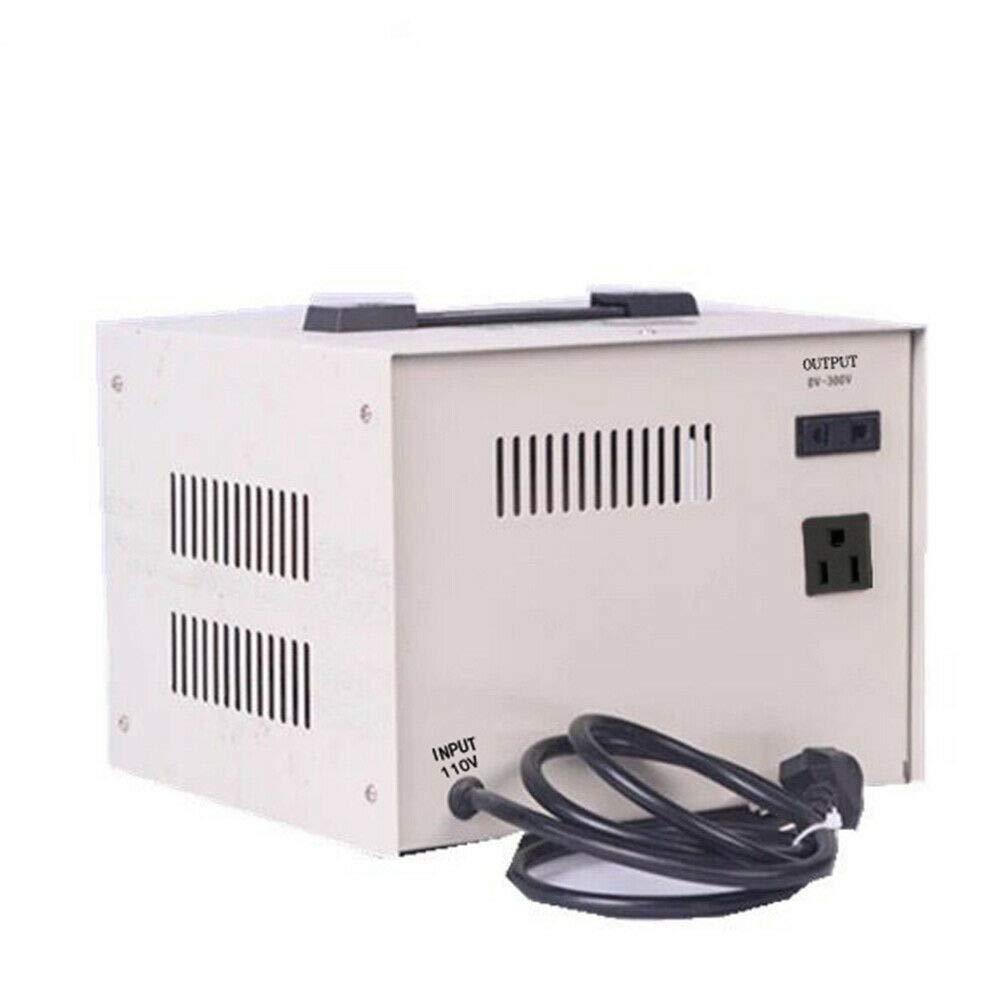

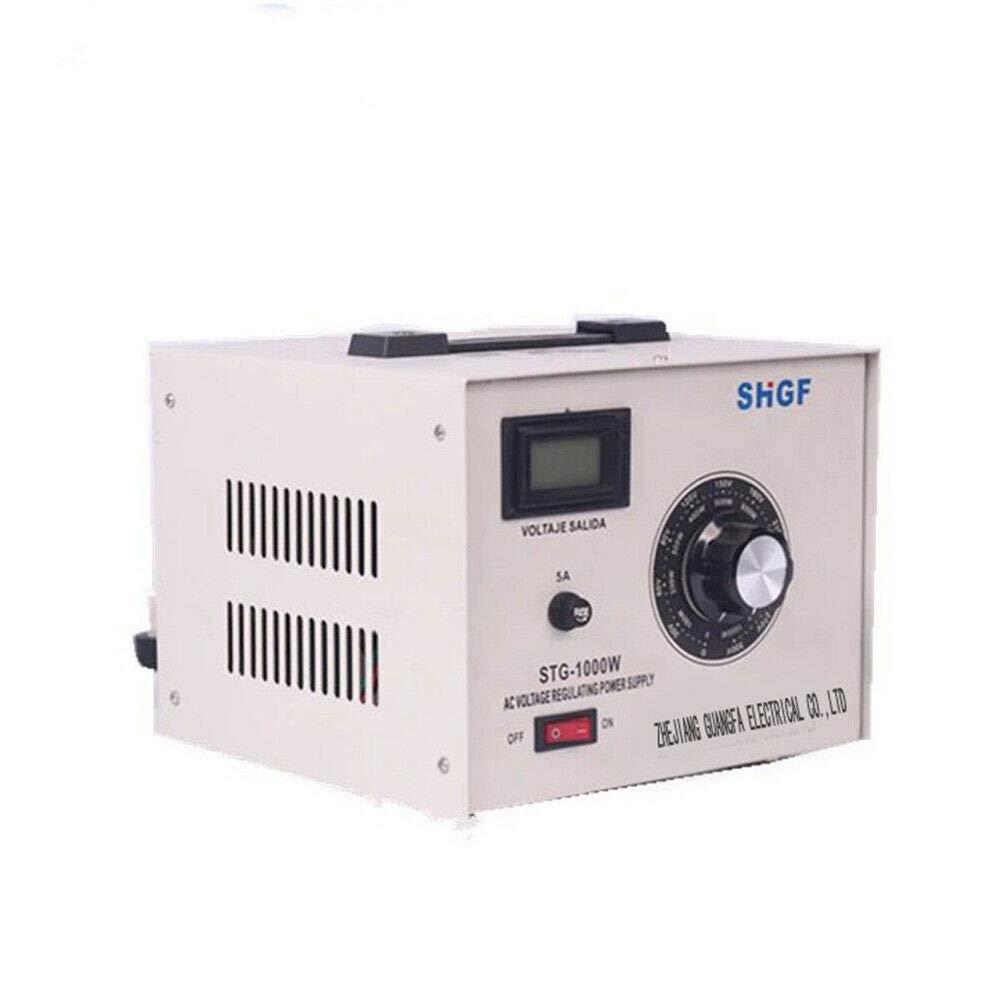

Mode: STG-1000W
Name: Single Phase AC Voltage Regulator Power Supply
The max current: 10A
Input voltage: 110V
Frequency: 50/60Hz
The max power: 1000W
Adjustable voltage: 0-300V
Dimension: 22.3x20.0x16.6cm
Net weight:7.18kg
Voltage Regulator Autotransformer load power characteristics:
Output voltage:220V 150V 100V 50V 10V
Calculation Corresponding load voltage value the max power formula:Output load power(W)=Output voltage(V)*The max current(A)
Package Included:
1 x STG-1000W Voltage Regulator
