Description
- The output voltage is lower,the output power is lower,the load power is lower
- During normal operation, the regulator should be checked regularly by charcoal brush and make sure that the brush and contact parts wont be more than the wide of two wires
- Check the insulation resistance regularly, the insulation resistance between coil and base shouldnt be less than 2mm
- Please connect the ground line to regulator case. After operation, turn the hand wheel pointed to zero place and cut off the power
- Voltage Regulator Autotransformer load power characteristics: Output voltage220V 150V 100V 50V 10V Load power<=800W <=600W <=400W <=200W <=40W Calculation Corresponding load voltage value the max power formula: Output load power(W)=Output volatge(V)*The max current(A)
Specification:

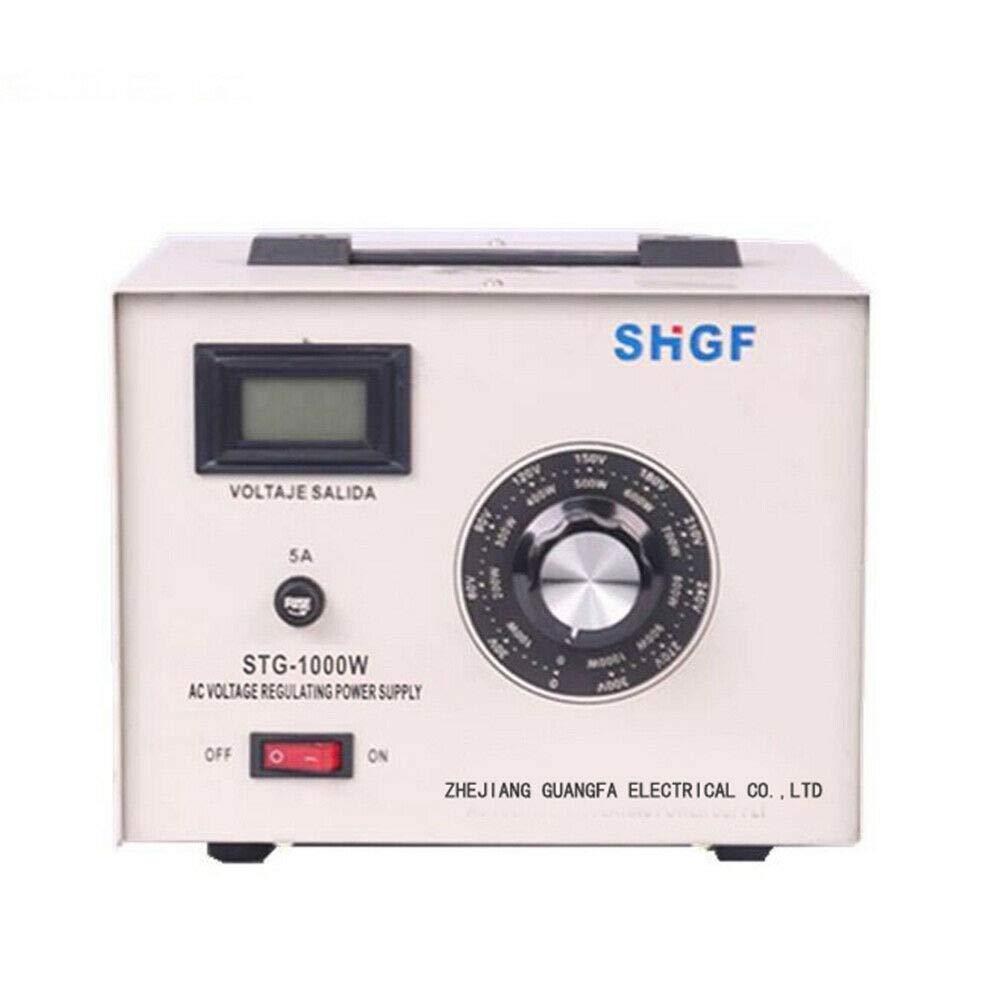

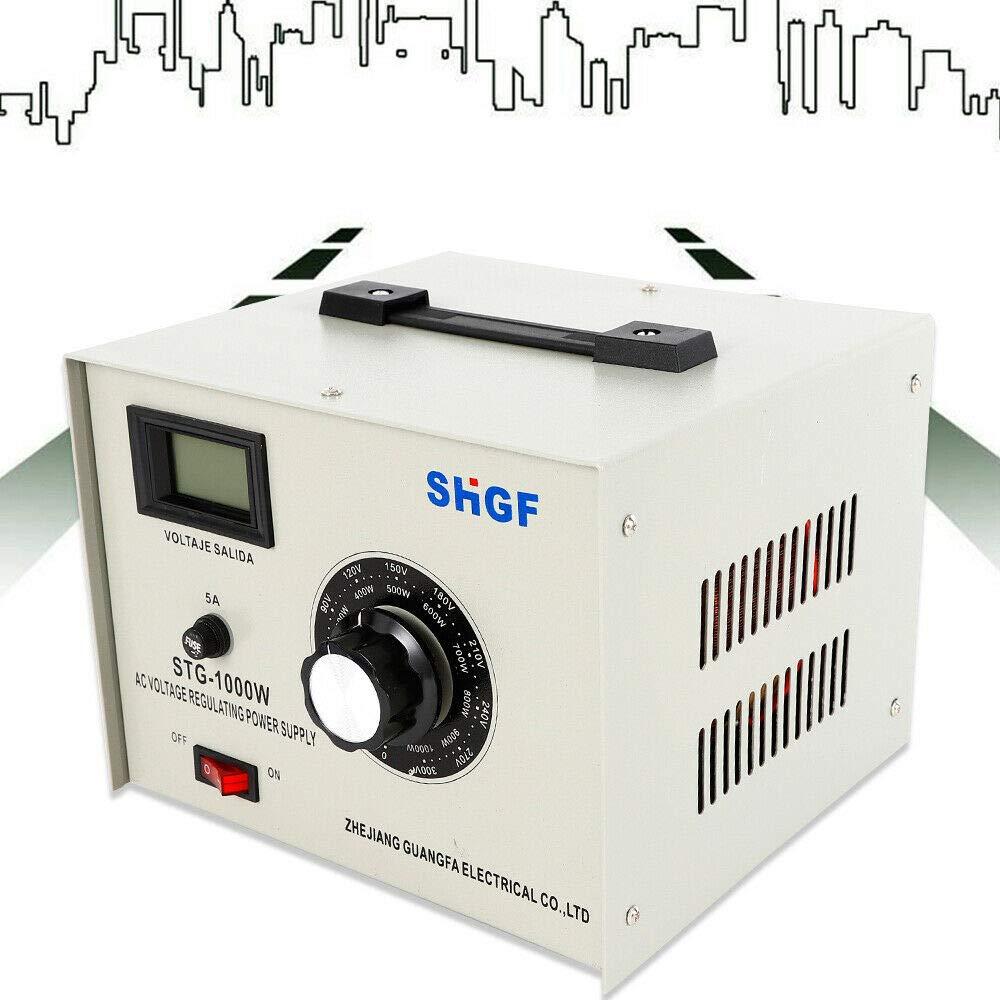

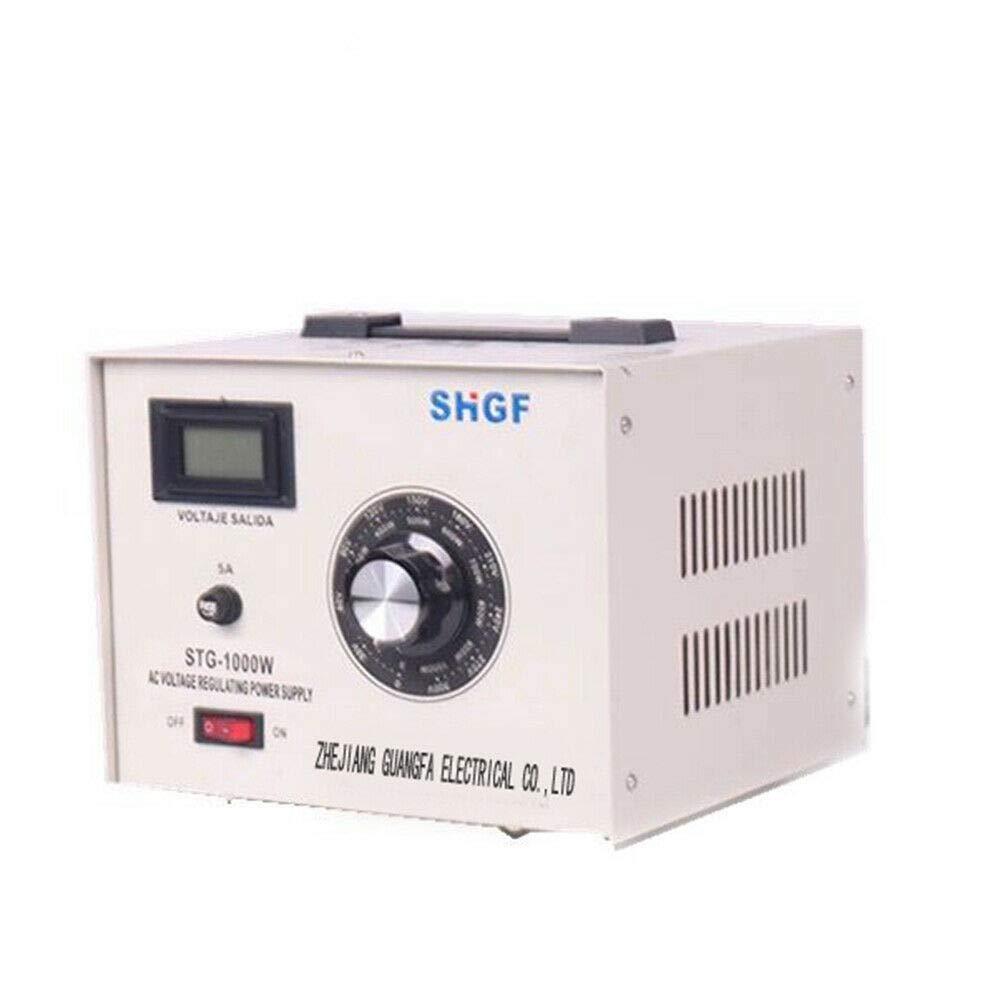

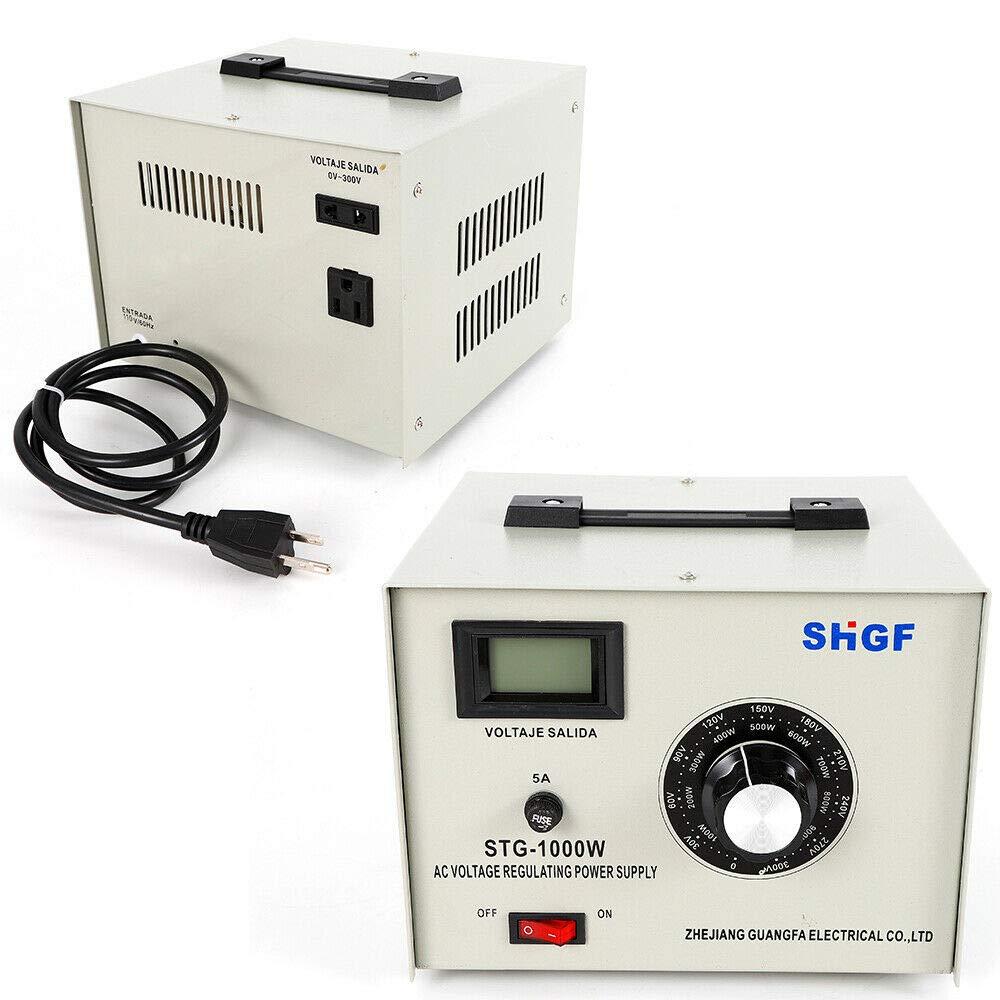

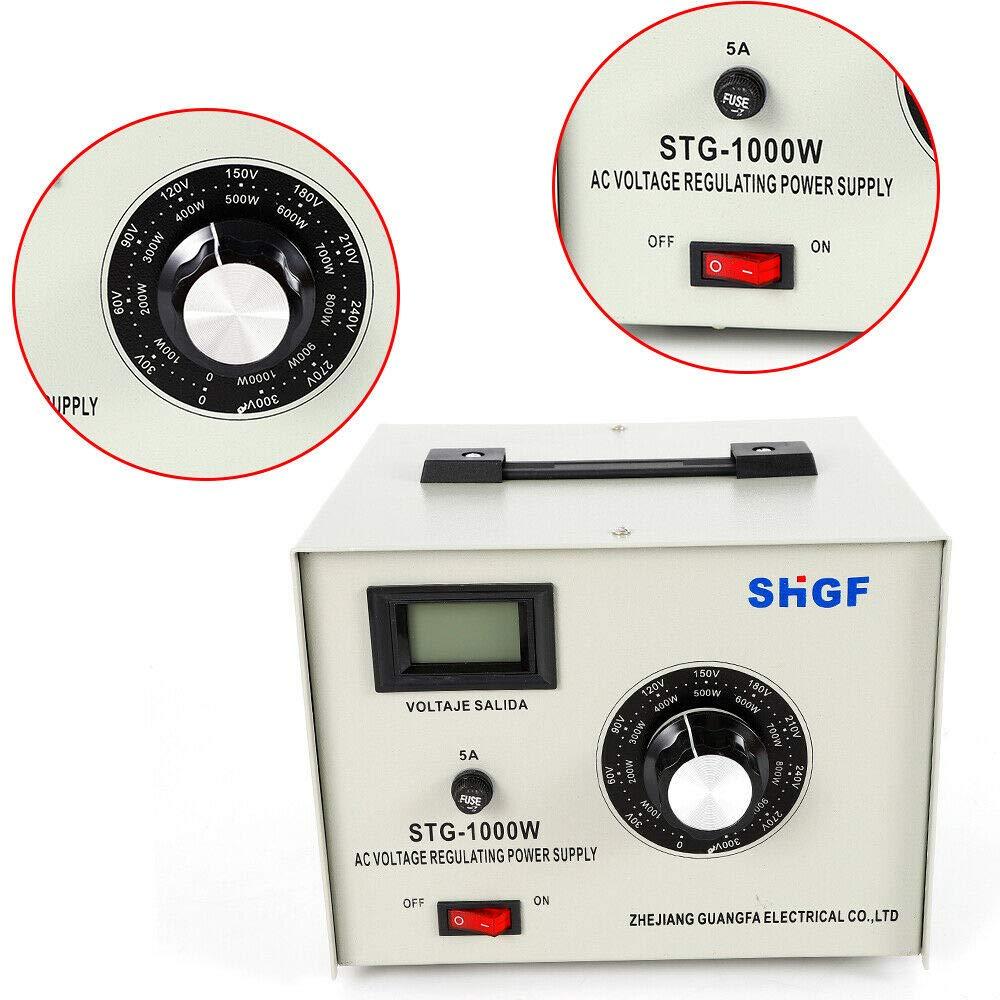

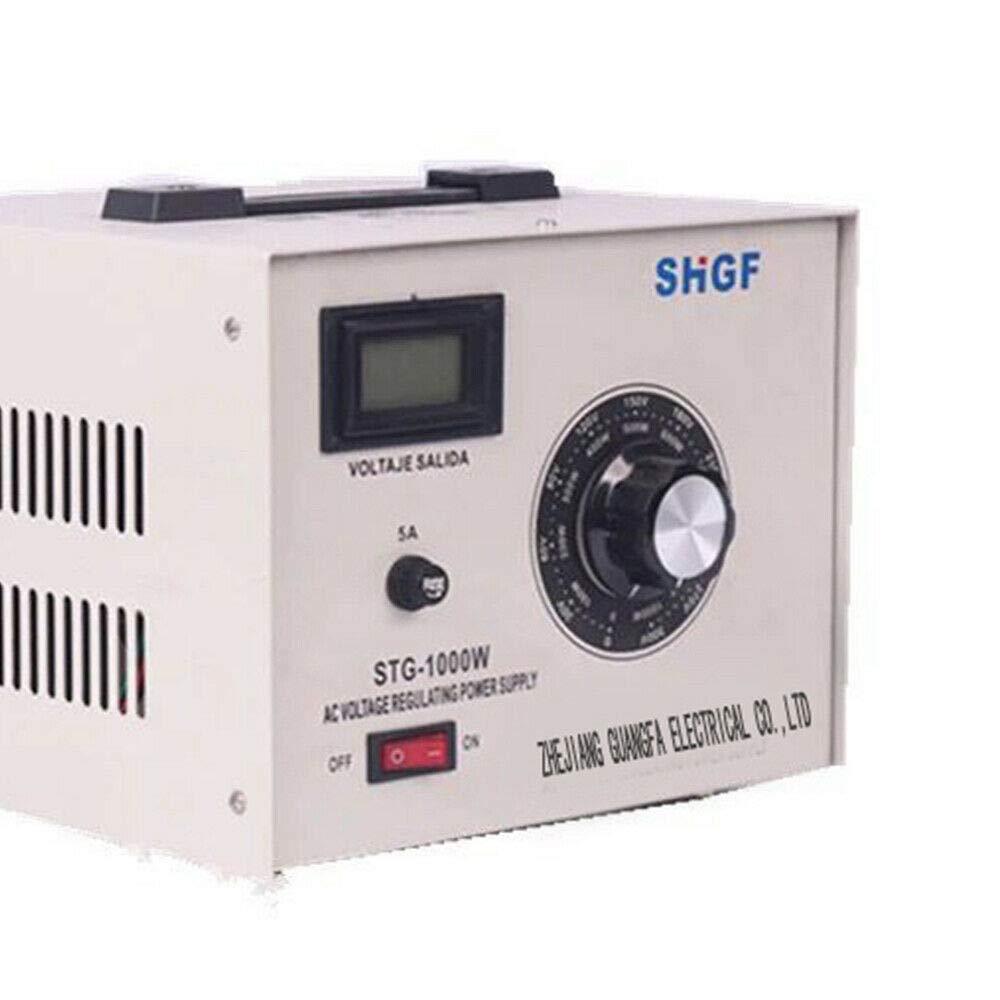

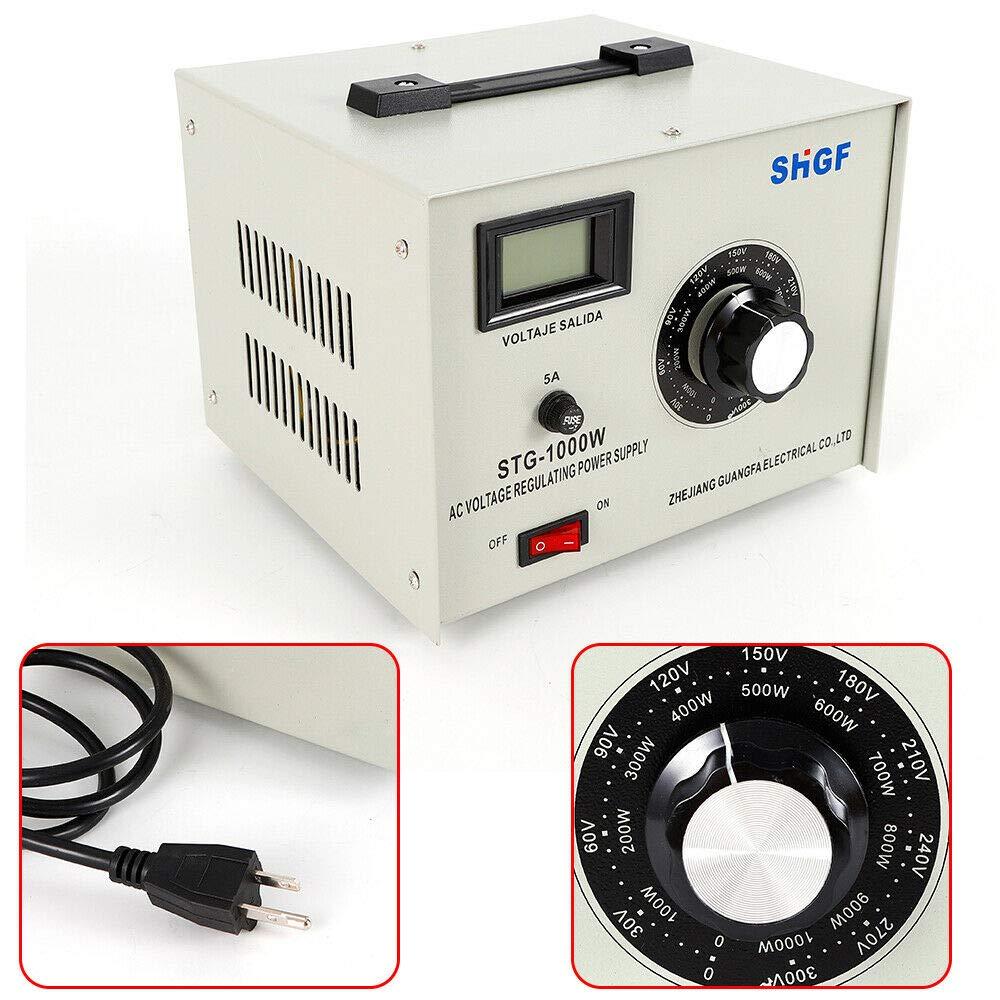

Mode:STG-1000W
Name:Single Phase AC Voltage Regulator Power Supply
The max current:10A

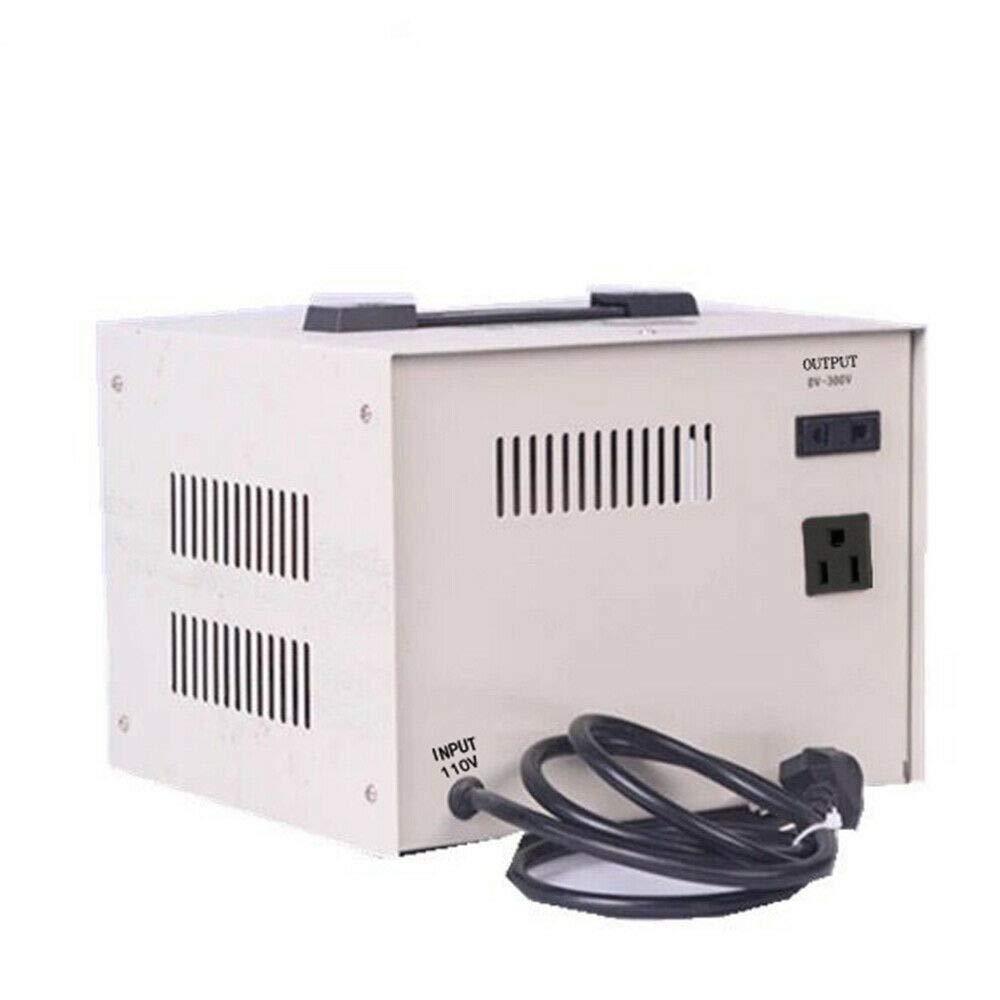

Input voltage:110V
Frequency:50/60Hz
The max power:1000W
Adjustable voltage:0-300V
Temperature rise:<=50

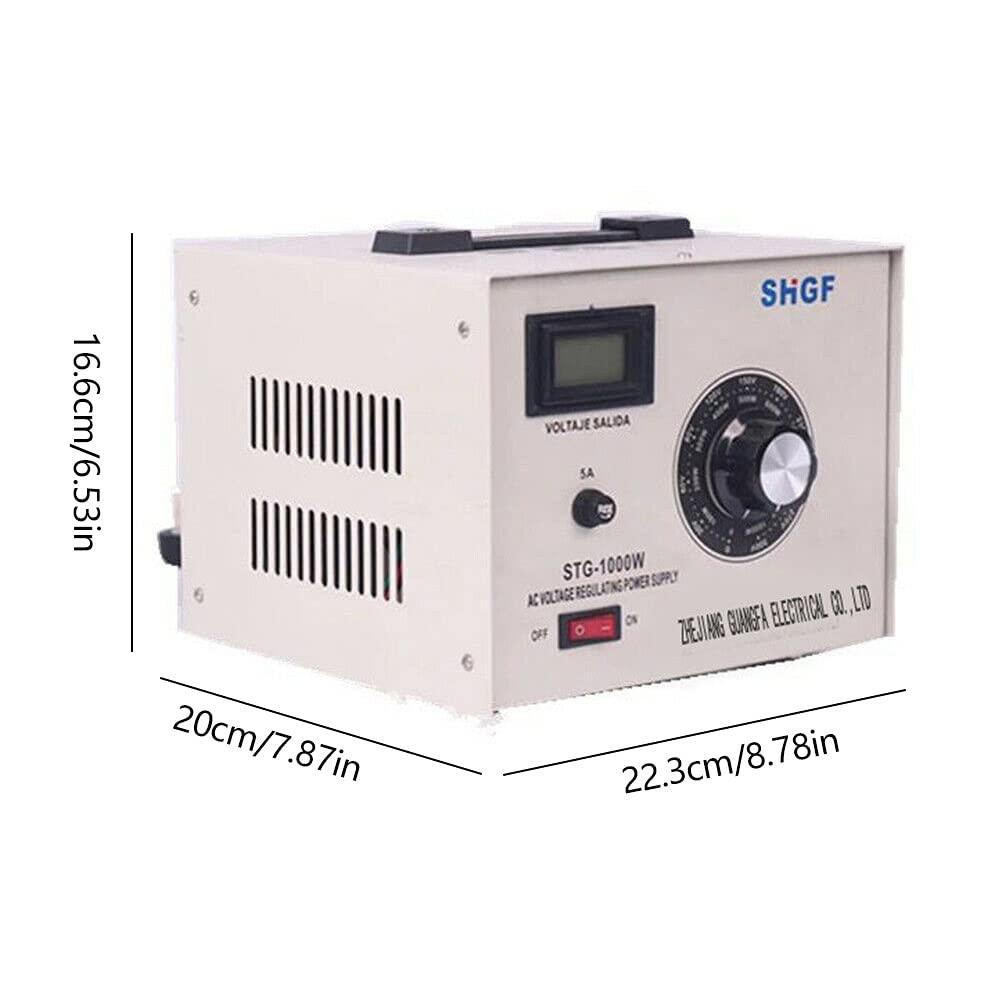

Dimension:22.3x20.0x16.6cm
Net weight:7.18kg
Voltage Regulator Autotransformer load power characteristics:
Output voltage220V 150V 100V 50V 10V
Load power<=800W <=600W <=400W <=200W <=40W
Calculation Corresponding load voltage value the max power formula: Output load power(W)=Output volatge(V)*The max current(A)
Note:
The output voltage is lower,the output power is lower,the load power is lower.
During normal operation, the regulator should be checked regularly by charcoal brush and make sure that the brush and contact parts wont be more than the wide of two wires. Check the insulation resistance regularly, the insulation resistance between coil and base shouldnt be less than 2mm. Please connect the ground line to regulator case. After operation, turn the hand wheel pointed to zero place and cut off the power.
Package Included:
-1 x STG-1000W Voltage Regulator
