Description
- High-Power Precision: Sundown Audio SAE-500.5 (SAEv4-900.5) 5-channel amplifier powers your entire system: 80W x 4 (Class A/B) for speakers and 500W x 1 @ 1 (Class D) for subwoofers (also 225W x 1 @ 2). This high-fidelity amp delivers clean, powerful signals, balancing performance and affordability for your car audio.

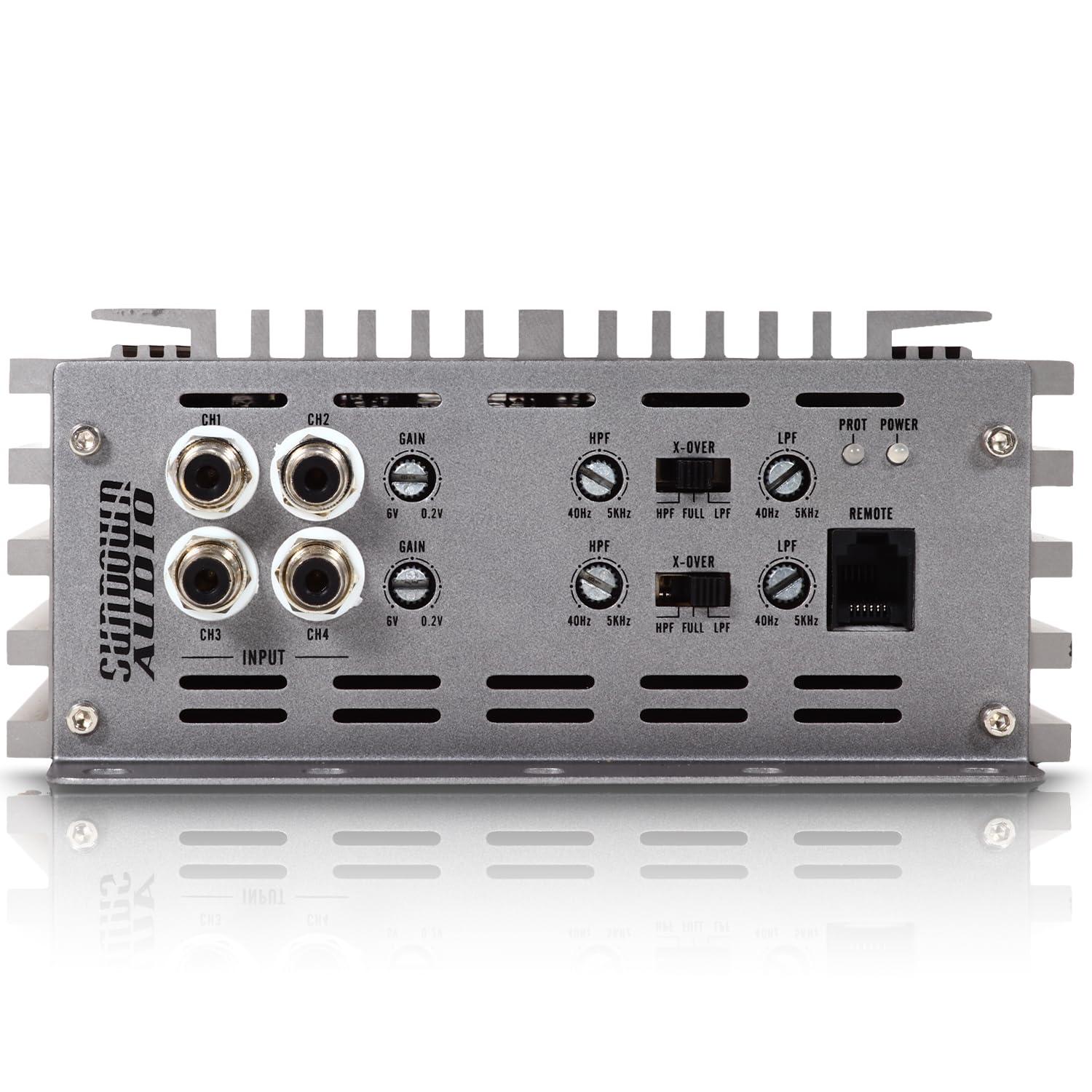

- Total System Control: Gain complete command over your sound. Channels 1-4 feature variable 12dB low & high pass filters (40Hz-5kHz). Channel 5 has a variable 12dB low pass filter (40Hz-250Hz) and a subsonic filter (10Hz-40Hz), ensuring perfect integration and optimal audio shaping for all components.
- Compact & Efficient: Featuring an all-new chassis with 33% more aluminum in the heatsink, the SAE-500.5 ensures superior thermal control, keeping your system cool even when pushed. Its compact dimensions (17.36 L x 6.3 W x 2.75 H) offer flexible installation while maintaining high efficiency.
- High-Power Precision: Sundown Audio SAE-500.5 (SAEv4-900.5) 5-channel amplifier powers your entire system: 80W x 4 (Class A/B) for speakers and 500W x 1 @ 1 (Class D) for subwoofers (also 225W x 1 @ 2). This high-fidelity amp delivers clean, powerful signals, balancing performance and affordability for your car audio.
- Built to Protect Itself: For ultimate reliability, this amplifier includes robust 4-way protection circuitry against thermal, voltage, speaker short, and DC-offset issues. Power and protection indicators provide real-time status updates, safeguarding your amplifier and connected speakers/subwoofers for long-lasting durability.
- Superior Audio & Remote Option: Designed with a high Signal-to-Noise Ratio of 92dB, the SAE-500.5 delivers crystal-clear audio with an exceptionally low noise floor. An optional wired remote control with a clipping indicator allows for precise, real-time output monitoring and control of the subwoofer channel, enhancing your listening experience.
Sundown Audio SAEv4 Amplifiers: Professional-Grade Power, Simplified
The Sundown Audio SAE Version 4 Series redefines reliability and performance for car audio enthusiasts. Whether youre upgrading your daily driver or prepping for competition, these amplifiers combine raw power with engineer-grade controlall in a compact, efficient design.
Why the SAEv4 Stands Out:
Power Tailored to Your Needs: From 100W x 4 (@4) for speakers to 3000W x 1 (@1) for subwoofers, theres an SAEv4 amp for every system.
Class A/B (Multi-Channel) or Class D (Mono): Optimized for clean sound (A/B) or max efficiency (D).
Cool Under Pressure: The redesigned heatsink with 33% more aluminum dissipates heat faster, even at peak loads.
Tweak Every Detail: Adjustable high/low-pass filters (40Hz5kHz) and 12dB/octave slopes let you dial in your perfect sound.
Protection You Can Trust: Multi-circuit safeguards (thermal, voltage, short-circuit) ensure longevity.
Technical Excellence:
Input Sensitivity: 6V max (works with factory or aftermarket head units).
Signal-to-Noise Ratio: 92dB+ (multi-channel) for whisper-quiet operation.
Voltage Range: 10.5V15.5V (performs even with stock electrical systems).
Includes: Amplifier, hardware. Manual provided for easy setup.
Ideal For:
Subwoofers (Mono models: SAE-600.1D to SAE-3000.1D).
Full-Range Speakers (4-Channel models: SAE-100.4 to SAE-200.4).
Hybrid Systems (5-Channel SAE-500.5 for subs + speakers).
Specs at a Glance (Customize per Model):
Dimensions: 14.88" L x 6.3" W x 2.75" H
Fuse Rating: [Add model-specific fuse size]
THD: <1% (Class D) / <0.5% (Class A/B)
