Description

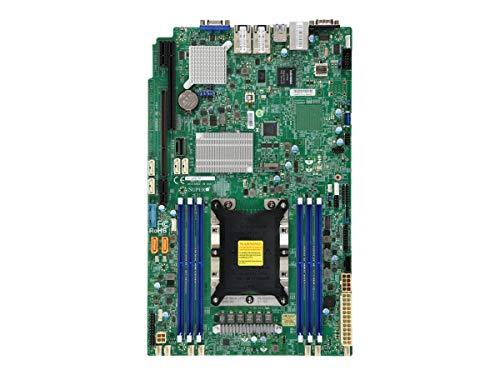

- Super Micro X11SPW-TF Motherboard
- M. 2 NGFF connector M. 2 interface: PCI-E 3. 0 x4 and SATA form Factor: 2280, 22110 key: m-key double height connector
- 2 superdome with built-in power
- I/O: 1 VGA, 2 com, TPM header
- 10 SATA3 (6Gbps) via C622
Specifications Mfg Part Number: X11SPW-TF-O CPU: Single Socket P LGA3647 Supports Intel Xeon Processor Scalable Family Support 205W TDP Support up to 28 Cores Chipset: Intel C622 Memory: 6x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 DIMM Slots, Support up to 768GB ECC/3DS Load Reduced Memory or up to 384GB ECC/Load Reduced Memory or up to 192GB ECC/REG Memory Slots: 1x PCI-Express 3. 0 x16 Slot (runs at x8), 1x PCI-Express 3. 0 x32 Slot (Left Riser) SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10 Video: ASPEED AST2500 Graphics LAN: Dual LAN with 10GBase-T with Intel X722 + X557 Ports: 5x USB 3. 0 Ports (2 rear, 2 via header, 1 Type A), 7x USB 2. 0 Ports (2 rear, 5 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x 10GbE LAN Ports Form Factor: Proprietary WIO, 8. 0 x 13. 0 inch / 20. 32 x 33. 02 cm RoHS Compliant
