Description
- CPU: LGA 1156 Socket Supports Intel Xeon X3400/L3400 series processors
- Chipset: Intel 3420
- Memory: 6x 240pin DDR3-1333/1066/800MHz DIMMs, Support upto 32GB DDR3 ECC Registered memory, upto 16GB DDR3 ECC Un-Buffered memory
- Slots: 1x PCI-Express x16 Slot(Support PCI Express 2.0); 1x PCI-Express x4(using on x8) Slot; 1x 32-bit PCI Slot
- IDE/SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10

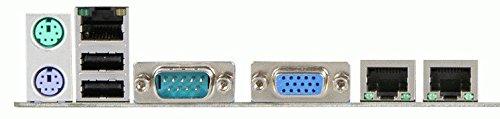

- Ports: 8x USB 2.0 Ports (2 rear, 4 by headers, 2 internal); 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by header); 1x VGA Port; 2x RJ45 LAN Ports
- LAN: Dual Intel 82574L Gigabit Ethernet Controllers
Supermicro X8SIE-F-O LGA 1156 / Intel 3420/ DDR3-1333/ V&2GbE/ ATX Server Motherboard
