Description
- DVB-T2/C2/T/C(J.83A/B/)/ISDB-T/C/ATSC1.0 TV RECEIVING: With PCI-Express interface to receive DVB-T2/C2/T/C(J.83A/B/)/ISDB-T/C/ATSC1.0 standard signal
- DUAL TUNER: used for watching two different channels from two different frequencies simultaneously, and it supports both DVB-T2 and DVB-C standard at the same time
- RECORDING: Also works as a digital video recorder for recording digital terrestrial TV programs with full HDTV support
- REAL TIME AND SCHEDULED VIDEO: With the Time-shifting function, it enables you to pause a live broadcast and continue from where you left
DVB-T2 and T2-Lite:
Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals
16, 32, 64, 128 and 256QAM modulations
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6
DVB-T:
6, 7 and 8MHz channel bandwidths
2 and 8K FFT
QPSK, 16 and 64QAM
1/2, 2/3, 3/4, 5/6 and 7/8 code rates
DVB-C2:
6 and 8MHz channel bandwidths
1/64 and 1/128 guard intervals
16, 64, 256, 1024, 4096 QAM
2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates
DVB-C:
1.7 to 7.2 Msym/s
16, 32, 64, 128 and 256QAM
0.15 roll-off factor
ISDB-T:
6, 7 and 8MHz bandwidth
2, 4 and 8K FFT
1/32, 1/16, 1/8 and 1/4 guard intervals
QPSK, 16QAM and 64QAM
ISDB-C:
5.274 Msym/s
0.13 roll-off factor
64 and 256QAM
TSMF (Transport Streams Multiplexing Frame)
J.83B (ITU-T J.83 v3.0 Annex B):
5.056941, 5.360537, 5.6 Msym/s
0.18 and 0.12 roll-off factor
64 and 256QAM
ATSC1.0:
6MHz channel bandwidths
8VSB modulation
2/3 code rate
Power consumption:
Input/ Power: 12V/8W
Temperature: 0~60
System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express: x1, x4, x8 or x16 slot
Digital TV signal DVB-T2/C2/T/C(J.83A/B/C),ISDB-T/C ,ATSC1.0
Package Contents:

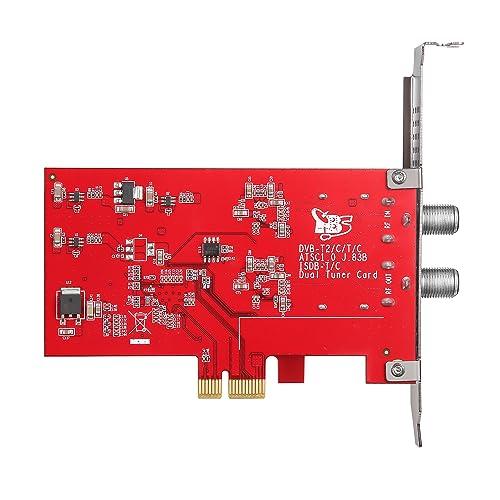

1 x TBS6281se V2
1 x DC line
1 x F Connector
