Description
- Faster H7 SOC with 1MB ram. (STM32H757)

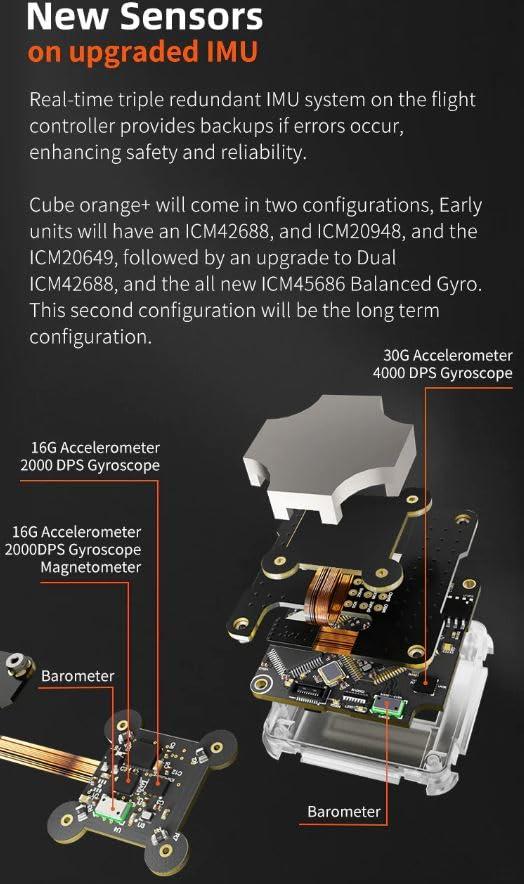

- Upgraded triple redundant IMU sensors.
- Two sets of IMU are vibration-isolated mechanically, reducing the effects of frame vibration.
- Temperature-controlled IMUs, allowing optimum working temperature of IMUs.
- Entire flight management unit (FMU) and inertial management unit (IMU) housed in small form factor (cube).
- Manufacturers can design their own carrier boards to suit their specific needs now and in the future.
- CubePilot carrier board compatible. All inputs and outputs go through a 80 pin DF17 connector, allowing plug-in solution for manufacturers of commercial systems.

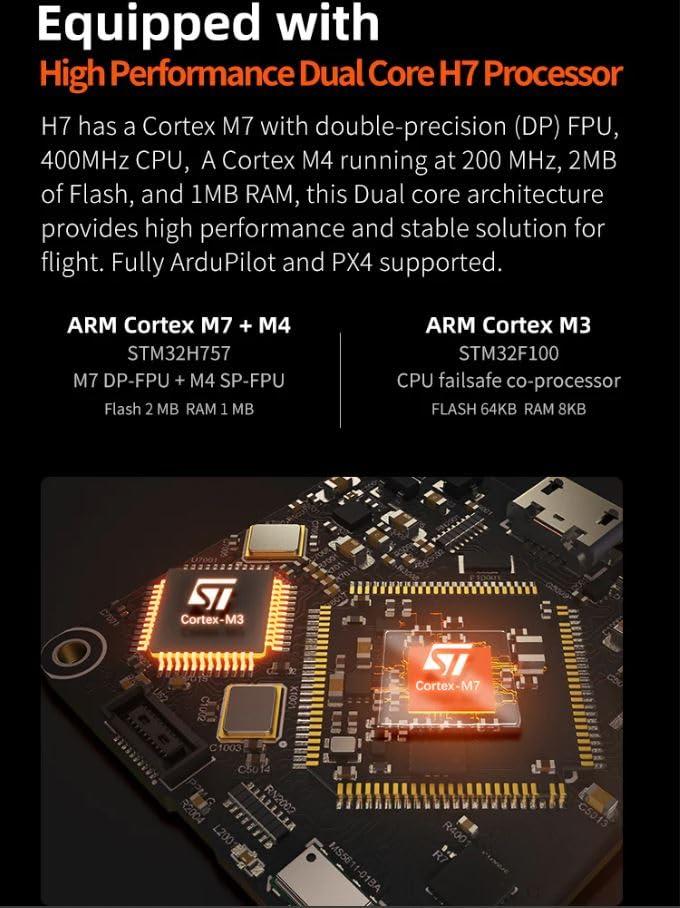

The worlds most advanced autopilot for open autonomous unmanned vehicles. Redundant, temperature controlled, isolated. Equipped with High Performance H7 Processor. The H7 has a Cortex M7 with double-precision (DP) FPU, 400MHz CPU, A Cortex M4 running at 200 MHz, 2MB of Flash, and 1MB RAM. This Dual core architecture provides high performance and stable solution for flight. Fully ArduPilot and PX4 supported. Real-time triple redundant IMU system on the flight controller provides backups if errors occur, enhancing safety and reliability.
