Description

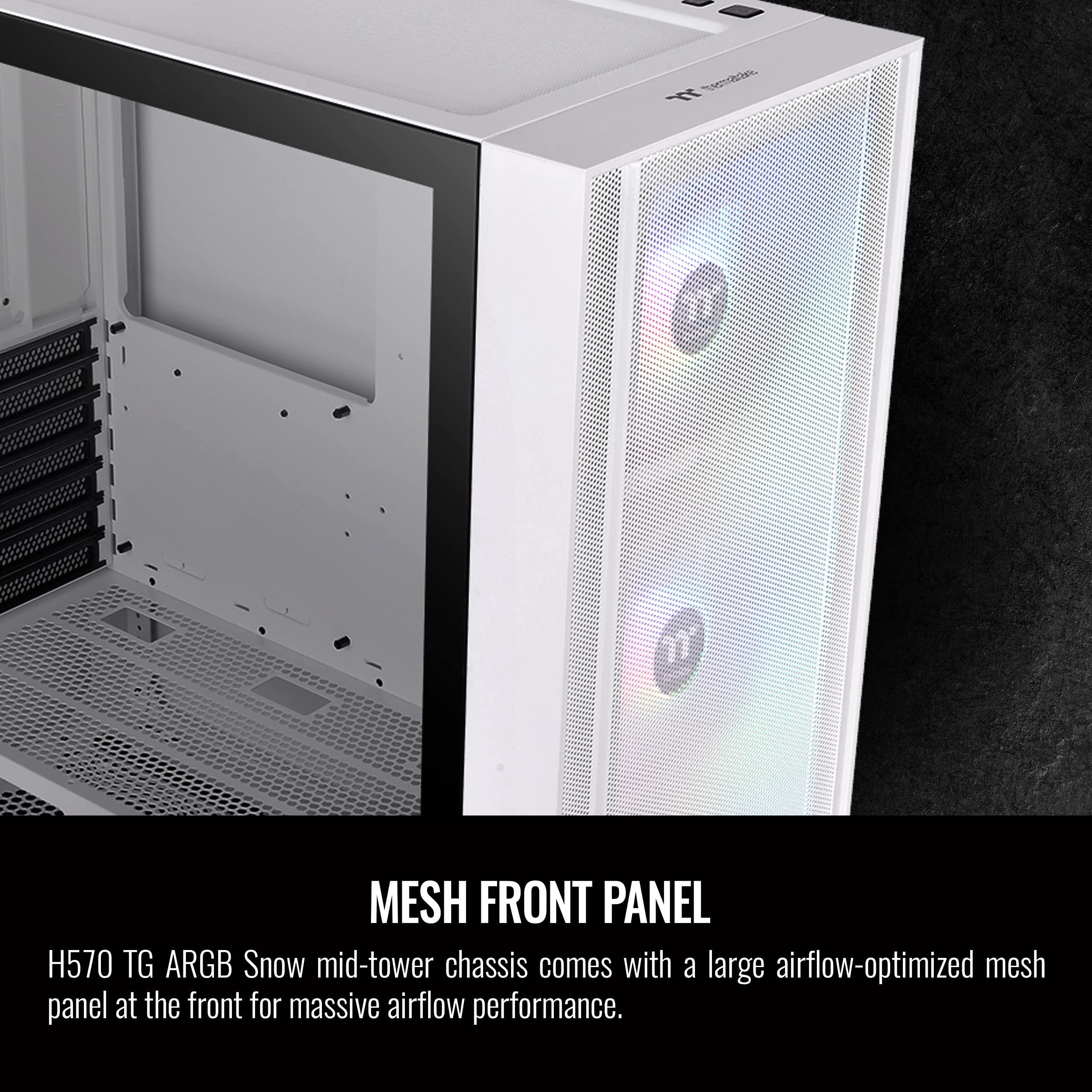

- Mesh Front Panel

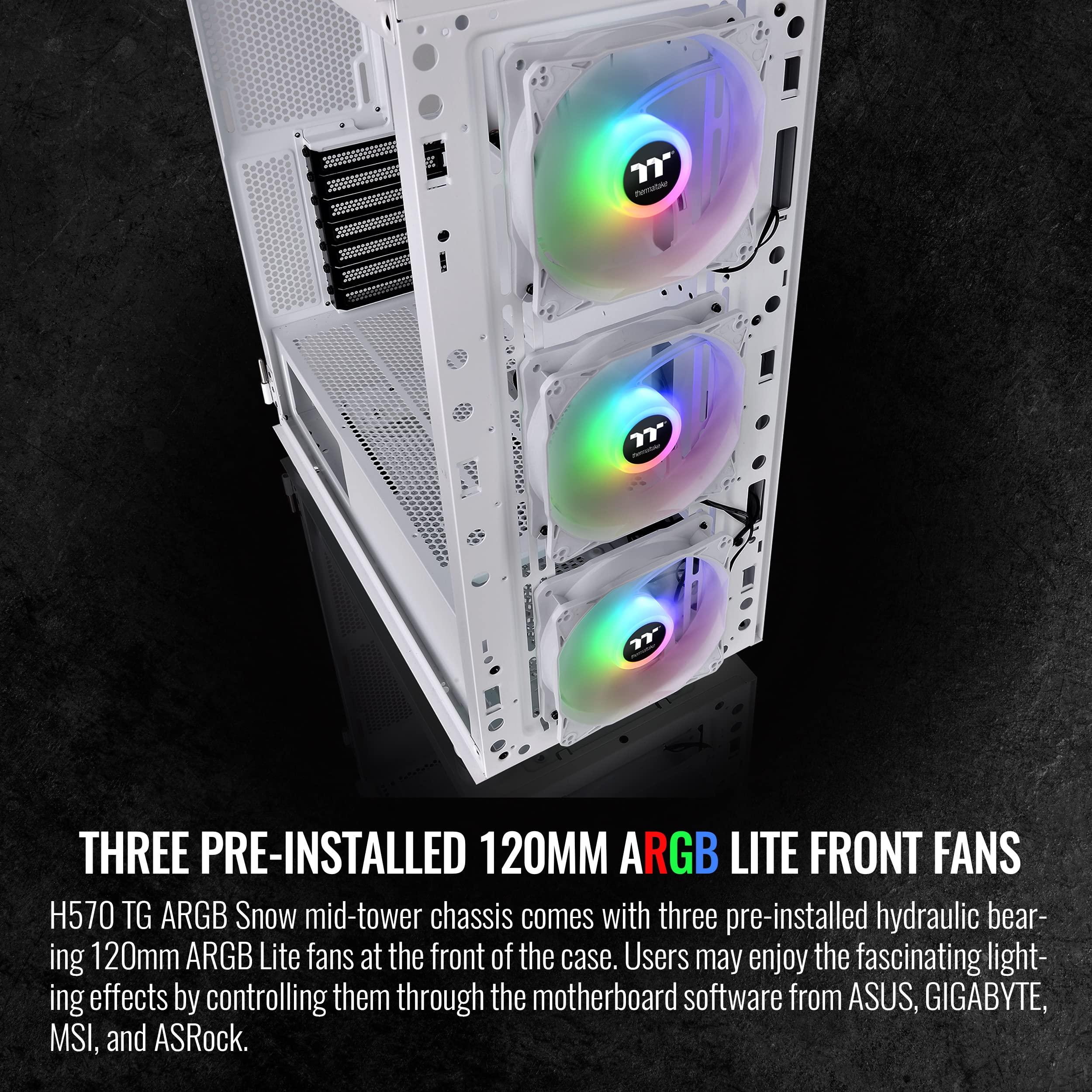

- Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans
- Sync with Motherboard RGB Software
- Built-in PSU Cover

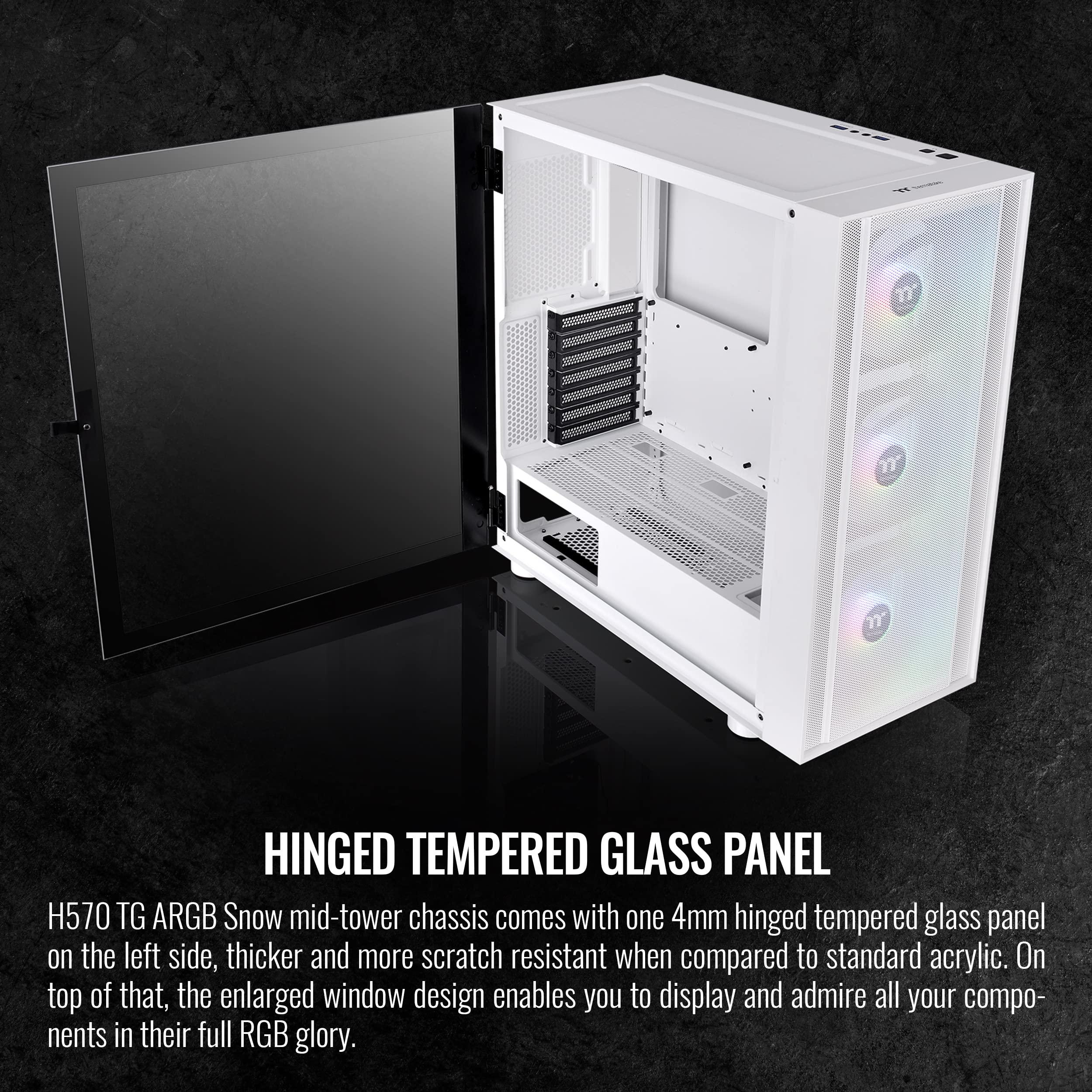

- Hinged Tempered Glass Panel

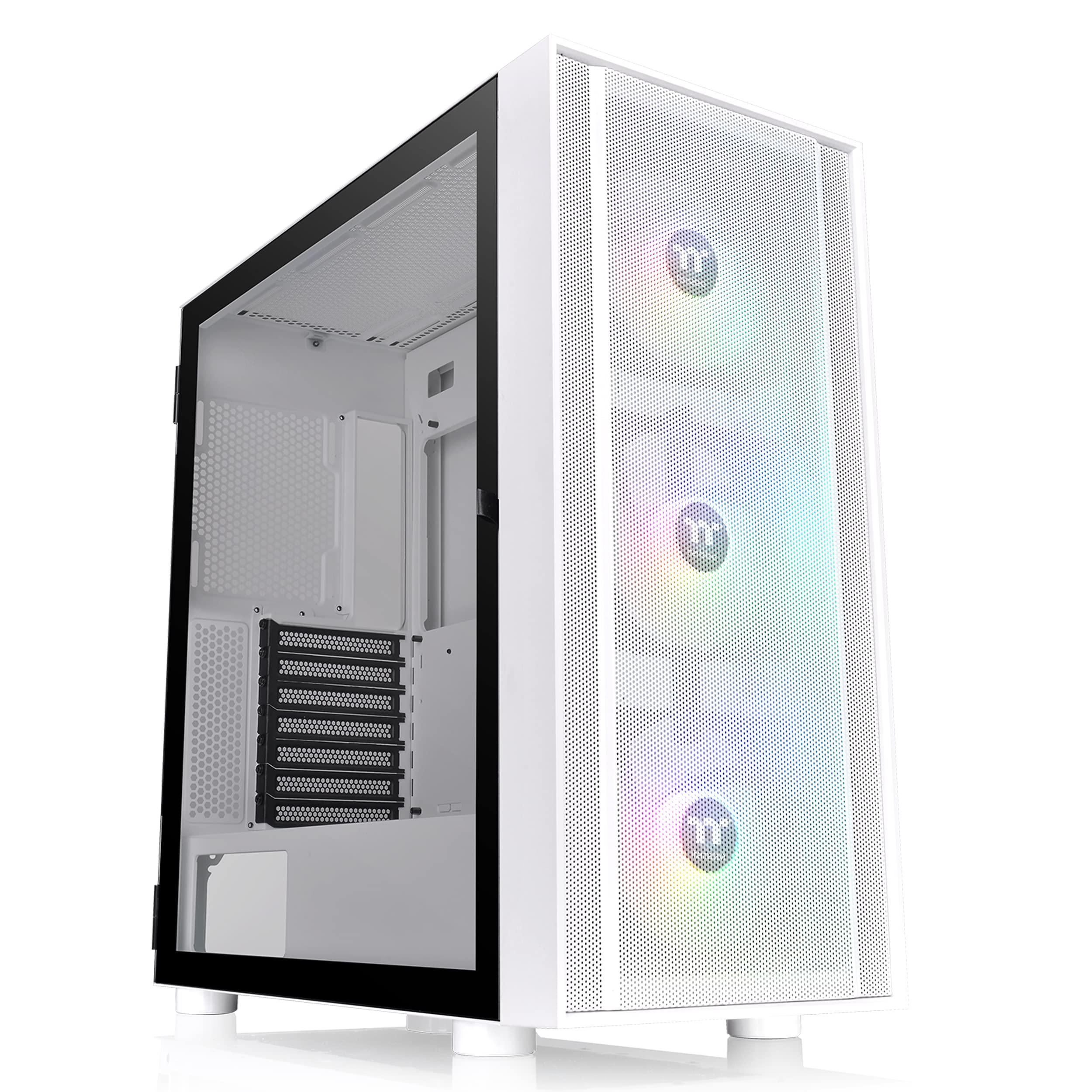

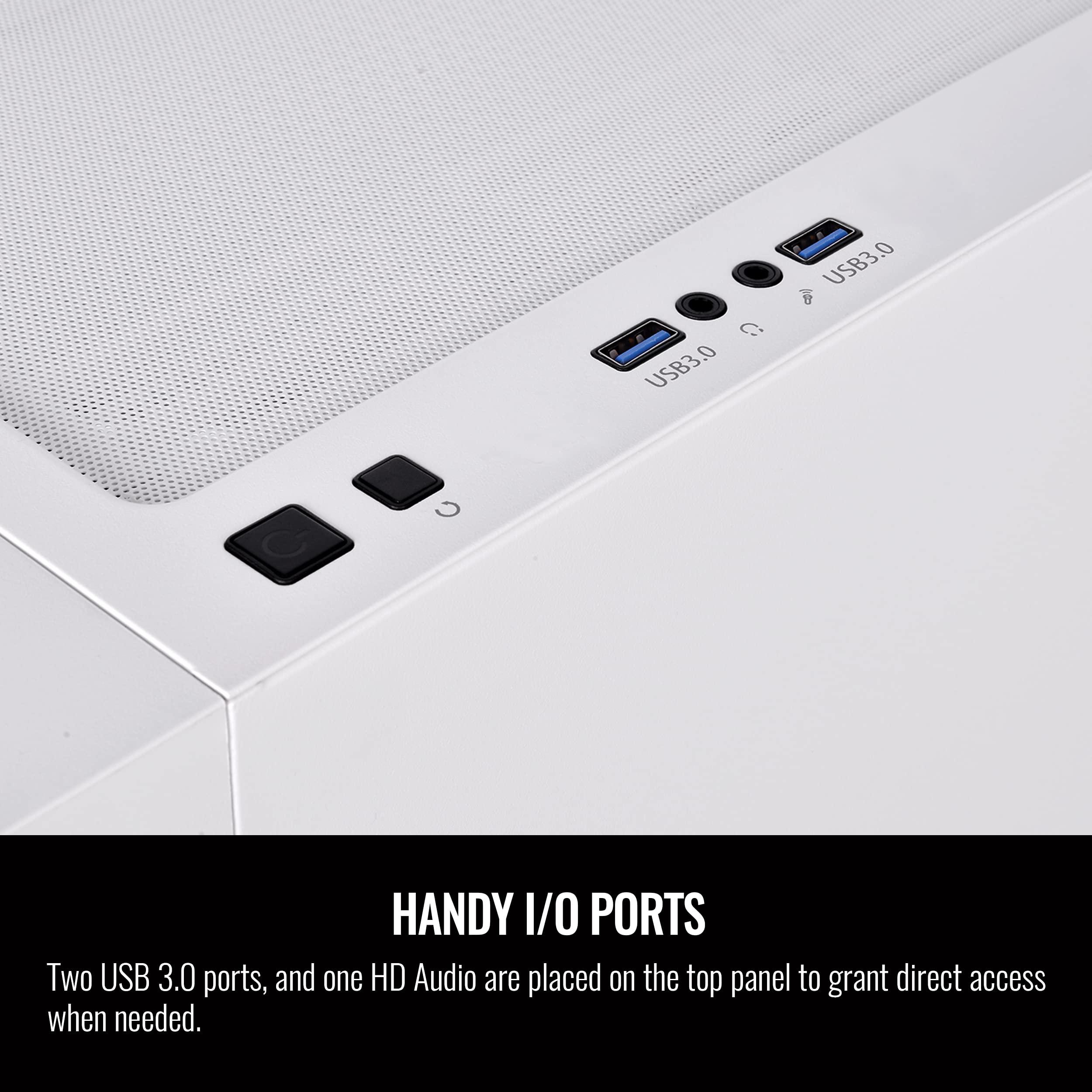

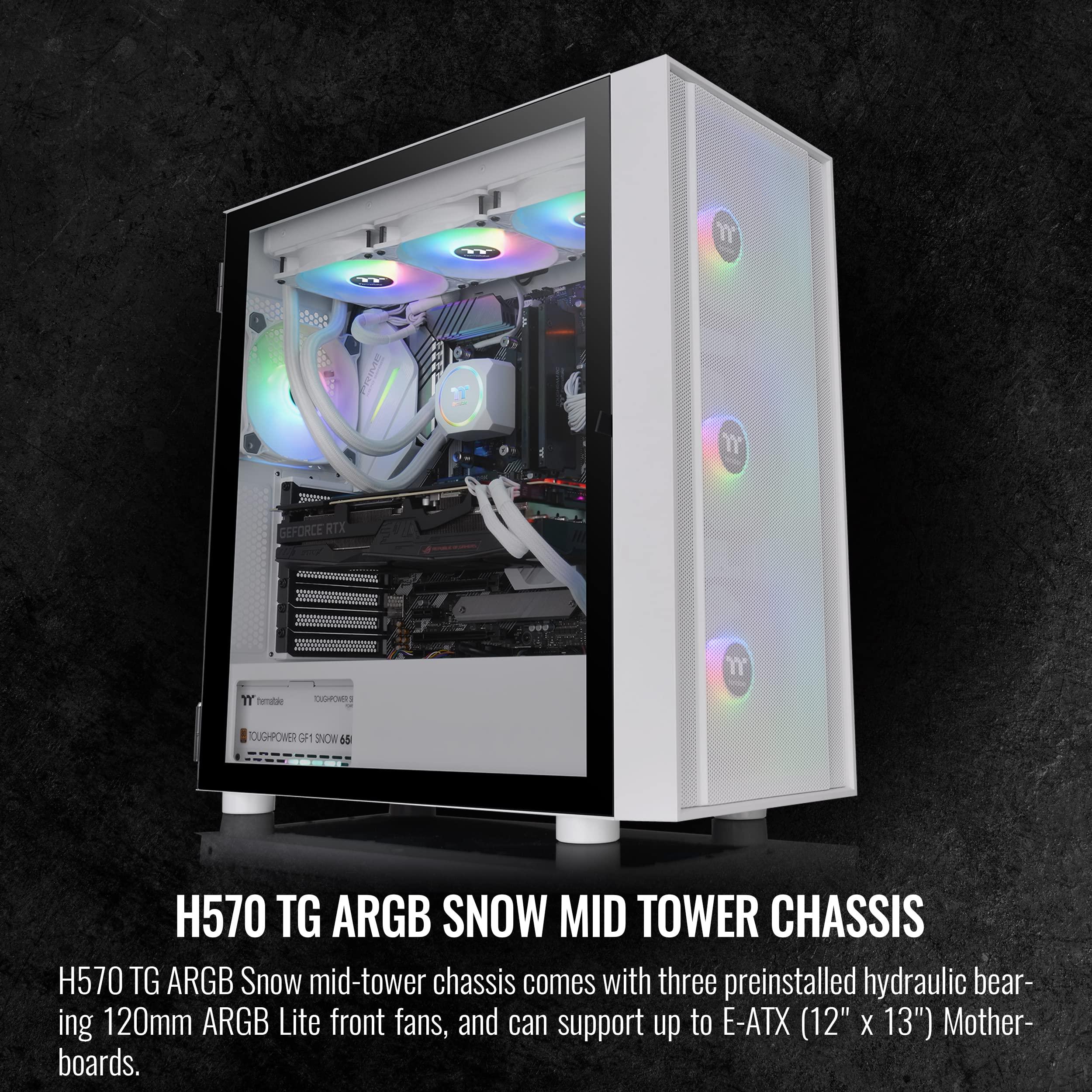

H570 TG ARGB Snow mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12 x 13) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis. P/N: CA-1T9-00M6WN-01 SERIES: H Series MODEL: H570 TG CASE TYPE: Mid Tower DIMENSION (H X W X D): 487 x 216 x 463.6 mm (19.2 x 8.5 x 18.3 inch) NET WEIGHT: 7.65 kg / 16.87 lbs. SIDE PANEL: 4 mm Tempered Glass x 1 COLOR: Black MATERIAL: SPCC COOLING SYSTEM: Front(intake): 120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3 DRIVE BAYS: -ACCESSIBLE, -HIDDEN 2 x 3.5, 2 x 2.5 or 4 x 2.5 EXPANSION SLOTS: 7 MOTHERBOARDS: 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13(E-ATX) I/O PORT: USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, LED button x 1 PSU: Standard PS2 PSU (optional) FAN SUPPORT: Front: 3 x 120mm, 2 x 120mm, 1 x 120mm, 3 x 140mm, 2 x 140mm, 1 x 140mm, 2 x 200mm, 1 x 200mm, Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm RADIATOR SUPPORT: Front: 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Rear: 1 x 120mm CLEARANCE: CPU cooler height limitation: 160mm VGA length limitation: 375mm, PSU length limitation: 180mm
