Description

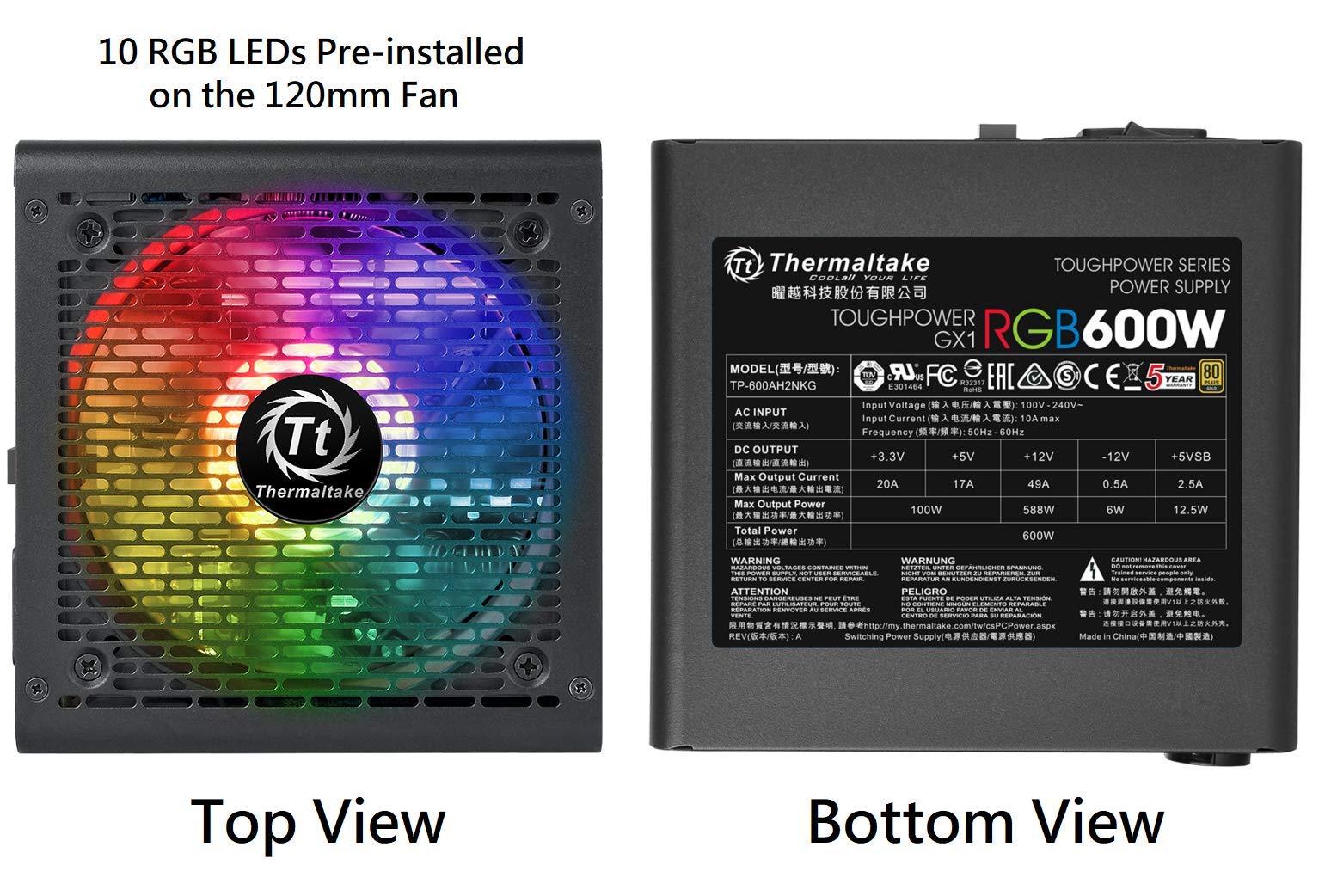

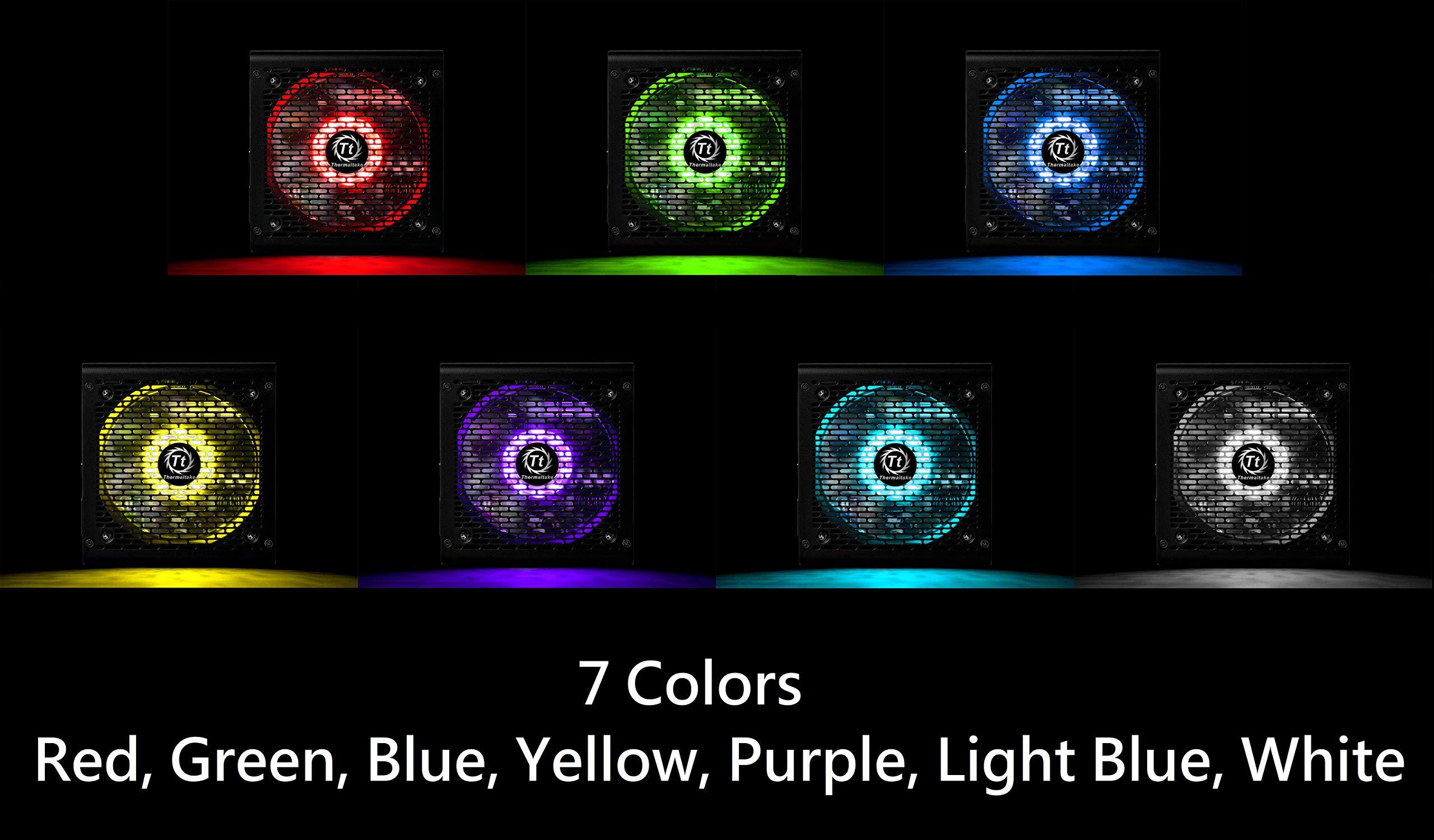

- 10 RGB LED fan - 120mm 10 RGB LED fan displaying 7 Colors (red green blue yellow Purple light blue White) with 3 illumination modes (pulse full-lighted RGB cycle)

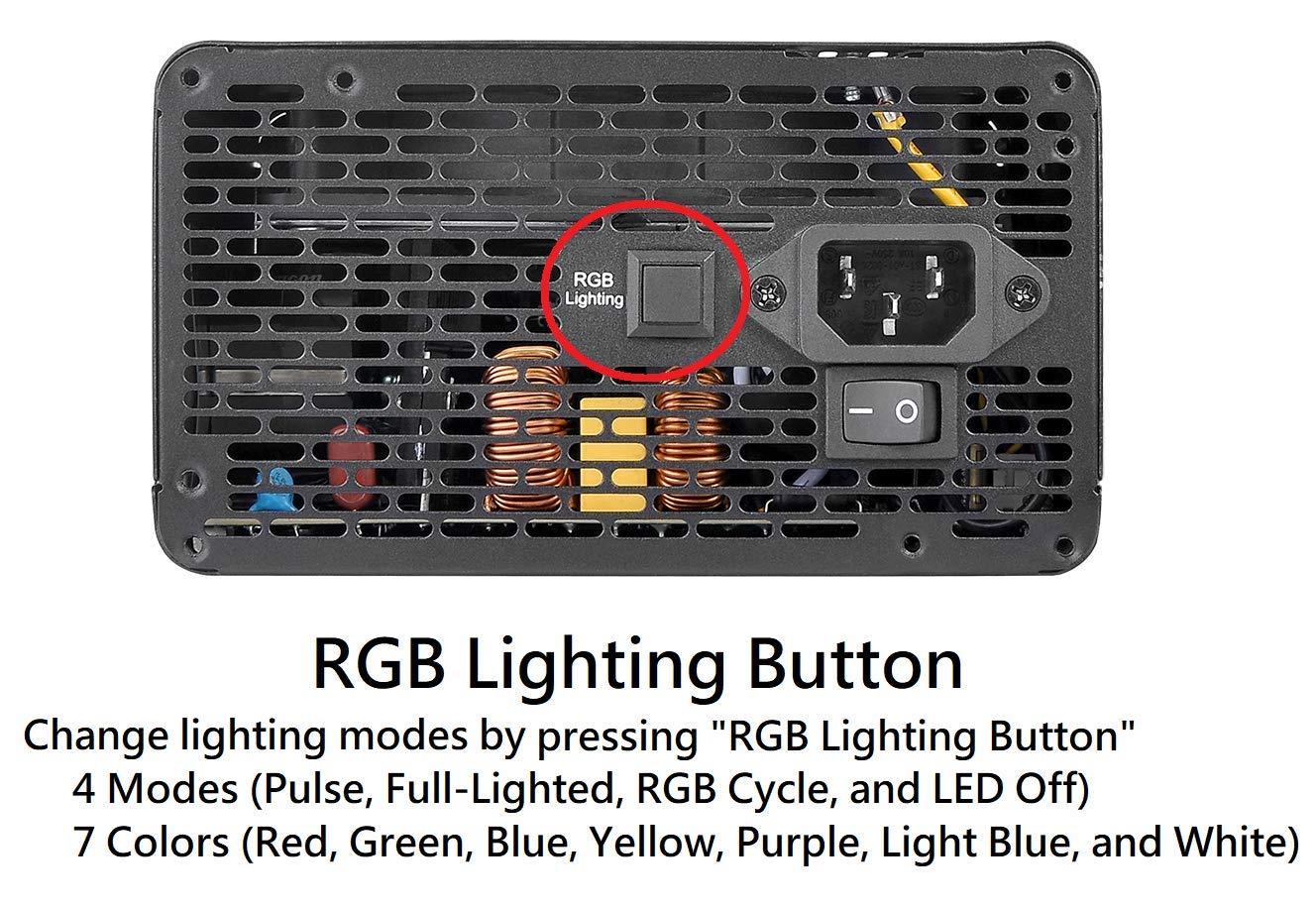

- One button RGB control - RGB Lighting button controls lighting effects Total 16 modes
- 16 lighting modes - pulse mode (7 Colors) full-lighted (7 Colors) RGB cycle and LED off
- 80+ gold - efficiency up to 90% and optimized for C6/C7 States ready
- Ultra quite - 120mm RGB hydraulic Bearing fan with RPM control superior cooling performance and silent operation

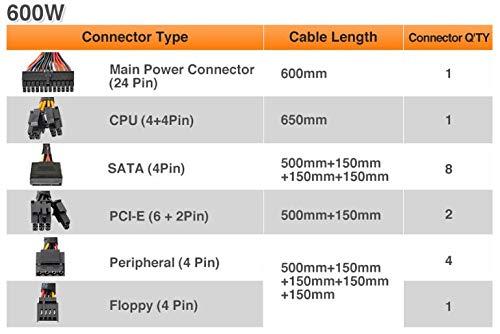

- 24 pin x 1 ATX 12V 4+4 pin x 1 SATA 4 pin x 8 PCI-E 6+2 pin x 2 peripheral x 4 FDD adapter x 1
- Main Japanese capacitors - 105C/221F Japanese capacitors provide superb performance and reliability
- Industrial protections - (OPP) Over Power (OVP) Over Voltage and (SCP) short-circuit protections
- Single +12V rail design - powerful 12V+ Single rail supports today's GPU demands supporting DC to DC design for non-stop usage with stable reliable performance
- 5 year

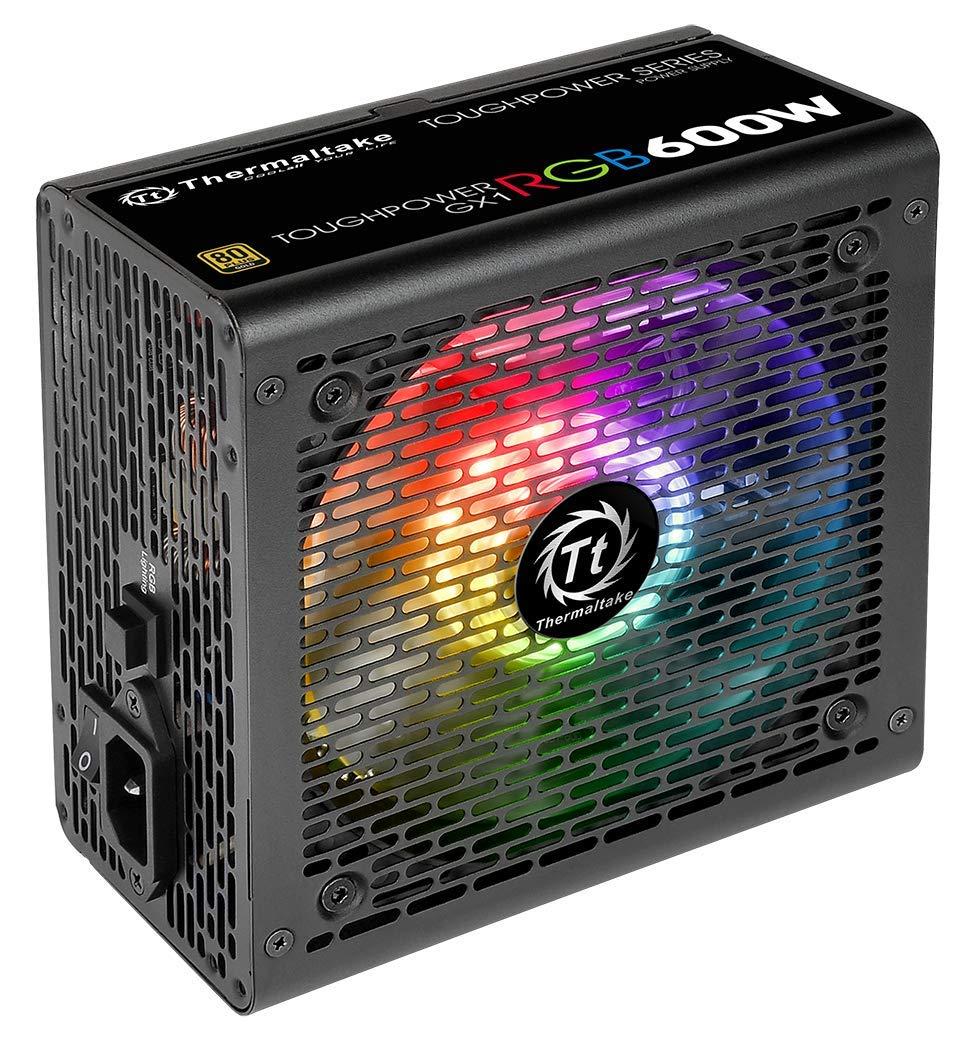

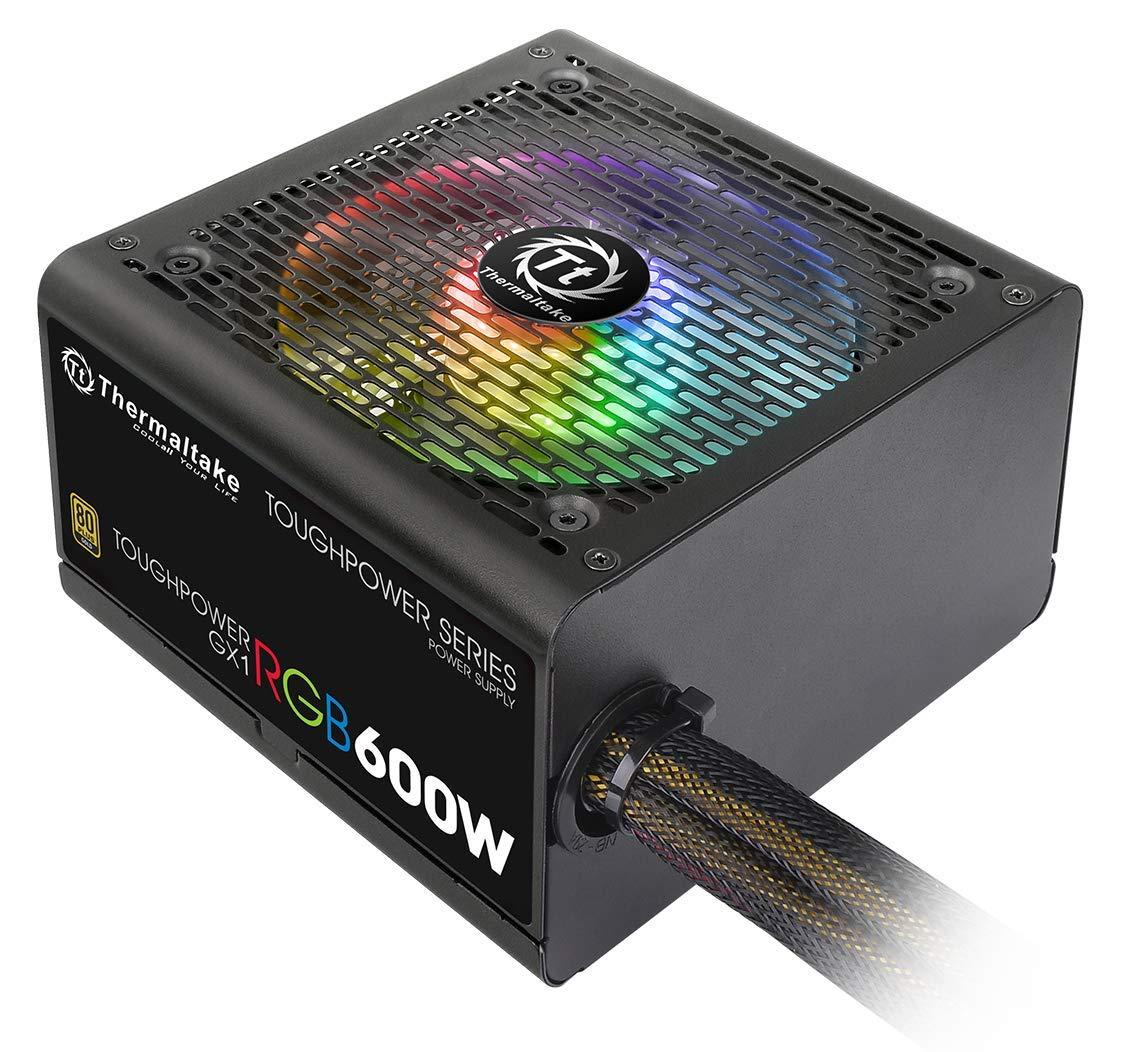

Built to deliver 80 Plus Gold efficiency Tough power GX1 RGB features capacities ranging from 500W to 700W 10 RGB LEDs come preinstalled on the hydraulic bearing fan to provide multiple vivid lighting mode/Color options LED off and a built-in memory function Coming with premium components Japanese 105c/221f main capacitor its reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appealP/N:PS-TPD-0600NHFAGU-1WATTS:600WRGB FAN:YesFORM FACTOR:ATXMODEL:TP-600AH2NKGTYPE:ATX 12V v2.3 and EPS v2.92MAX. OUTPUT CAPACITY:600WPEAK OUTPUT CAPACITY:720WCOLOR: BlackDIMENSION ( W / H / D ):150mm(W) x 86mm(H) x 140mm(D)PFC (POWER FACTOR CORRECTION):Active PFCPOWER GOOD SIGNAL:100-500 msecHOLD UP TIME: 12msec at 70% of full loadINPUT CURRENT:10A max.INPUT FREQUENCY RANGE:50Hz - 60HzINPUT VOLTAGE:100V 240V OPERATING TEMPERATURE:+5C to + 40COPERATING HUMIDITY:20% to 85%, non-condensingSTORAGE TEMPERATURE:-40C to + 55CSTORAGE HUMIDITY:10% to 95%, non-condensingCOOLING SYSTEM:12cm Hydraulic bearing fanEFFICIENCY:Meet 80 PLUS Bronze at 115Vac input.MTBF:100,000 hrs minimumSAFETY APPROVAL:CE/CB/TUV/ UL/ FCC/ BSMIPCI-E 6+2PIN:2
