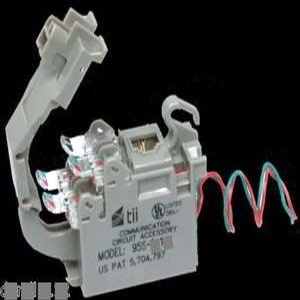

Tii 95s-1-12 Whole House Nid Dsl Filter Adsl Pots

Description

• Modules unique design provides customer bridging and ADSL POTS splitting - all in one module.
• Module easily snaps in and out of the customer side of the NID and occupies only one position, thereby not compromising the NIDs overall capacity.
• The Tii splitter design makes it possible to use a single phone line to provide triple play services including ADSL2+ and IPTV.
• With module installed, an additional standard POTS line module is not needed.
• Module includes Tiis unique patented switchable RJ-11 Jack. The Auto-Jack does not require an RJ-11 plug for normal operation and delivers unparalleled reliability.

Elimanate all those other filters around your home with this and straight line run to your computor, will let you get all those other filters off your line and help increase you dsl quality. Installing this item is easy just open up the customer side of you network interface device provided by you local telephone company, disconnect your inside lines from the connection point they provide you, hook up the red and green wire to were your inside wires were hooked in. Then hook the line running to your computer / DSL modem to the connector marked data and your other lines to the other connectors close up the network interface device and you have installed this device nothing more to it. If you do not have a line run straight to the DSL modem you may have to run a line so that you have a dedicated run to the dsl modem but it is that easy. Tii 95S-1-09-1 KEY PRODUCT BENEFITS Modules unique design provides customer bridging and ADSL POTS splitting - all in one module. Designed for use in a wide variety of Network Interface Devices (NID's) at the customer premises. Compatible with most standard Network Interface Devices in use by local Phone Companies throughout the USA When engaged, the Tii Auto-Jack connects the RJ-11 test plug contacts to the central office (CO) for dial tone validation while disconnecting the customer from the circuit. Auto-Jack assembly includes a sealed test point access feature, which allows the craft to test subscriber wiring even while a test plug is mated into the Auto-Jack receptacle. This greatly facilitates the testing process. Standard features such as customer locking/telco bypass, and hinged covers become available when installed in a tii Network Interface Device. INDUSTRY STANDARDS Auto-Jack RJ-11 unit exceeds Telcordia GR-49 CORE requirements for severe climatic conditions, and first/second level lightning surge requirements in the open and short circuit mode. ANSI T1.424 Compliant. Listed to UL 56S7.
