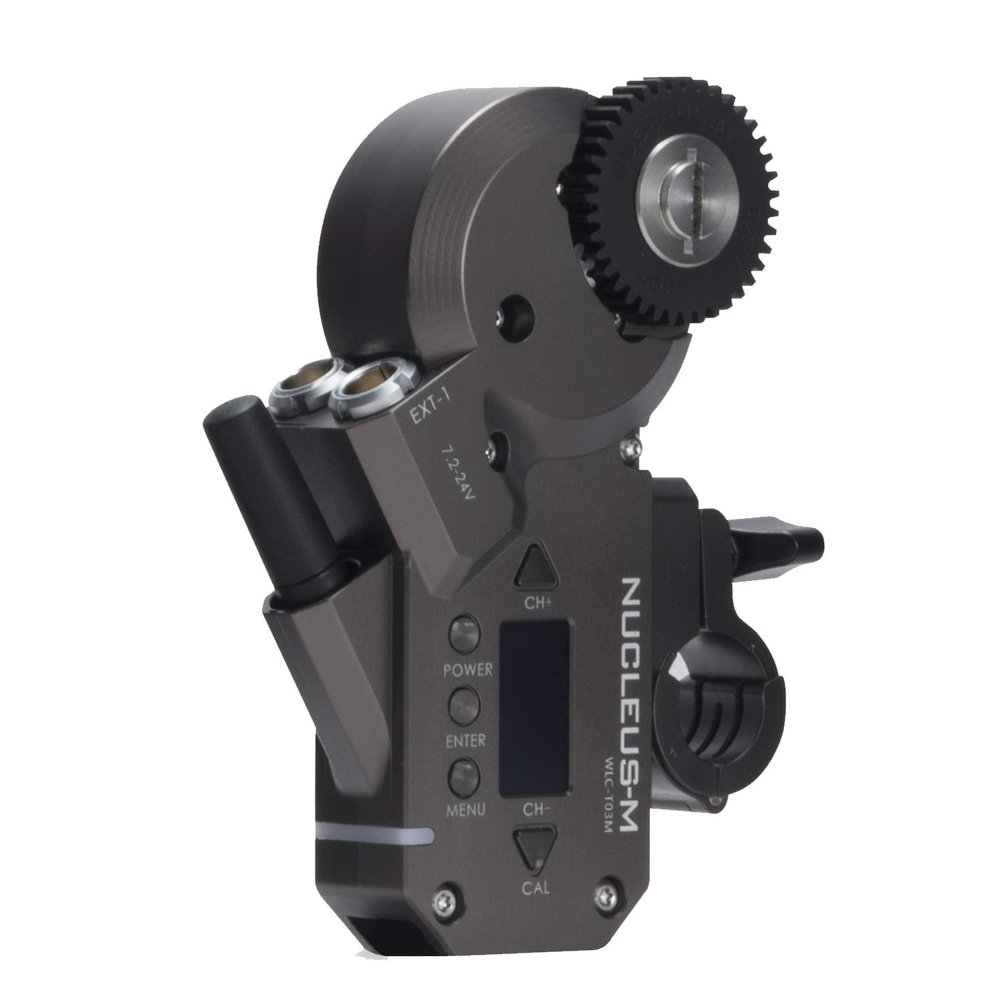

Tilta Nucleus-M Brushless Wireless Follow Focus Motor

Description

• Nucleus-M Motor and 55cm 7-Pin to 7-Pin Nucleus-M Motor Cable included.
• To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables. The motors can be powered through a power source that has a voltage output ranging from 7.2V-24V.
• The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup.
• The motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that dont have hard end stops at close focus and infinity.

This Nucleus-M motor kit allows you to add a motor to your Nucleus-M kit along with the 7-pin to 7-pin power cable that allows you to power the motor from a daisy-chained connection to another Nucleus-M motor.

Each motor has its own built-in motor drive that communicates directly with the hand unit and hand grips. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time. Simply set the motors and hand unit/hand grips to the same channel and you will have full control.

Tilta Nucleus-M FIZ Lens Control Motor
The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.
The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.
Features:
Brushless motor with an integrated motor drive
Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear
Motor clamps onto 19mm or 15mm rods (with included bushing)
Power via separately available D-Tap cable or daisy-chain to additional motors
Automatic and manual calibration
For focus, iris, or zoom control
High, medium, and low torque settings
Status display window
PACKING LIST:
(1) Nucleus-M Motor
(1) 55cm 7-Pin to 7-Pin Nucleus-M Motor Cable
Color: Tilta Grey
Materials: Aluminum-alloy, stainless steel
