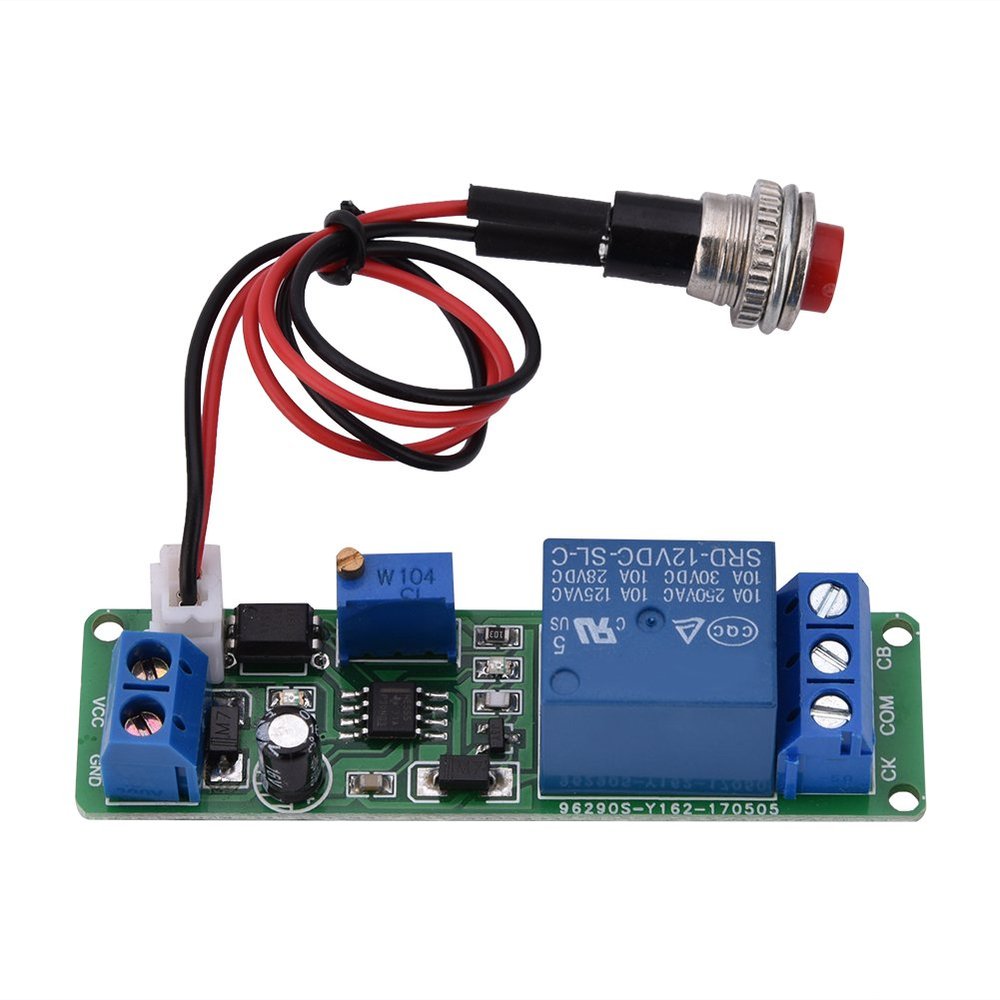

Time Delay Relay, DC 12V Timer Module Adjustable Timer Delay Turn Off Module Timing Relay Time Switch 1~10 Second

Description

• Delay relay: This is a timer relay module with high , stable and performance. Turn on the power of the module, press the button once, and the relay is connected (normally open and common terminal is on), and the delay is 1 to 10 and it can be turned off.12v timer programmable
• Delay relay: This is a timer relay module with high , stable and performance. Turn on the power of the module, press the button once, and the relay is connected (normally open and common terminal is on), and the delay is 1 to 10 and it can be turned off.12v timer programmable
• function: Off delay timer supports reverse input , with a button switch, adjustable time, and versatile. The working voltage is 12V, the load is below 10A 250VAC (AC), 10A 30VDC (DC).
• : Turn on the power, then press the switch to turn on the load, and turn off the load after the delay time; the time range is 1 second to 10 seconds, which can be adjusted by the potentiometer; if you need a longer time, just replace it with a larger one Capacitor or potentiometer.
• the delay module: After supplying power to the module, the power indicator will light up, and the status of the module output terminal is: normally open and public disconnection, normally closed and public conduction. After the touch switch is turned on for an , the work indicator lights up and the relay is in and at the same time. At this time, the status of the relay output terminal is: normally open and public conduction, normally closed and public disconnection.
• Widely used: 12v dc timer is widely used in timer equipment, robots, intelligent product development, automation equipment, PLC development, smart home anti-theft alarm delay, electronic development, etc.

Specifications:
Working Voltage: 12V
Load Capacity: 10A 250VAC, 10A 30VDC
Size: 67.6*19.2mm / 2.66*0.75"
Quantity: 1

Package Includes:
1 x Timer Module
