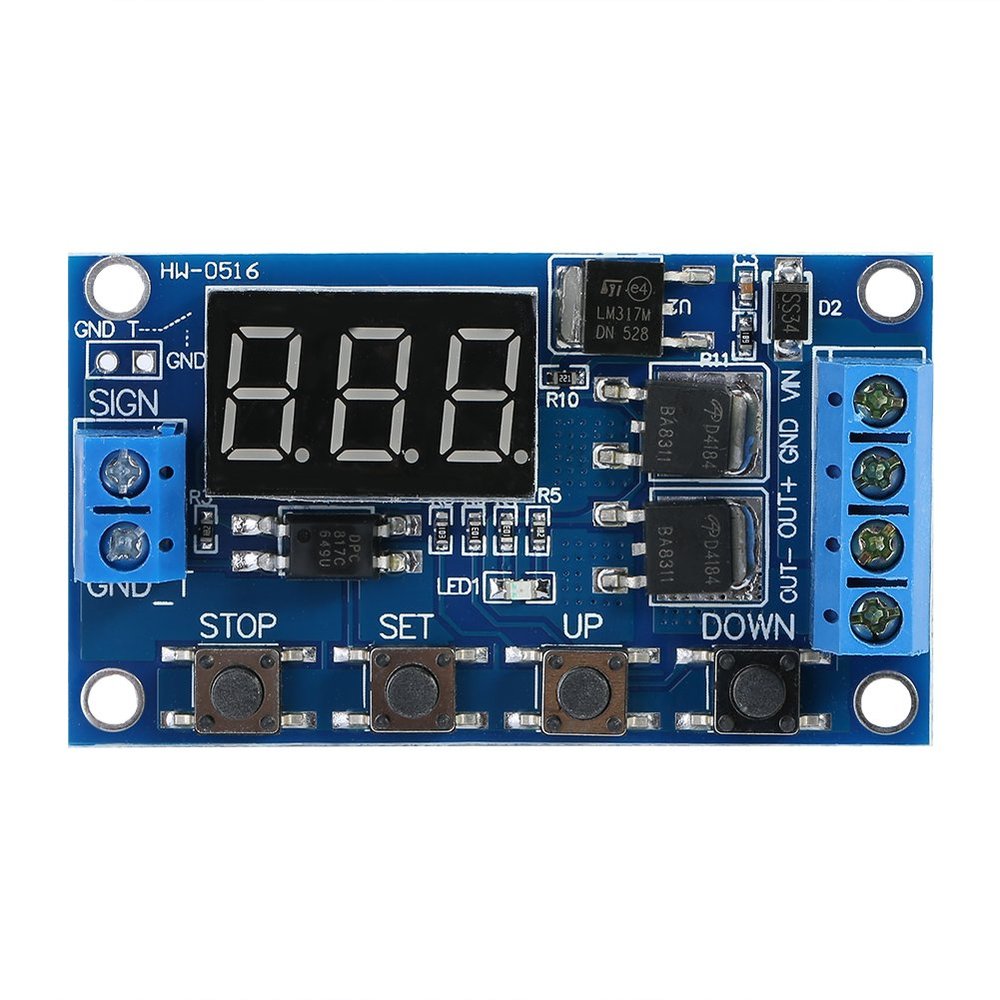

Timer Module, Asixx DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display

Description

Specifications:
Voltage: DC 5V~36V.
Source: High voltage level (3.0V~24V), ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground).
Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A.
Quiescent Current: 20mA
Operating Current: 50mA
Working Temperature: -40~85
Clocking (Time Delay) Range: 0.1seconds to 999minutes
Size: 60*34*12mm / 2.36*1.33*0.47"

Note:
1. The module is an active output, the output voltage equal to the input voltage.
2.'DC + 'and' load + ' are internally shorted(connected), but' DC- 'and' load - ' cannot be shorted, otherwise the load cannot be controlled on and off, which is equivalent to load being powered on always.

Package Includes:
1 x Timer Switch Module
