Description
- Enclosure: 2-way bass-reflex type
- Sound Pressure Level: 90 dB (1 W, 1 m)
- Frequency Response: 80 Hz - 20 kHz
- Frequency Response: 80 Hz - 20 kHz
- Speaker Component: 12 cm cone-type + dome-type

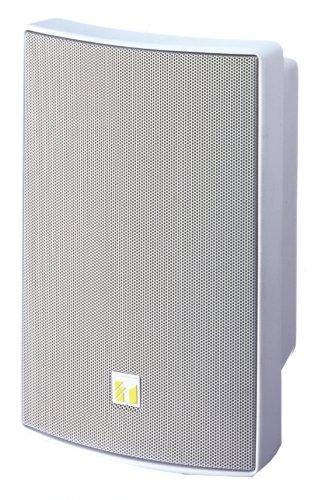

TOA Electronics BS-1030W Music/Paging Speaker, White; ABS Resin Enclosure and Steel Mesh Grille; 2-way, Bass-reflex Design; 4.72" Cone Woofer; 1" Dome Tweeter; Built-in Multi-tap Transformer
The BS-1030W is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030W can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain
Key Features:
- 2-way bass reflex speaker
- Cost-effective high power PA box speaker
- Various installation options
- Low impedance (8) or high impedance (100V) selectable by rotary switch
- Splashproof construction in compliance with IPX3
Specifications:
- Enclosure: 2-way bass-reflex type
- Rated Input: 30 W
100 V line: 330 (30 W), 500 (20 W), 670 (15 W), 1 k (10 W), 2 k (5 W) 70 V line: 170 (30 W), 250 (20 W), 330 (15 W), 500 (10 W), 1 k (5 W)
- Sound Pressure Level: 90 dB (1 W, 1 m)
- Frequency Response: 80 Hz - 20 kHz
- Frequency Response: 80 Hz - 20 kHz
- Speaker Component: 12 cm cone-type + dome-type
- Speaker Cord: 2-core cabtyre cord with diameter of 6 mm
- Operating Temperature: -10 to +50
- Finish: Enclosure: ABS resin, white (RAL9010 PURE WHITE), paint Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating Bracket: Surface treated steel plate, white equivalent to RAL9010 PURE WHITE, powder coating
- Dimension: 196 (W) 290 (H) 150 (D) mm (unit only)
- Weight: 5.5 pounds
