Description

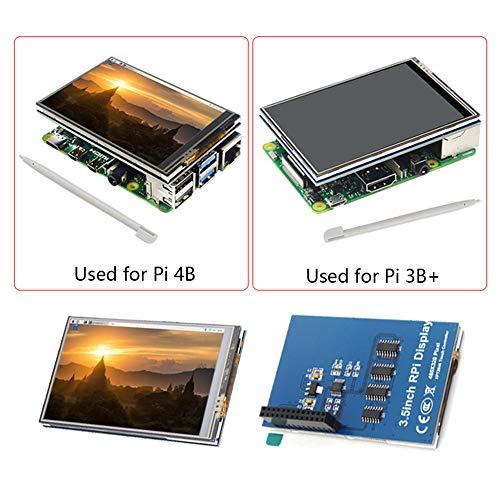

- The 3.5" LCD touch screen has 480 x 320 pixel resolution; SPI interface with resistive touch screen for touch control, with touch pen included.
- The LCD touch screen can use GPIO interface for power supply, no need for separate power supply.
- Suitable for Raspberry Pi 4B/ 3B/ 3B+ versions. When used for Pi 4B, can support for Raspbian system, for kali Linux system. When used for 3B/3B+, can support for Raspbian system, for ubuntu system ,for kali Linux system.
- Color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
- This is a non-drive-free display product. Need to install a driver to display.
Specification
Screen Size: 3.5 Inch
Item Size: 3.15 x 2.2 in
LCD Type: TFT
LCD Interface: SPI
Touch Screen Type: Resistive
Touch Screen Controller: XPT2046
Backlight: LED
Resolution: 480 x 320 (Pixel)
Backlight Current: 120mA
Operating Temperature: -20~70
Power: 5V 0.13A
Package included:
1 x 3.5 inch TFT LCD Touch Display
1 x Touch Pen
Note: Raspberry Pi is not included in the package.
The LCD touch screen need to install deiver to display.
