Description

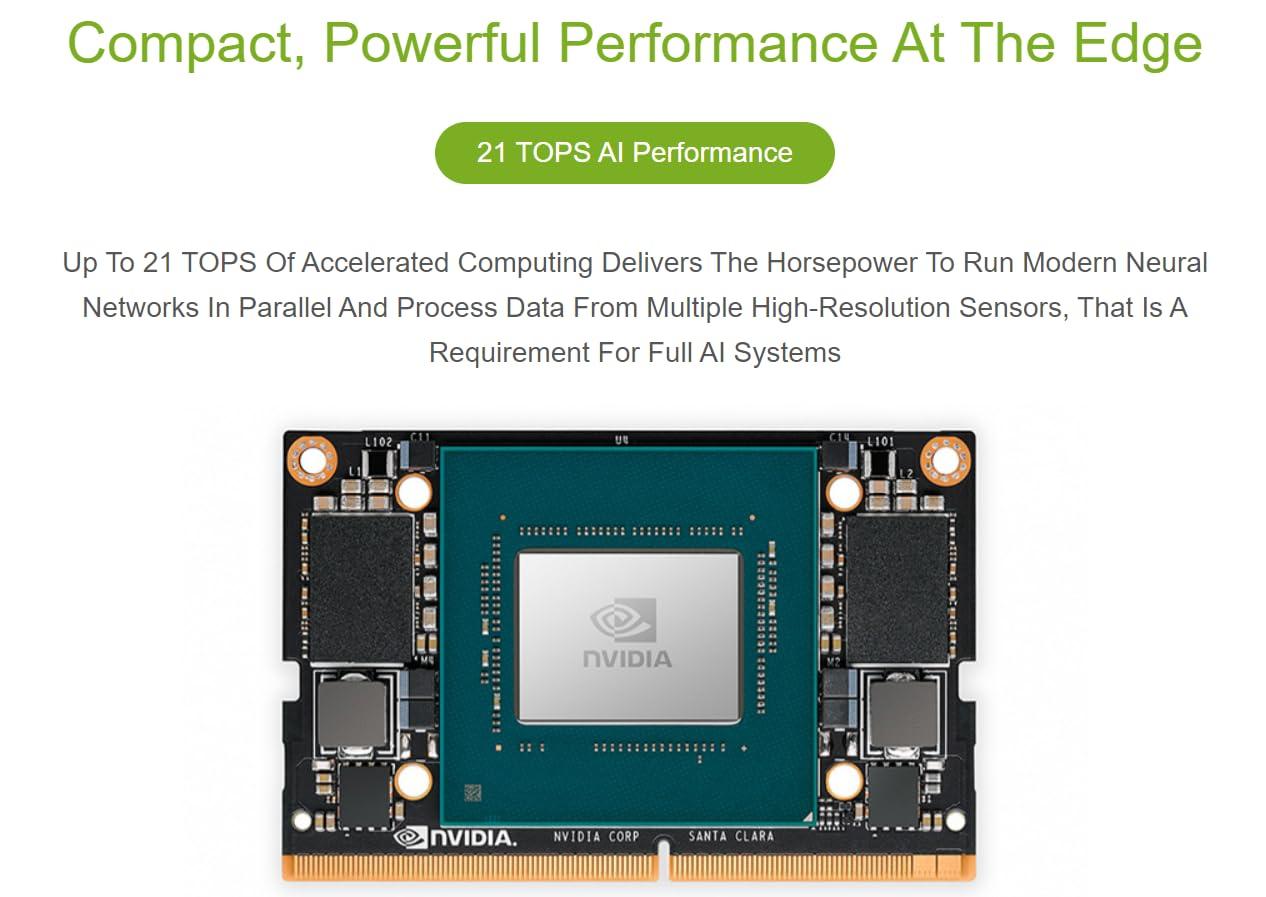

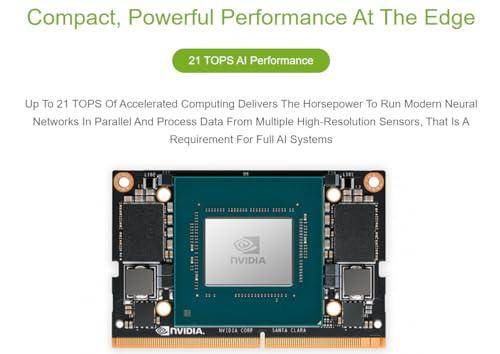

- Up to 21 TOPS of accelerated computing power can run modern neural networks in parallel and process data from multiple high-resolution sensors, which is a requirement for a complete AI system
- Jetson Xavier NX module cloud native support enables developers to build and deploy high-quality, software defined features on embedded and edge devices.
- The Jetson Xavier NX is suitable for high-performance AI systems such as drones, portable medical devices, small commercial robots, smart cameras, high-resolution sensors, automatic optical detection, smart factories, and other IoT embedded systems

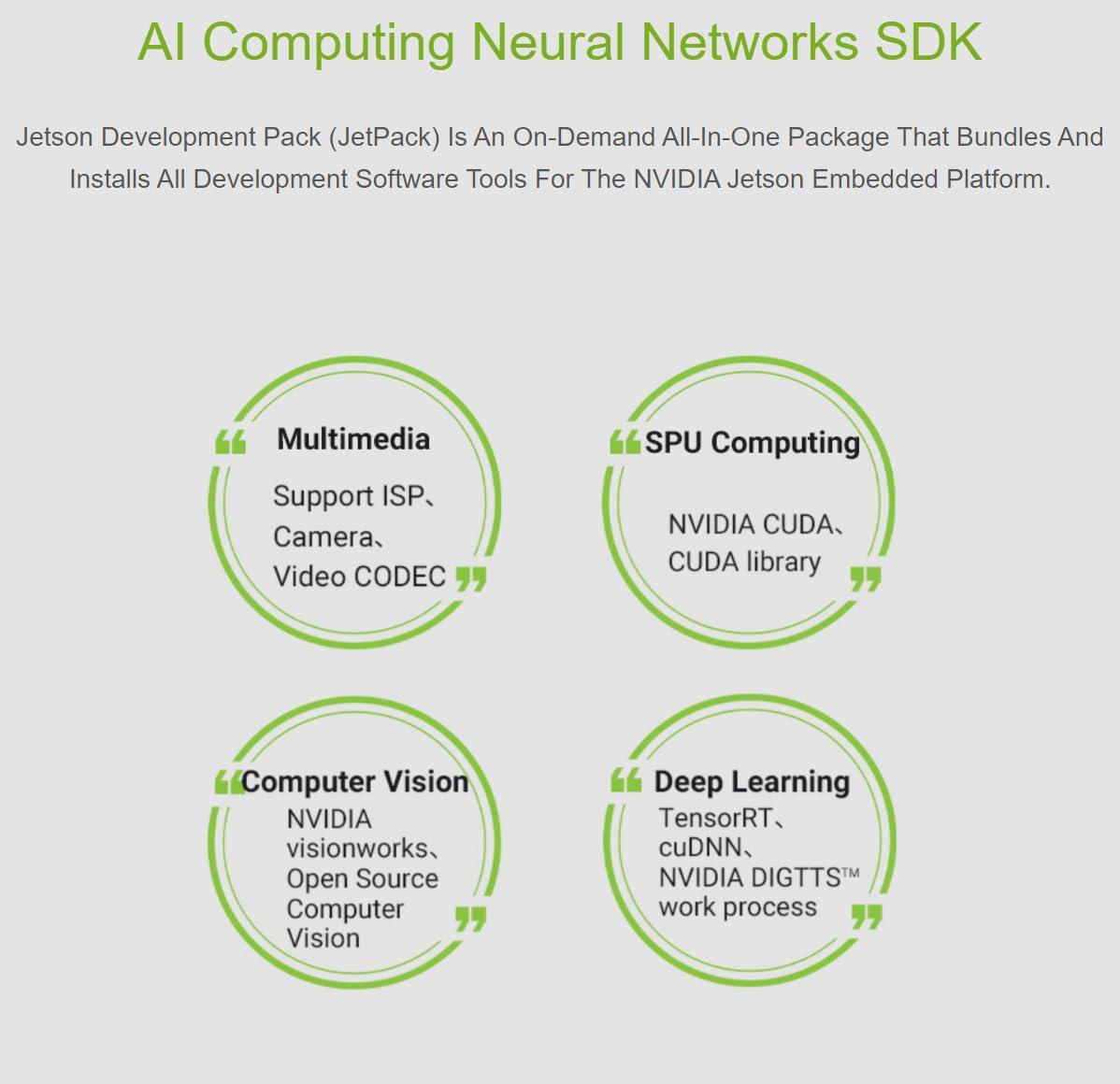

- Jetson Development Pack (JetPack) is an on-demand integrated software package that bundles and installs all development software tools suitable for the NVIDIA Jetson embedded platform

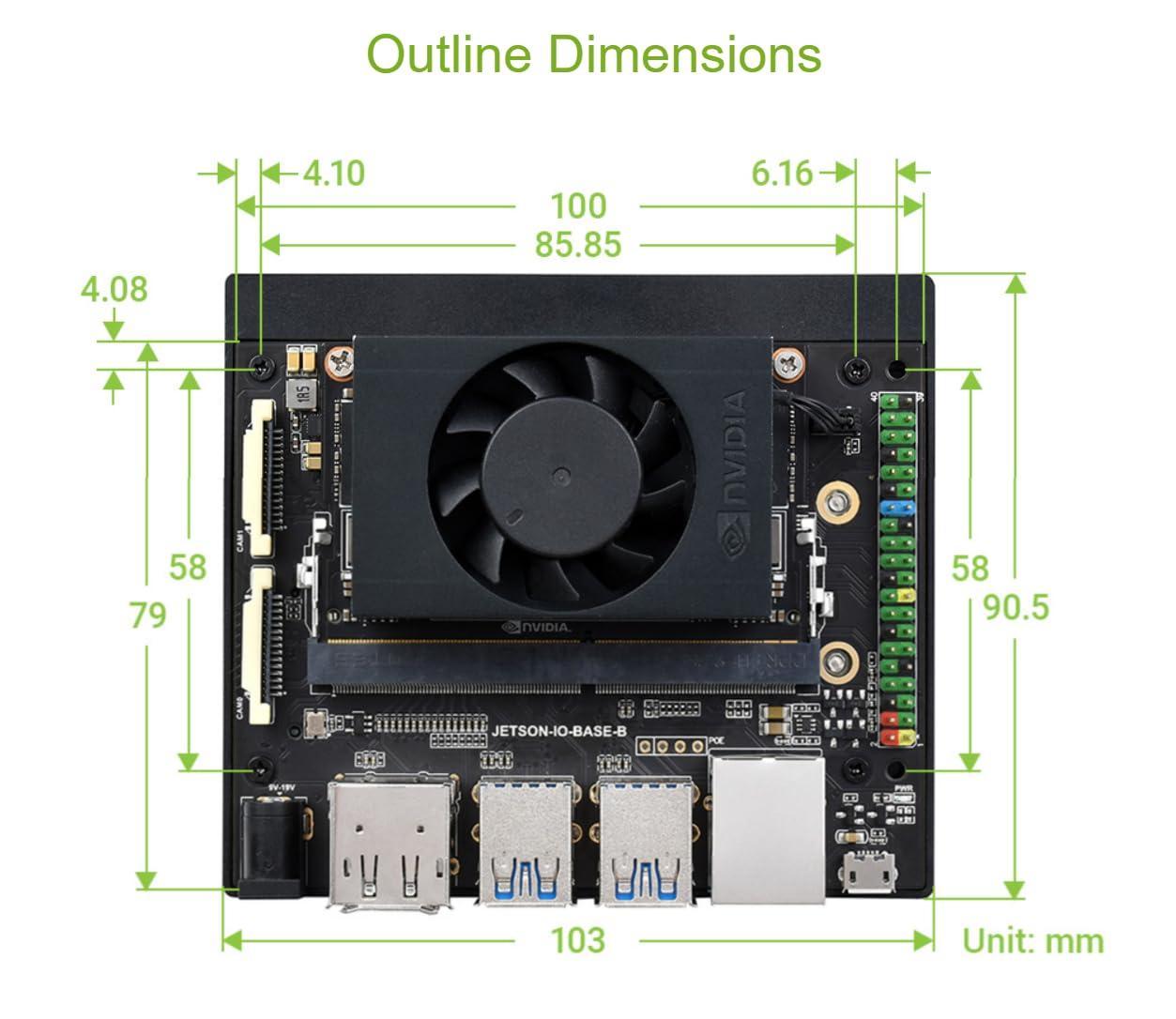

- Note: This is not the official NVIDIA development kit, but it provides the same peripheral interface, size, bottom shell and thickness as the Nvidia Jetson Xavier NX Developer Kit.
Notice
If you buy the DEV KIT from Waveshare, we have flashed a OS to the SSD.
You can just power and complete the configuration and use it.
Overview

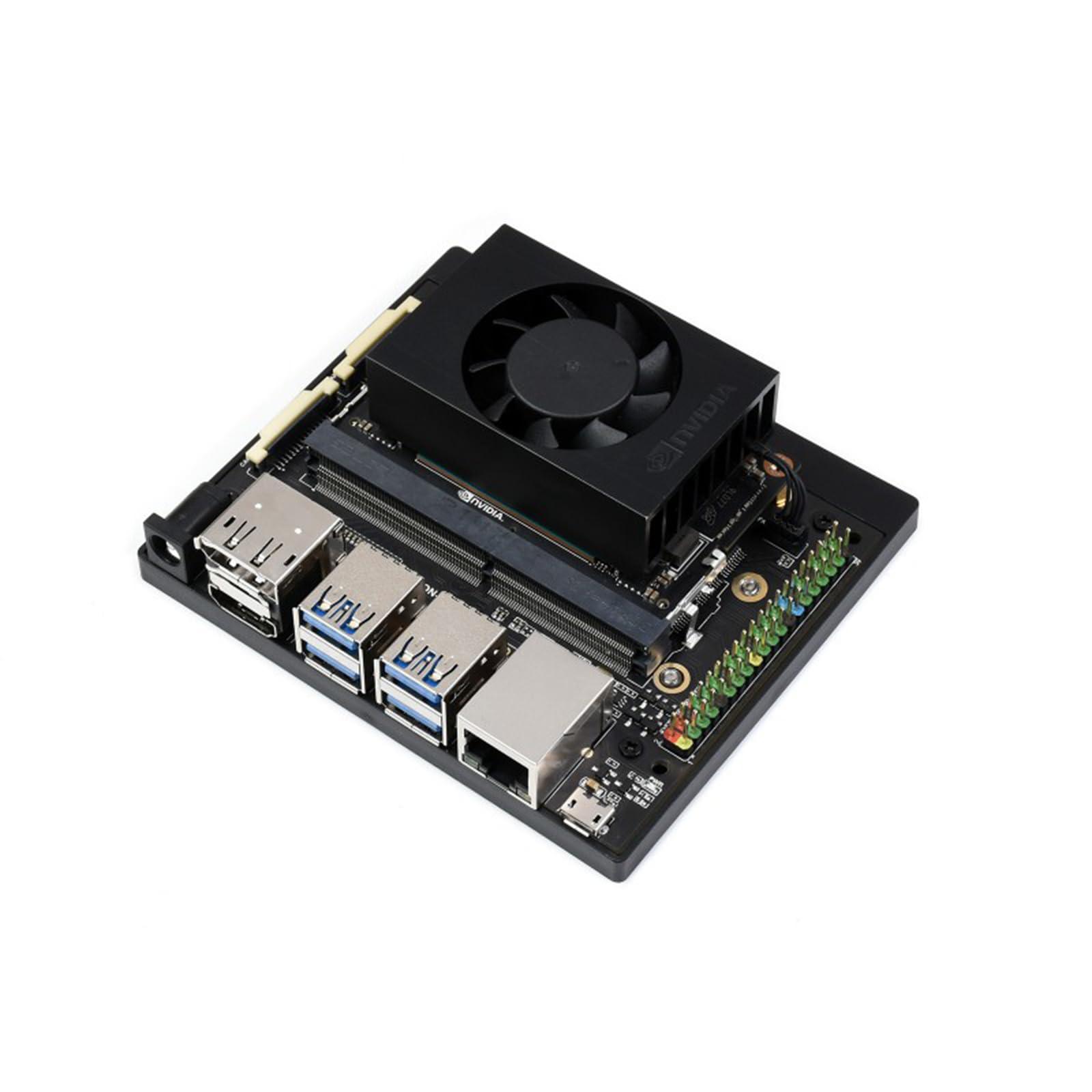

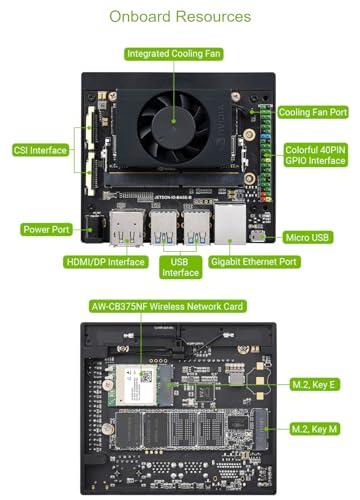

JETSON-XAVIER-NX-DEV-KIT is designed by Waveshare based on the Jetson Xavier NX core board, whose peripheral interface, size, and thickness are almost the same as Jetson Xavier NX Developer Kit, and the core board is easier to be upgraded. With the core board, you can easily realize more functions in AI projects such as image classification, target detection, segmentation, speech processing, and so on.
Jetson Nano Module Specification
GPU
NVIDIA Maxwell Architecture with 384 NVIDIA CUDA Cores 48 TFLOPS Cores
CPU
6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Memory
8GB/16GB 128-bit LPDDR4 x 59.7GB/s
Store
16 GB eMMC 5.1 Flash / M.2 M KEY NVME Solid State Interface
Video encoding
2 x 4K @ 60
4 x 4K @ 30 (HEVC)
10 x 1080p @ 60 (HEVC)
22 x 1080p @ 30 (HEVC)
Video decoding
2 x 8K @ 30
6 x 4K @ 60 (HEVC)
12 x 4K @ 30 (HEVC)
22 x 1080p @ 60 (HEVC)
44 x 1080p @ 30 (HEVC)
Camera
Up to 6 cameras (24 via virtual channels)
14 channels (3 x 4 or 6 x 2 or 3 x 4 + 1 x 2 or 5 x 2 + 1 x 4)
MIPI CSI-2D-PHY 1.2 (up to 30 Gbps)
Network
WFi requires an external chip
10/100/1000 BASE-T Ethernet
Display
2 Multimode DP 1.4/eDP 1.4/HDMI 2.0
UPHY
1 x 1 (PCIe Gen3) + 1 x 4 (PCIe Gen4), 1 x USB 3.0, 2 x USB 2.0
IO
3 UART, 2 SPI, 2 I2S, 4 I2C, multiple GPIOs

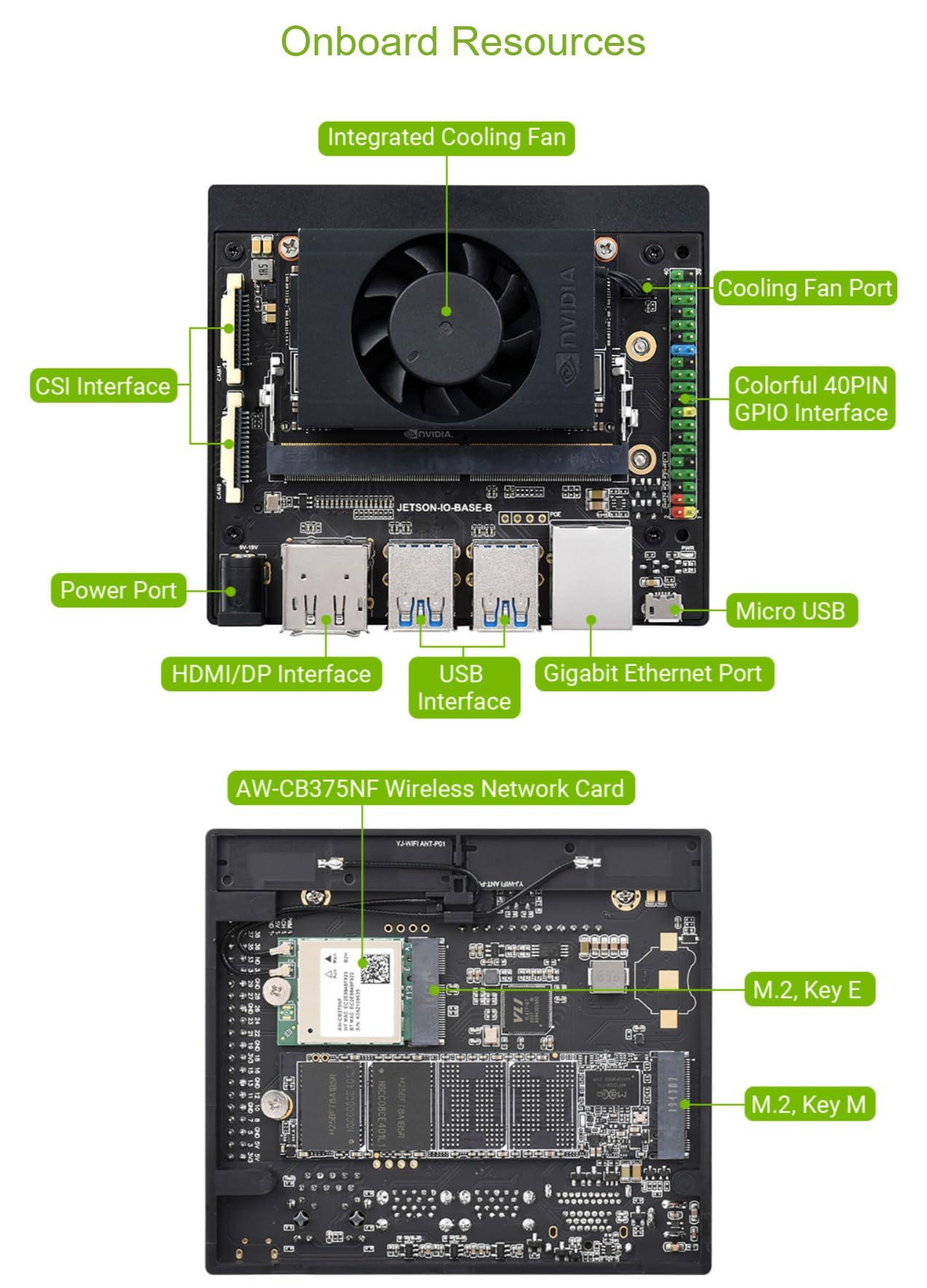

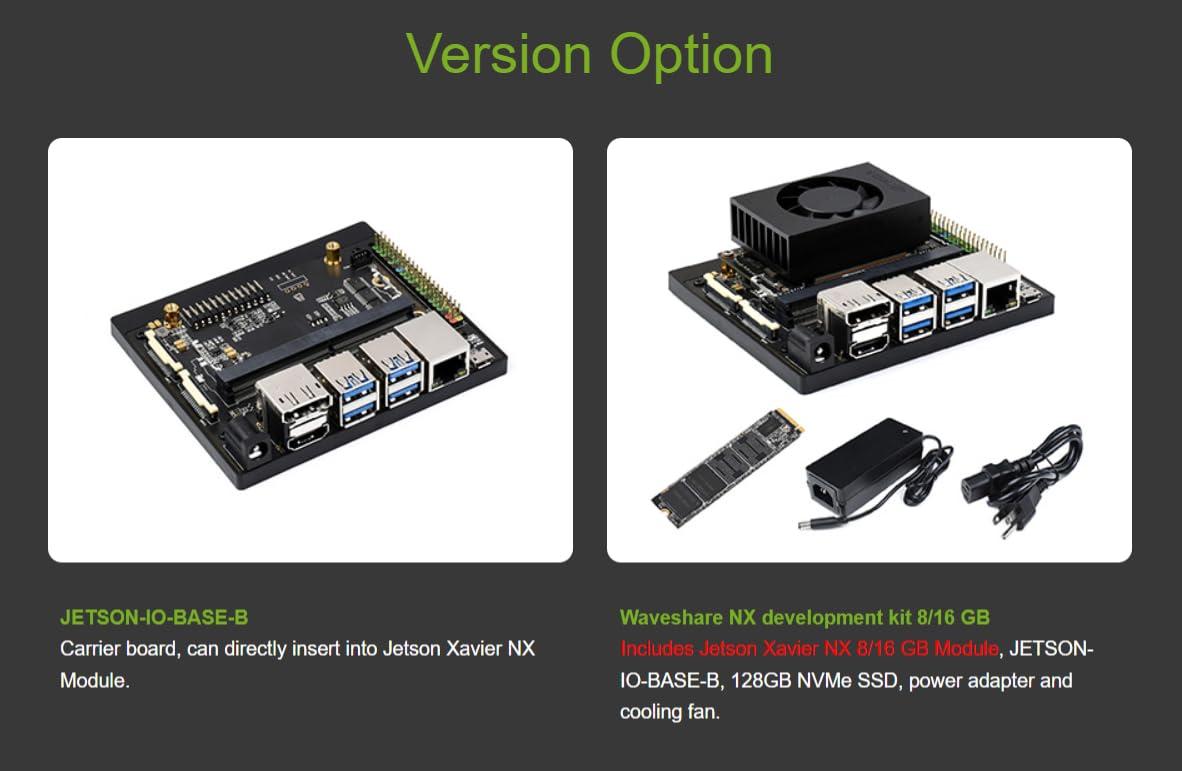

JETSON-XAVIER-NX-16G-DEV-KIT
Waveshare NX development kit:
Jetson Xavier NX 16GB Module
JETSON-IO-BASE-B
Cooling Fan
128GB NVMe SSD
Wireless network card
Power adapter
