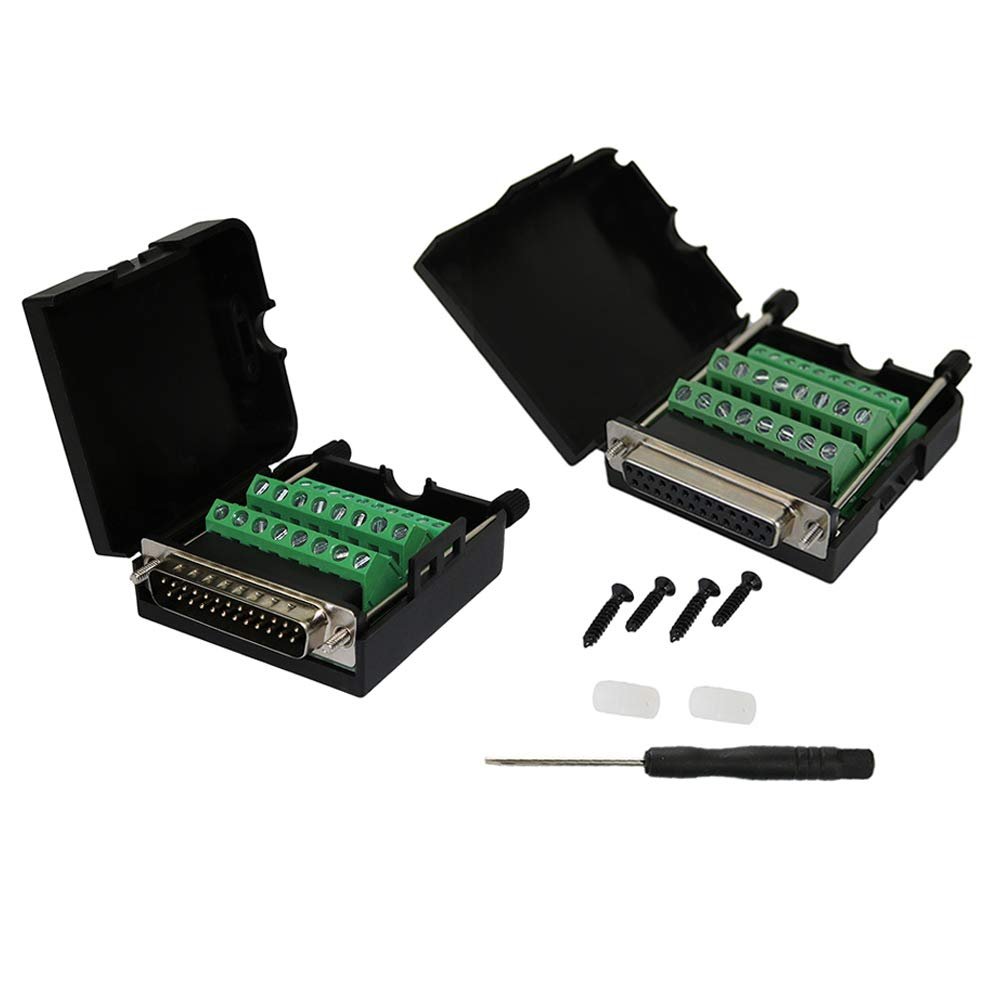

TwinkleBay DB25 Connector to Wiring Terminal Db25 Breakout Board Solder-Free with Case (Male Adapter x1, Female Adapter x1)

Description

• Case can be prevent short circuits
• All-copper base, contacted better and more antioxidative
• All signal ports named and labeled clearly
• PCB carrier, FR-4 fiber glass PCB
• Compliant assembly, multiple checked before fulfilled

Net weight: 70g/2.47oz/PCS
PCB dimensions(L x W): 1.9 x 2''/49 x 53mm
External dimension (L x W x H): 2.4 x 2.2 x 0.9"/60 x 56.5 x 24mm
Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.15''/3.81mm
Wire range: 24-18AWG
Rated current: 0.5A
Connect type: Male Adapter x 1, Female Adapter x 1
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass
Case: ABS+PC

Package included:
1 x DB25 breakout board male adapter with case
1 x DB25 breakout board female adapter with case
2x Nylon cable pressing plates
4x Screws
4x Long bolts
1x Slotted screwdriver
