Description
- [Electrical specifications] Frequency: 144/430mhz(136-174mhz/400-470mhz); Impedance:50 ohm; Gain: 4.5dBi(VHF)/7.2dBi(UHF); VSWR:<1.5; Maximum input power:200W

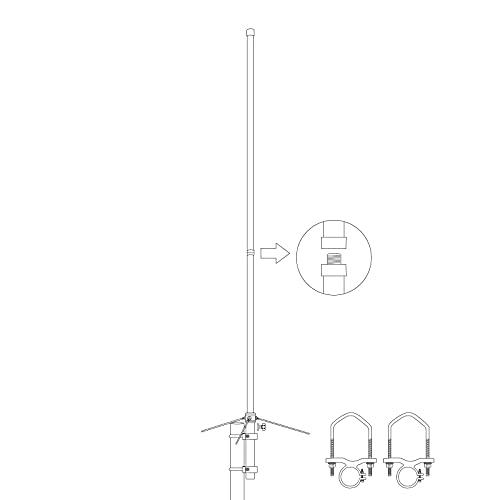

- [Mechanical specifications] Material: Fiberglass; Connector: SL-16K (SO-239); Length: 1750mm; Weight: 1.0Kg
- [Heavy-duty Fiberglass base antenna] Corrosion resistant,waterproof,strong wind resistance;good environmental adaptability.
- [Aluminum Alloy Mounting Bracket] Hold Pole Diameter:3062 mm; Comes with two U-bolt which can be used with the attached plate for pole mounting; You need to use coaxial cable (PL259)to connect your device(not include the coaxial cable)
- [Integrated ground plane]With three GP antennas,strong anti-jamming,improve the quality of reception and transmission,provides stable signal.
- [High Gain antenna]Excellent receive and transmit,greatly extend the range of your communication,hit your repeater easily.
- 2 sections Portable design,easy to carry and install.
- Widely used in Amateur two way Radio;mobile transceivers; police scanner;433mhz radio system;data radio, etc.
