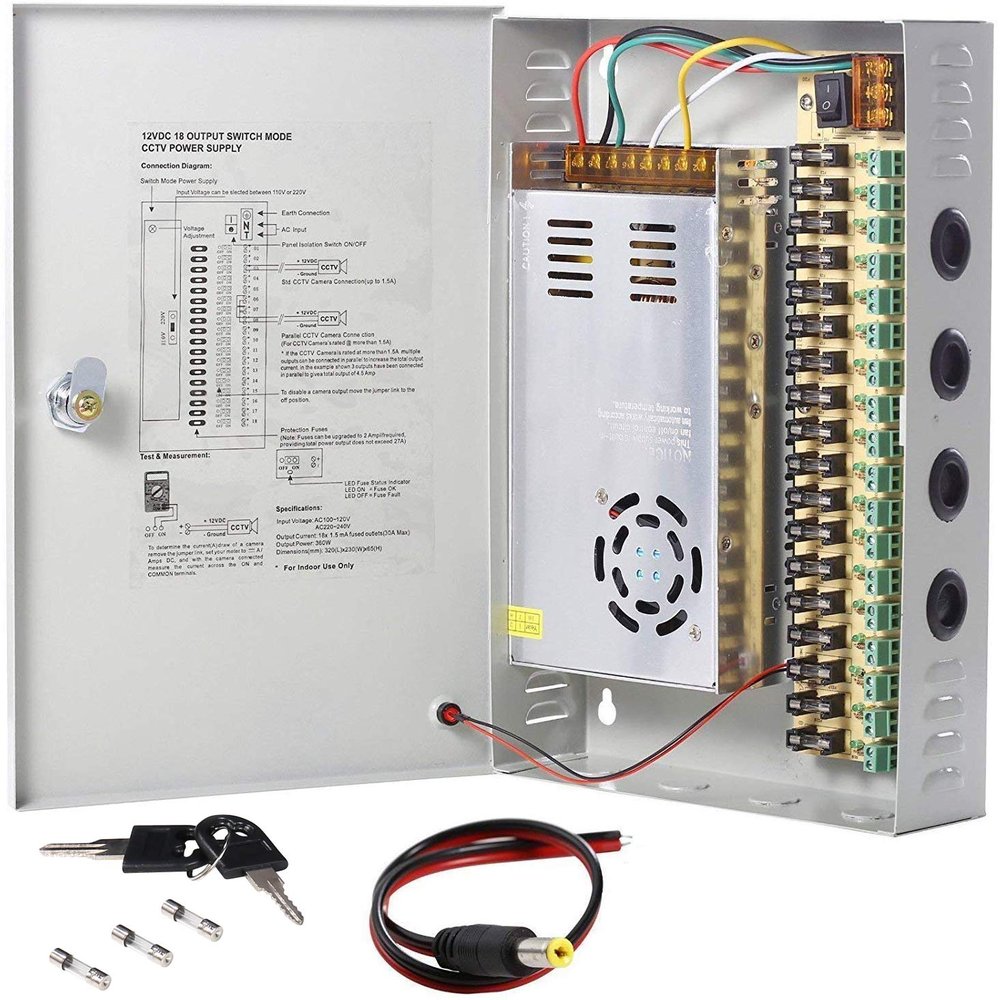

UHPPOTE 18 Channel Power Supply Switch Box CCTV Camera Distribution DC12V 30A Output

Description

• DC12V regulator CCTV power supply box, 18 channels outputs with 3 spare fuses.
• Max. output 30Amp total, Maxim for each port is 1.5Amp, DC voltage adjusted range -10%~+10%. Good load capacity, over-voltage protection.
• New metal materials, compressive, wear-resisting, reinforcement enclosure structure, convenience, for more safety use.
• Every channel is protected by PTC fuse, lightning protection.
• Switching power supply box as a power splitter, Applicable to a variety of dc electronic products.

Introduction:
Camera Power Box for Security Cameras. New Technology! PTC fuse protection for Circuit Short, High Voltage, and Over Current. Consolidate all cameras power (12V, 18 port, 20A) to one central location. Heavy duty metal case.
Features:
12VDC - 30 amp supply current
Multiple outputs (18 channel)
Default 2A fuse
Both type(1A+2A), numerous of fuse provided to fulfill any installation purpose
Auto-reset PTC fuse protected output
Power on/off switch
Key protection
DC regulated, over current and voltage protected
Individual LED indicator for each output
For indoor use only
Specifications:
Input Voltage: AC100-120V or AC220-240V (Selectable)
Output voltage: 12VDC
Output current: 18 x 1.5mA fused outlets (30A Max)
Output power: 360W
Support : Up to 18 Cameras
Dimensions: Approx. 315(W)x215(H)x63(D)mm / 12.4"(W)x8.5"(H)x2.5"(D)in
Weight: 2.3kg / 5.07 pounds
Note:
AC110V/220V is selected by switch before power on. Please check input voltage avoiding damage.

Package:
1 x 18CH 12V/30A Power Box
18 x Power Pigtail Cables
1 x Installation Kit
