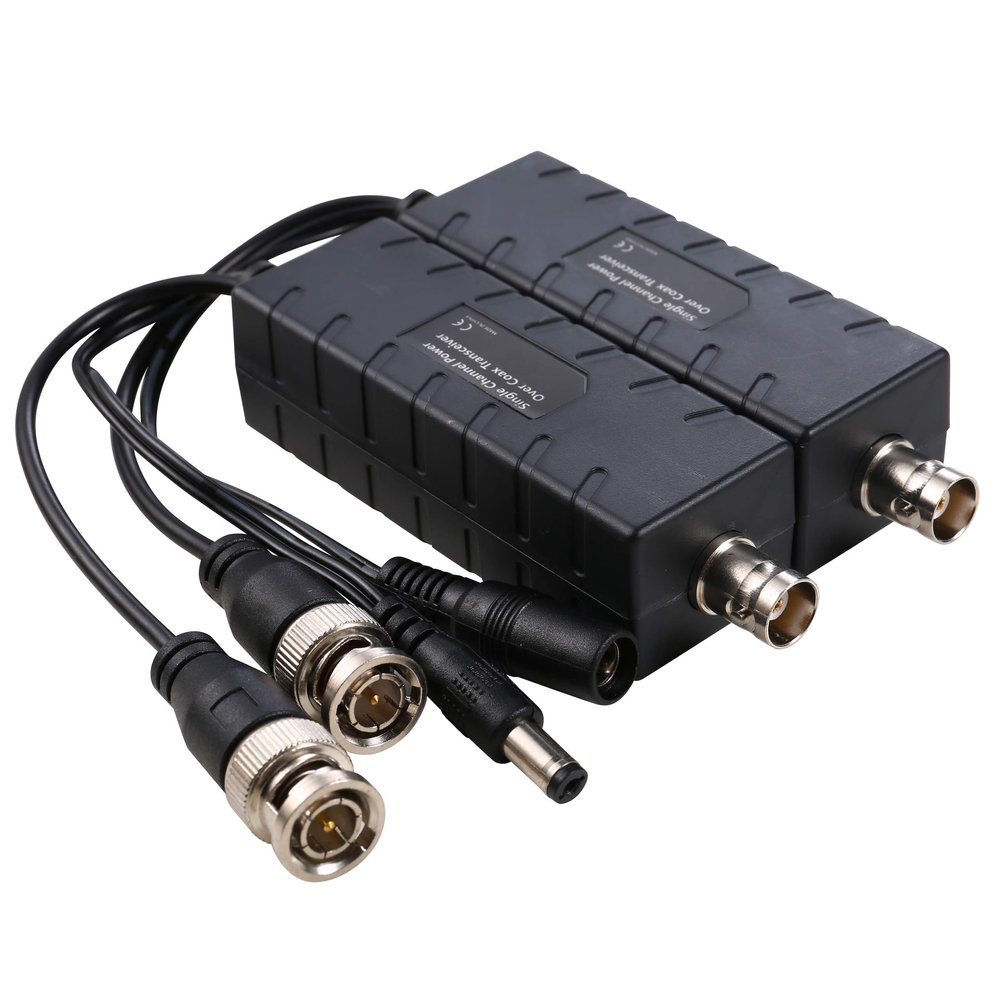

UHPPOTE 1CH Power Over Coax Transceiver Input DC24V-36V Output DC12V 12W

Description

• Compatible with HDCVI/DHTVI/AHD/CVBS,Support HDCVI OSD Data
• Input voltage: DC24-36V, output power max to 12VDC,12W
• 1 cable for power & video transmission, no need to lay AC line and install power adapter to camera, reducing material cost.
• Monitoring side input 24-36VDC, plug and play, easy to install, it is ideal for monitoring areas where no power is available to operate a camera
• The device is used to power security cameras with 12VDC voltage over single coaxial cable and tranmit/receive the composite HD video signals from the cameras over the same 75ohm coaxial cable(RG-59 or higer quality) at a distance up to 400m / 1312ft.

Features:
Compatible with HDCVI/DHTVI/AHD/CVBS,Support HDCVI OSD Data
Input voltage: DC24-36V, output power max to 12VDC,12W
Transmit instant video, no delayment
Long transmission: 400m / 1312ft
1 cable for power & video transmission, no need to lay AC line and install power adapter to camera, reducing material cost.
Builit-in surge and transient protection, super interference rejection
Outershell: with extend coaxial cable, easy to install with DVR,RG59,BNC
Specifications:
Transmission signal: 1 channel HD video
HD video transmission distance: 720P/1080P(Max)
Category type: Coax75-5/75-4/75-3
Coaxial video connector: BNC-M
Connecting way: BNC
Compatible format: HDCVI/HDTVI/CVBS
Resolution: 720P/1080P Anti-interference: >60db
ESD: 1a contact discharge electricity level 3; 1b air discharge electricity level3; Per: IEC61000-4-2
Coaxial cable connector: 2KV(common-code),Per:IEC1000-4-5
UTP cable connector: 2VK(different-code),Per:IEC1000-4-5
Impedance(Coax): 75ohms
Dimensions(LxWxH): 78x29x22mm / 3.07x1.14x0.87in
Shell: ABS
Color: Black
Weight: 153g / 5.4oz
Stability(MTBF): >10000H
Operating Temperature: -10~55 / 14~131
Storage Temperature: -20~70 / -4~158
Humidity: 0-95%(non-condensing)
Package:
1 x HD Video & Power Transceiver
1 x User manual
