Description
- The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits.

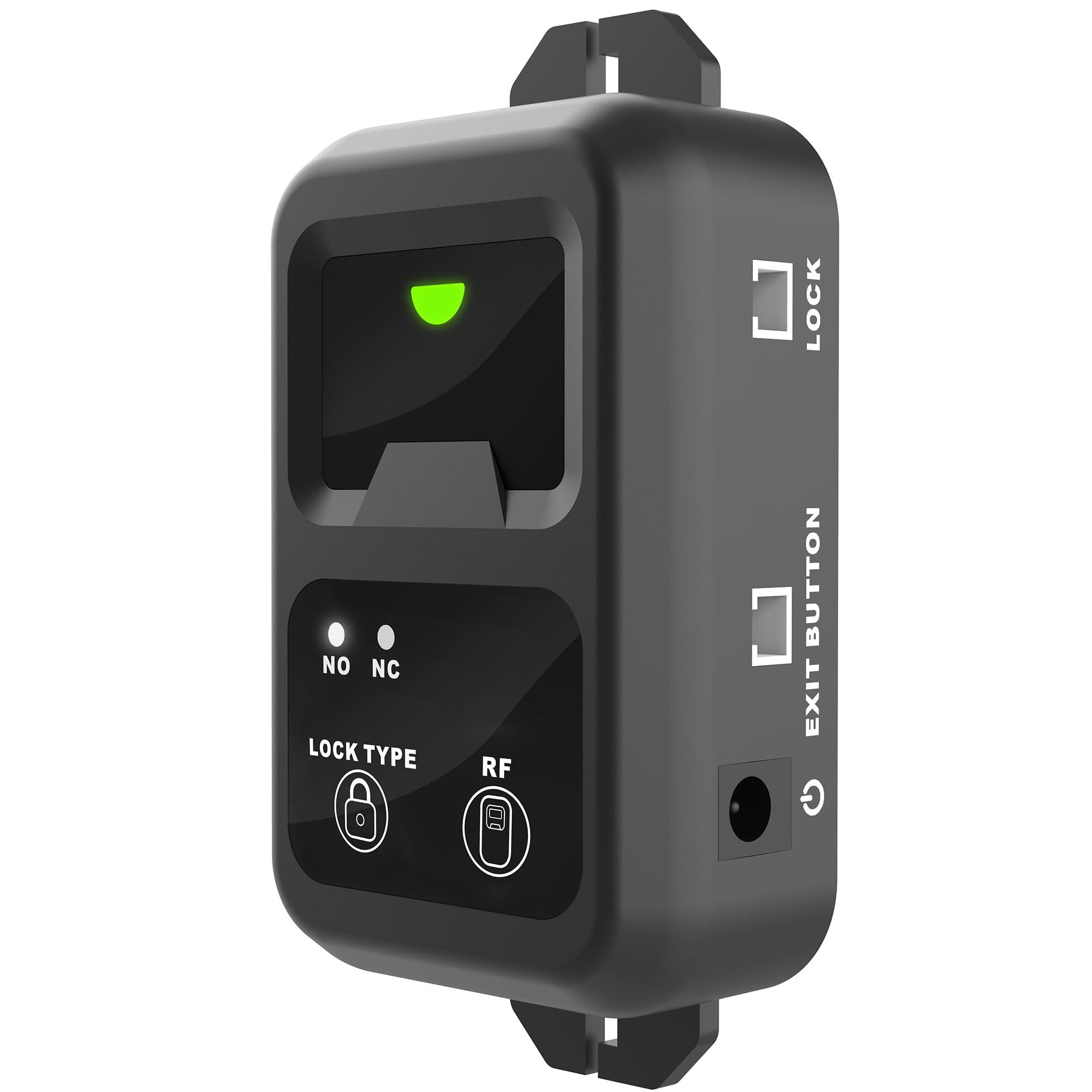

- The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164ft.
- An exit button is included in this strike lock system kit, and you could exit from indoors easily by pushing it once.
- 0/5/10 seconds locking delay time adjustable, default is 5 seconds.

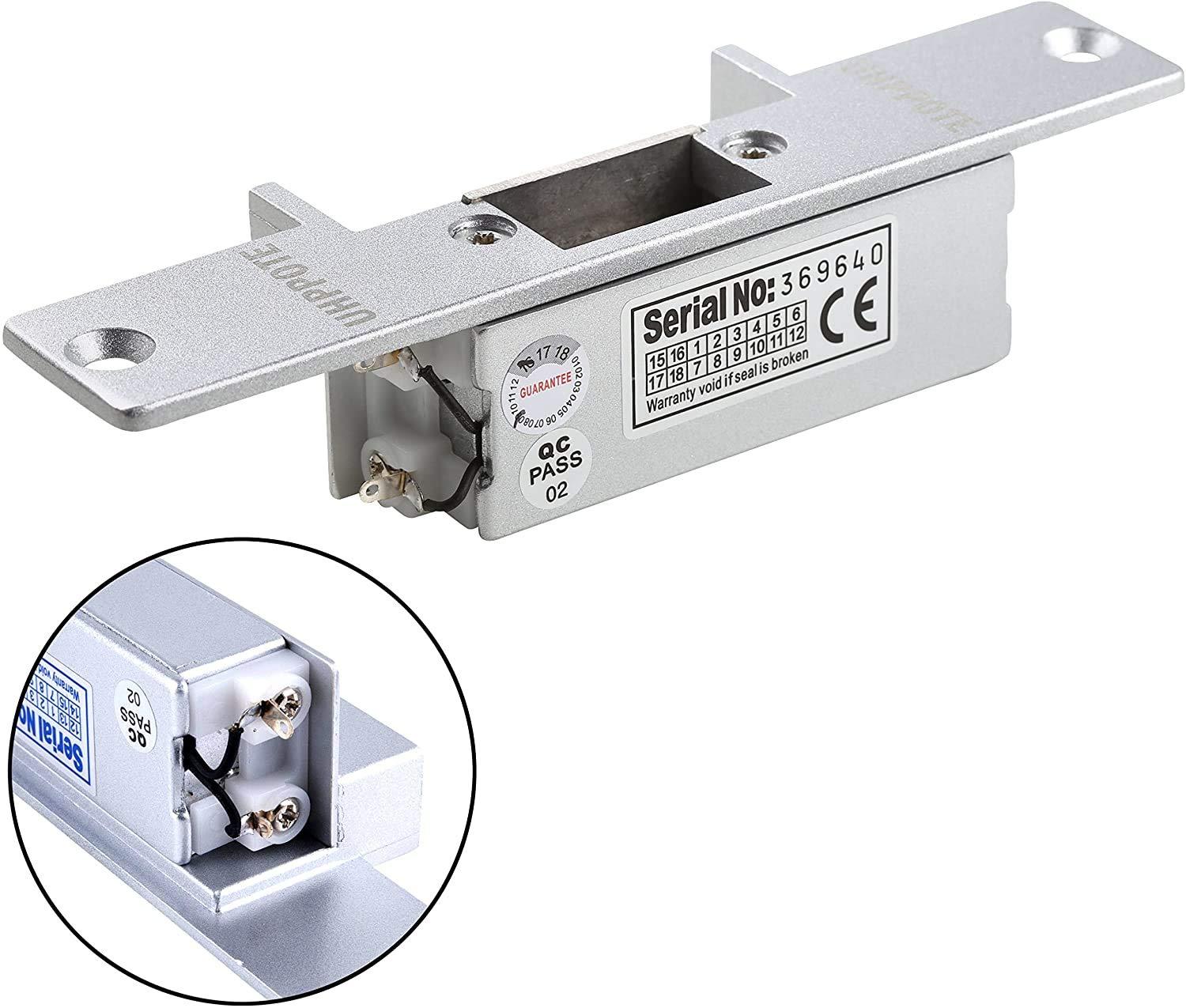

Strike Lock:
Input Voltage: 12VDC
Current: 200mA
Holding Force: 500kg / 1100Lbs
Fail safe, NC mode (Opened when power is removed)
Suitable For: Wooden Door, Metal Door, PVC Door
Strike lock needs to work with mechanical lock. Mechanical lock needs to buy separately
With two contacts and no polarity requirement. (The lock will have polarity when a diode added.)

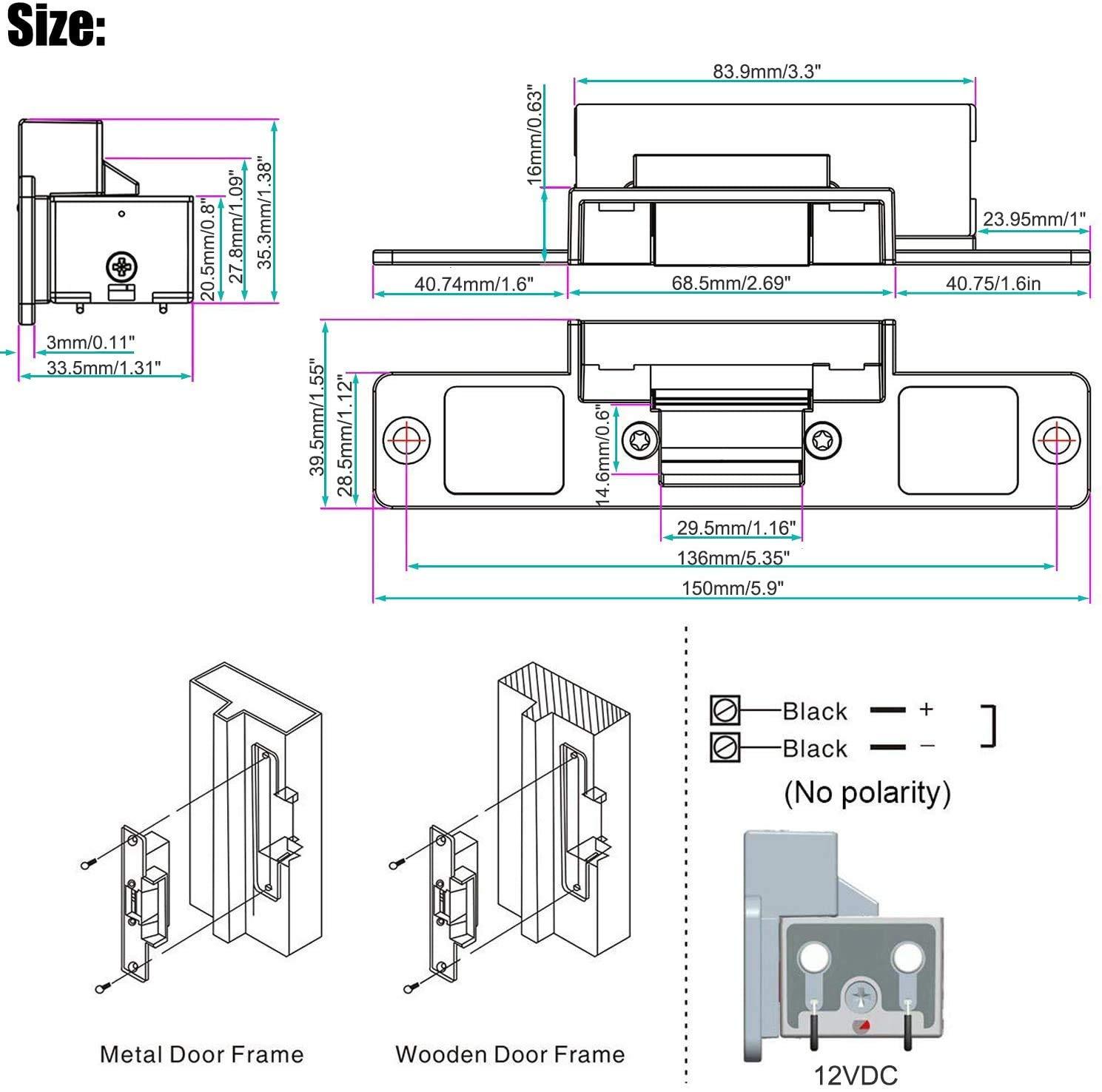

Size: 150Lx39.5Wx34H(mm) / 5.91Lx1.56Wx1.34H(inch)
Function: Built-out MOV
Net Weight: 0.29kg / 0.64lb

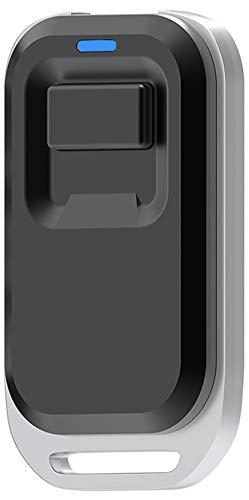

Remote:
Voltage: 12VDC
Frequency: 433MHz
RF channels: One
No. of Remotes that are able to connect to one Receiver: Up to 40
DC Encoding Type: Learning code
Working Range: 164ft in open aera, 15%-30% in reality
Built-in Buzzer: Yes

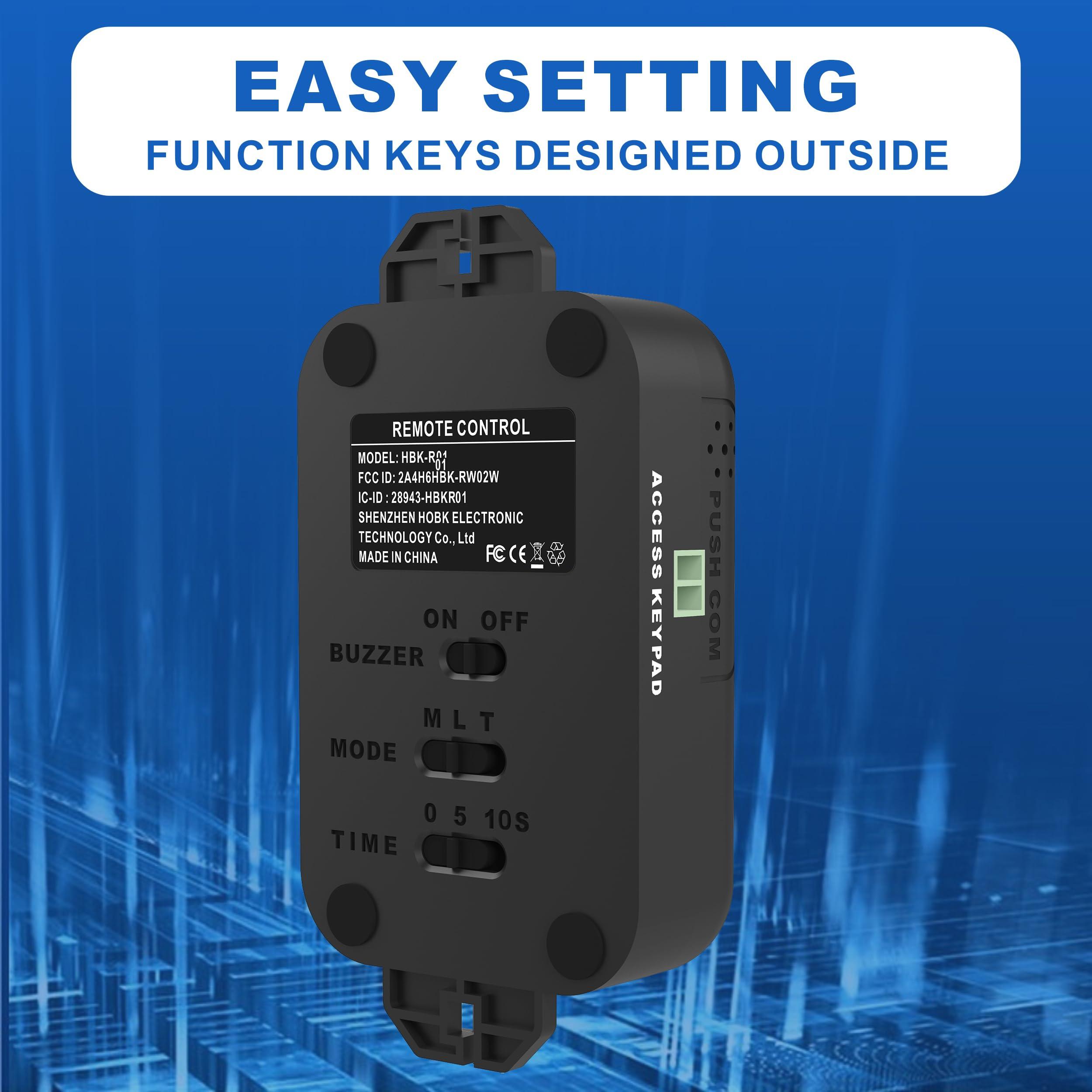

Adjustable Locking Delay: 0/5/10sec
Working Mode: Momentary/Toggle

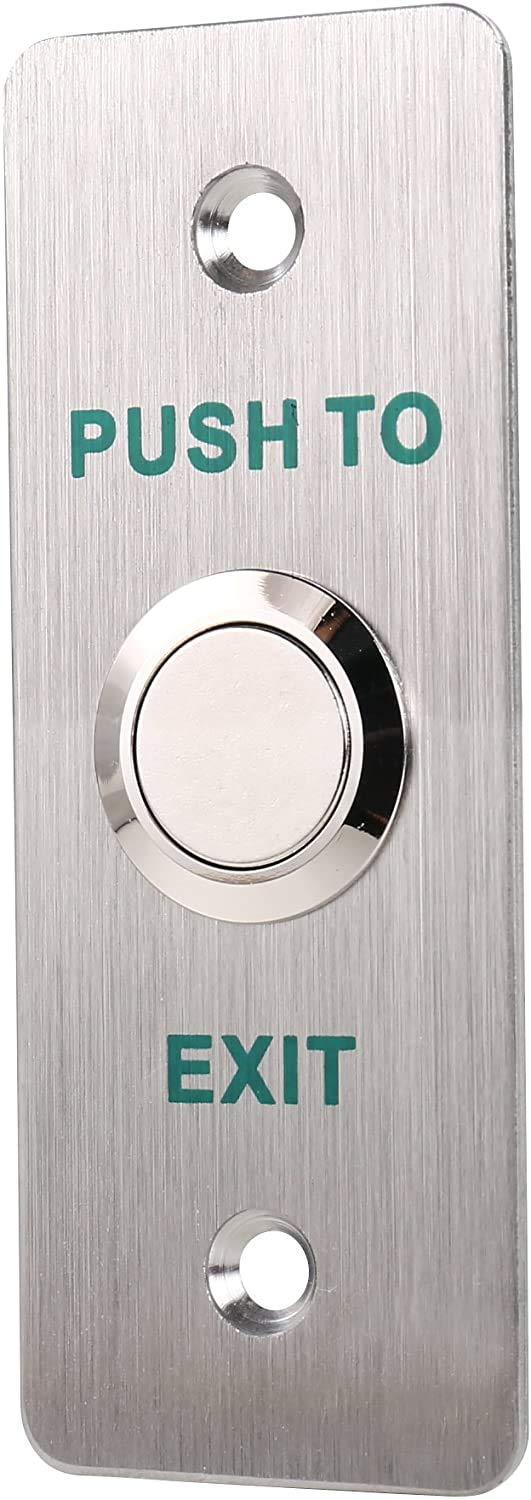

Exit Button:
Dimensions: 90Lx35Wx26.5H(mm) / 3.54Lx1.38Wx1.04H(inch)
Standard Structure: Stainless steel Panel, Steel Button
Mechanical Life: 500000 tested
Current Rating: 3A@36VDC Max
Output Contact: NO/COM
Operating Temp: 10+55(14-131F)
Operating Humidity: 0-95% (relative humidity)
Panel Material: Stainless steel Panel, Wire Drawing Finished
Suitable for hollow door

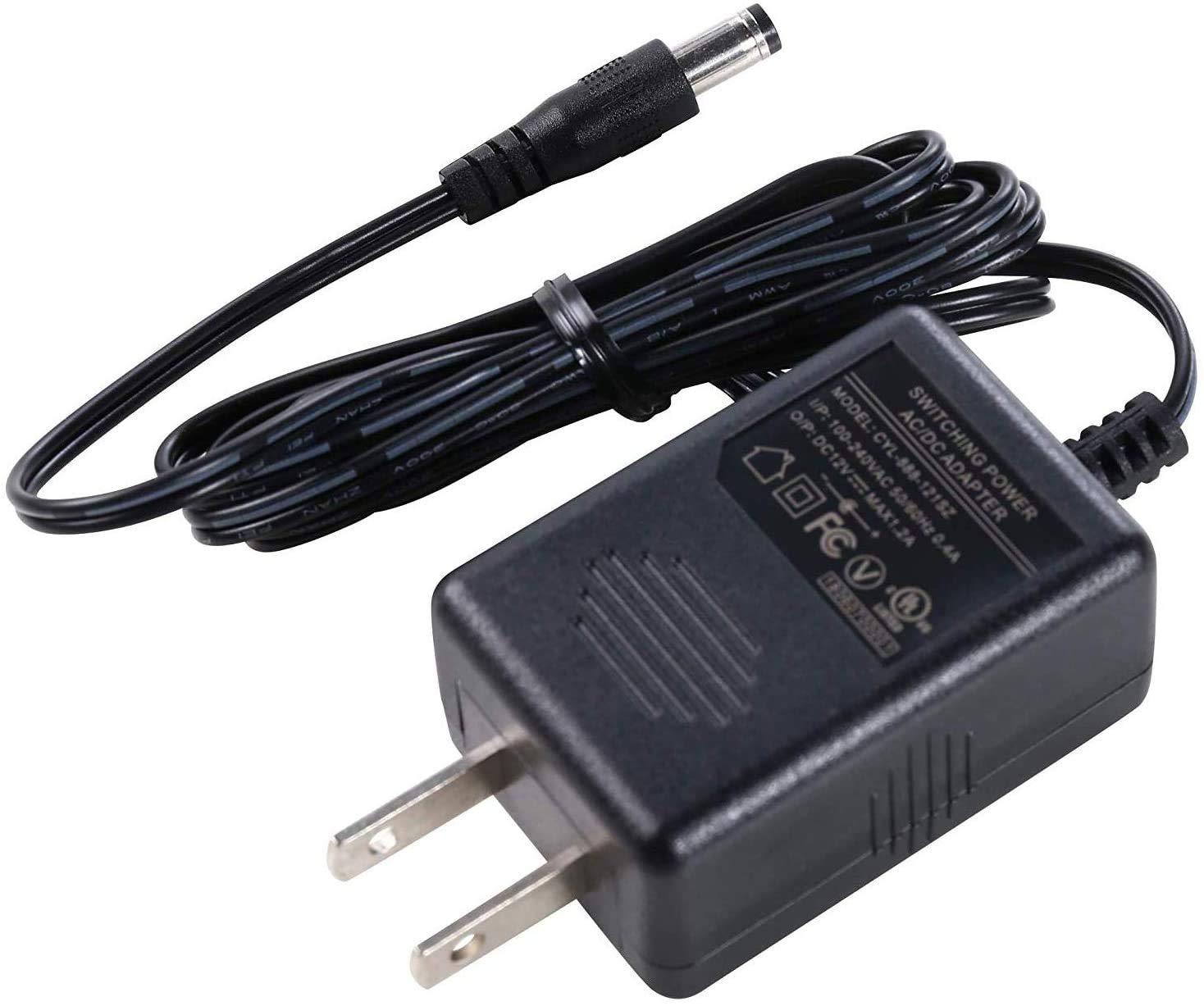

Power Adapter:
Input: AC100V-240V 50/60Hz
Max Output: DC12V / 1A (1000mA)
Wire Type: 22AWG
AC Cord length: 4 feet / 1.2meter
Output transformer adapter: 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
Certificate: FCC, UL

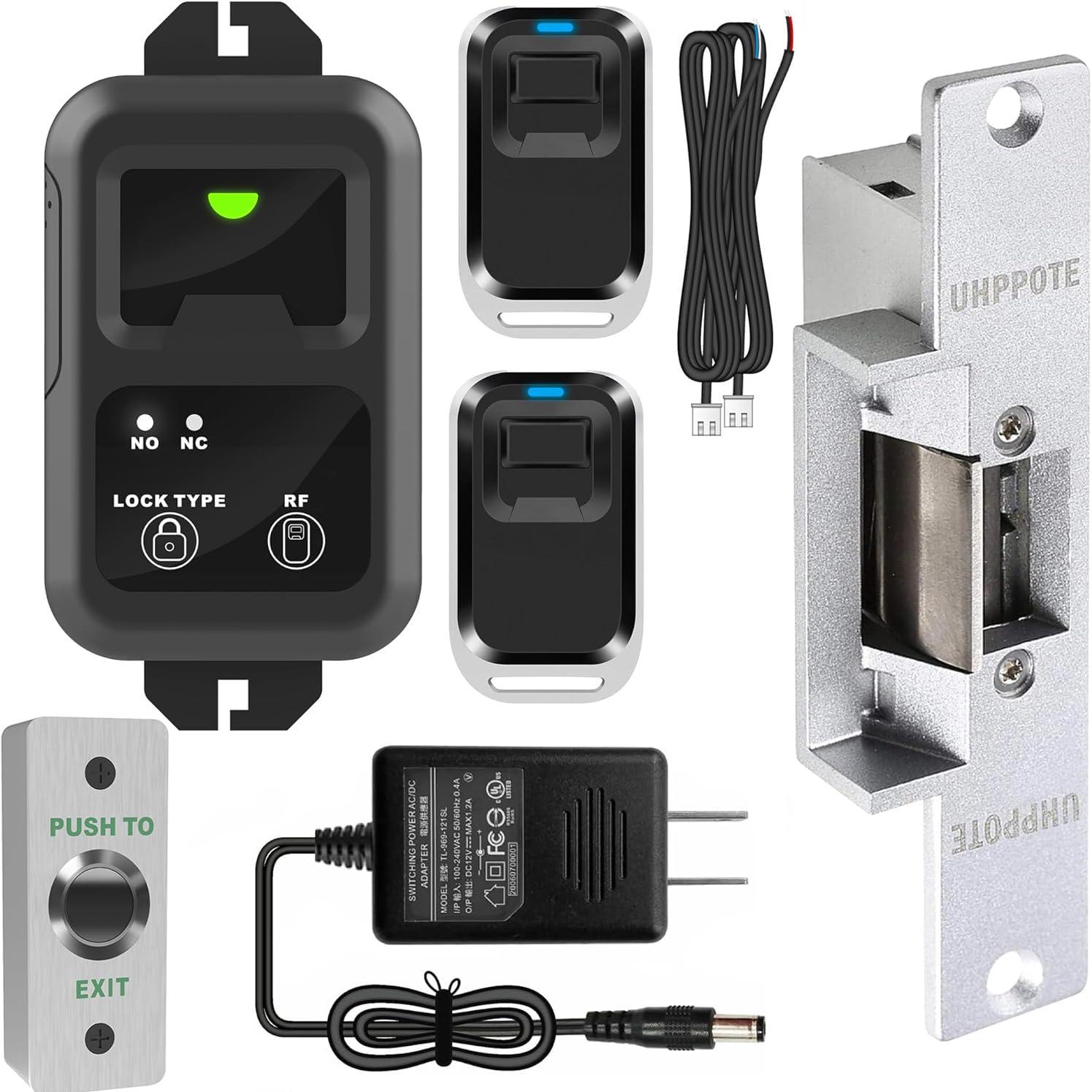

Package:
1 x Electric Strike Lock
1 x Remote Receiver
2 x Remote Transmitters
1 x Exit Button
1 x Power Adapter (Cord Length: 4ft)
1 x English Manual
