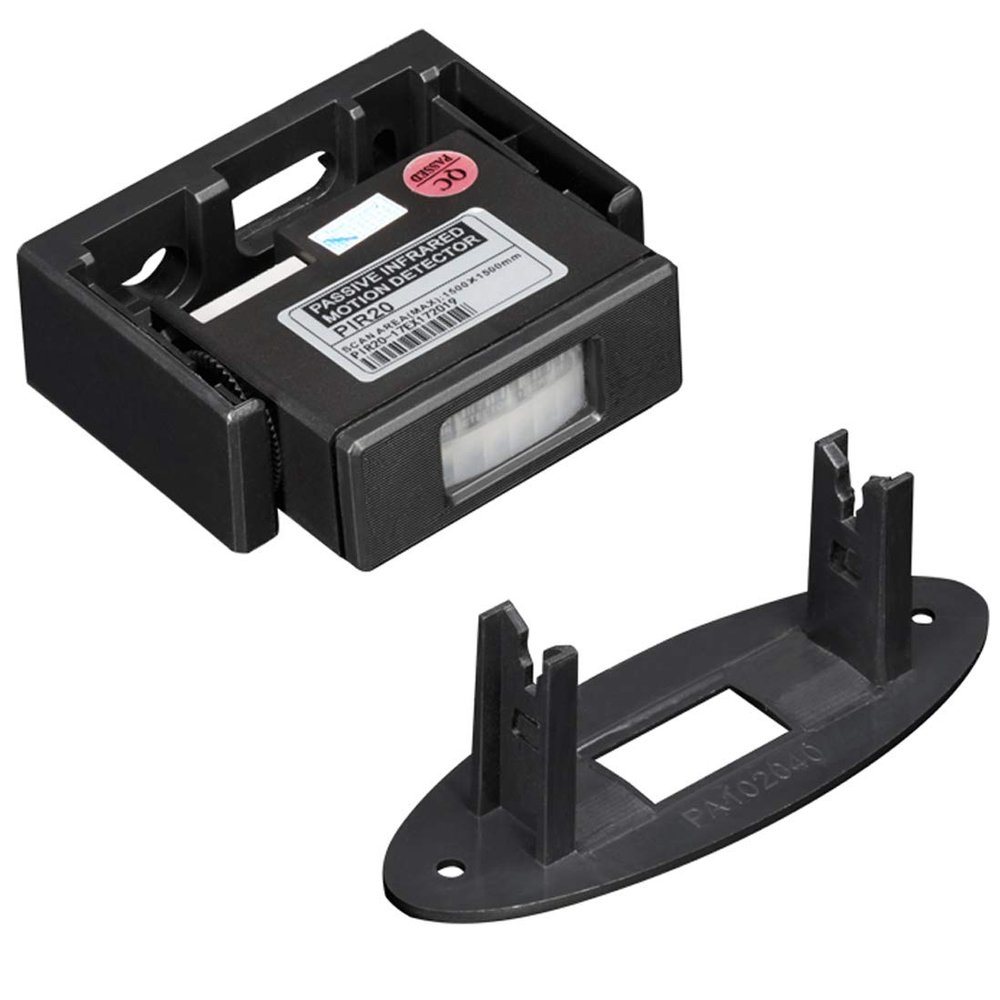

UHPPOTE Passive Infrared Sensor for Auto-Door Control System

Description

• Max inatallation height: 3.5m
• Max detectiion area: 3x1.5m
• Lowest Detection speed: 0.1m/s
• Output hold time: 0.5s
• Protection class: IP52

Technical indicators and parameters:
Operating voltage: AD/ DC 12~30(-0%+15%)
Quiescent current: 6MA
Working temperayure: -40~60
Max inatallation height: 3.5m
Max detectiion area: 3x1.5m
Lowest Detection speed: 0.1m/s
Output hold time: 0.5s
Protection class: IP52
Overall Dimension: 100mm(L) * 35mm(W) * 37mm(H)
Angle of inclination: 0-6 degree
Action Current: (DC 12V)18MA
Tottal Weight: 135G
Package:
1 x Passive infrared sensor
1 x Manual
