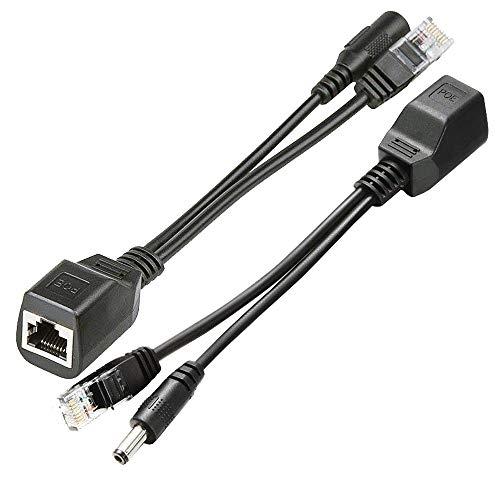

[UL Listed] iCreatin 12V Power Over ethernet PoE Injector and PoE Splitter kit, Extension Power for 12 Volt 12 watt Devices with 5.5x2.1 mm DC Jack

• Includes 12V 12watt power adapter (UL listed) power for the injector.
• 12 volt Power up to 30M/100ft via Ethernet, both data and power share the same cable
• support 10@Mbps network device, Transforms Non PoE devices to PoE enabled
• Use with 12v IP security camera, wireless access point and other 12V devices
• For more ports items, please check our other amazon listings

Kindly Reminder: This PoE Kit only used for 12V Non-PoE devices ! Only support 10/100Mbps

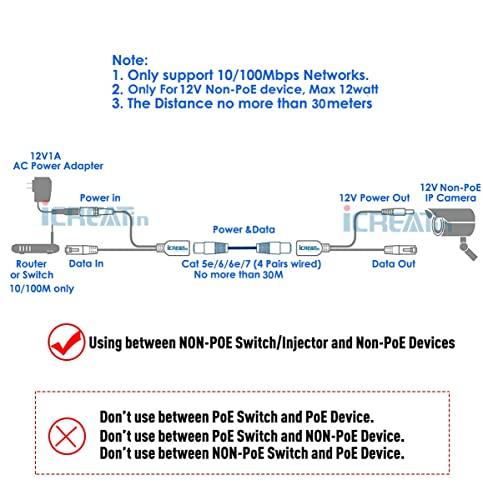

Please connect this kit according the wiring diagram
Remote Power for 12v Non-PoE IP Cameras or other Devices (Max 12Watt)
Extend power to 100Ft

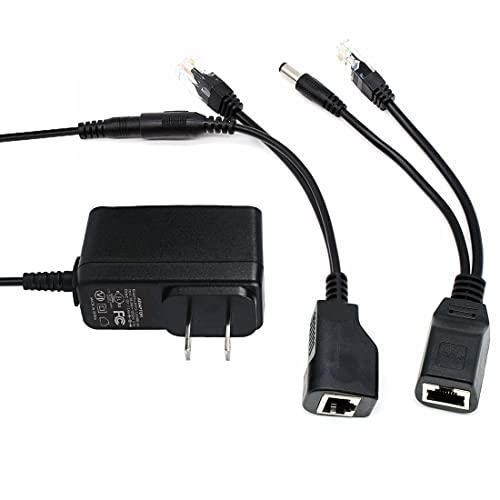

This kit contains

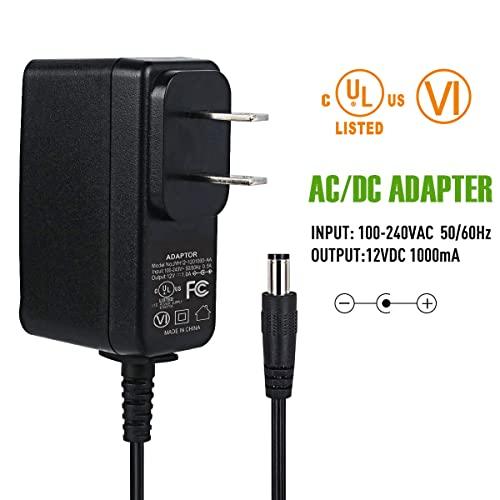

* PoE injector with 12v power supply (UL FCC listed) with input 110v to 240v, 50 or 60 hz operation

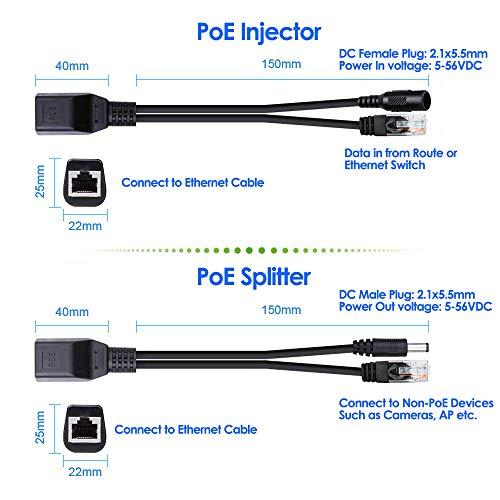

* PoE splitter with 5.5x 2.1mm dc plug and 12v 12 watts
* For Foscam E models - please see our 48v products - no splitter is required
* see our Amazon listings for kits with 4 to 8 cameras

Use this kit to power any 12v (12Watt max) device such as Foscam, Wansview, Airsight IP Cameras remotely, up to 328ft from the power source. Typical devices include
* FI8601W
* FI8602W
* FI8620W
* FI8919W
* FI9802W
* FI9804W
* FI9805W
* FI9828W

These devices inject the power on the spare data wires in the ethernet cable. The splitter at the camera split the power and data to operate the device.

What in box?

1 x 12V 12W UL listed power adapter;
1 x PoE injector cable;
1 x PoE splitter cable;"
