Description
- Input voltage: 4.2 ~ 40 V
- Adjustable output voltage range: 1.2 ~ 37V
- Output current: 1.5A
- Applications Mobile phone, MP3, MP4, PSP and many other charging equipment

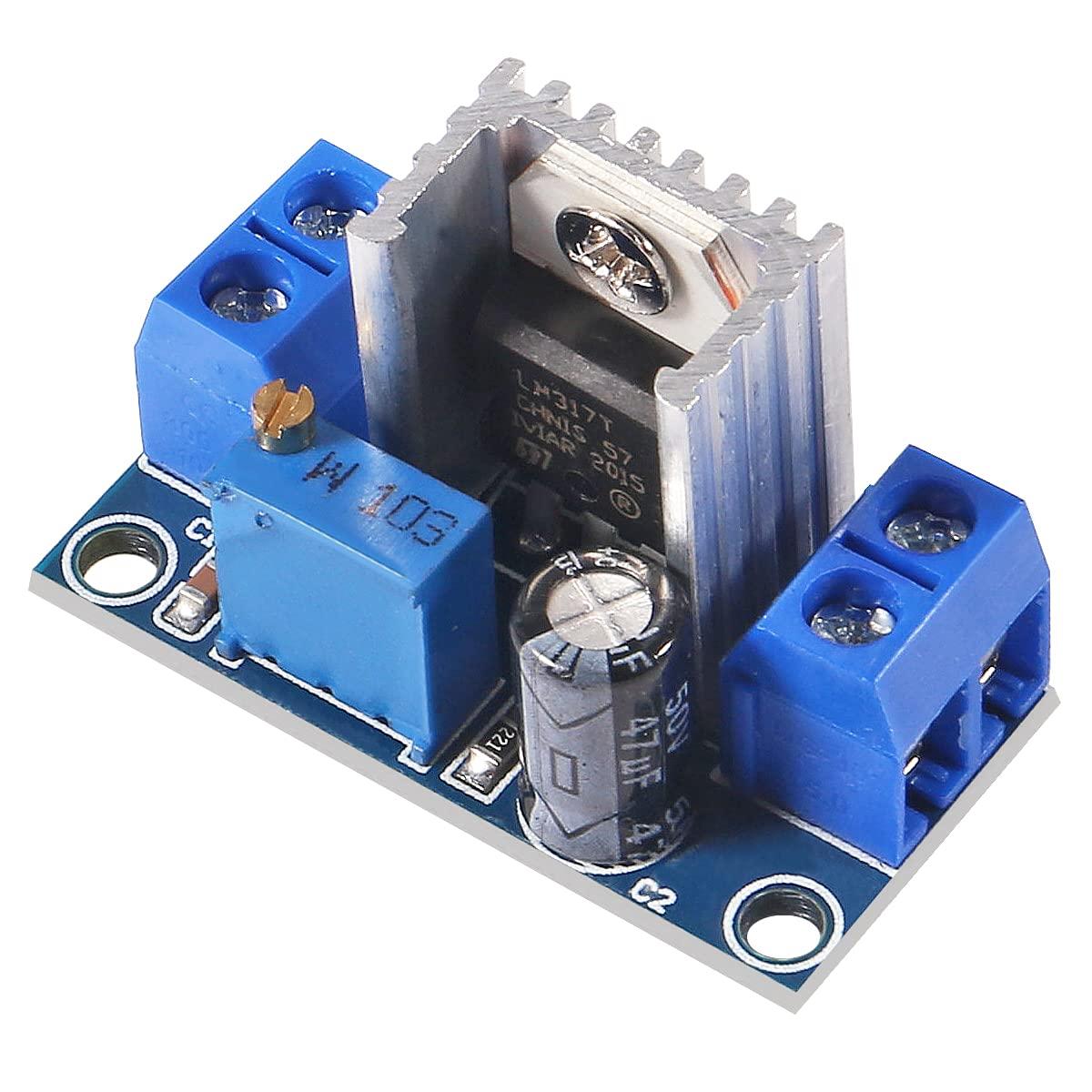

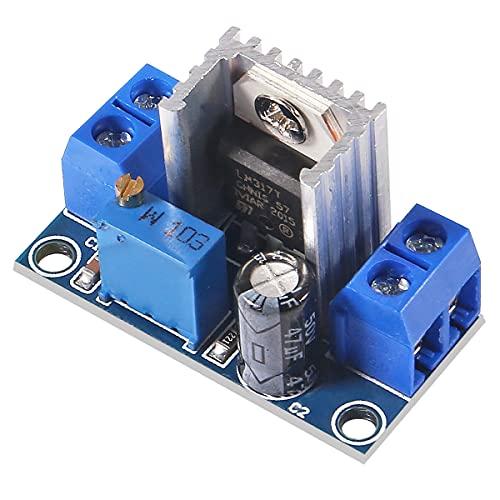

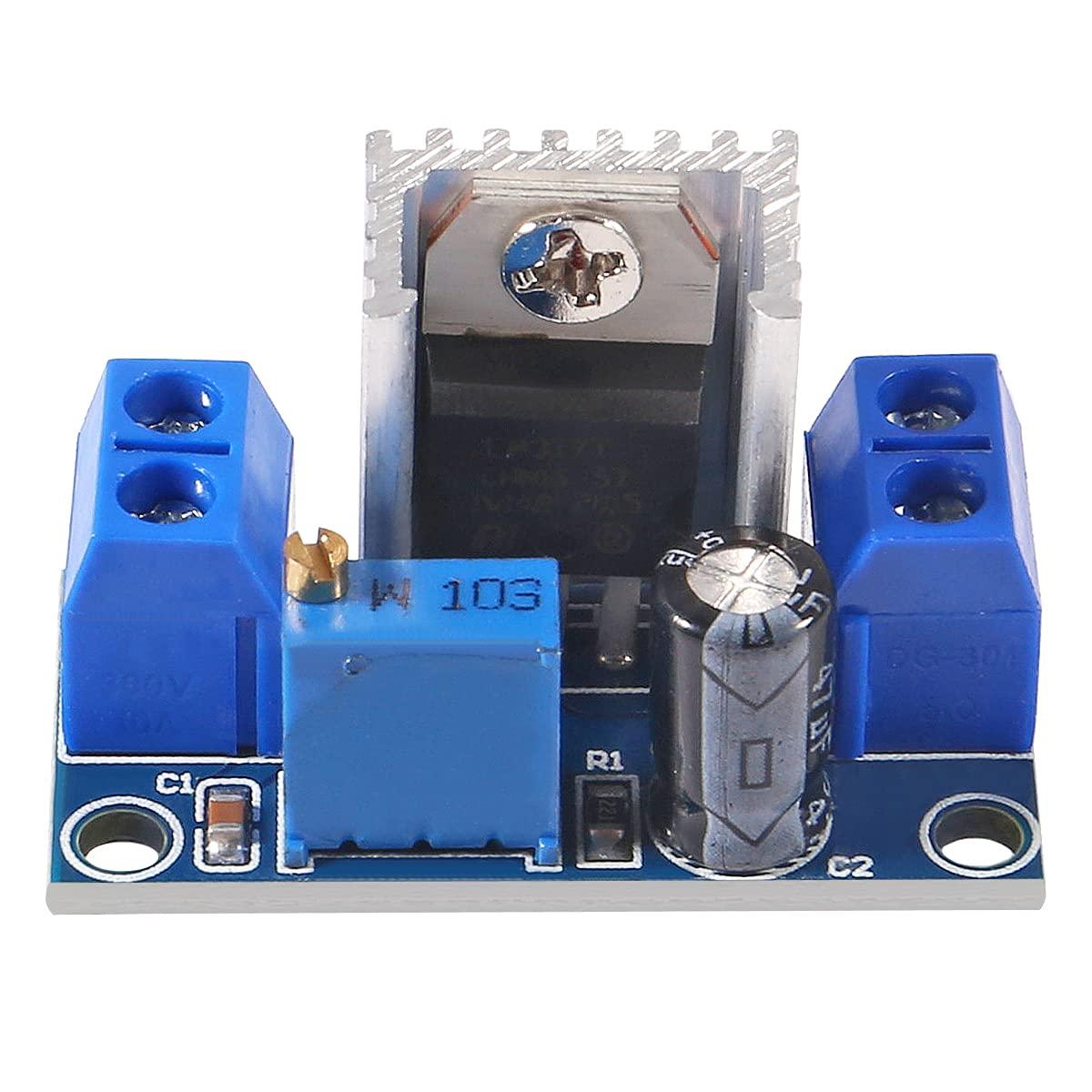

- 12 PCS LM317 Linear Regulator DC Buck Module
Description:
Output Current: 1.5A (min), 2.2A (typ)
Input-output voltage differential (VI-VO): 40Vdc (max)
Input Voltage: 4.2 ~ 40V
Adjustable output voltage range: 1.2 ~ 37V
Operating temperature: -55 C to +150 C
Output Current: 1.5A(MAX) (NOTE: When using high power, add a heat sink to the power supply chip)
Operating temperature: 0 C ~ 125 C
Characteristic frequency: 100 (MHz)

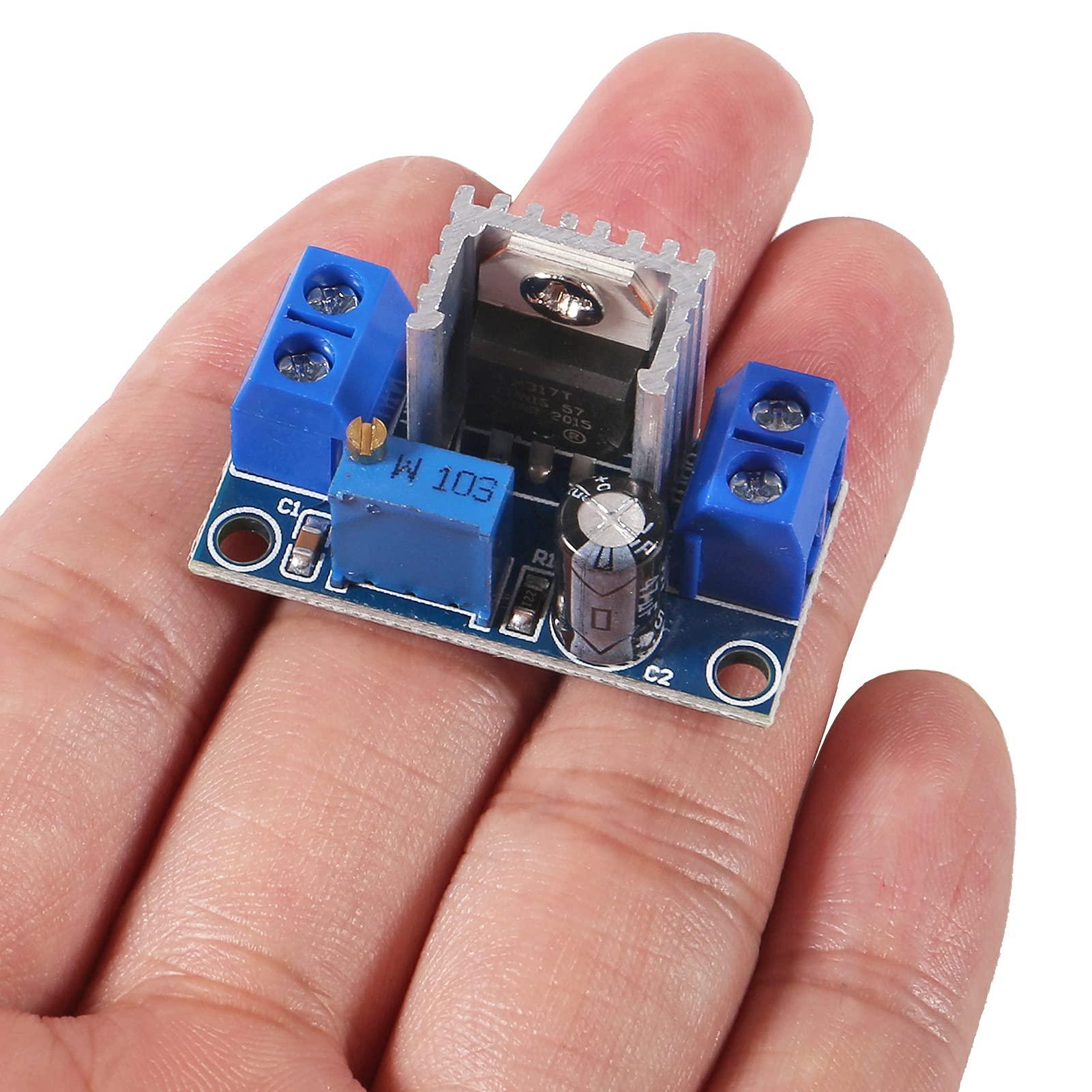

Module size: 35.6 (mm) x16.8 (mm)

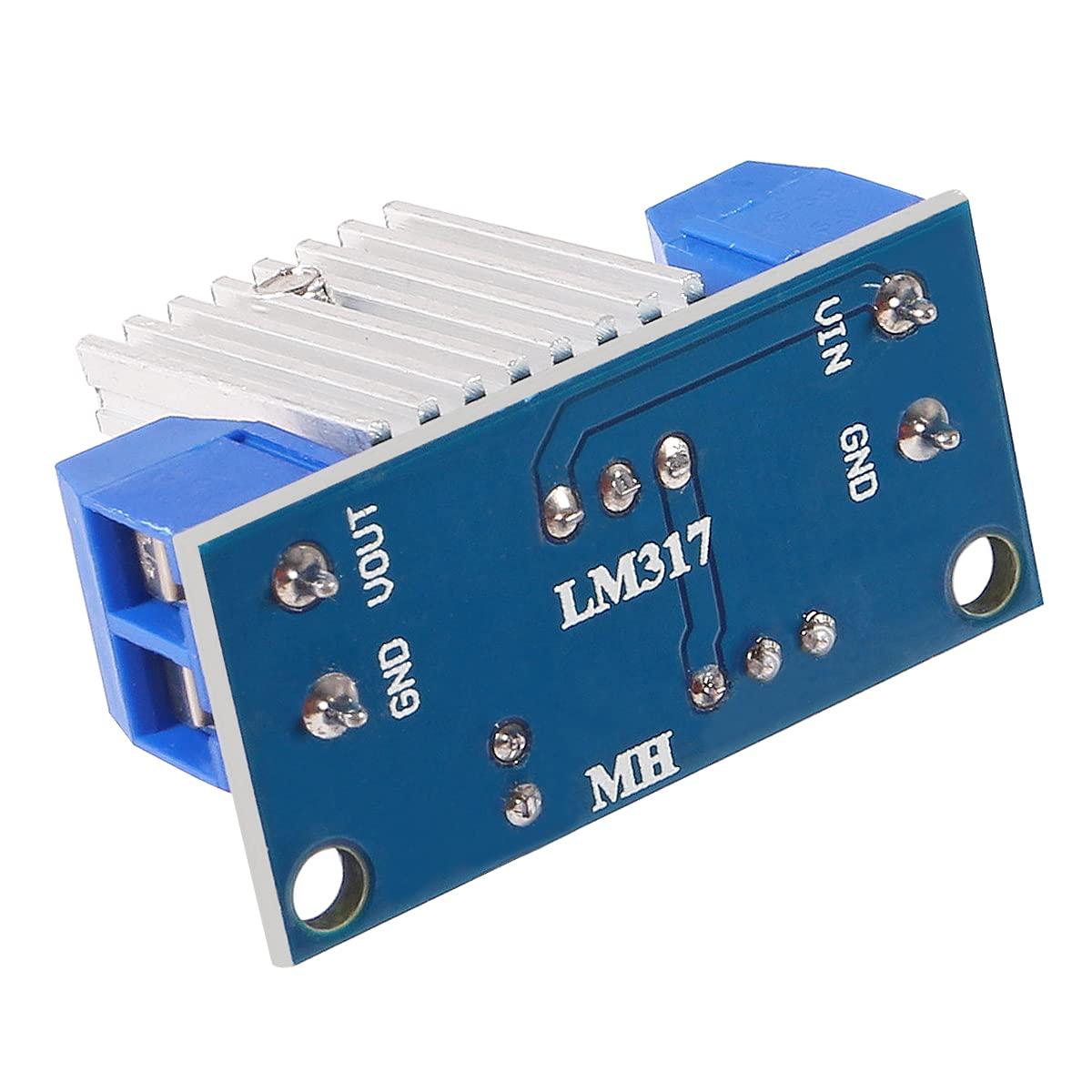

Input Method: VIN input positive, GND input negative
Output Method: VOUT output positive,GND output negative
Size: 3.5x2.1x1.7cm(approx)
Application examples:
1) Adjustable three terminal regulator module can replace 7805,7806,7809,7812,7824 and all three off regulator module
2) vehicle-mounted power supply, only need to enter this module termination point the car cigarette power supply, you can adjust the potentiometer, the output voltage can be adjusted to allow you your cell phone, MP3 at 1.25V-30V, MP4, many devices powered PSP charging, very easy oh.
3) In order to power your electronic devices when your device needs power when 1.25-60V, but your hands now only 12V or 24V battery, this module can directly use our buck 1.25-30V, solve your problems .
4). Preamp power supply system, when you do a project when you need to input supply voltage drops below a voltage (1.25V-30V) when the module will be your best choice.
Package Includes:

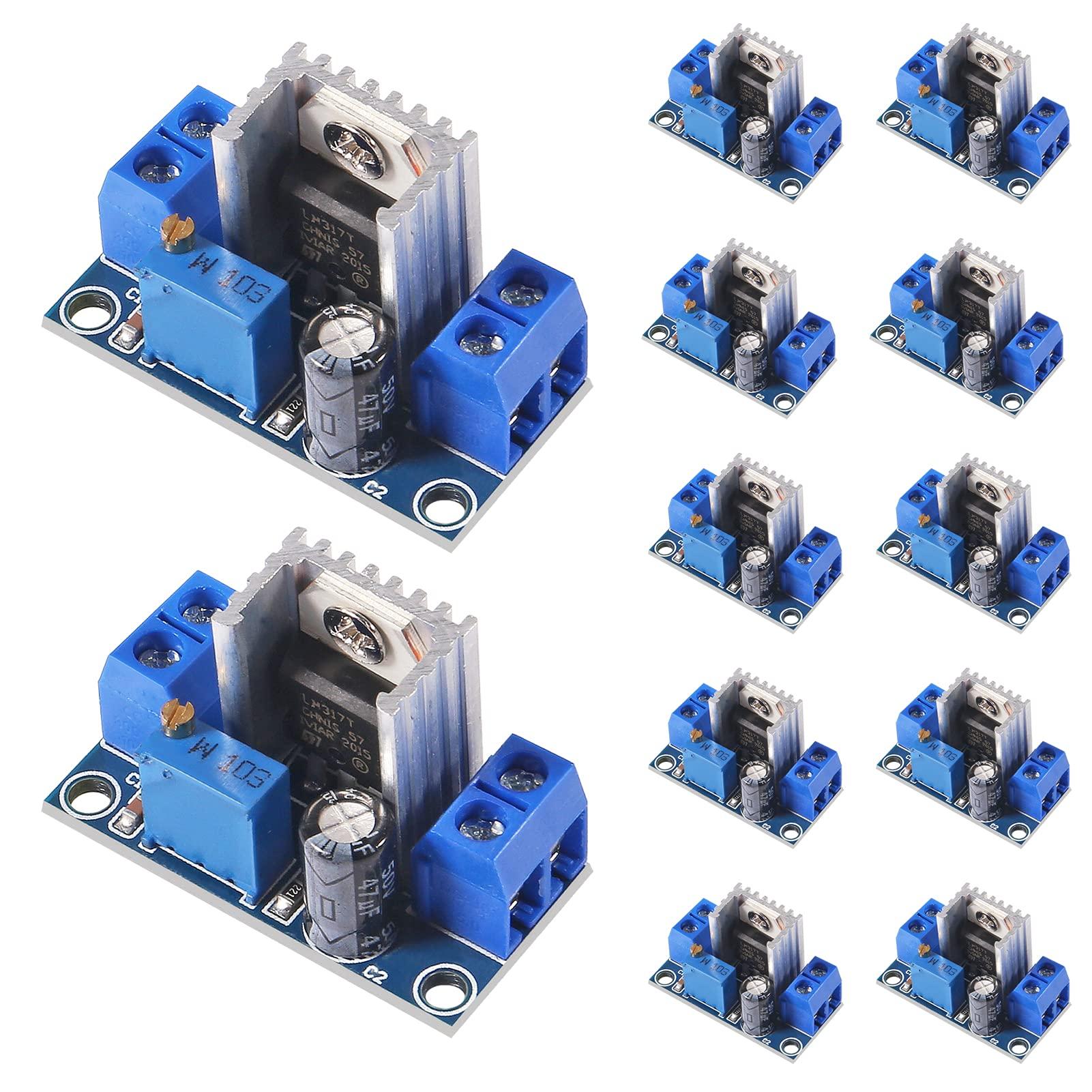

12 X LM317 DC-DC Converter Buck Step Down Board
