Description
- HEAD: 6-inch LCD screen (640 x 480 pixels resolution) with 2.0 MP digital camera, with SD card slot, USB input and AV port.
- OBJECTIVES: 4X, 10X, 40X (retractable) and 100X immersion (retractable) with achromatic optics, metallic finish, non-slip ring and color ring for easy identification.
- ILLUMINATION: LED with variable intensity control.
- PLATEN: Double plate with XY coaxial movements, 110 x 110 mm, with vernier, millimeter scale, caliper and stop with height adjustment.
- CONDENSER: Abbe AN 1,25 with lifting screw.

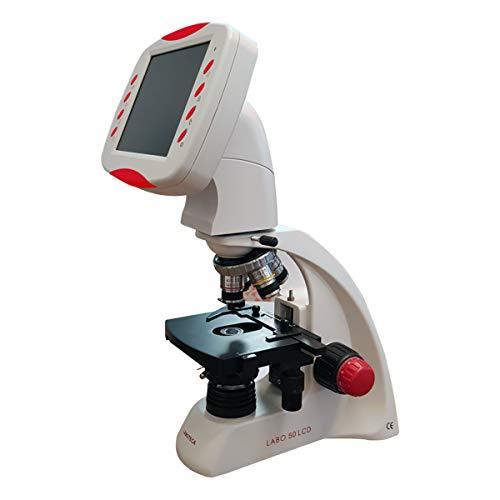

The LAB050 microscope can fulfill all kinds of basic procedures. It has an LCD screen instead of the head, and a camera of 2 MP, for capturing photo and video. Ideal for education, as well as routine work in clinical laboratories. "
SPECIFICATIONS
HEAD: LCD Screen 6"", 640 x 480 pixels for resolution. Built-in with 2.0 MP camera.
NOSEPIECES: Quadruple revolving nosepiece, 360 full rotation.
OBJECTIVES: Achromatic Objectives 4X, 10X, 40X, 100X Oil immersion. With non-skid color ring for easy identification.
BODY: Stationary, robust, and reinforced body.
STAGE: Double layer mechanical stage with coaxial coarse, 110 x 110 mm, X-Y movement range and vernier.
CONDENSER: Abbe A.N. 1.25
DIAPHRAGM: Iris diaphragm and holder filter.
FOCUSING: Non-skid coaxial coarse and calibrated fine focus with tension adjustment.
ILUMINATION: LED lamp with light intensity adjustment
POWER: Power supply 120 V-50/60 Hz, includes 3-AA rechargeable batteries"
