Description
- Easy, Snap-in Installation Saves Time
- Narrow Connector Allows High Port Density in Small Areas
- Long-Life 50 Gold Plated Brass Contacts Resist Corrosion
- Standard 8 Position, 8 Conductor Wiring
- Color Coded for 568A and 568B Standards

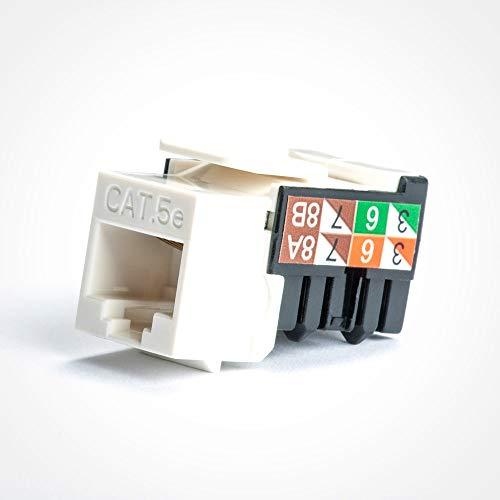

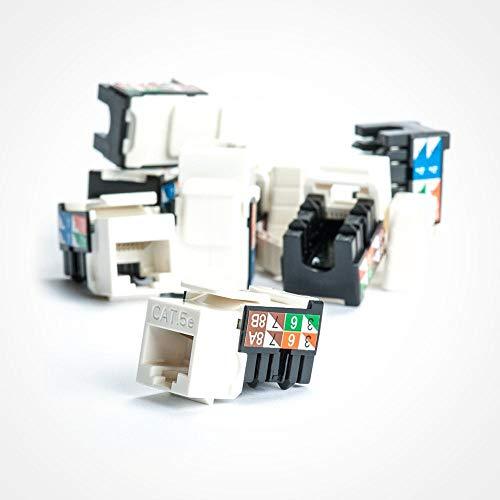

Vertical Cable Cat5E 90 Degree Keystone Jack 25 Pack
The Cat5e Jack is the most widely used keystone jack in todays market for networking wall plate solutions or patch panels. Each Cat5e Jack provided by FireFold provides outstanding performance, exceeding the TIA/EIA 568-B industry standard. This makes these keystone jacks perfect for use in todays high-speed networks while remaining completely backward compatible with all previous standards.
The Cat5e jack provided by us comes with a standard RJ45 plug on the outside. While on the inside, wiring slots are in place for a tool required termination. All of our networking keystone jacks have 568A and 568B color codes on the jacks in addition to the easy trouble free 110 style termination.
Specifications: Housing Material: UL 94V-0 Self Extinguished Plastic IDC 110 Contacts: Phosphor Bronze, Nickel Plated Nose Contacts: 50 Gold Plating over Nickel Operating Life: Minimum 750 Insertions Compatibility: 22-26 AWG Solid Cable 8P8C PCB: FR-4, 1.6mm Double Sided Cap: UL 94V-0 Rated Current Rating: 1.5Amp Max Dielectric Strength: 1000V RMS for 1 Min Insulation Resistance: 500m Contact Resistance: 20m DC Resistance: 0.1 Ohm Temperature Range: -10C to 60C Max Humidity: 10%~90% Non-Condensing Certifications: ANSI/TIA/EIA-568-C.2 Compliant, 3P, UL Listed, ETL Listed Dimensions (mm): 19.86H x 17W x 31D
