Description
- The ultra-slim wall mount keeps the screen low 1.5" profile
- Manual and hardware pack included

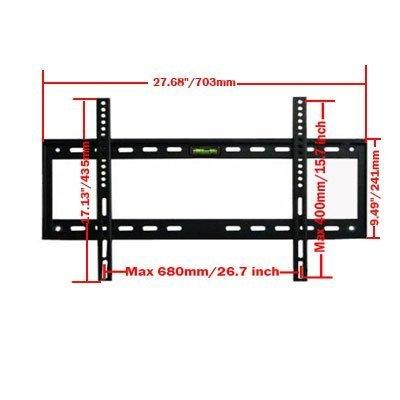

- Fits VESA 680x400, 600x400, 600x300, 600x200, 500x400, 500x300, 500x200, 400x400, 400x300, 400x200, 300x300, 300x200, 200x200, 200x100, 100x100 and any hole pattern within 100 to 680 mm ( 4" - 26.7" )wide and 100 to 400mm ( 4"- 16" ) high
- Fits most 32" to 65" flat panel screens and some up to 70" 75"
- Weight capacity 165 lbs

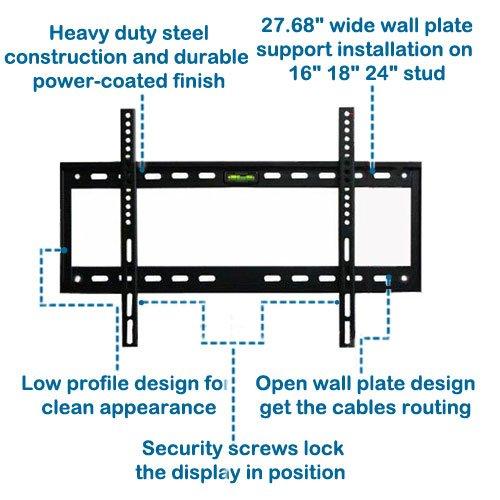

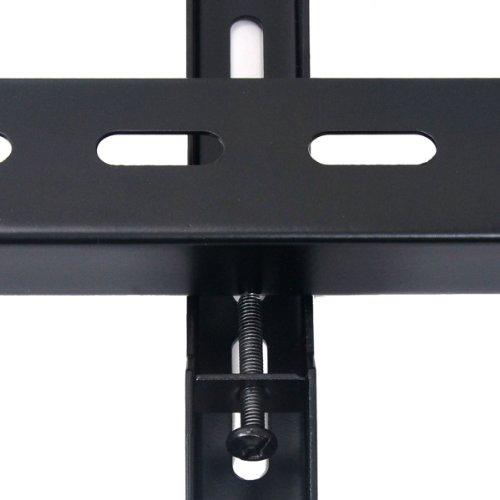

Will This mount Fit my Plasma TV? Always check the weight of your TV. It must be less than 165 lbs. Check your TV's owner's manual for mounting guidelines. You'll see the word "VESA" followed by numbers, which tells you how far apart the holes on the bracket or TV are in millimeters. For example, VESA 200x100 means that the holes are in a rectangle, with two sides measuring 100mm (about 4 inch) and two sides measuring 200mm (about 8 inch). You should be able to find that information in the owner's manual, or you can measure the holes yourself . If the vertical distance is within 4" - 16" inch, horizontal distance within 4" - 26.7" inch, then this mount will fit. Next, measure your screen is wider and taller than the mount, otherwise the mount can not be hidden behind the TV. Your TV should be at least 32 inch wide. When you are looking for a mounting solution for your flat panel television, don't settle for anything but this world's premier mounting product.Safety bolts system-Lift and lock mounting: Just attach the pre-assembled arms on the back of the display to the wall plate, then tighten the security screws lock the display in position as needed.This mount is VideoSecu brand. Please report to Amazon.com if you receive a mount without VideoSecu logo.
Notice: This mount fits most 32-65" TVs, some up to 70 75 inch TVs manufactured in recent 3 years
