Description
- 5" ZJ050NA-08C 640X480 LCD Screen: Brightness 250 cd/m (Typ.) Contrast Ratio 500:1 (Typ.) (TM)
- LCD Controller Board: Input Power Adapter spec. need 12Vdc More than 2A. Help to notice there is no power adapter in the packing list , if you need one , recommend go the "VSDISPLAY" store ,get the one "VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output,Power Supply, US Plug,Fit for Many Types of VSDISPLAY LCD Controller Board
- When you get the products, help to follow this link pictures to connect and power on it .
- Packing list: 1HD-MI Audio LCD Controller Board,15.0" ZJ050NA-08C 640480 LCD Screen,1 Inverter Board,1 LVDS Cable,1 Keyboard With Cable
- All the products are tested before delivery, if there is any problem of product,please feel free to contact us by email.

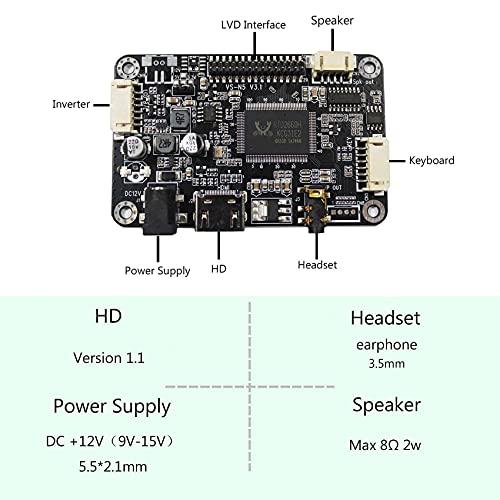

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm
5.0" ZJ050NA-08C 640480 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 640(RGB)480 (VGA) 159PPI
Outline Size 117.65 88.43 5.9 (HVD)
Display Area 250 cd/m (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR10)
Backlight WLED
Packing list:
1HD-MI Audio LCD Controller Board
15.0" ZJ050NA-08C 640480 LCD Screen

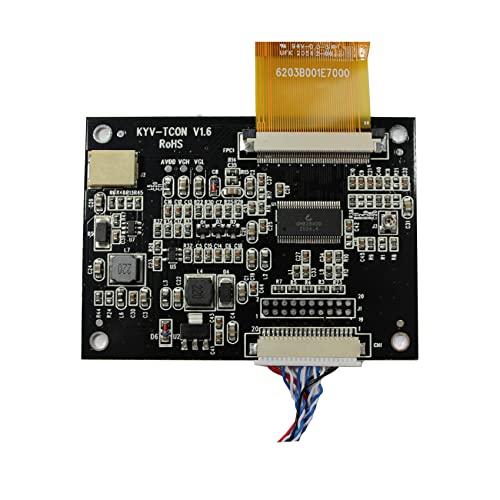

1 Inverter Board
1 LVDS Cable
1 Keyboard With Cable
