Description

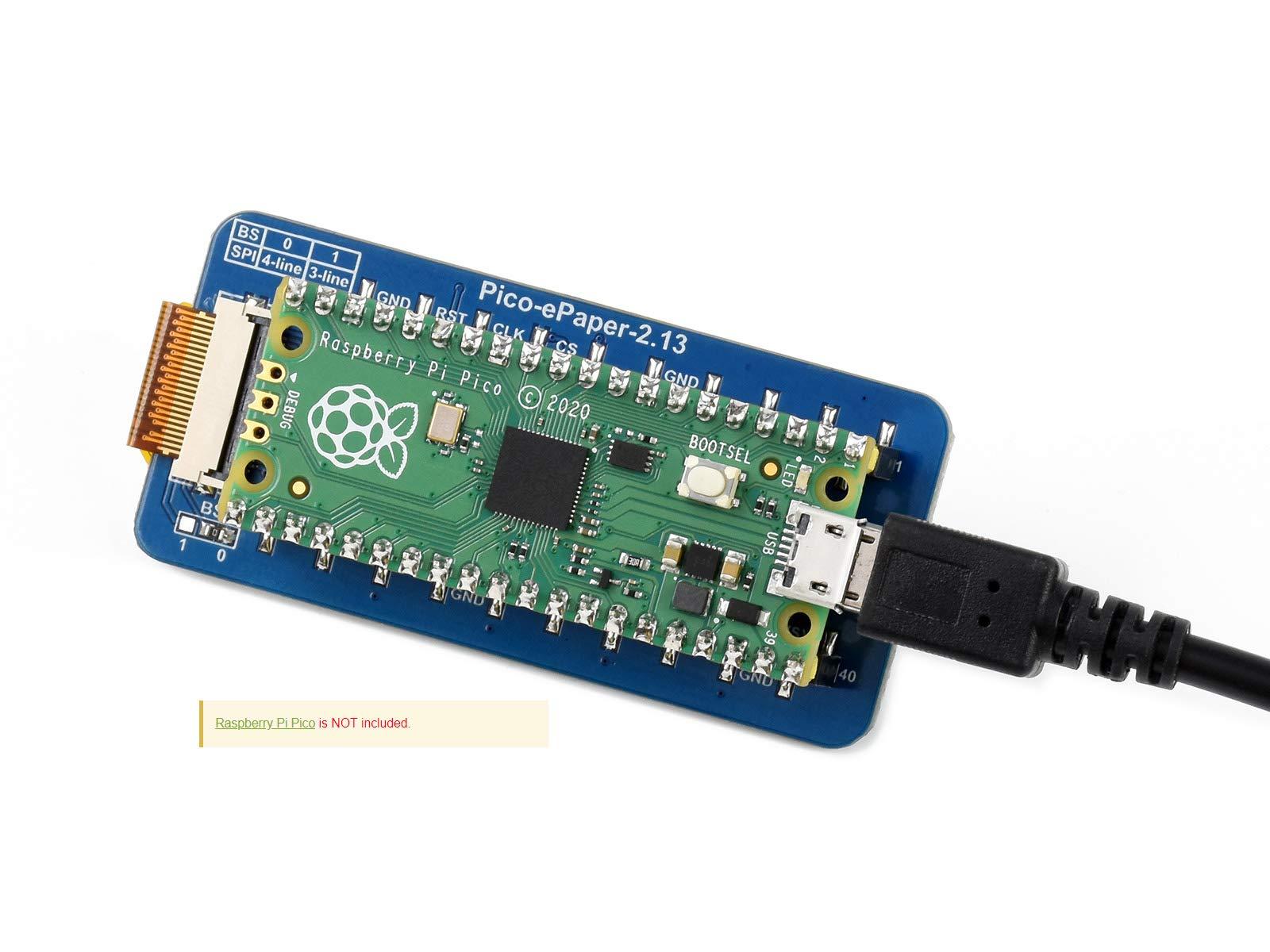

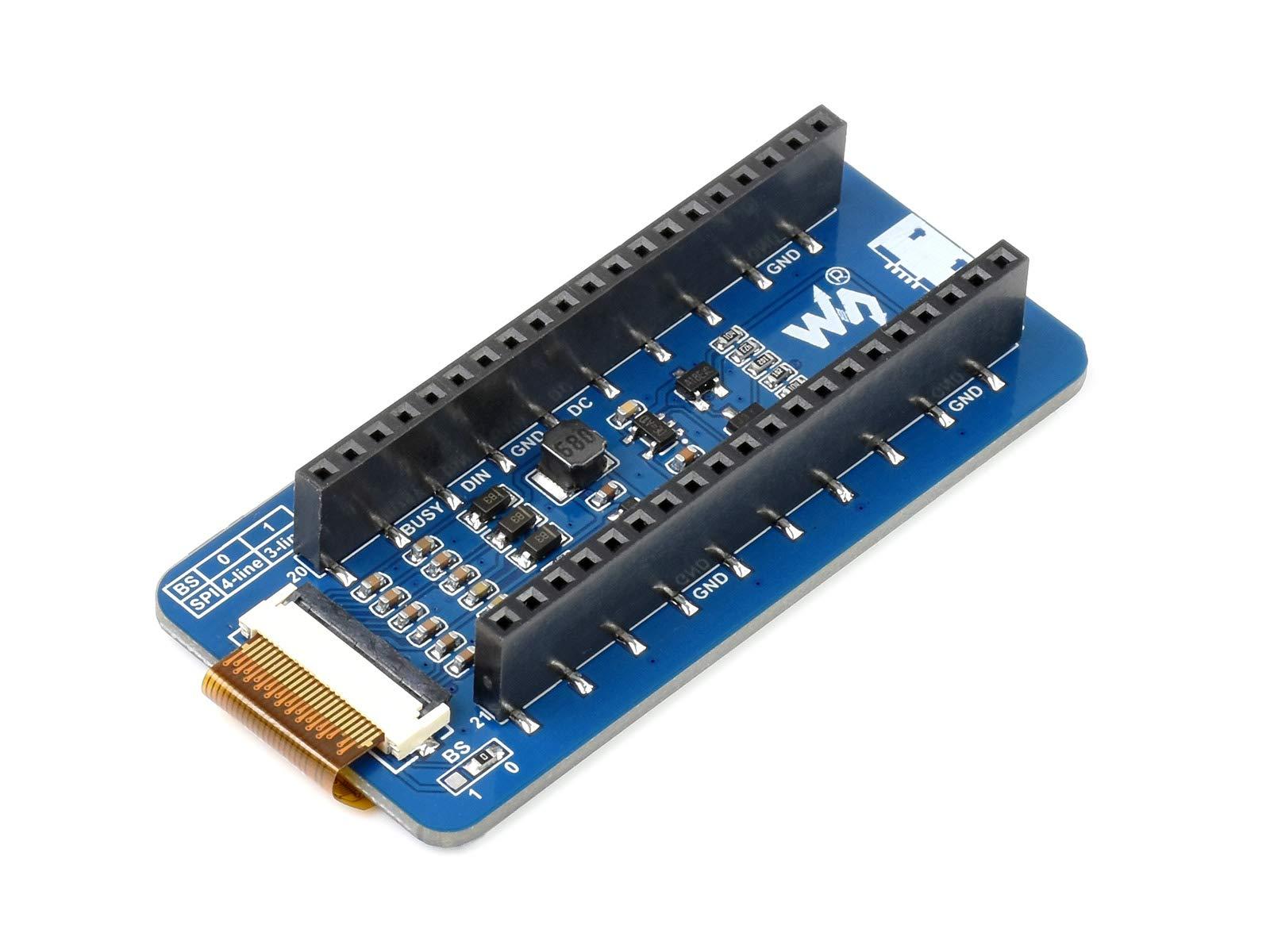

- Raspberry Pi Pico Header Compatibility.Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing.SPI interface, requires minimal IO pins
- Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Overview

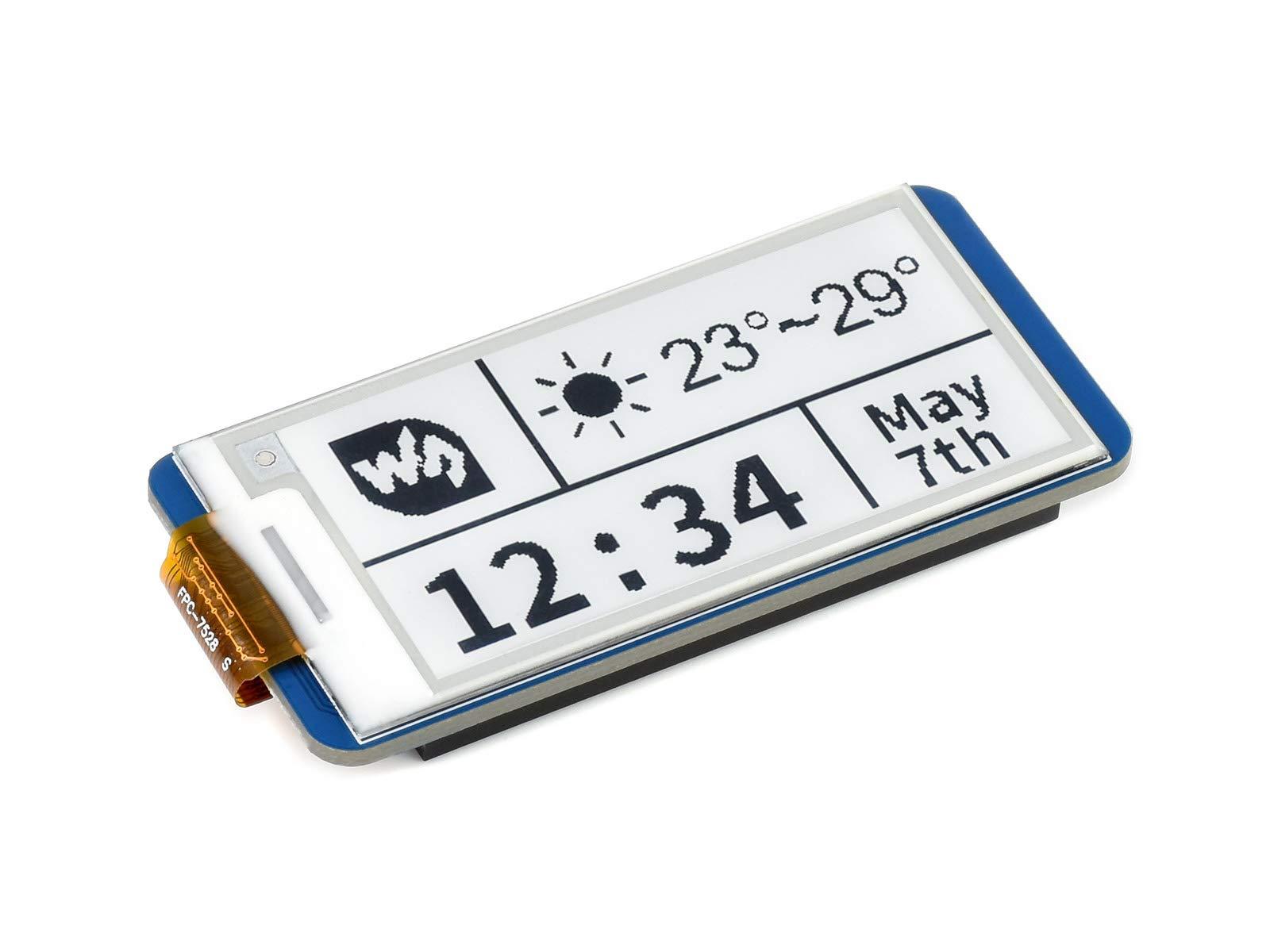

2.13inch E-Paper E-Ink Display Module For Raspberry Pi Pico, 250122 Pixels, Black / White, SPI Interface

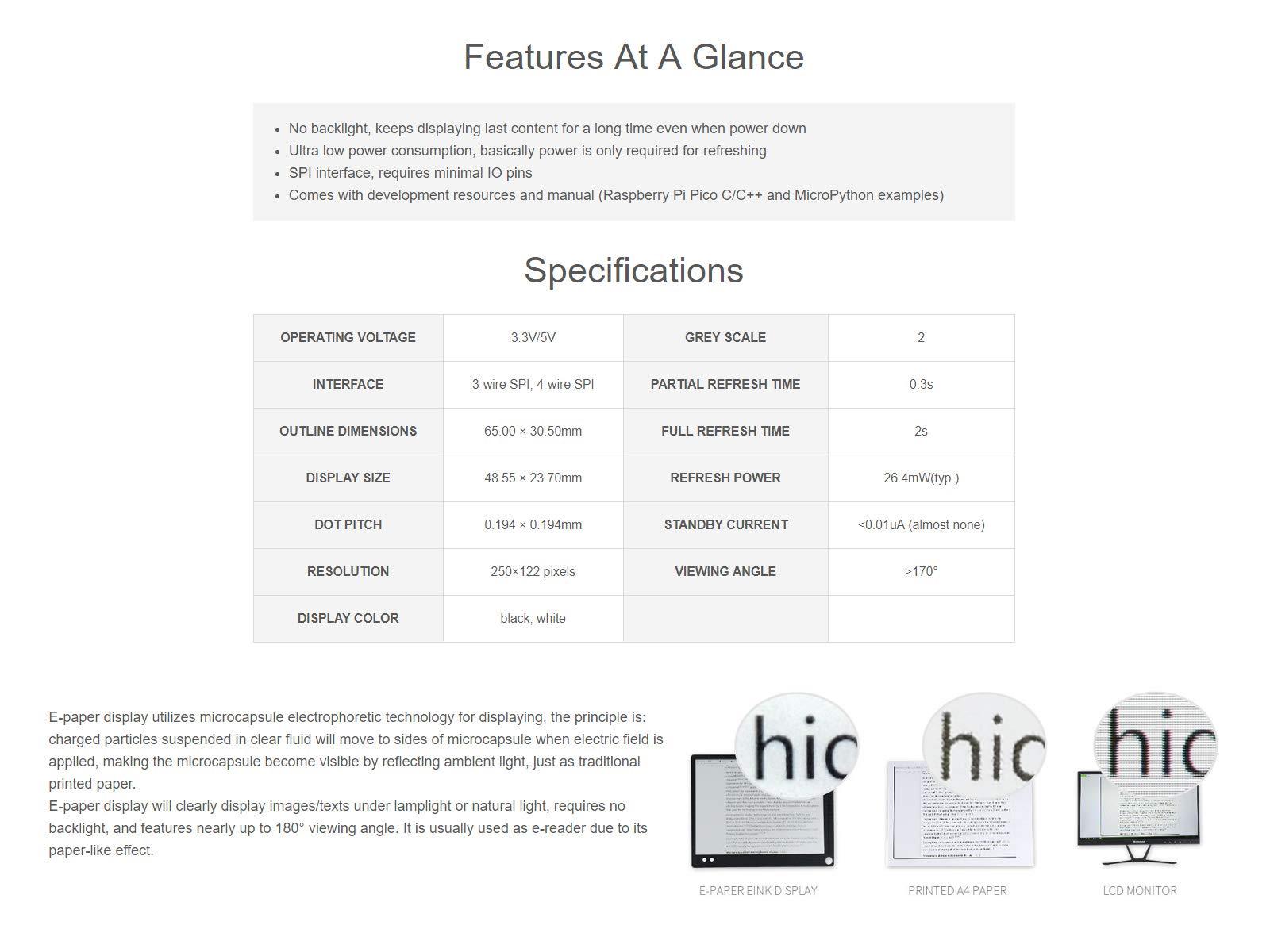

Specification
Operating voltage: 3.3V/5V
Interface:3-wire SPI, 4-wire SPI

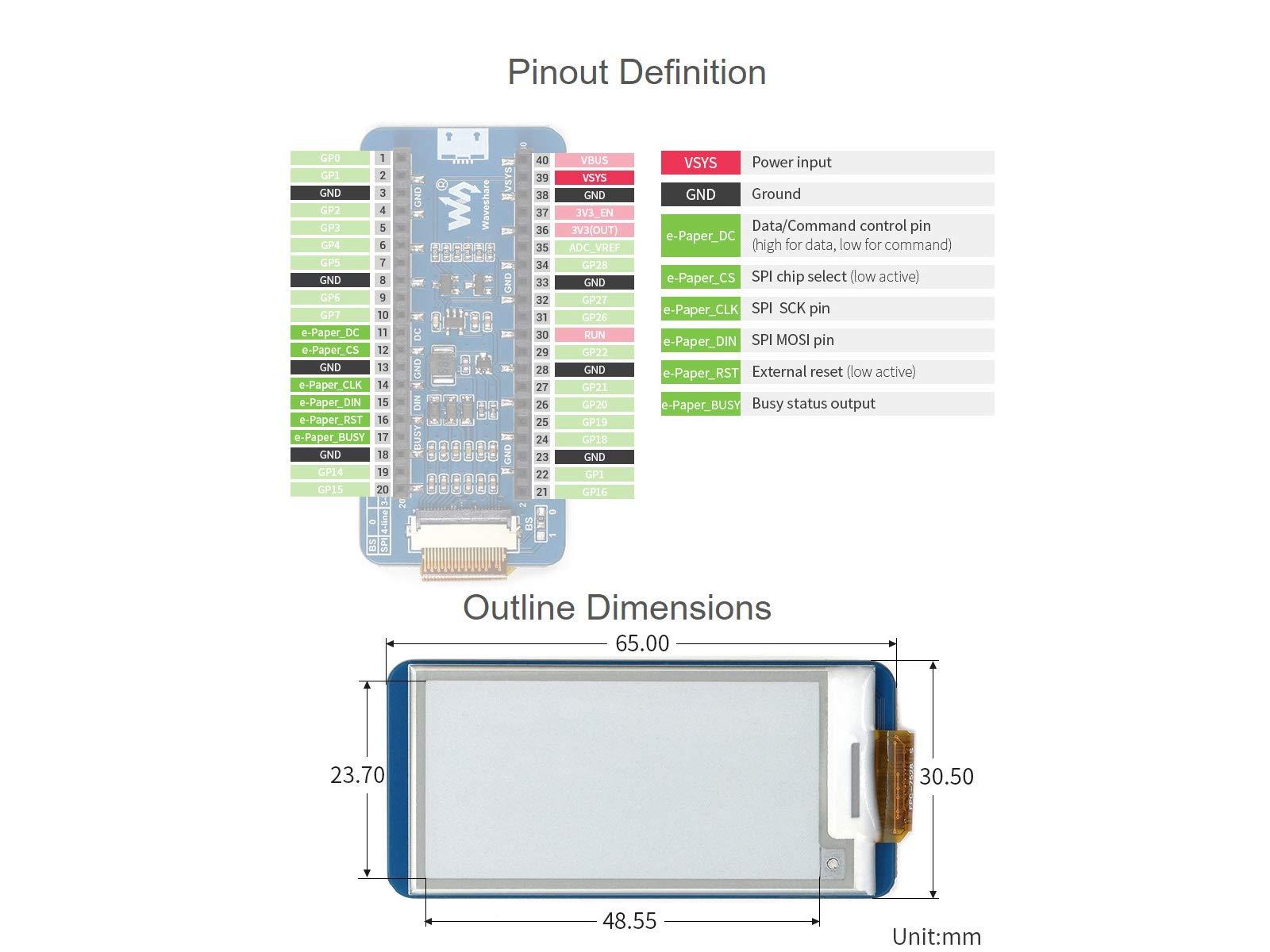

Outline dimensions: 65.00 30.50mm
Display size:48.55 23.70mm
Dot pitch: 0.194 0.194mm
Resolution: 250122 pixels
Display color: Black, white
Greyscale: 2
Partial refresh time: 0.3s
full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby current: <0.01uA(almost none)
Viewing Angle: >170
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides
of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 viewing angle. It is
usually used as e-reader due to its paper-like effect.
Package Content
Pico-ePaper-2.13 x1
Note
1.Development Resources is provided , please contact us if you have any problem .

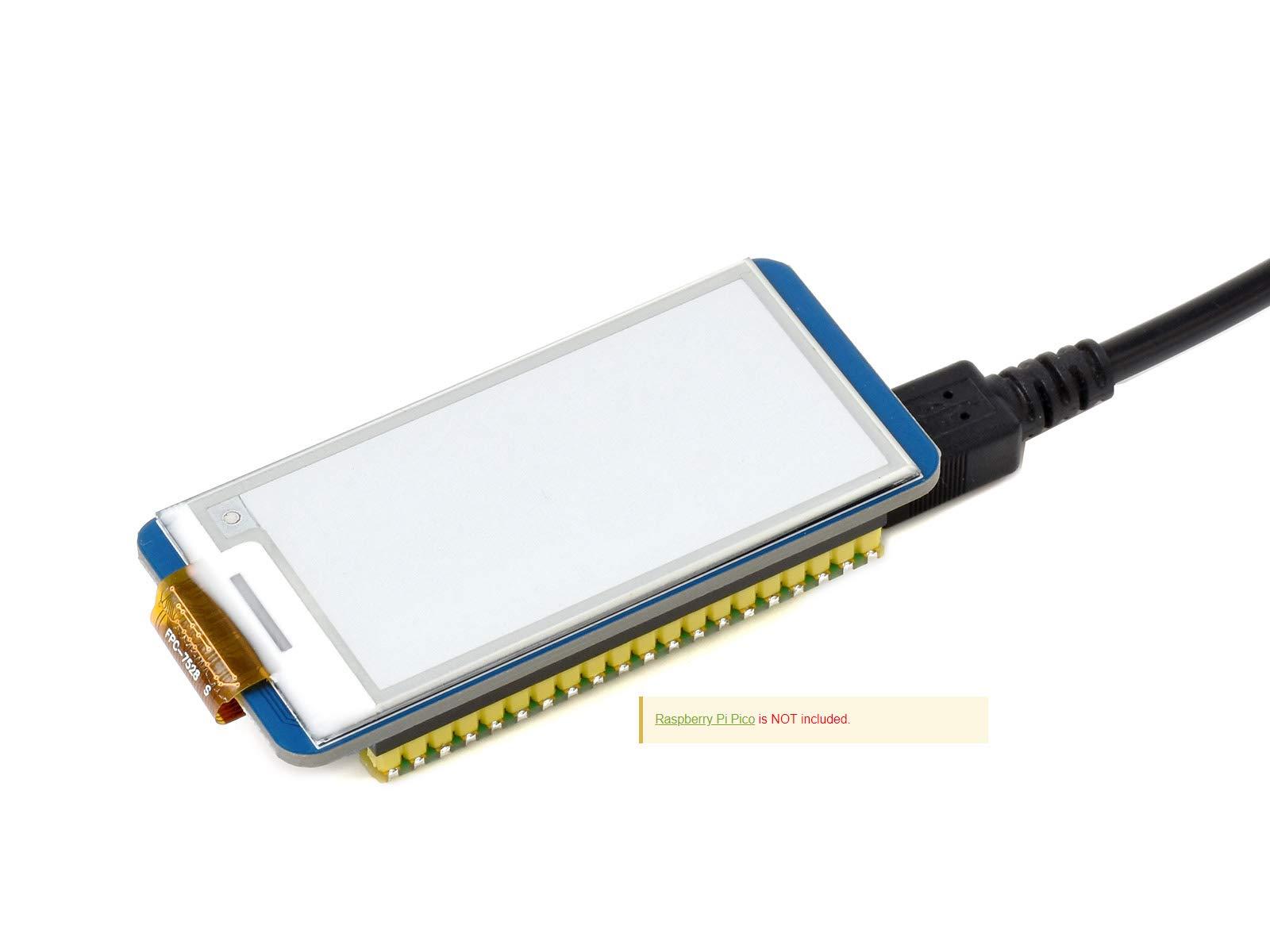

2.The Raspberry Pi in the photo is NOT included.
