Description

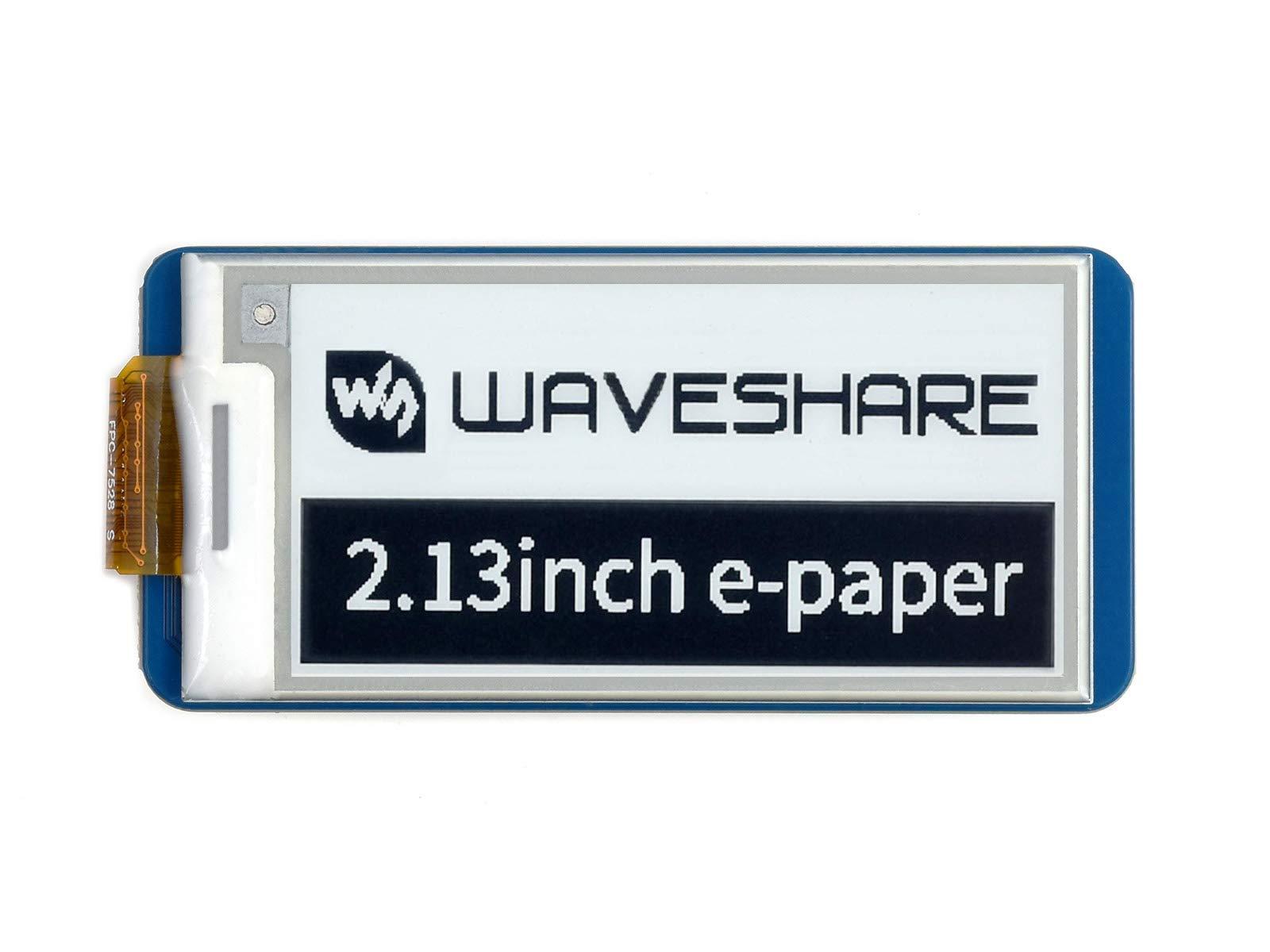

- 2.13inch E-Paper E-Ink Display Module For Raspberry Pi Pico, 250122 Pixels, Black / White, SPI Interface,requires minimal IO pins.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

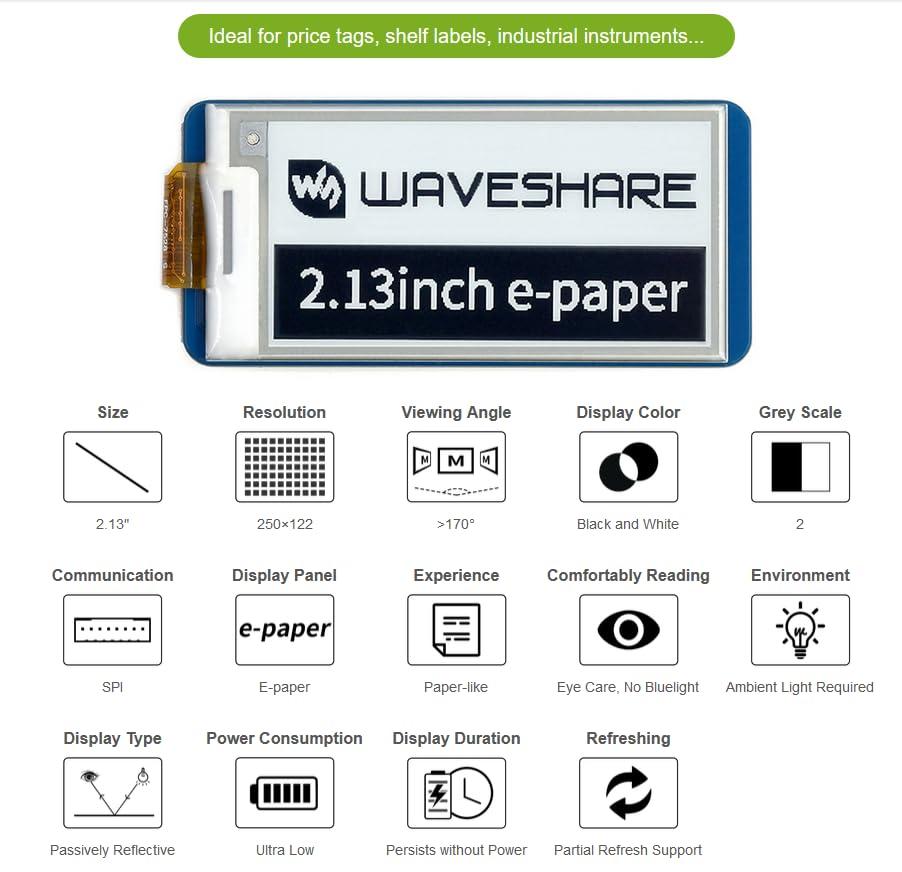

- Application : Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags

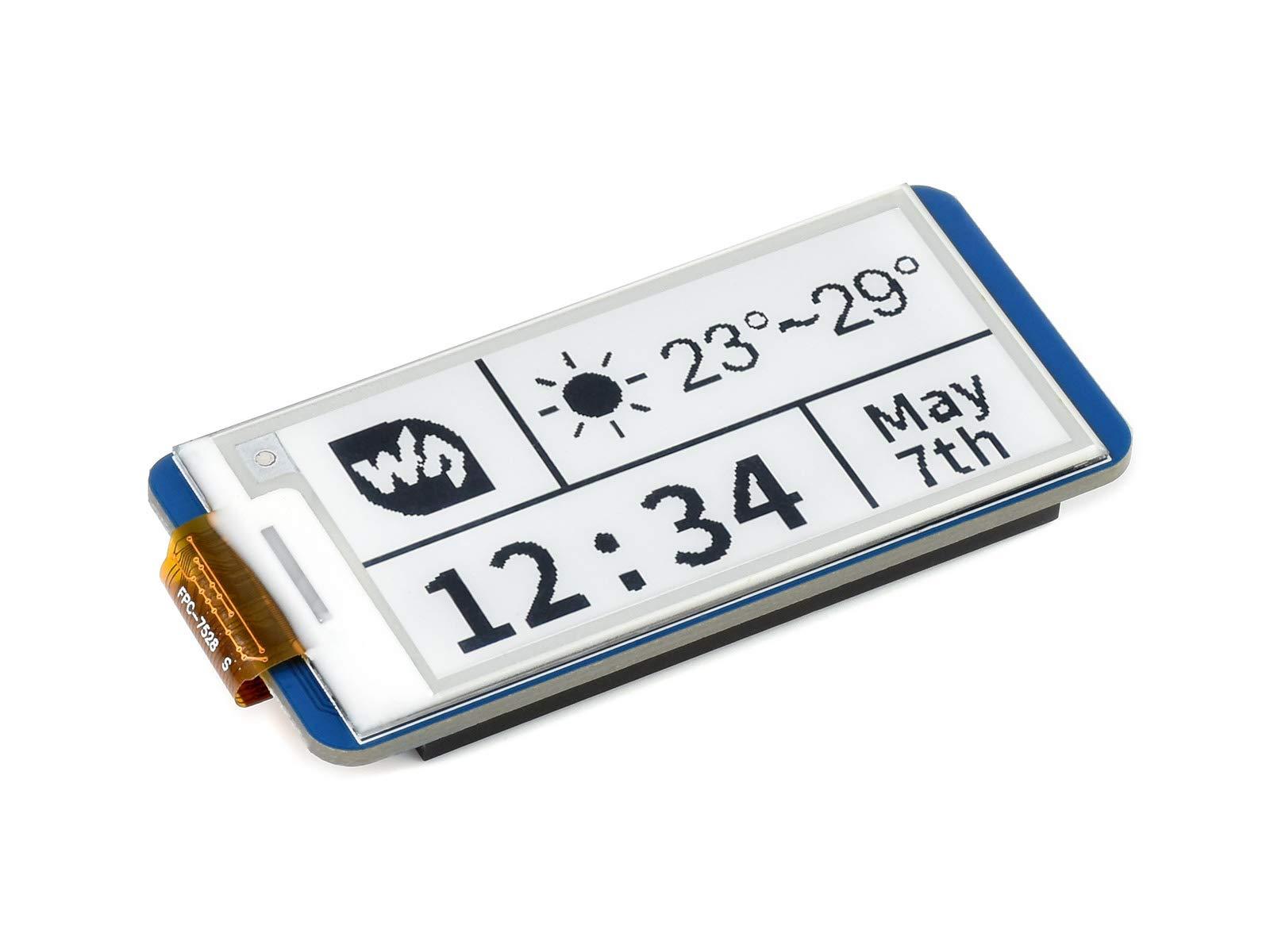

- E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 viewing angle. It is usually used as e-reader due to its paper-like effect.
- Development Resources/Online Tutorial:n9.cl/1w47d
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, requires minimal IO pins
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE:3.3V
GREY SCALE:2
INTERFACE:3-wire SPI, 4-wire SPI
PARTIAL REFRESH TIME: 0.3s

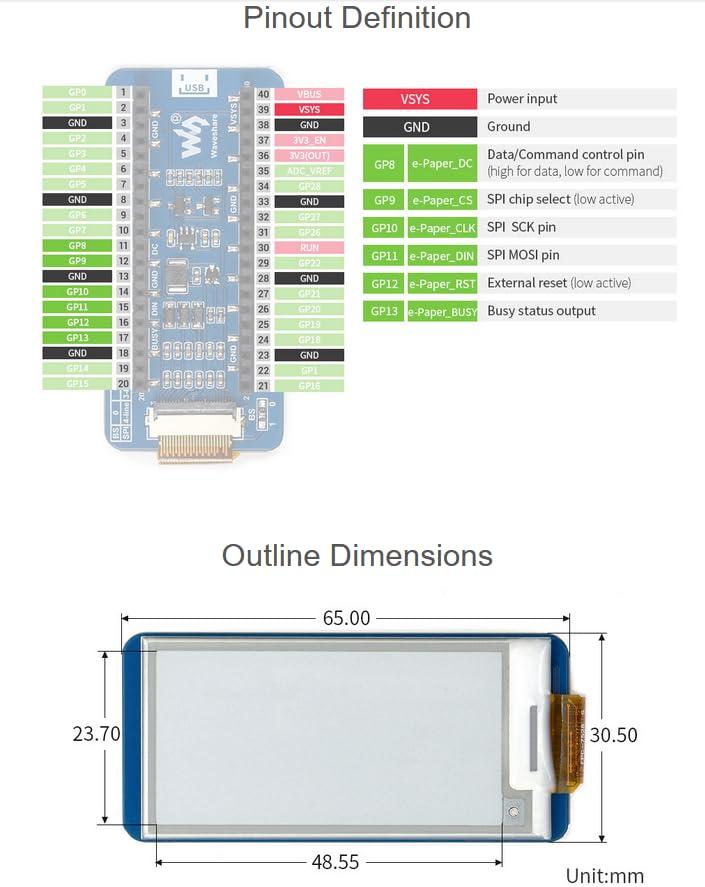

OUTLINE DIMENSIONS: 65.00 30.50mm
FULL REFRESH TIME: 2s
DISPLAY SIZE:48.55 23.70mm
REFRESH POWER: 26.4mW(typ.)
DOT PITCH:0.194 0.194mm
STANDBY CURRENT: <0.01uA (almost none)
RESOLUTION:250122 pixels
VIEWING ANGLE:>170
DISPLAY COLOR: black, white

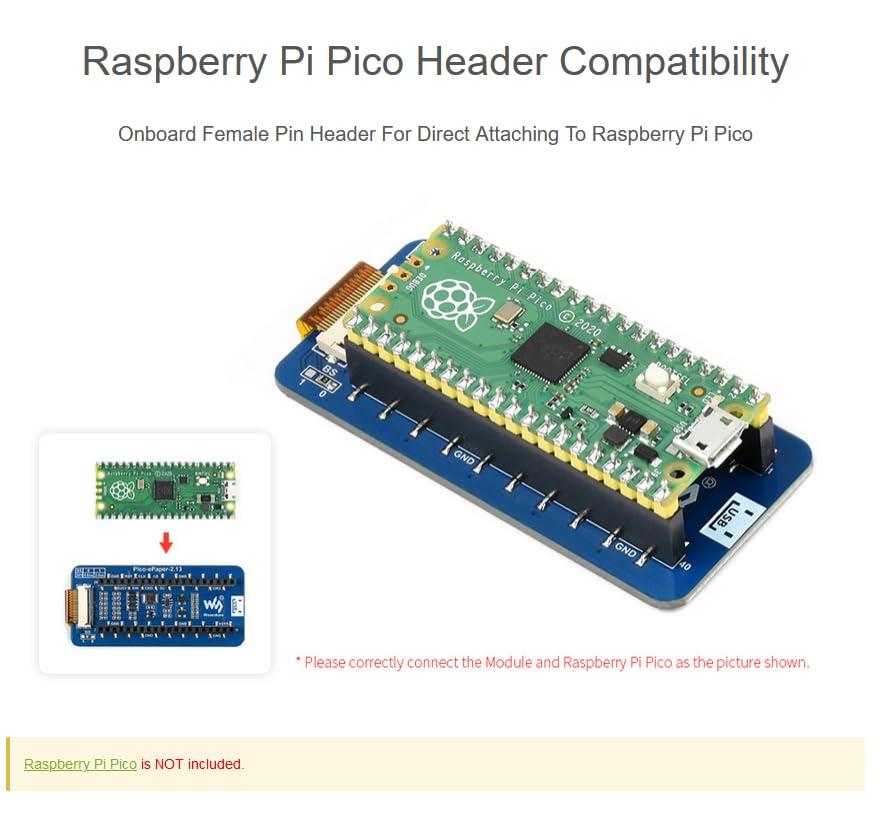

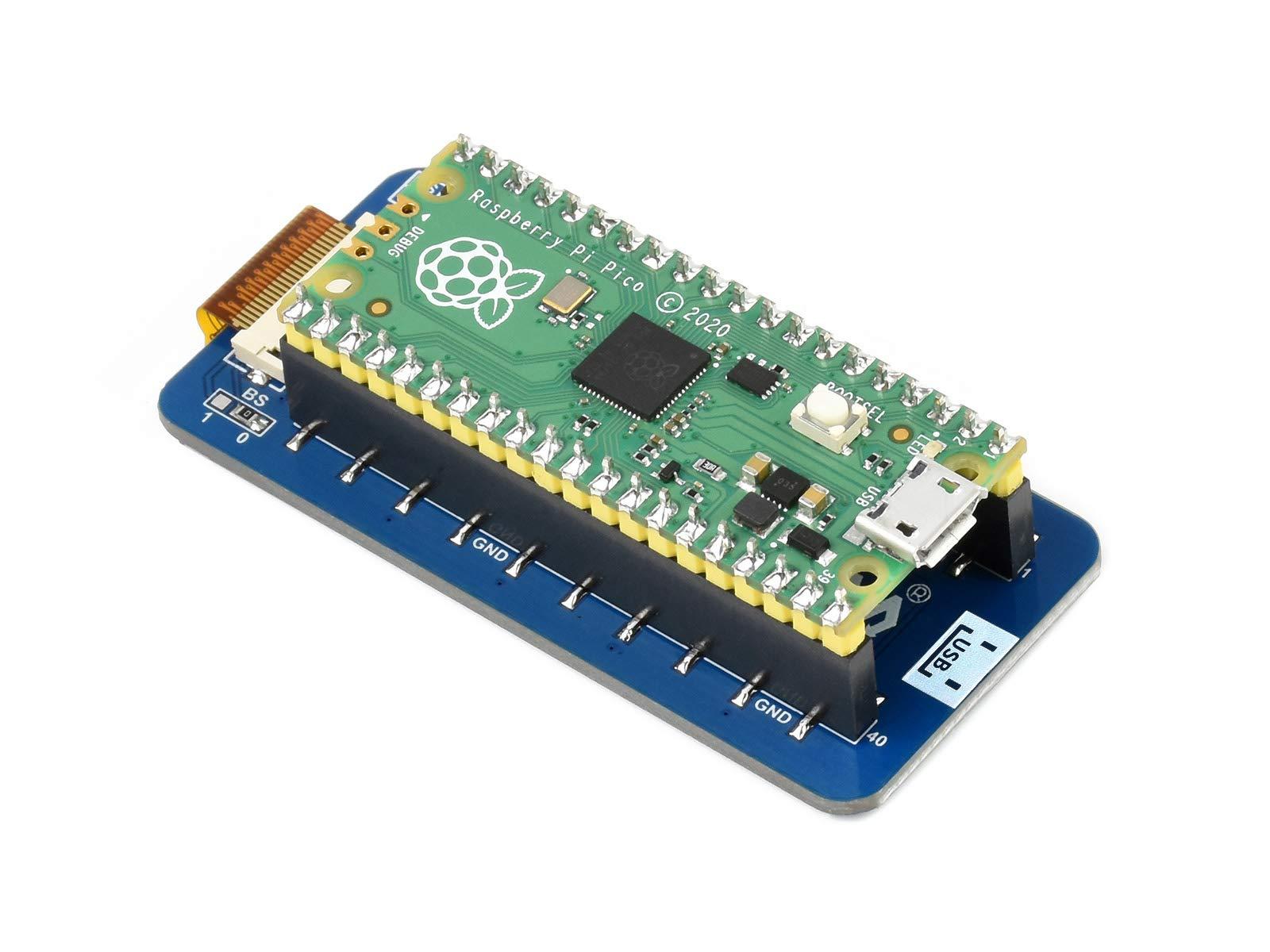

Raspberry Pi Pico header compatibility: onboard female pin header for direct attaching to Raspberry Pi Pico
PACKAGE CONTENT

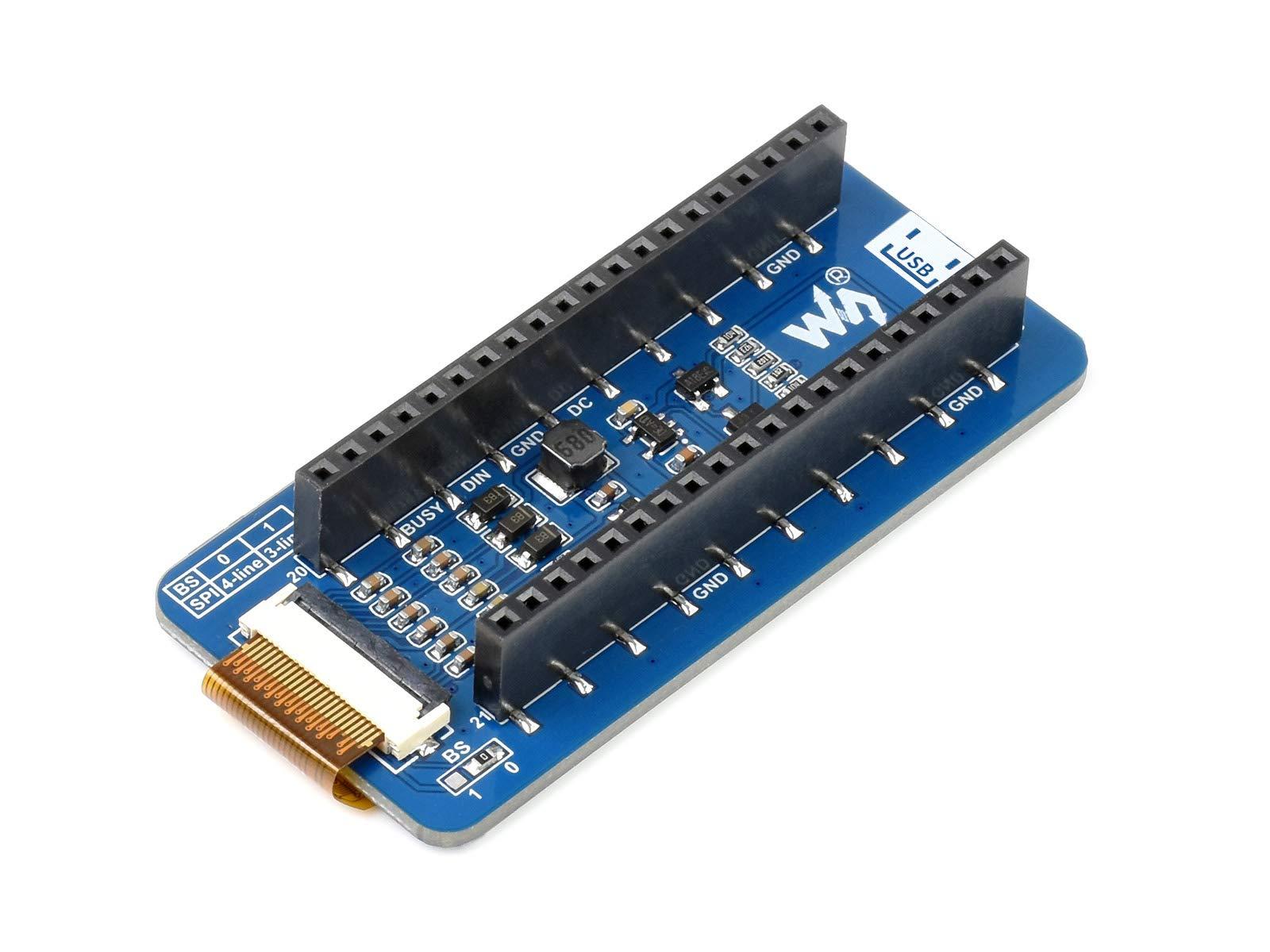

Pico-ePaper-2.13 x1
