Description

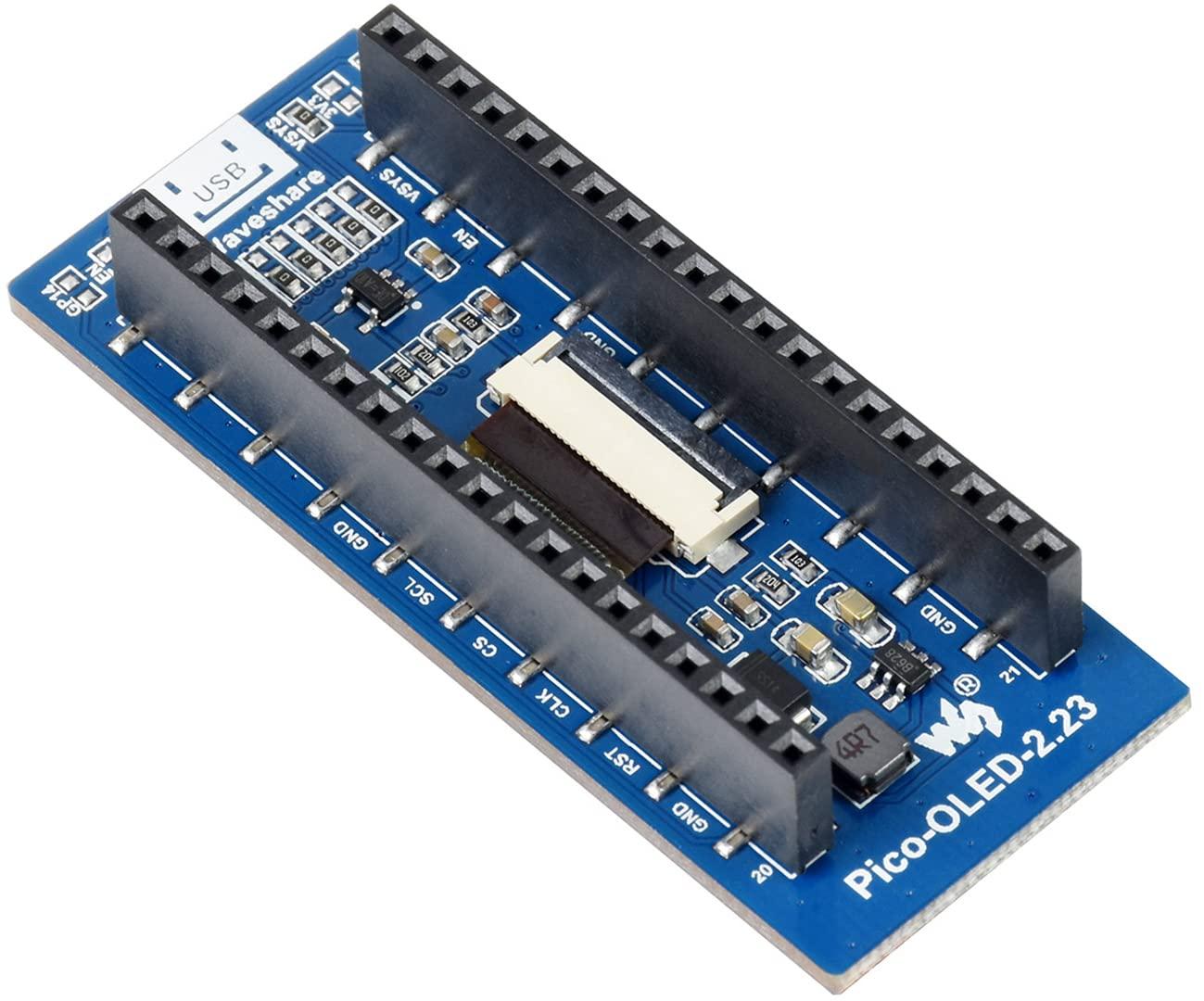

- 2.23inch OLED Display Module for Raspberry Pi Pico series boards,12832 pixels, embedded SSD1305 driver
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- Logical voltage3.3V. Operating voltage: 3.3V/5V. Viewing angle:>160
- Display size: 55.02 13.10mm. Pixel size: 0.41 0.39mm. Dimensions : 63.00 26.00mm.
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

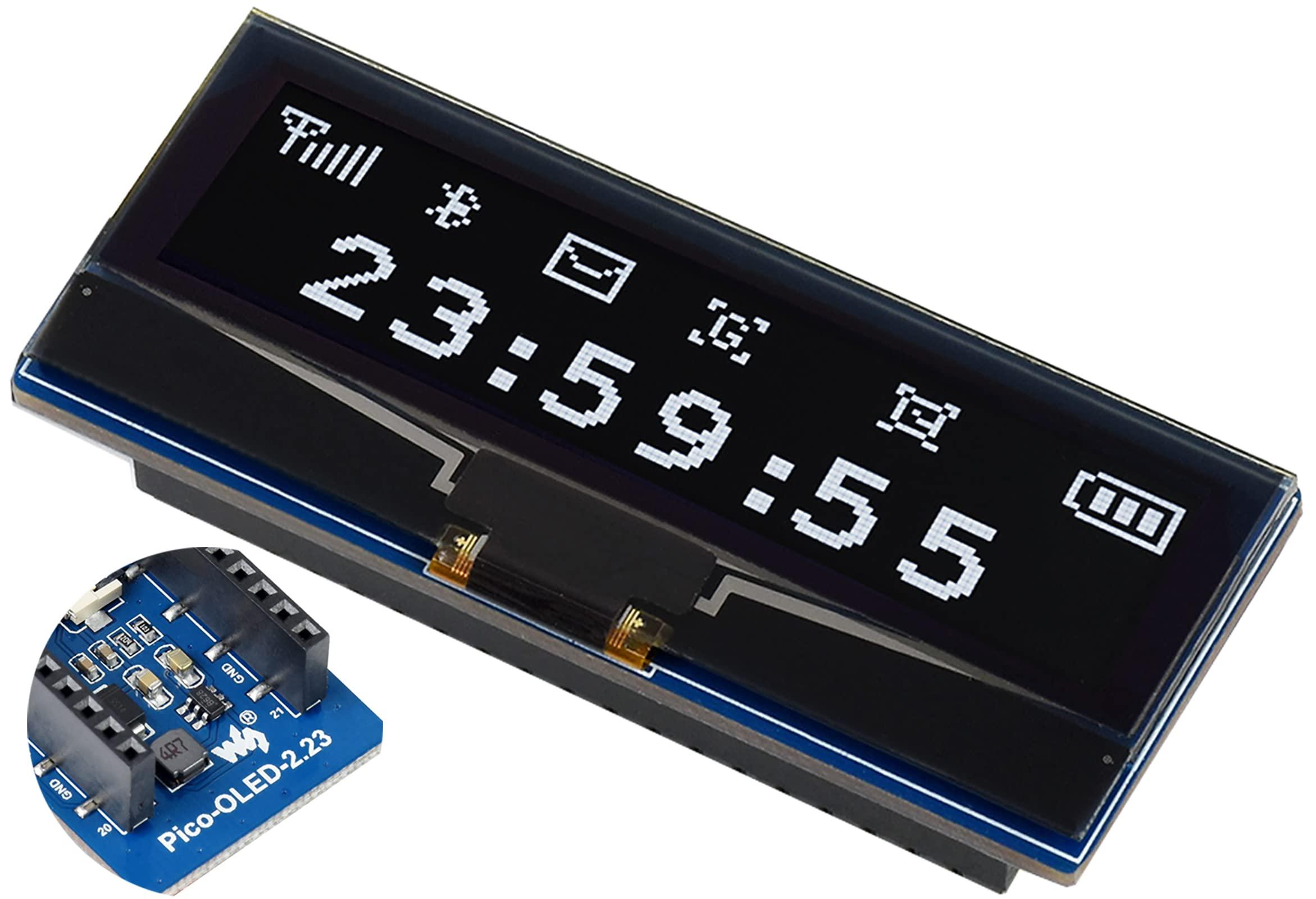

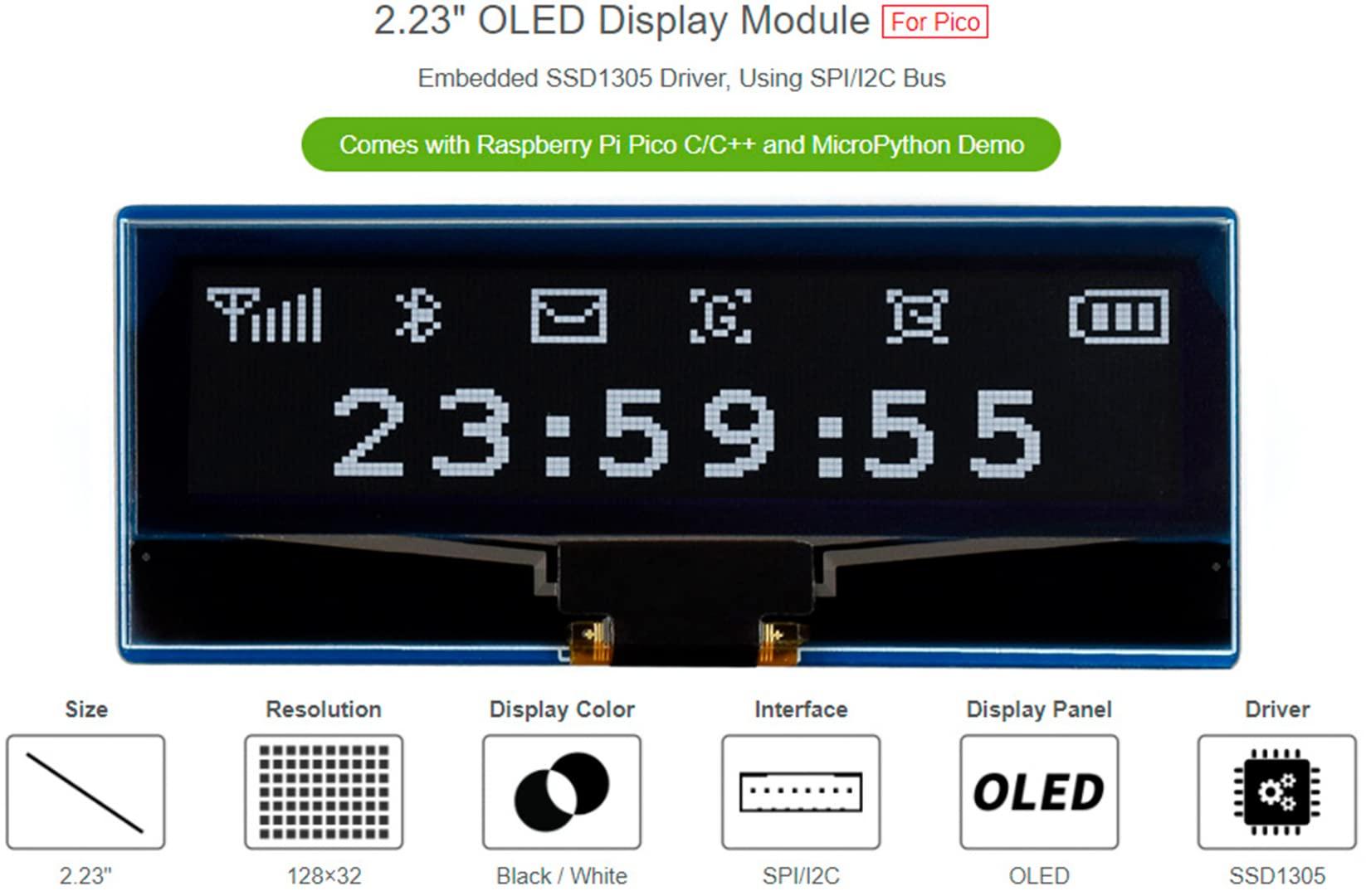

2.23inch OLED Display Module for Raspberry Pi Pico, 128x32 pixels,embedded SSD1305 driver, using SPI/I2C bus

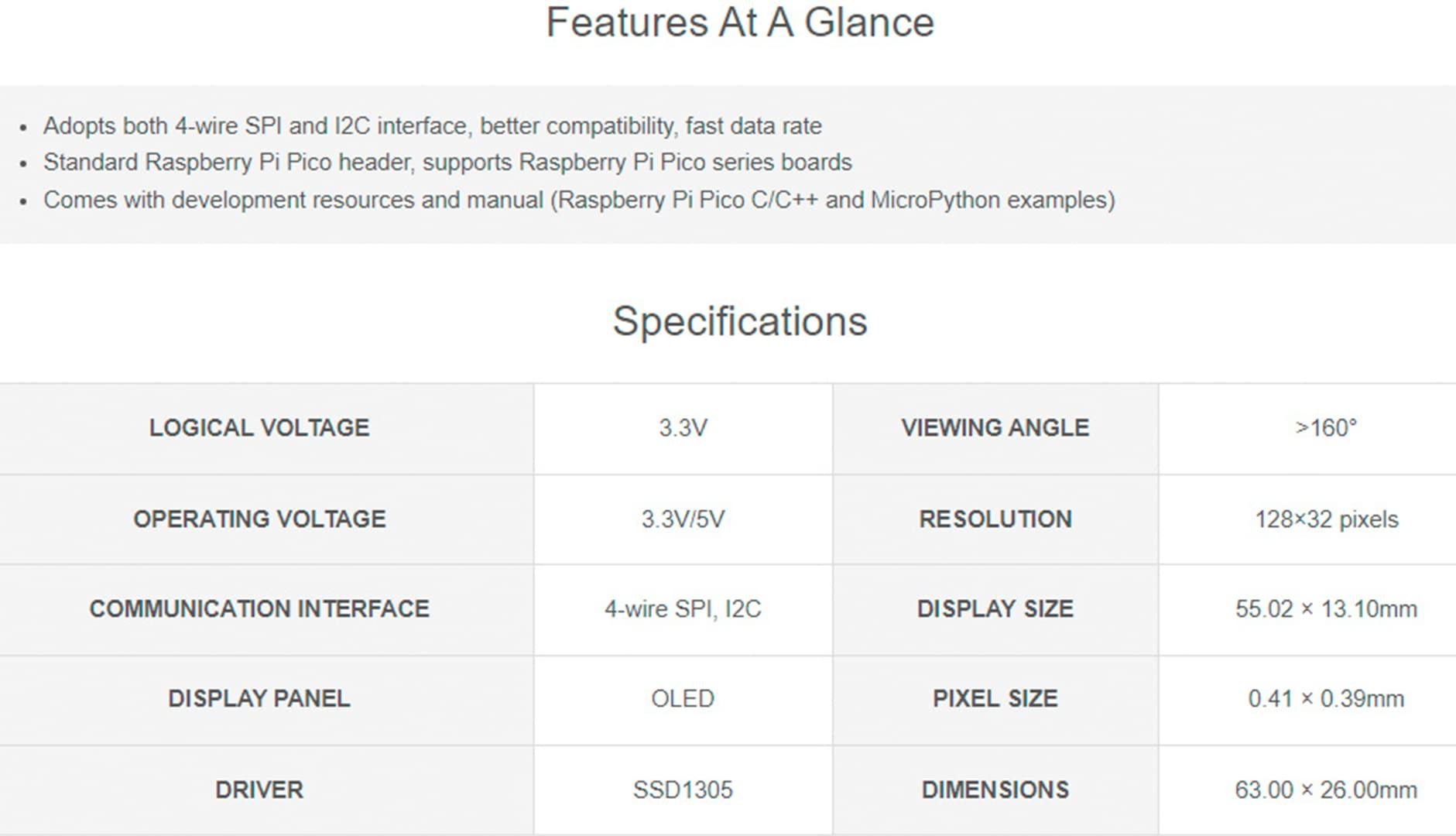

Features

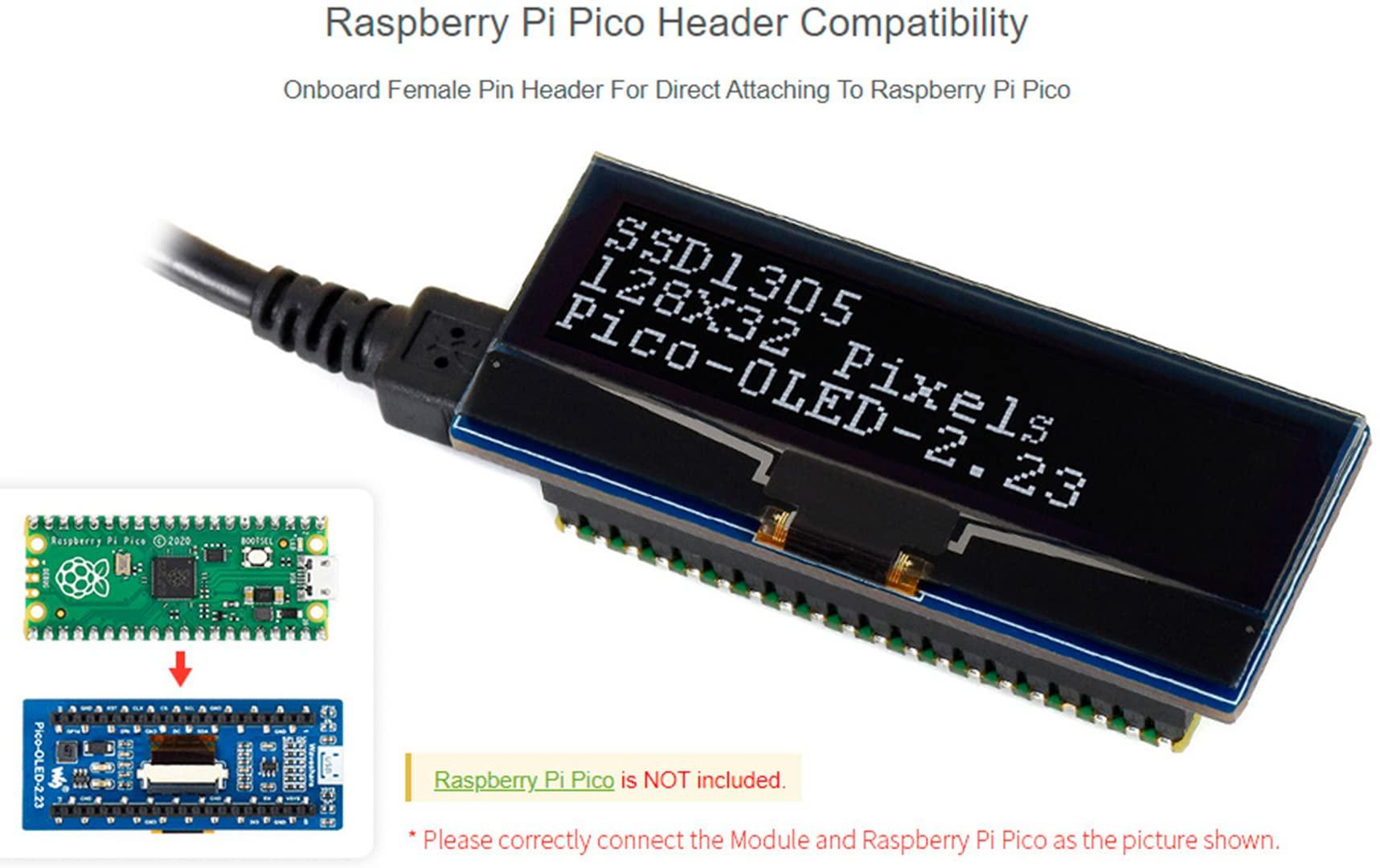

Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Logical voltage: 3.3V
Operating voltage: 3.3V/5V
Viewing angle: >160
Display Panel: OLED
Resolution: 128x32 pixels
Driver: SSD1305

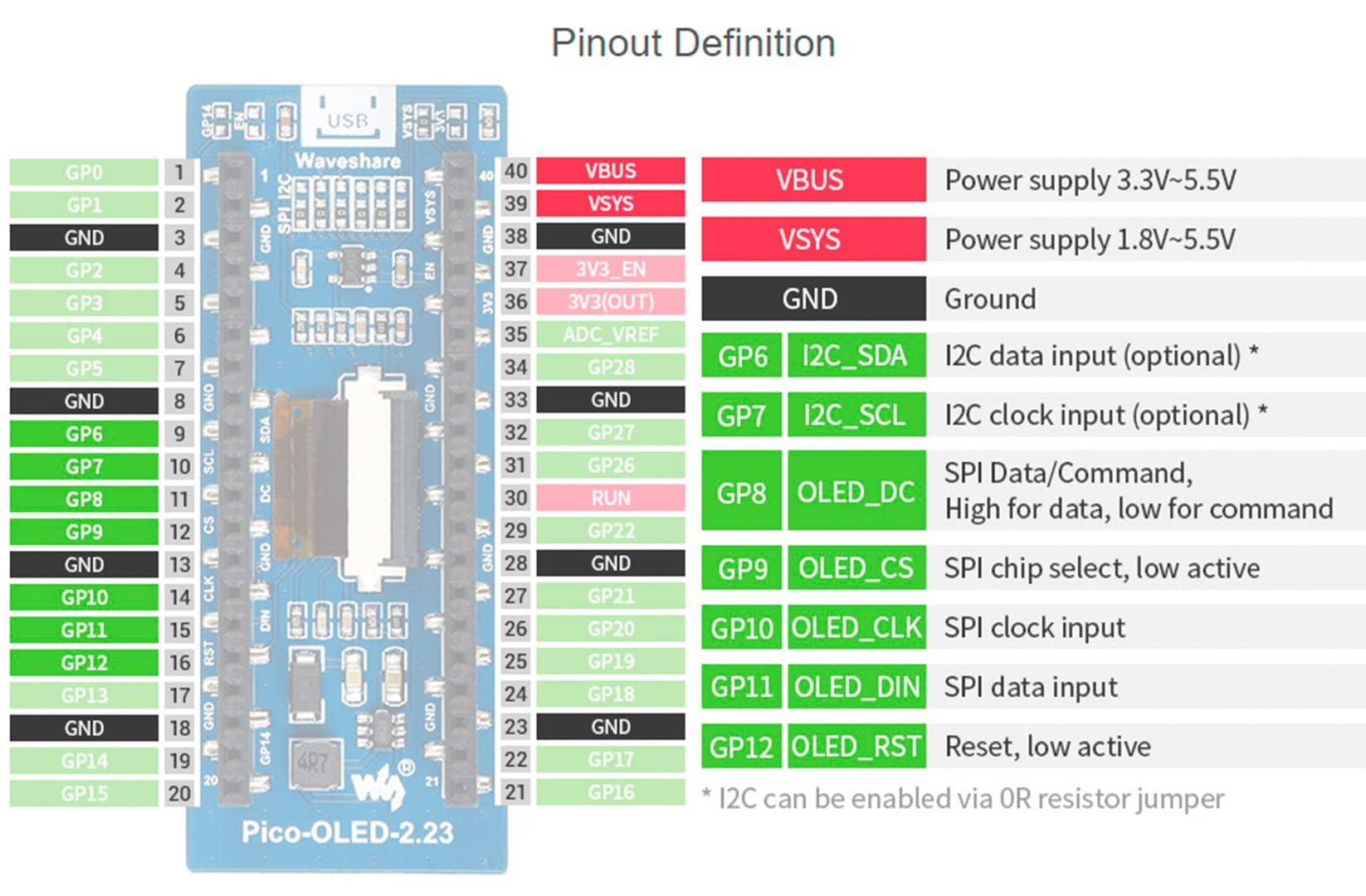

Communication Interface: 4-wire SPI, I2C
Display size: 55.02 x 13.10mm
Pixel size: 0.41 x 0.39mm

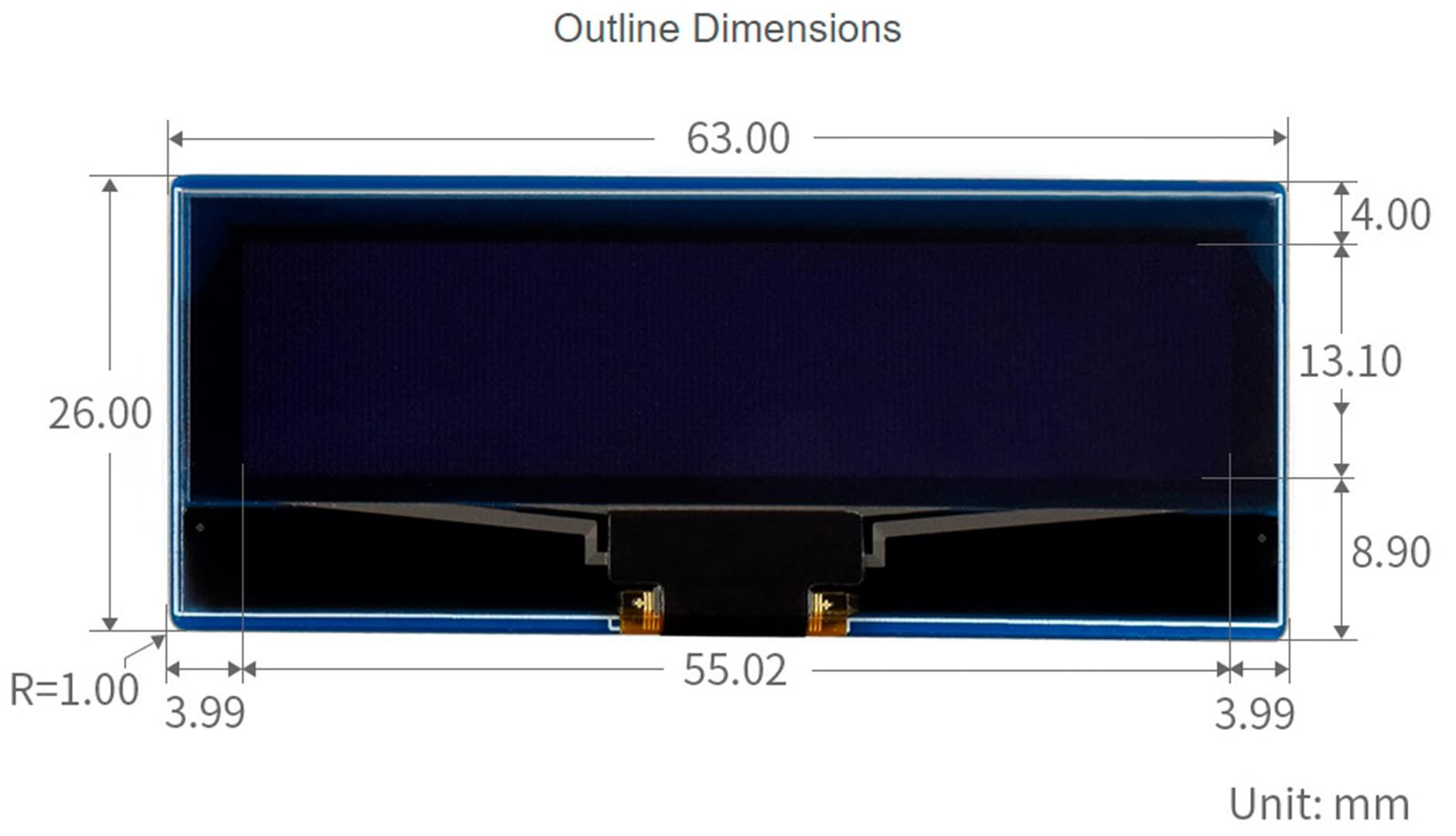

Dimensions: 63.00 x 26.00mm
LCD and the controller
The built-in controller used in this OLED is SSD1305, which has 132 64 bit SRAM, supports a maximum 132 64 pixels screen, supports SPI/I2C/8bit 8080 parallel port. The solution of this screen is 128 32 pixels, so the internal SRAM is not fully used. This module uses four-wire SPI and I2C interfaces, with good compatibility and high transmission speed.
Package Content
Pico-OLED-2.23 x1
