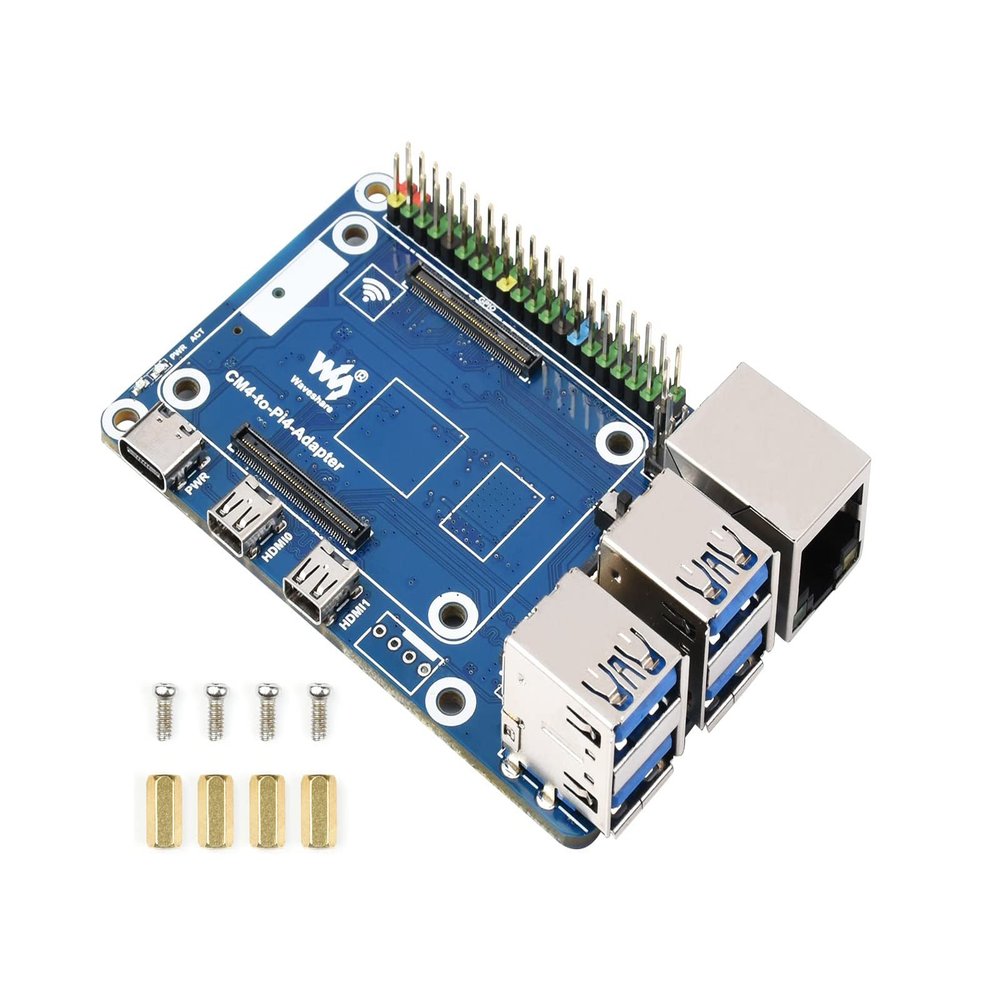

waveshare CM4 to Raspberry Pi 4B Adapter, Alternative Solution for Raspberry Pi 4B, Onboard Standard CM4 Connector, 4-CH USB 3.0 Ports, RJ45 Gigabit Ethernet Port, PoE Header etc.

Description

• CM4 to Pi 4B adapter for Raspberry Pi, based on Raspberry Pi CM4, use CM4 to reproduce the original appearance of the Pi 4B as much as possible, ,more cost-effective choice
• Onboard standard CM4 connector, support access to Compute Module 4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
• Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission
• Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive, onboard PoE header, for connecting PoE HATs
• Compatible with Pi 4B Series HATs, easy access to Pi 4B series HATs or other development projects

Overview
This is a CM4 To Pi 4B Adapter for Raspberry Pi and is an alternative solution for Raspberry Pi 4B. Onboard 4 x USB3.0 port, Gigabit Ethernet port, PoE header, and so on.

Features
(1) Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
(2) Easily compatible with the interfaces of Raspberry Pi 4B board
(3) Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission
(4) Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive
(5) Onboard PoE header, for connecting PoE HATs
(6) DSI interface is DSI1
(7) Micro USB port is for the power supply or can be used as the USB SLAVE interface for programming images
(8) Do not connect to other devices when using the micro USB port to program the image for ensuring the power supply of CM4
(9) CM4 must be provided by 5V 2A, or it will shut down, lower frequency, etc.
(10) USB2.0 is closed by default, and you need to add "dtoverlay=dwc2,dr_mode=host" in "config.txt" when using
(11) FAN only supports 5V. Does not support 12V, confirm the fan voltage before connecting, this version of the fan does not have a controller, and the speed cannot be adjusted

Package Content
1. CM4-to-Pi4-Adapter x1
2. Screws pack x1

NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
