Description
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- High quality relay, contact rating: 10A 250V AC or 10A 30V DC
- Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure. PWR indicator, RGB LED, and passive buzzer outside the enclosure.

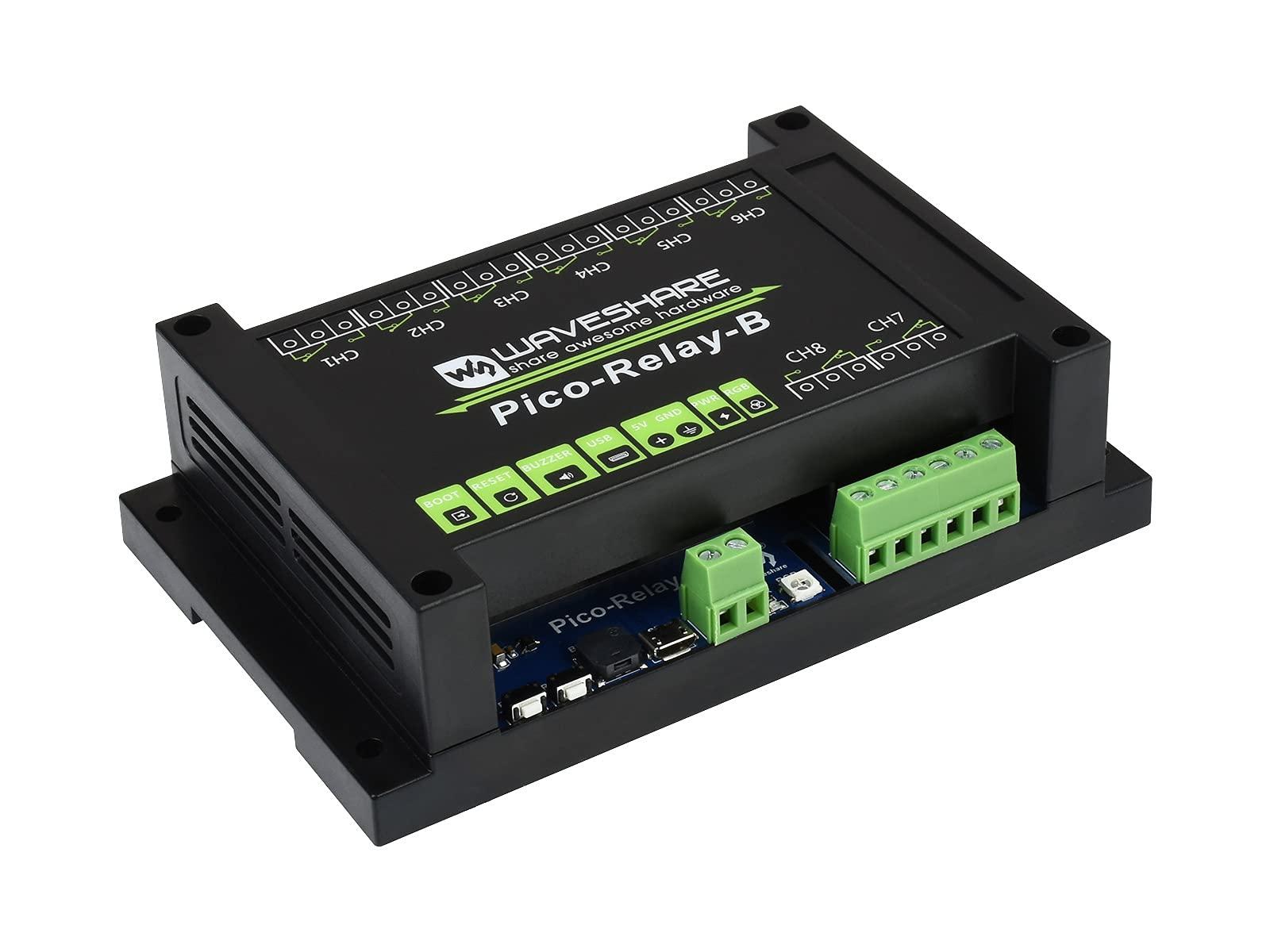

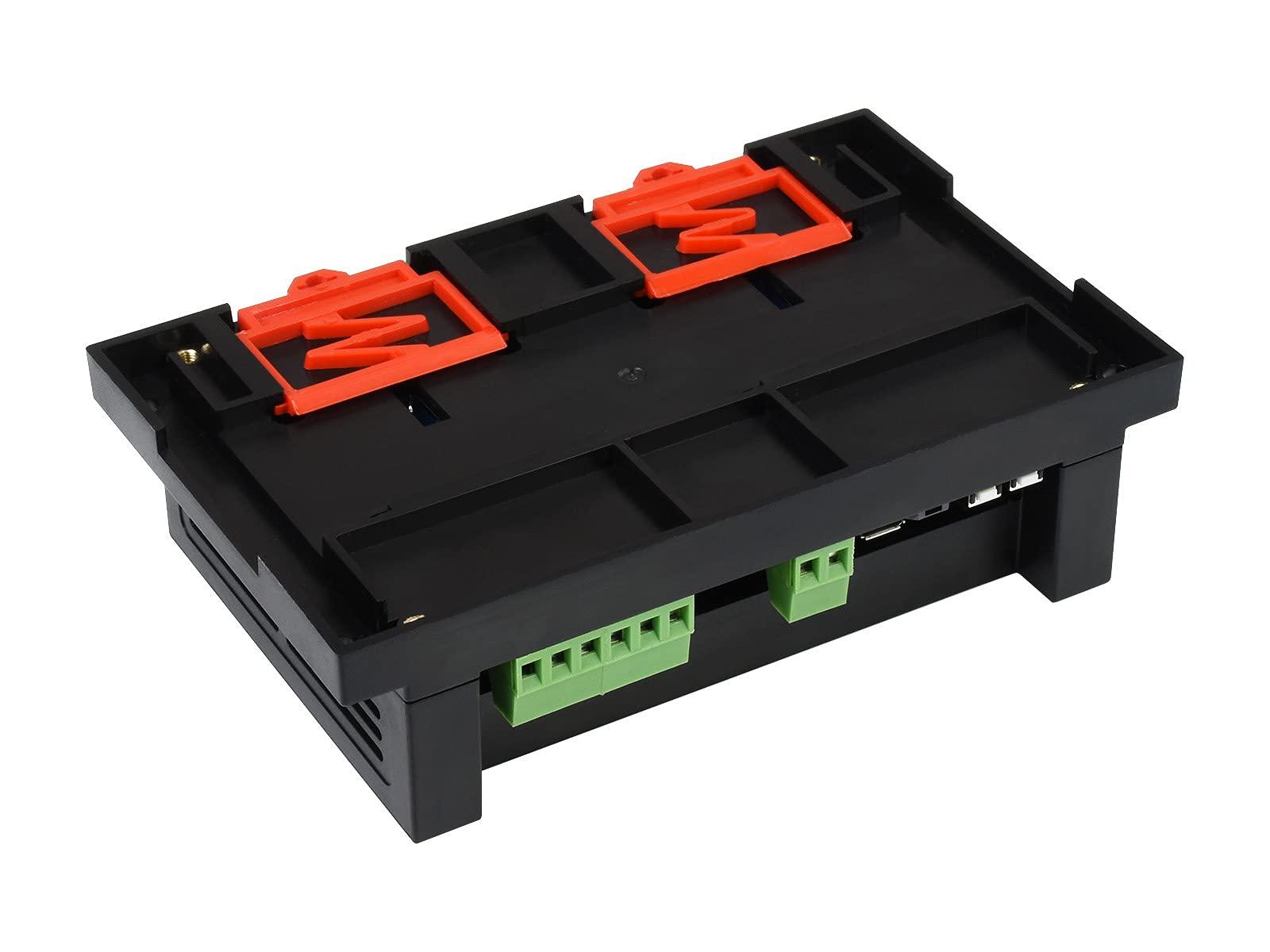

- ABS protection enclosure with rail-mount support, easy to install, safe to use
Features
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
High quality relay, contact rating: 10A 250V AC or 10A 30V DC
ABS protection enclosure with rail-mount support, easy to install, safe to use
Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
PWR indicator, RGB LED, and passive buzzer outside the enclosure
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage: 5V
Communication Protocol: USB
Communication interface: Micro USB
Relay channel: 8 ch
Contact form: 1NO 1NC
Dimension: 88Hx 122V mm
Online Tutorial/Online Document: n9.cl/8y41r

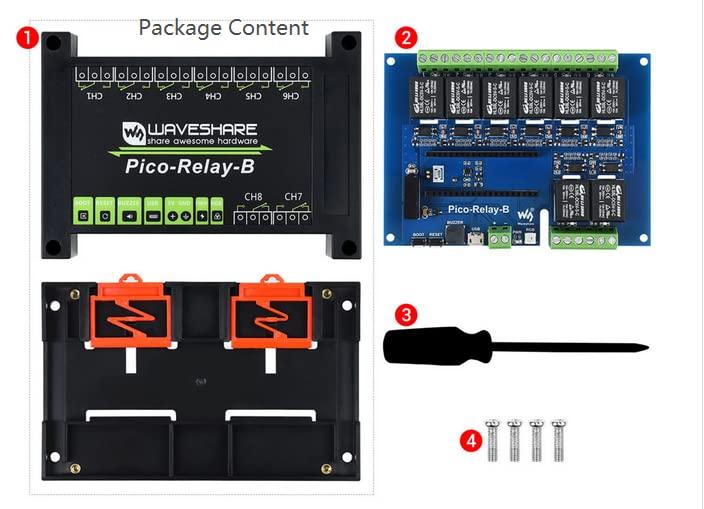

Package Content
ABS protection enclosure (top and bottom) x1

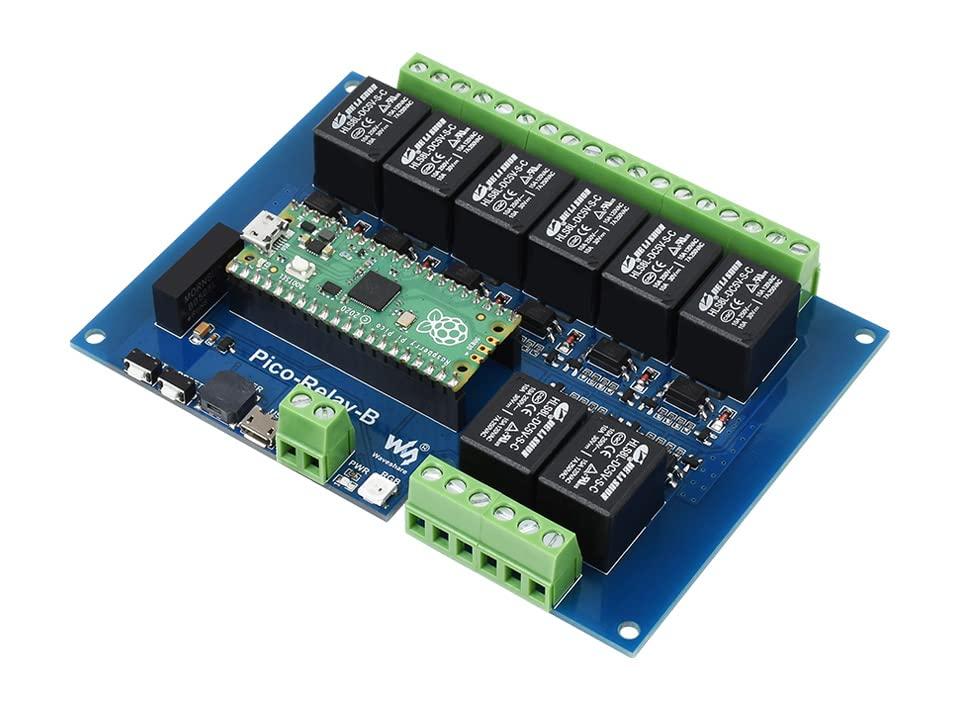

Pico-Relay-B x1
Screwdriver x1
Screws pack x1
