Description
- Support Standard RPi 40PIN GPIO extension header, Compatible with Raspberry Pi series boards
- High quality relays, loads up to 5A 250V AC or 5A 30V DC
- Photo coupling isolation, prevent interference from high voltage circuit
- Onboard LEDs for indicating relays status
- Relay control jumper, allows to control the relays by custom pins other than the default pins
- Comes with Online Development Resources /User Manuall://bit.ly/44OSeyM
Overview

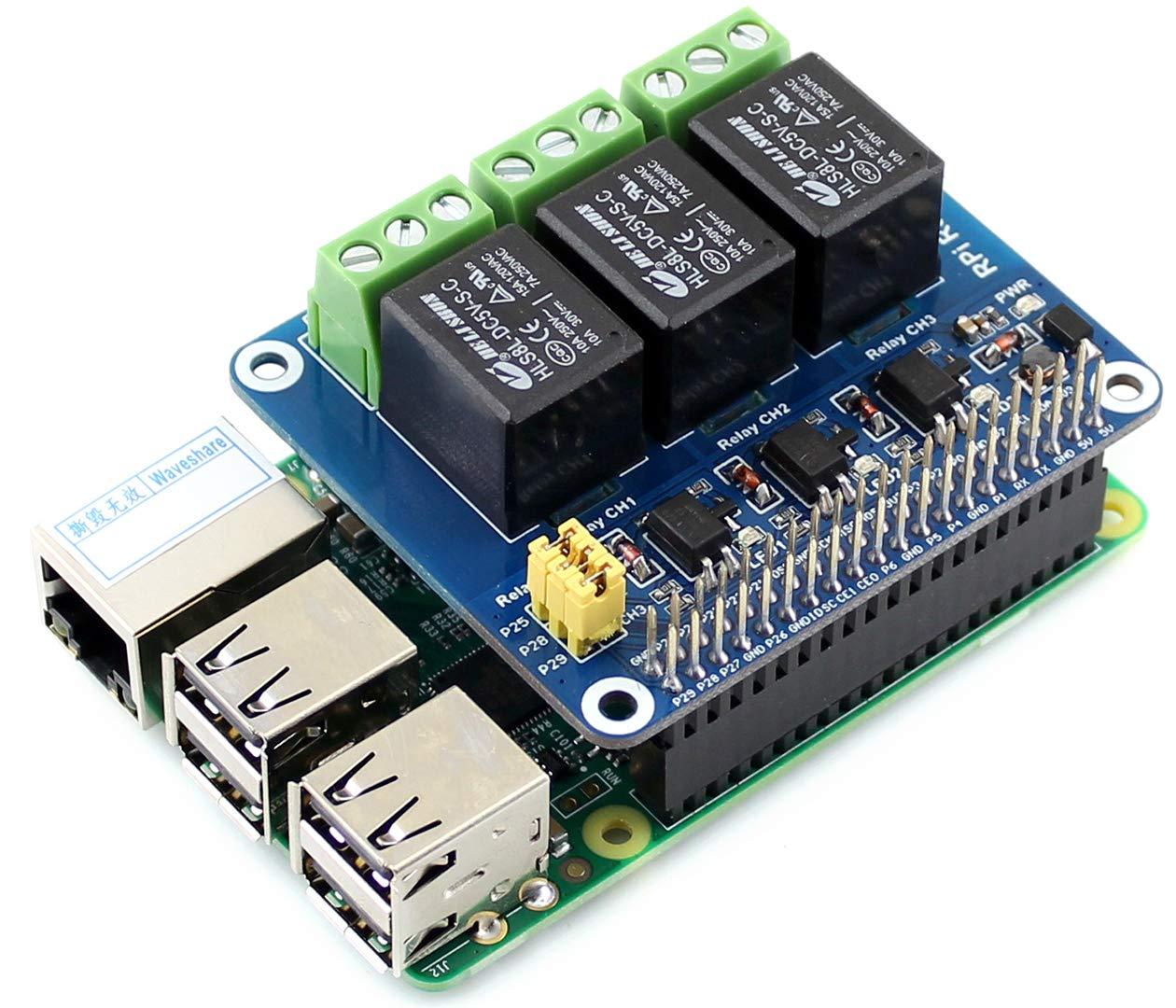

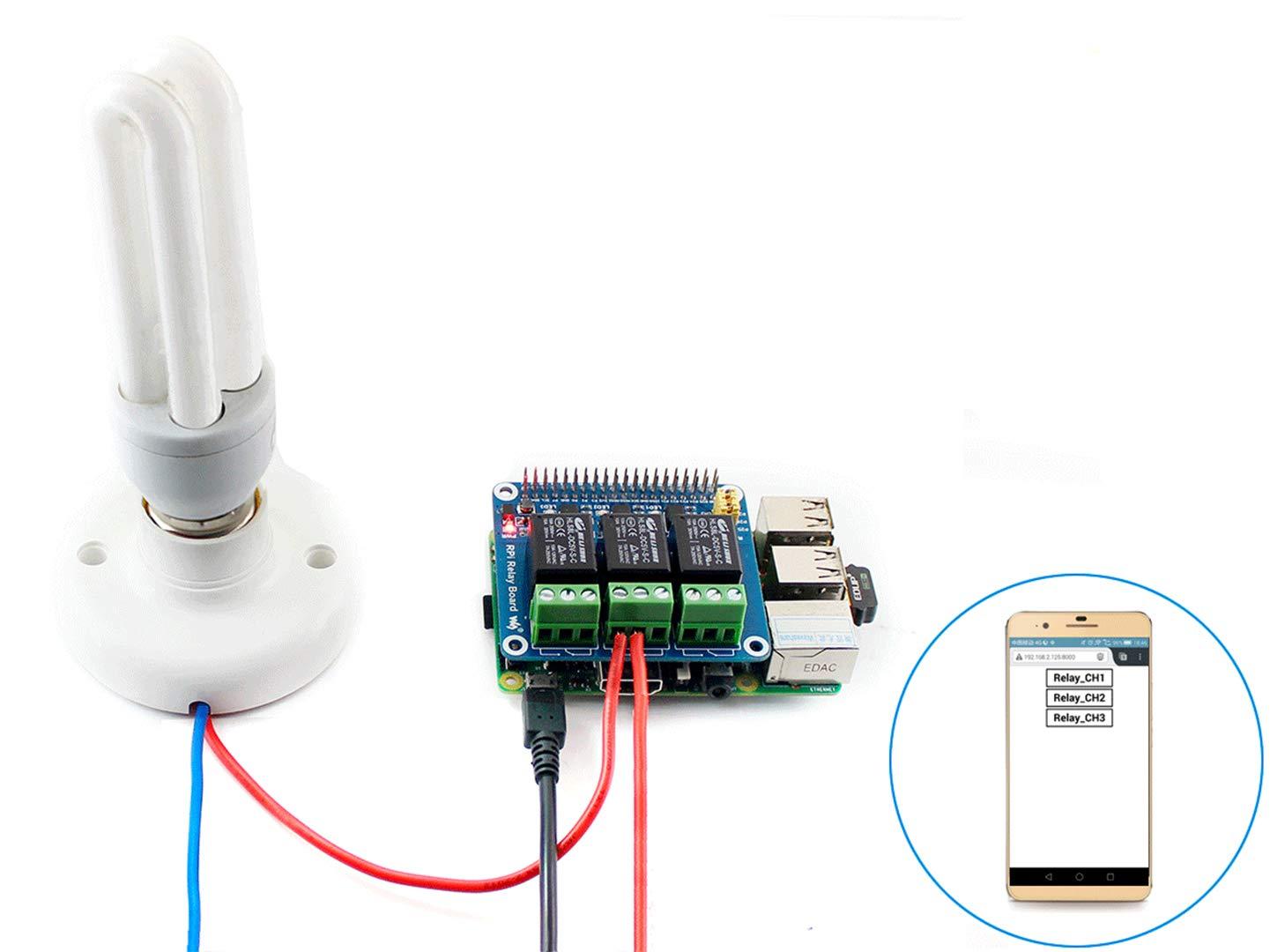

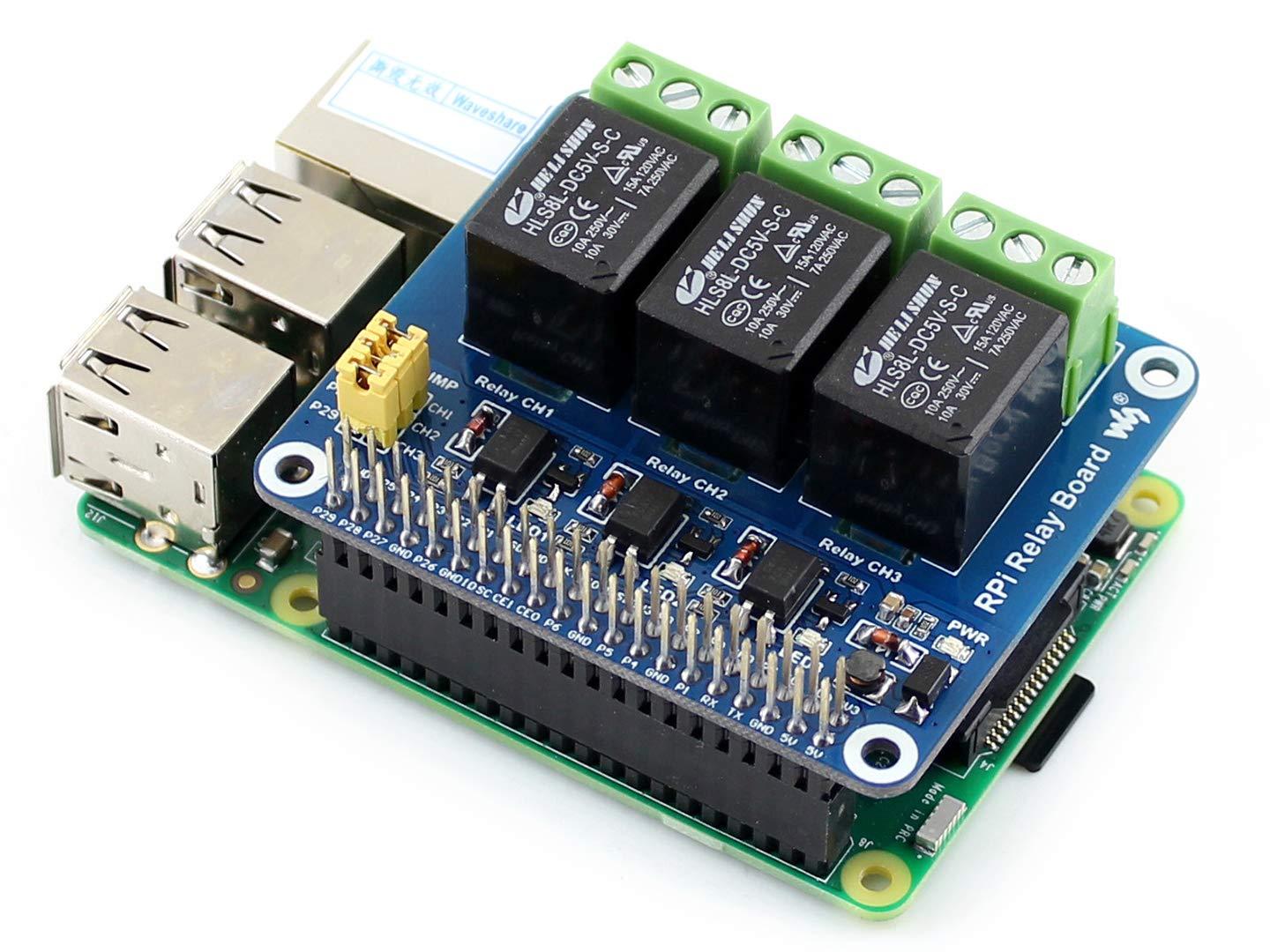

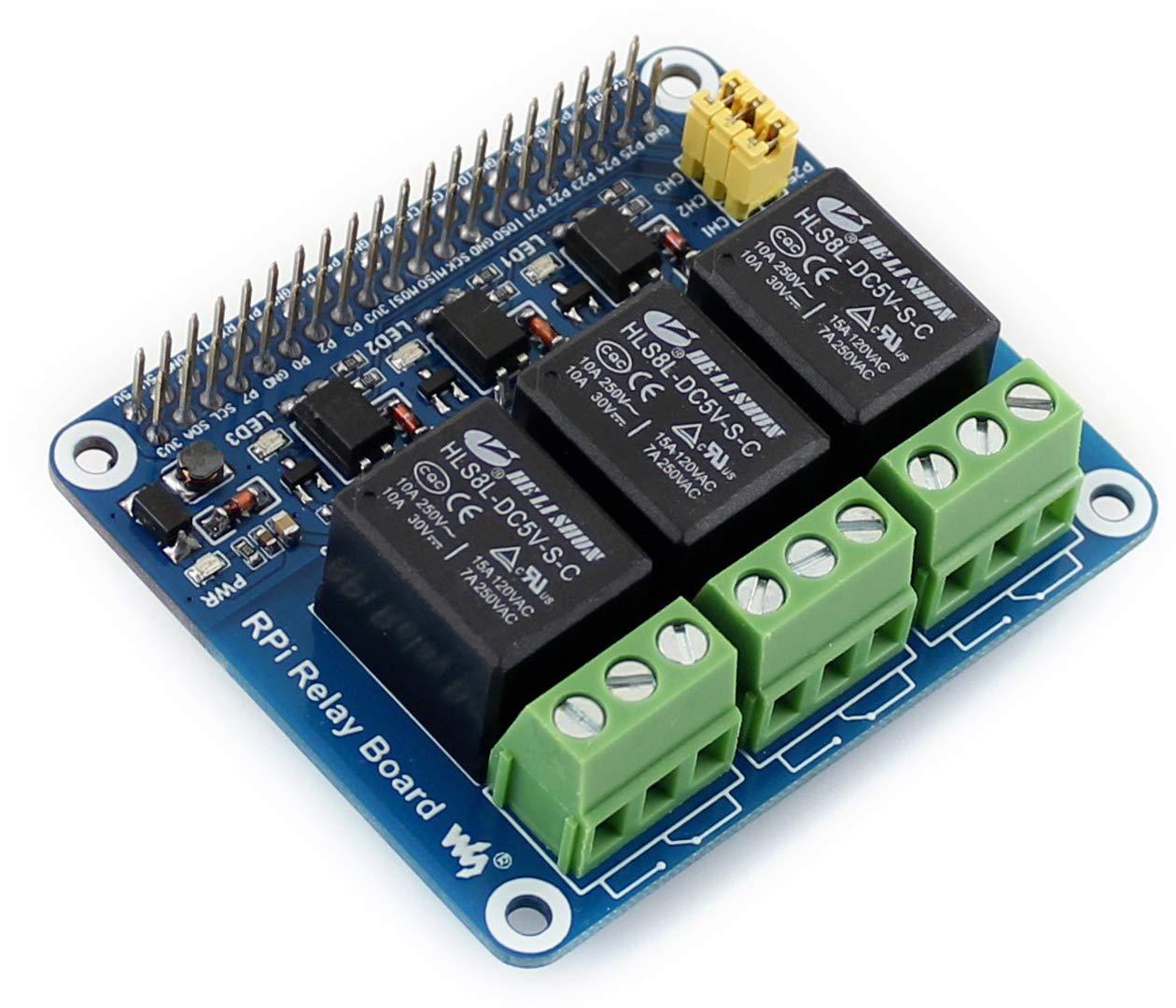

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.
RPi Relay Board Features
Standard RPi 40PIN GPIO extension header, Compatible with Raspberry Pi series boards
High quality relays, loads up to 5A 250V AC or 5A 30V DC
Photo coupling isolation, prevent interference from high voltage circuit
Onboard LEDs for indicating relays status
Relay control jumper, allows to control the relays by custom pins other than the default pins
Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835
Online Development Resources /User Manuall://bit.ly/44OSeyM

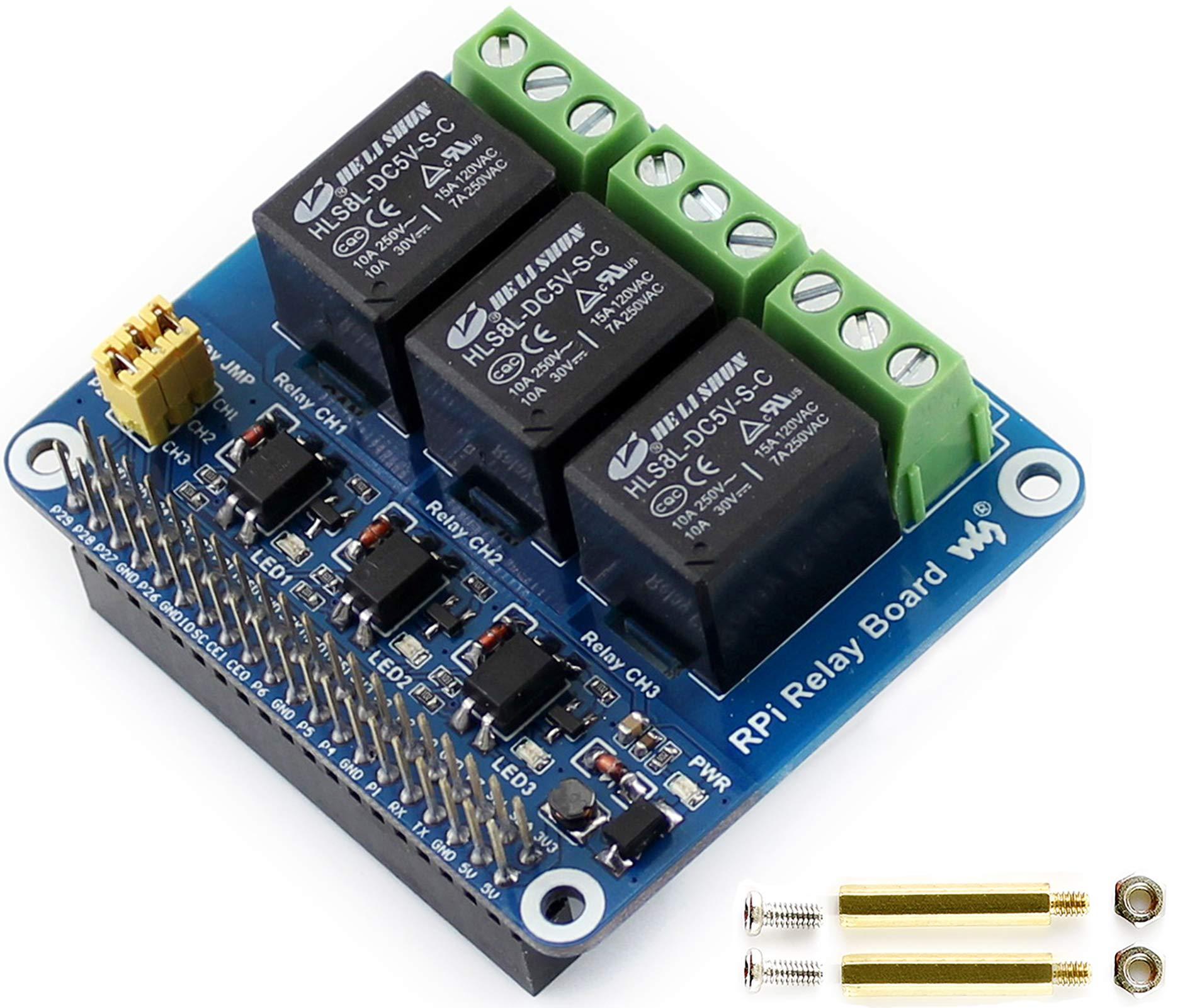

PACKAGE CONTENT
RPi Relay Board x 1
RPi screws pack (2pcs) x 1
