Description

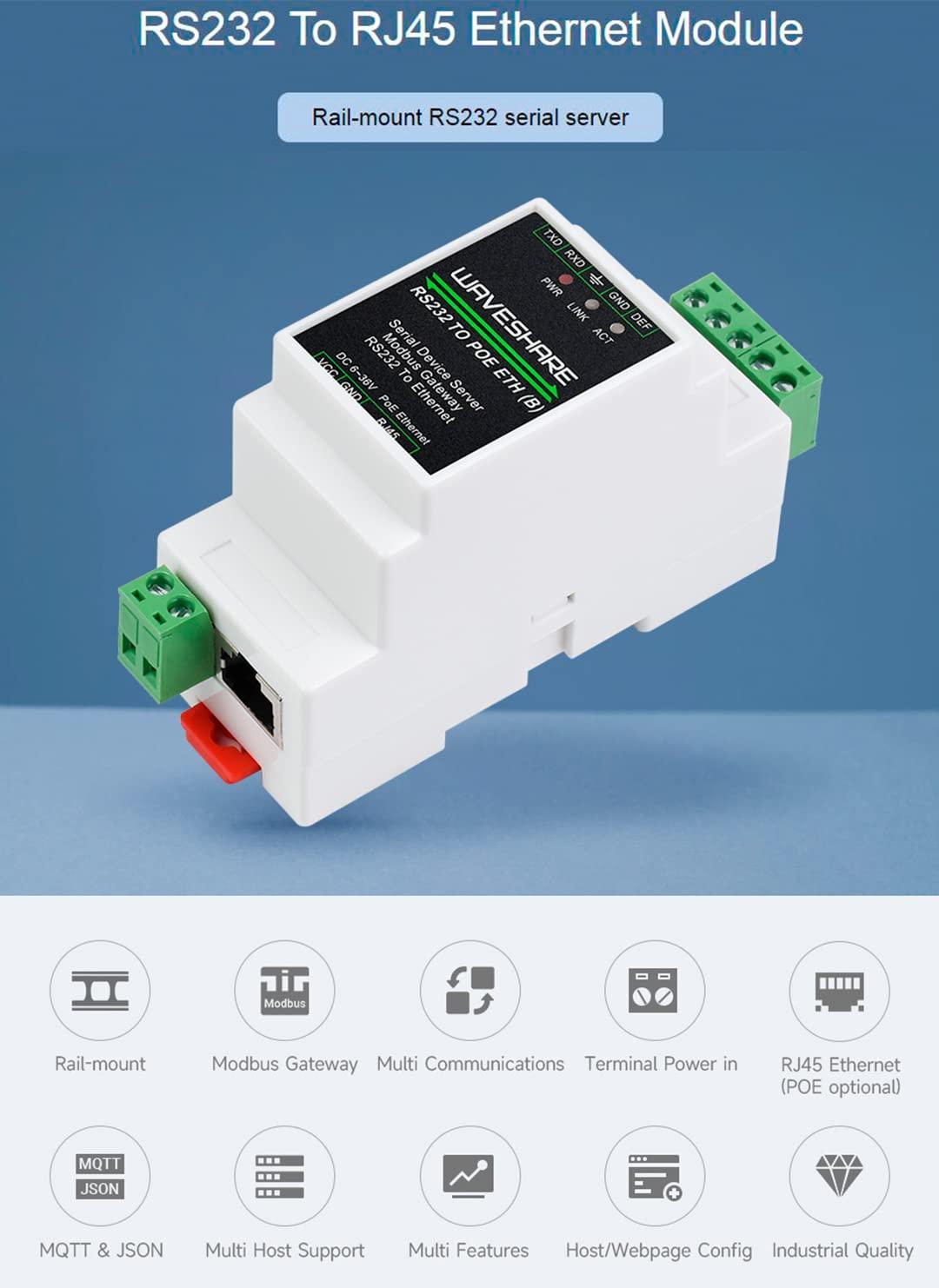

- This is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc.

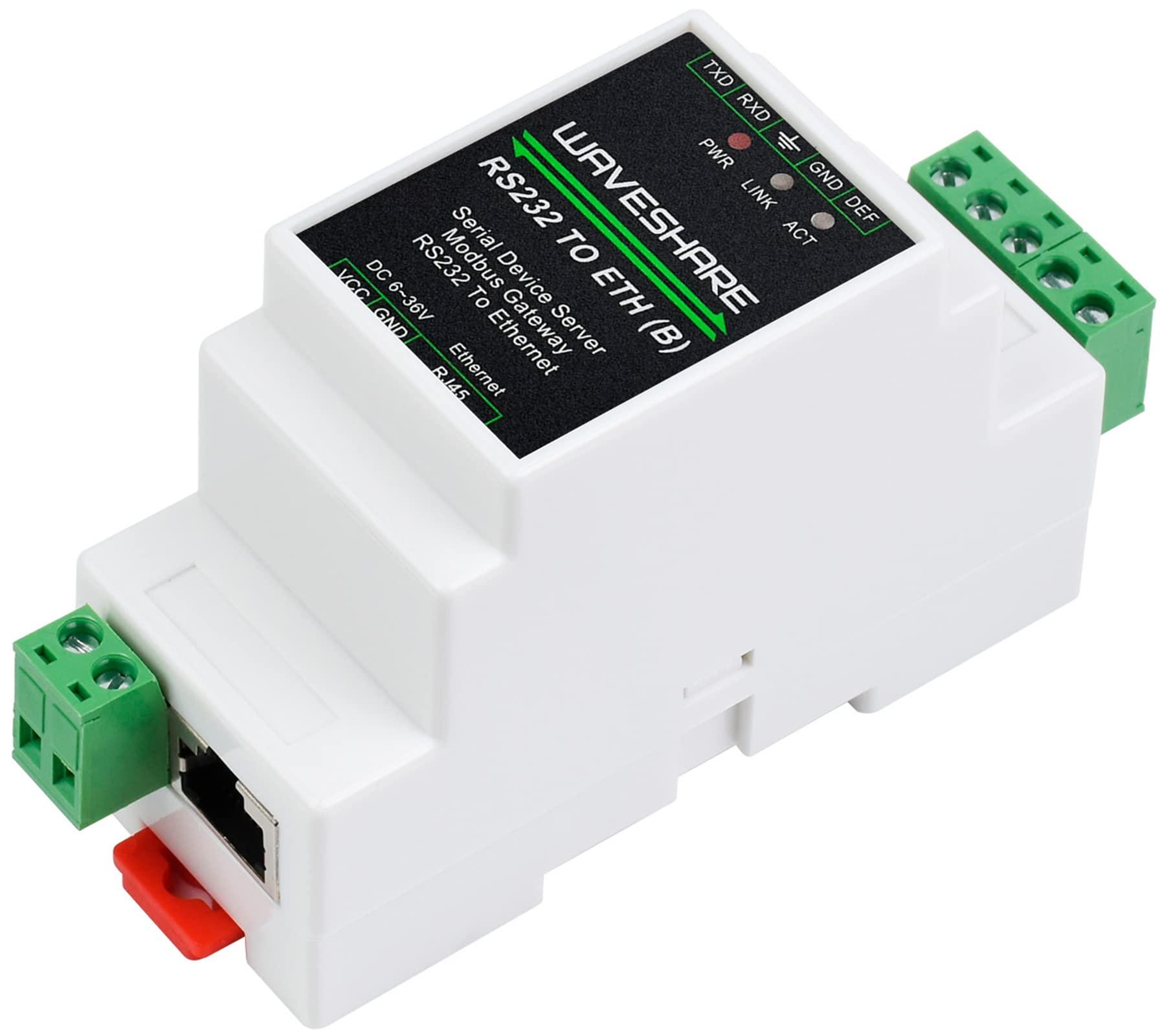

- The module features RS232 and Ethernet port, uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

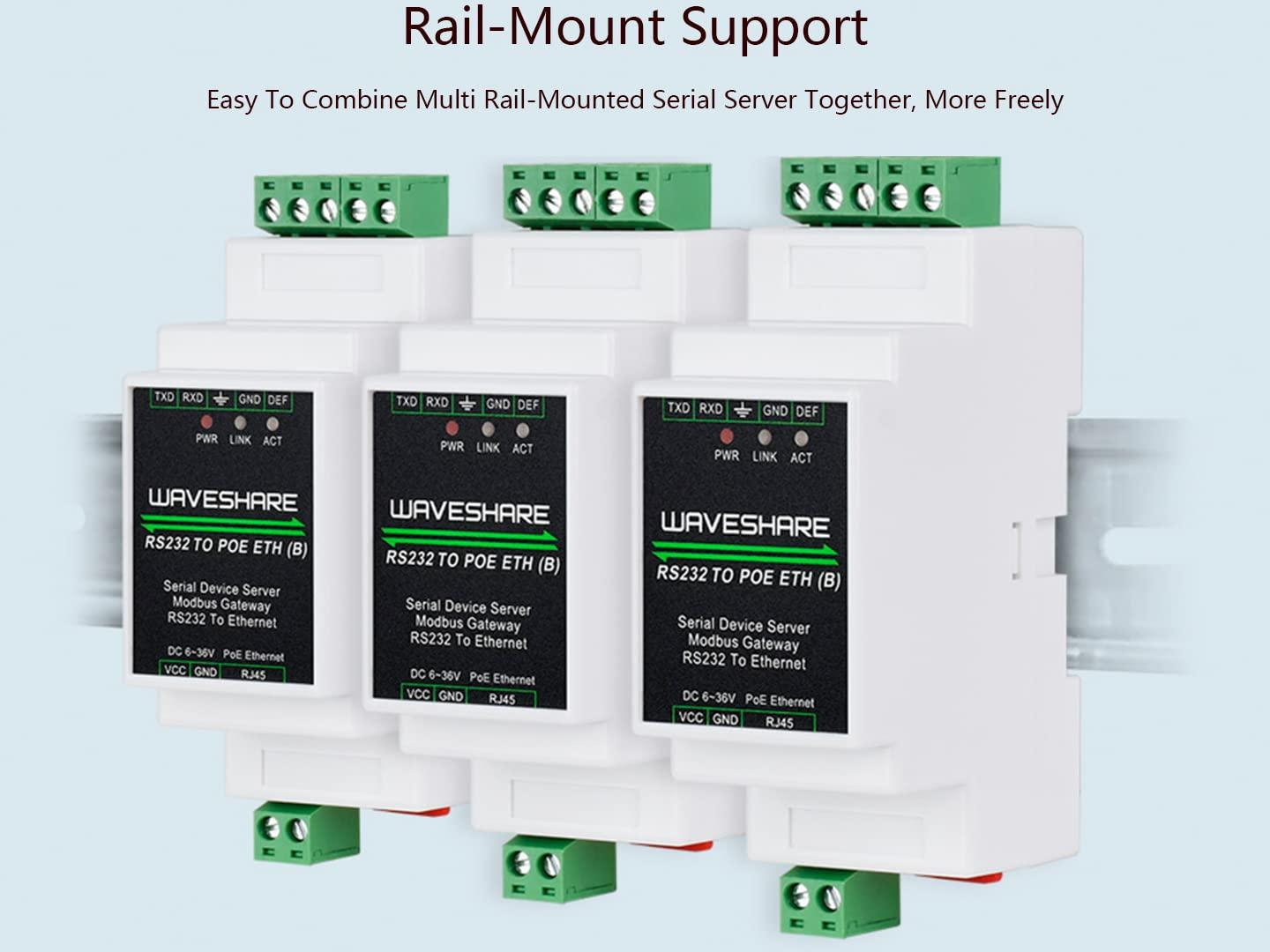

- RS232 To RJ45 Ethernet Module---Bi-Directional Transparent Data Transmission Between RS232 And Ethernet. Rail-Mount Support----Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely.
- Modbus Gateway Support---Suitable For Modbus Gridding Upgrade, Can Be Used With Specific Configuration Software. Multi Communication Modes---Supports TCP Server / TCP Client / UDP Mode / UDP Multicast. MQTT/JSON To Modbus---More Flexible Conversion Between Different Protocols.

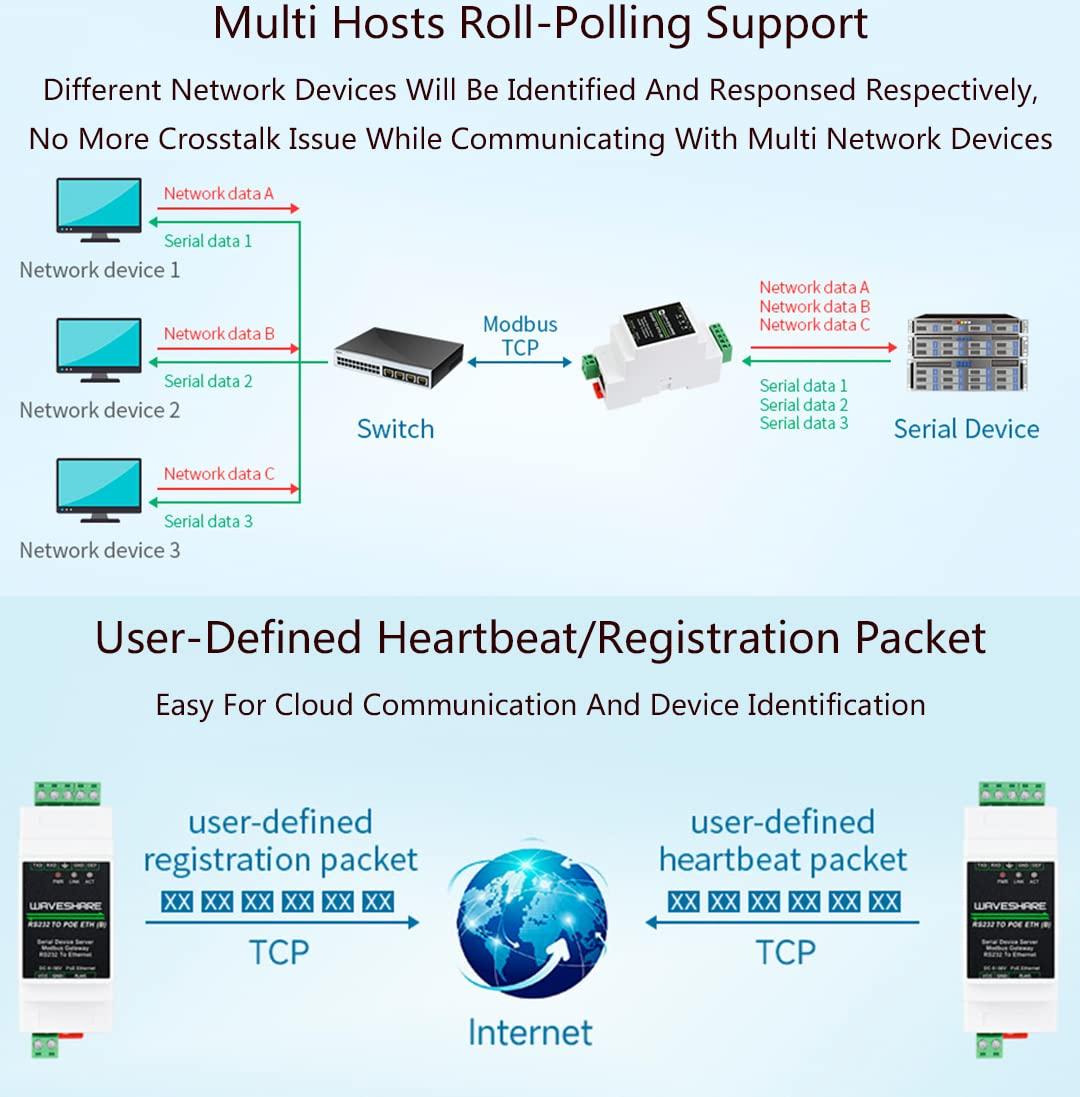

- Multi Hosts Roll-Polling Support--- Different Network Devices Will Be Identified And Responsed Respectively, No More Crosstalk Issue While Communicating With Multi Network Devices
Introduction
This is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc. The module features RS232 and Ethernet port, uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring,etc.
Specifications
Product Type--Serial server, Modbus Gateway, MQTT Gateway

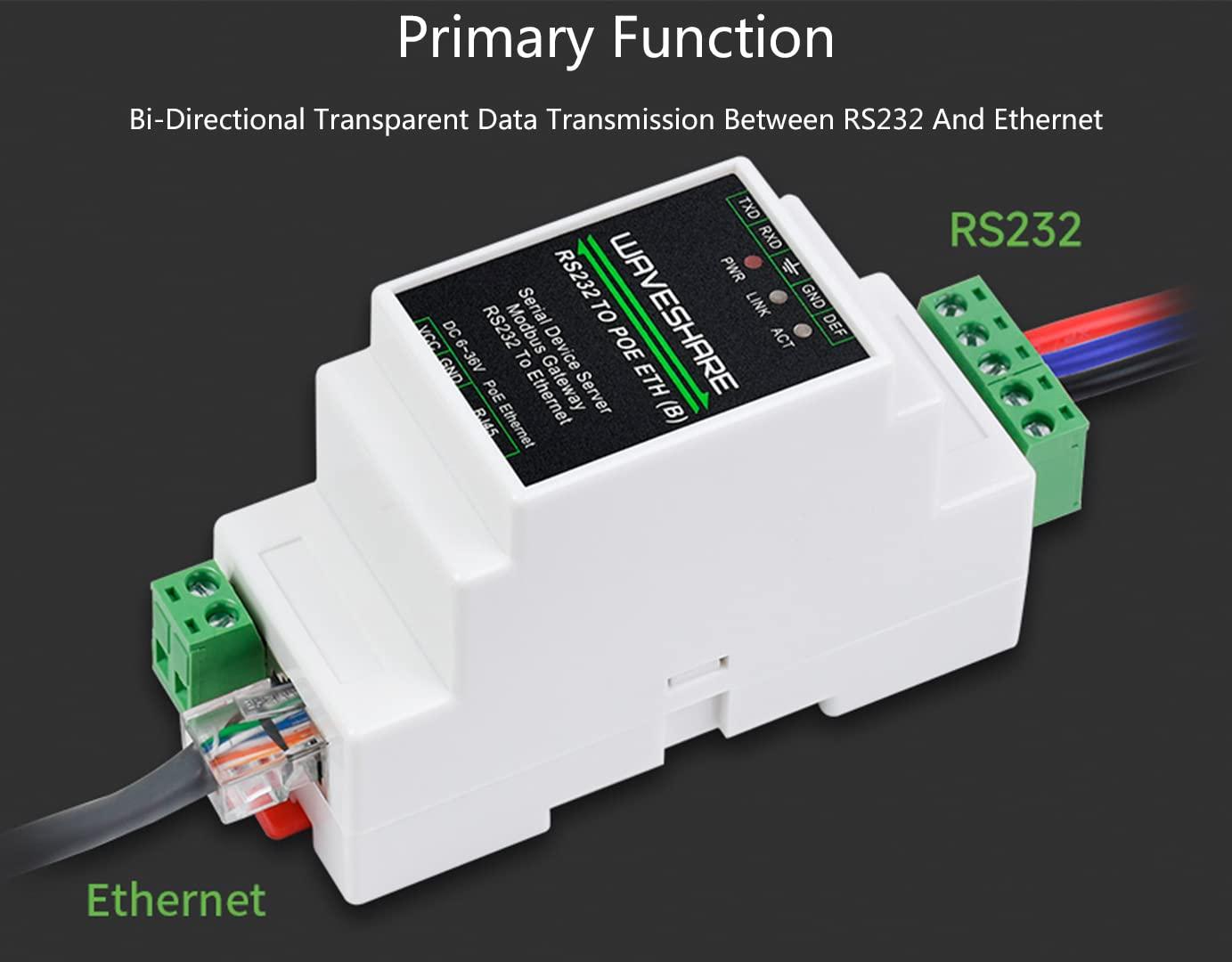

Basic Function--Bi-directional transparent data transmission between RS232 and Ethernet
Communication interface--RS232 port x 1, Ethernet port x 1
Power supply--6 ~ 36V DC screw terminal
Isolation Protection--Power isolation, Signal isolation
COMMUNICATION
Ethernet-- common network port; 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection.
Serial port--Isolated RS232
SERIAL SPECIFICATION
Baudrate--300 ~ 115200 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits
SOFTWARE
Protocol--ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration--host, web browser, device management functions library
Communication method--TCP/IP direct communication, VCOM

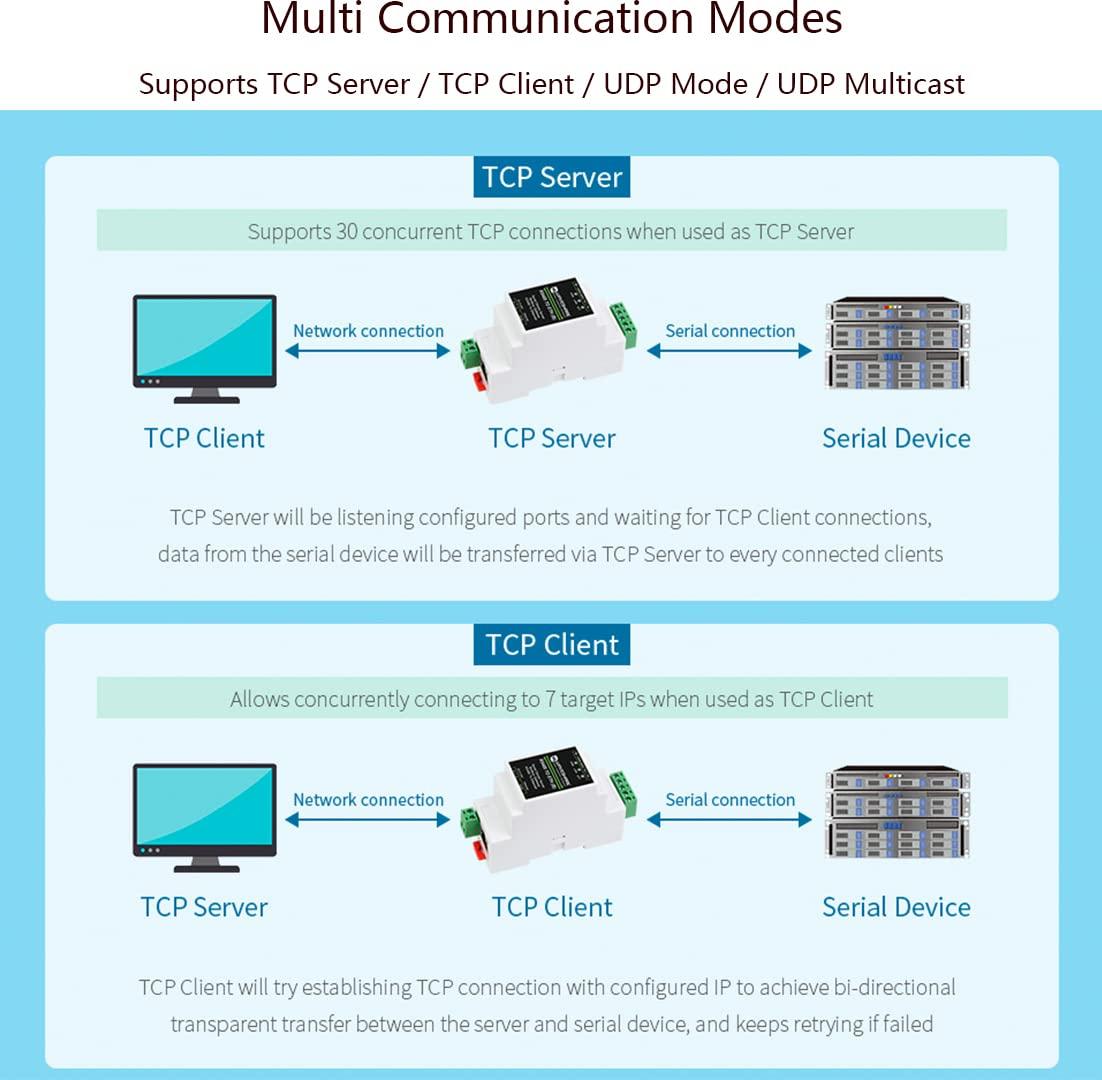

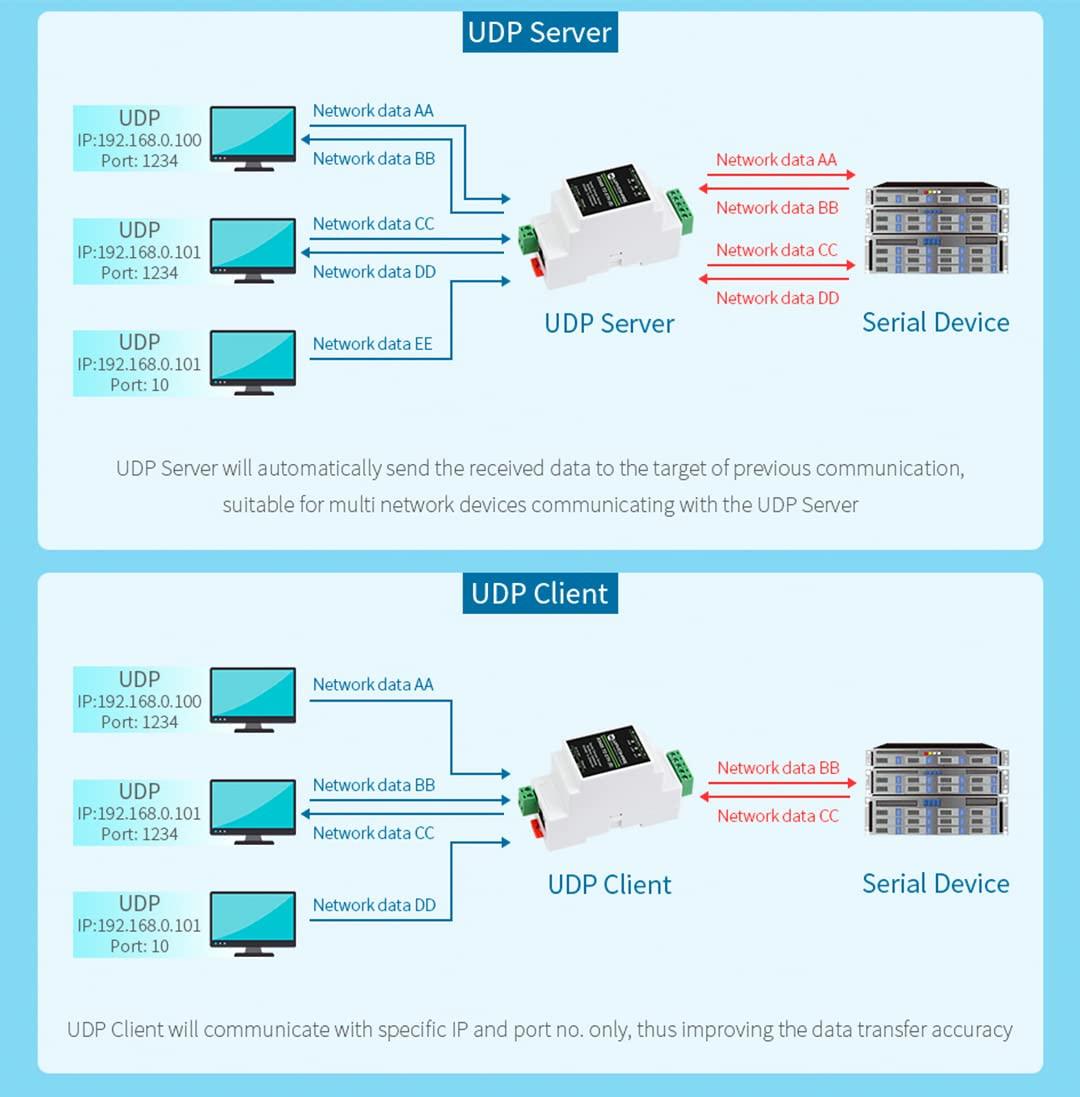

Operating mode--TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
OTHERS
Operating temperature:-40 ~ 85
Humidity range--5% ~ 95% relative humidity

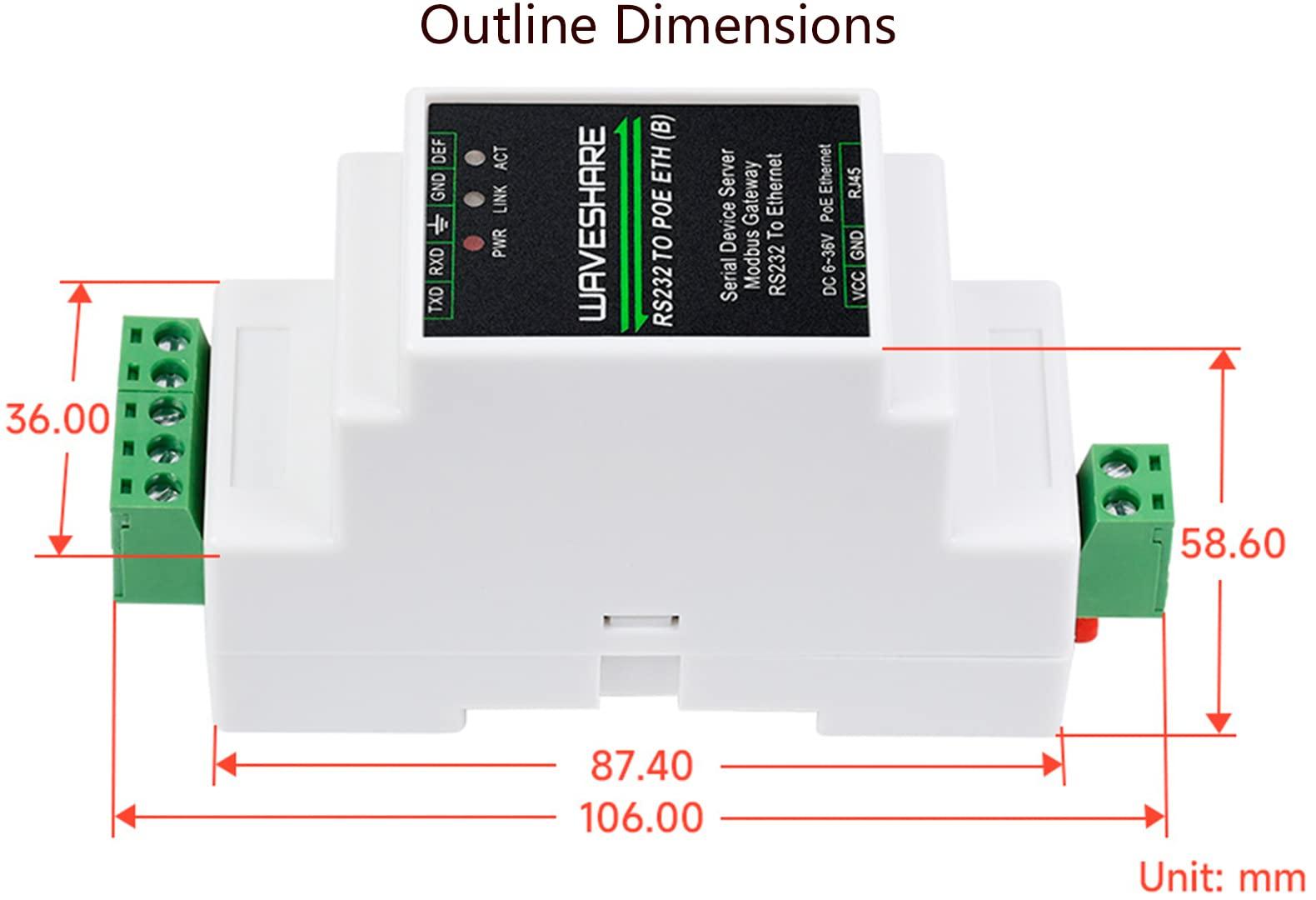

Dimensions--L W H: 87 36 59 mm
How-to-use document/User Manual
://bit.ly/3YaVtN4
PACKAGE CONTENT
RS232 TO ETH Module x1
Note: The power supply of this product is not included, it is recommended to used with a 12V Industrial DIN-Rail Power Supply (B0BN8G45R9)
