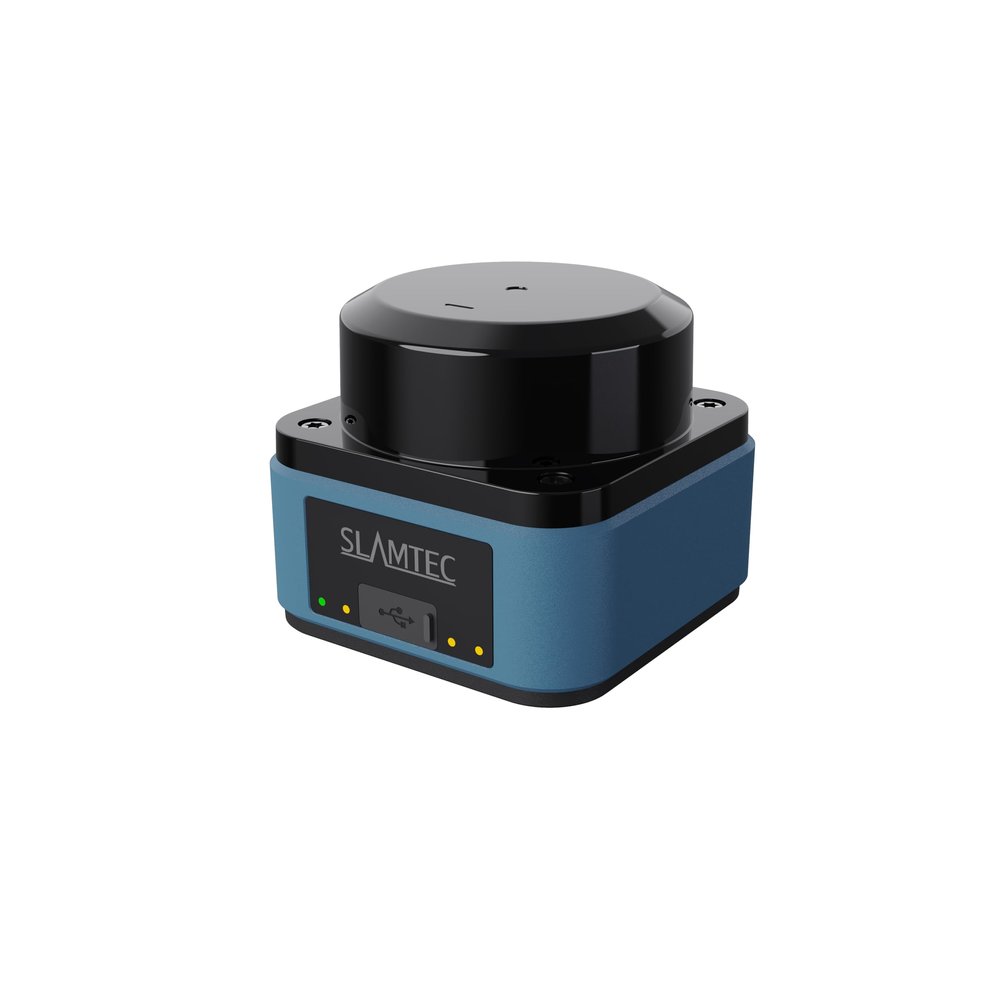

WayPonDEV LPX-E3 SL-DToF 20Hz 25-40M Scanning Radius 360 Lidar Sensor Scanner, Industrial-Grade Real-time Monitor Device for AGV, AMR, Robots, Obstacle Avoidance and Area Monitoring (LPX-E3X2 40M)

Description

• [SL-DToF Core Technology] LPX-E3 Lidar adopts the high-performance SL-DToF laser distance measurement core technology, which meets the stringent standards of industrial grade. Compact and easy to integrate, the LPX-E3 combines high accuracy, low reflectivity, sunlight resistance and other outstanding performance to ensure stable and reliable operation in industrial environments.
• [Exclusive ScanDesigner Software] LPX-E3 LIDAR Sensor Scanner provides exclusive ScanDesigner configuration software, which can freely support area shape drawing, associated layers, and configuration update according to the adjustment of radar installation position, professional and easy to us.
• [Industrial Standard, High Reliability] The LPX-E3 Lidar incorporates the state-of-the-art SL-DToF laser ranging core technology, meeting the stringent standards of industrial applications. It combines outstanding performance such as high precision, low reflectivity, and sunlight resistance, ensuring stable and reliable operation in industrial environments.
• [Built-in Area Monitoring System] LPX-E3 LIDAR ladar scanner has built-in area monitoring application, which can monitor the real-time intrusion of the configured monitoring area, directly connect to the existing PLC and other equipment, without relying on the secondary development of external computing systems, and support a variety of output forms.
• [Build in 64 Monitoring Field Sets] The LPX-E3 lidar sensor scanner rangefinder features three simultaneous monitoring fields and can store up to 64 monitoring field sets. It allows switching monitoring fields according to different scene requirements, catering to various requirements, fully empowering the industrial sector.
• [Widely Used Scenarios] LPX-E3 industrial-grade surveillance device lidar can be applied to a variety of scenarios such as area intrusion monitoring, assembly line counting, passage monitoring, AGV, AMR, robotics, UAV obstacle avoidance and so on.

-Specification-
---E3X1---
Range radius:
0.05 - 25m (identification area (70% reflectivity))
0.05 - 10m (warning area (10% reflectivity))
0.05 - 4m (alarm area (2% reflectivity))
Blind area: 0.05m
Angle resolution: 0.225 @ 20Hz
Region monitoring data output: IO / RS485 / Ethernet
Monitoring area group: 64 groups @ 20Hz
Number of simultaneous monitoring area groups: 1 (including three areas)
Configuration interface: USB Type-C
Point cloud output: None
Ranging resolution: 10mm
Measurement accuracy: 30mm
Operating temperature: 0~50
---E3X2---
Ranging radius:
0.05 - 40m (measurement area (70% reflectivity))
0.05 - 40m (identification area (70% reflectivity))
0.05 - 15m (warning zone (10% reflectivity))
0.05 - 5m (alarm zone (2% reflectivity))
Measurement blind zone: 0.05m
Angle resolution:
0.1125 @ 10Hz
0.17 @ 15Hz
0.225 @ 20Hz (typical value)
Regional monitoring data output: IO / RS485 / Ethernet
Monitoring area groups:
64 groups @ 20Hz (typical value)
48 groups @ 15Hz
32 groups @ 10Hz
Number of simultaneous monitoring area groups: 1 (including three areas)
Configuration interface: USB Type-C
Point cloud output: Ethernet / Serial
Distance resolution: 10mm
Measurement accuracy: 30mm
Operating temperature: 0~50
-Application Scenarios-
Robot Navigation and Obstacle Avoidance
Obstacle Detecting and Avoiding of AGV
AGV, AMR, Robots, Drones and Area Monitoring
Environment perception and autonomous movement of low-speed unmanned vehicles
Multi-point touching and man-mechine interaction
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message wpd&youyeetoo%com (&---->@,%---->.) or skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
