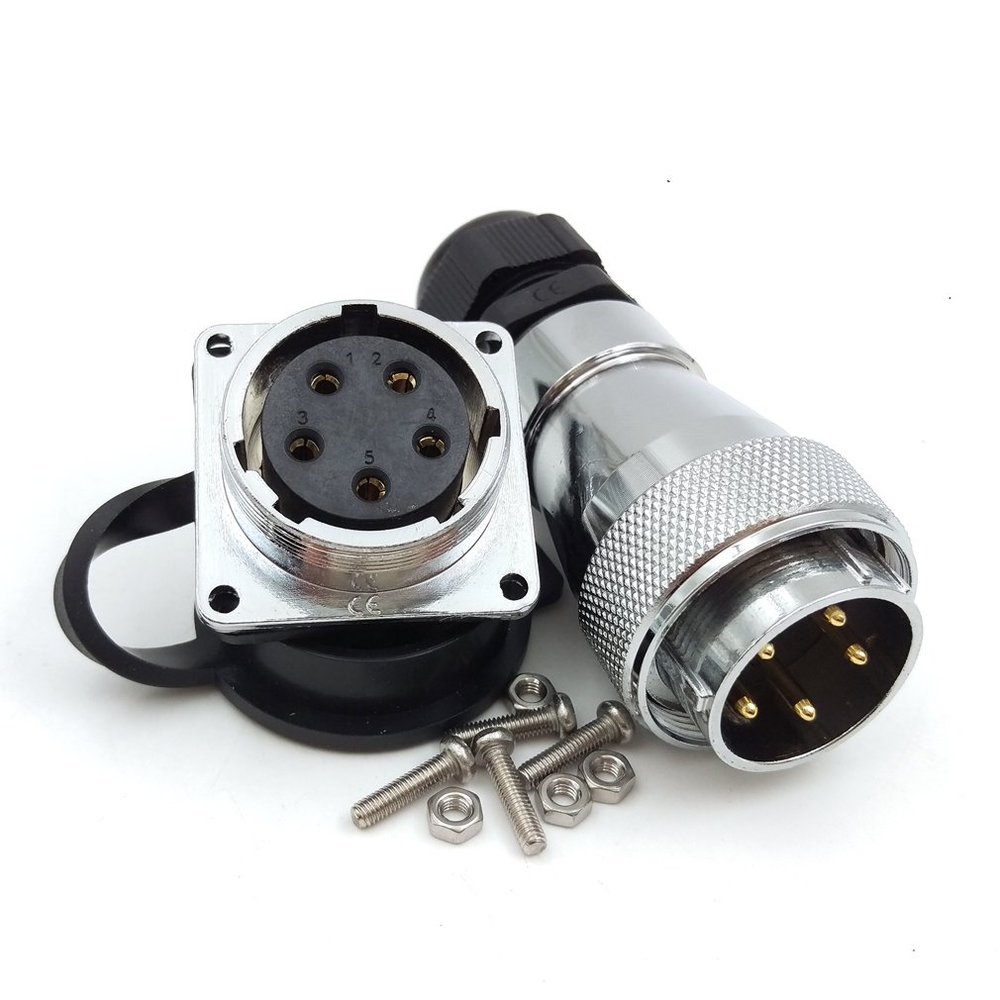

WF28 5pin Industrial High Voltage Power Connector, Aviation Bulkhead Auto Connector Plug Socket 25A 500V Adapter(5PIN, 5SET)

Description

• WF28 5pin high voltage heavy industrial power connector, 28mm panel cut
• Contact: 2.5mm*5(Gold plated copper), 25A / 500V, Contact resistance: 1 Milliohm
• Wire: <2.5MM= AWG12-16, Cable: 10-14mm, whole size: 4.1*1.3inch / 104*33.8mm
• Pin number available: 5/7/10/12/16/17/20/24/26pin, IP: IP20(socket with rubber cap)
• Professional and trusted power connector wholesale and retail supplier.

Product name: WF28 5pin heavy industrial metal power connector
Contact: 2.5mm*5(Gold plated copper)
Rated current: 25A
Working voltage: 500V
Test voltage: 1500V
Contact resistance: 1m
Insulation resistance: 2000m
Wire: <2.5mm = AWG12-16
Cable: 10-14mm
IP rating: Plug: IP20, socket: IP67
Mating cycle: 500times
Temperature range: -25~+65C
Shell material: zinc alloy
Pin number availalble:5/7/10/12/16/17/20/24/26 pin
Connector whole size: 4.1*1.3inch / 104*33.8mm
