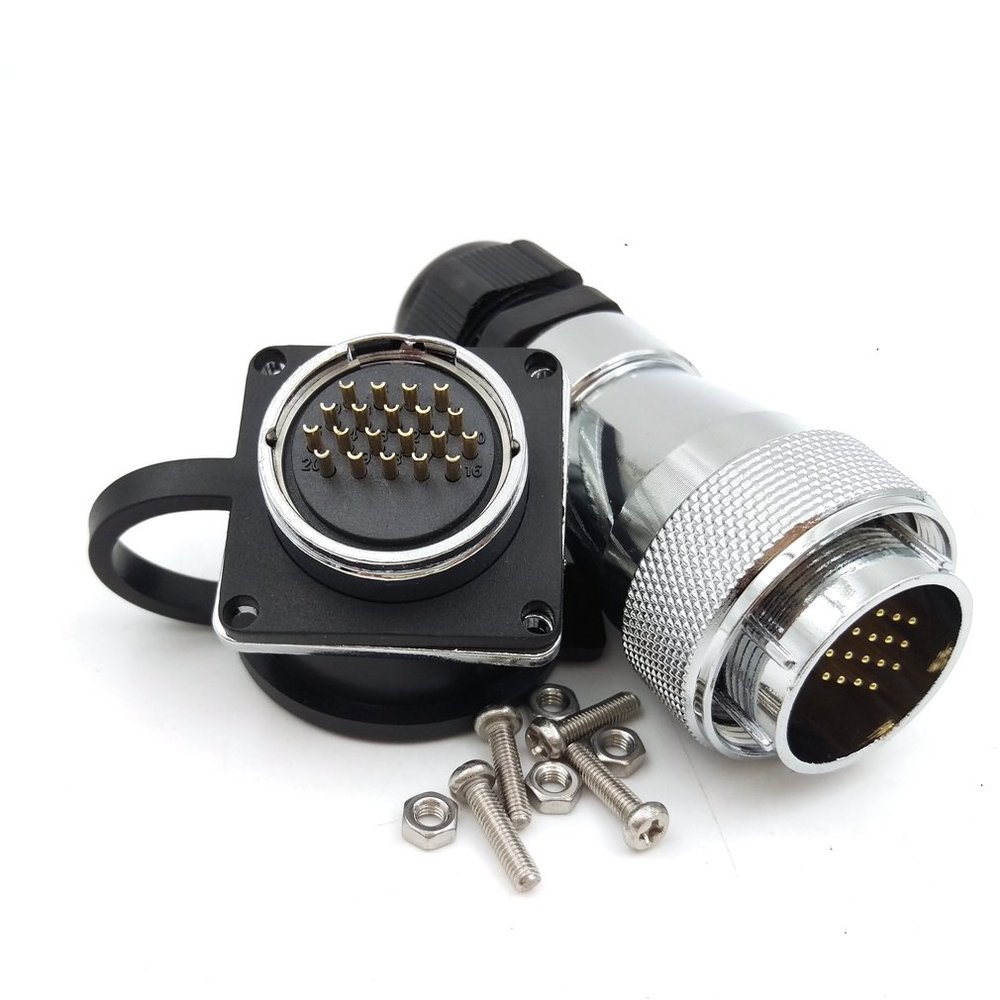

WF28 Serie 20pin Waterproof Connector, IP67 Electrical Male Female Plug Socket, LED 20 pin Waterproof Bulkhead Power Cable Connector(20PIN, 5SET)

Description

• WF28 20pin high voltage heavy industrial power connector, 28mm panel cut
• Contact: 1.0mm*20(Gold plated copper), 5A / 400V, Contact resistance: 5 Milliohm
• Wire: <0.8MM= AWG18-24, Cable: 10-14mm, whole size: 4.1*1.3inch / 104*33.8mm
• Pin number available: 5/7/10/12/16/17/20/24/26pin, Plug: IP20, socket: IP67
• Professional and trusted power connector wholesale and retail supplier.

Product name: WF28 20pin heavy industrial metal power connector
Contact: 1.0mm*20(Gold plated copper)
Rated current: 5A
Working voltage: 400V
Test voltage: 1500V
Contact resistance: 5m
Insulation resistance: 2000m
Wire: <0.8MM/ AWG18-20
Cable: 10-14mm
IP rating: Plug: IP20, socket: IP67
Mating cycle: 500times
Temperature range: -25~+65C
Shell material: zinc alloy
Pin number availalble:5/7/10/12/16/17/20/24/26 pin
Connector whole size: 4.1*1.3inch / 104*33.8mm
