Description
- Cable that is commonly used to deliver power from the service drop down to the meter base, and then from the meter base to the distribution panel board
- Three #4/0 AWG Conductors with one #2/0 AWG Ground
- Outside Diameter of 1.496 Inches
- Ampacity of 200 Amps @ 90 Degrees Celcius
- 0.968 Pounds per Foot
Applications:
SER is type SE, Style R cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90C for use in wet and dry locations. SER cables are LEAD FREE and RoHS compliant.

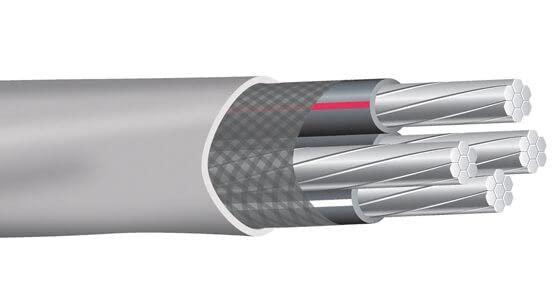

Construction:
Insulation - Color coded cross-linked polyethylene (XLPE).
Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration
Standards:
- UL 854 Service Entrance Cable
Specificatons:
Conductor Size: 4/0 (3 total)
Bare Neutral Size: 2/0 AWG
Outside Diameter: 1.496 inches
Ampacity: 200 Amps
Net Weight: 0.968 pounds per foot
