Description
- The Colorimeter is a professional colorimeter designed and produced subject to the relevant standards of International Commission on Illumination (CIE) and national stands. Being with brand new imported key components, the instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective.
- The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography, and toys etc., as well as to the auxiliary color matching during the processes as injection, inking, painting, and spraying coating etc.
- Portale: Structure Design in line with Ergonomics,and easy-to-use Operation.English operating system
- The excellent stability E*ab 0.08.Precison measurement performance with core technological competence.
- Li-ion battery will save cost and charge to ensure the stability of long time measureme. Saving more than10000 sample data.

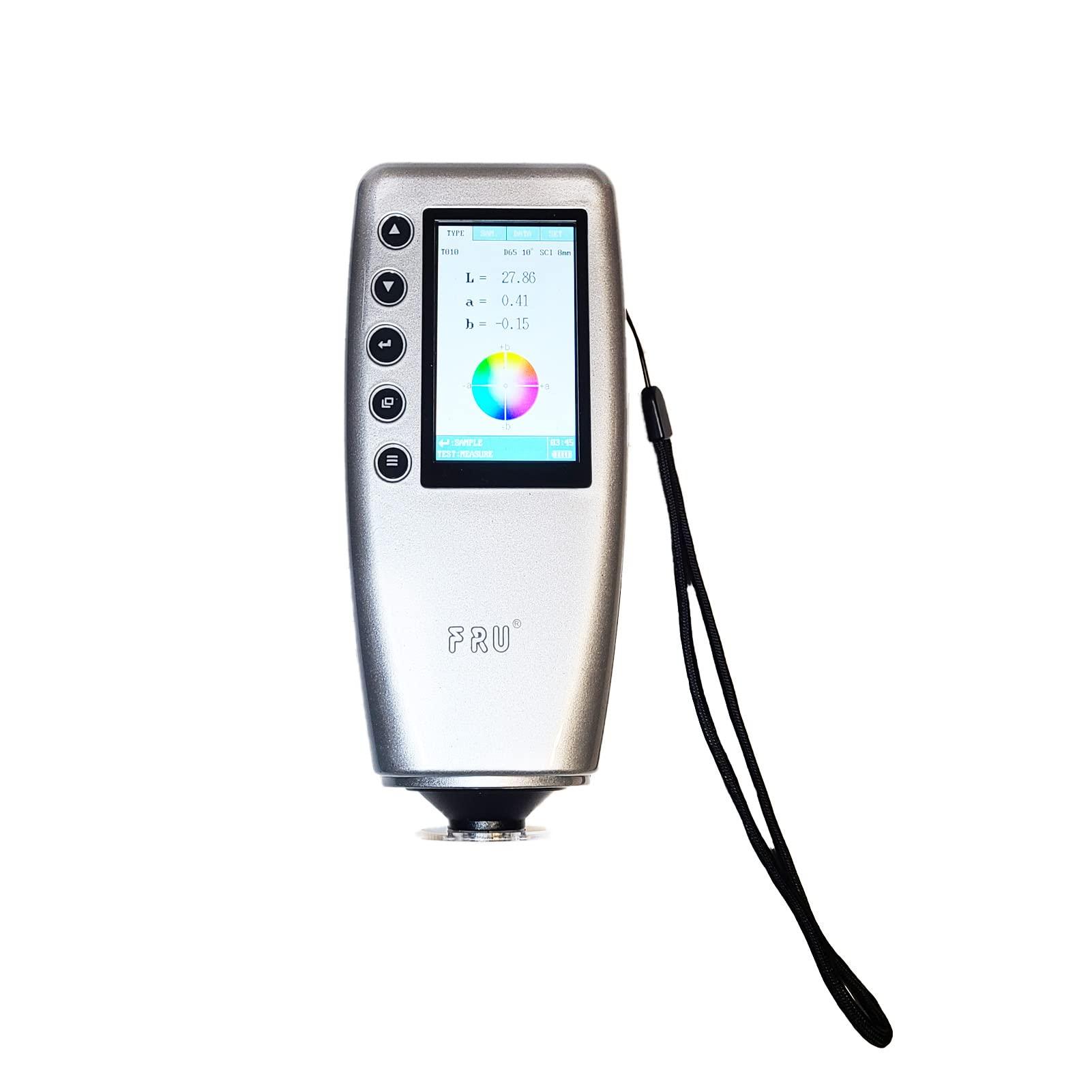

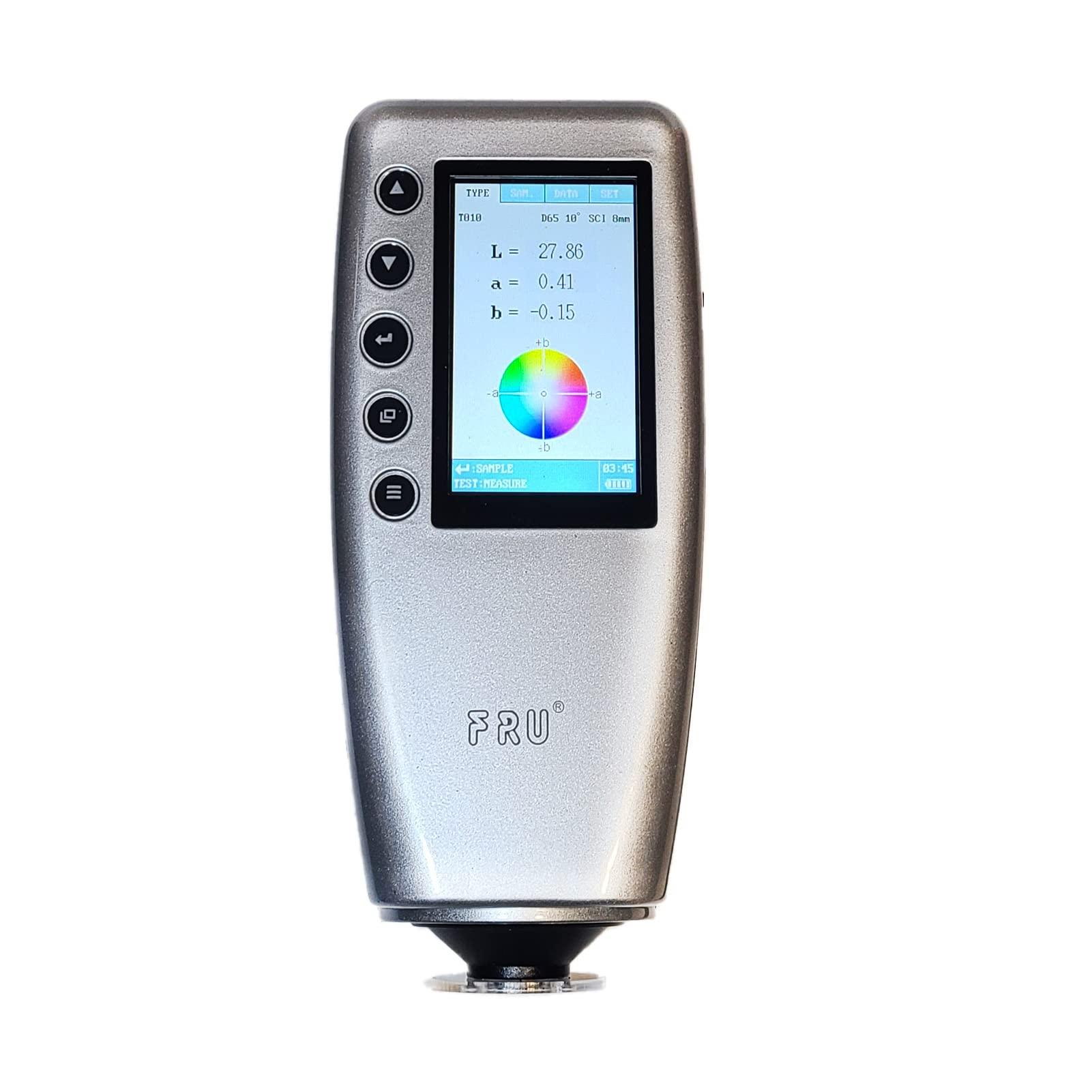

WR10 Portable Colorimeter

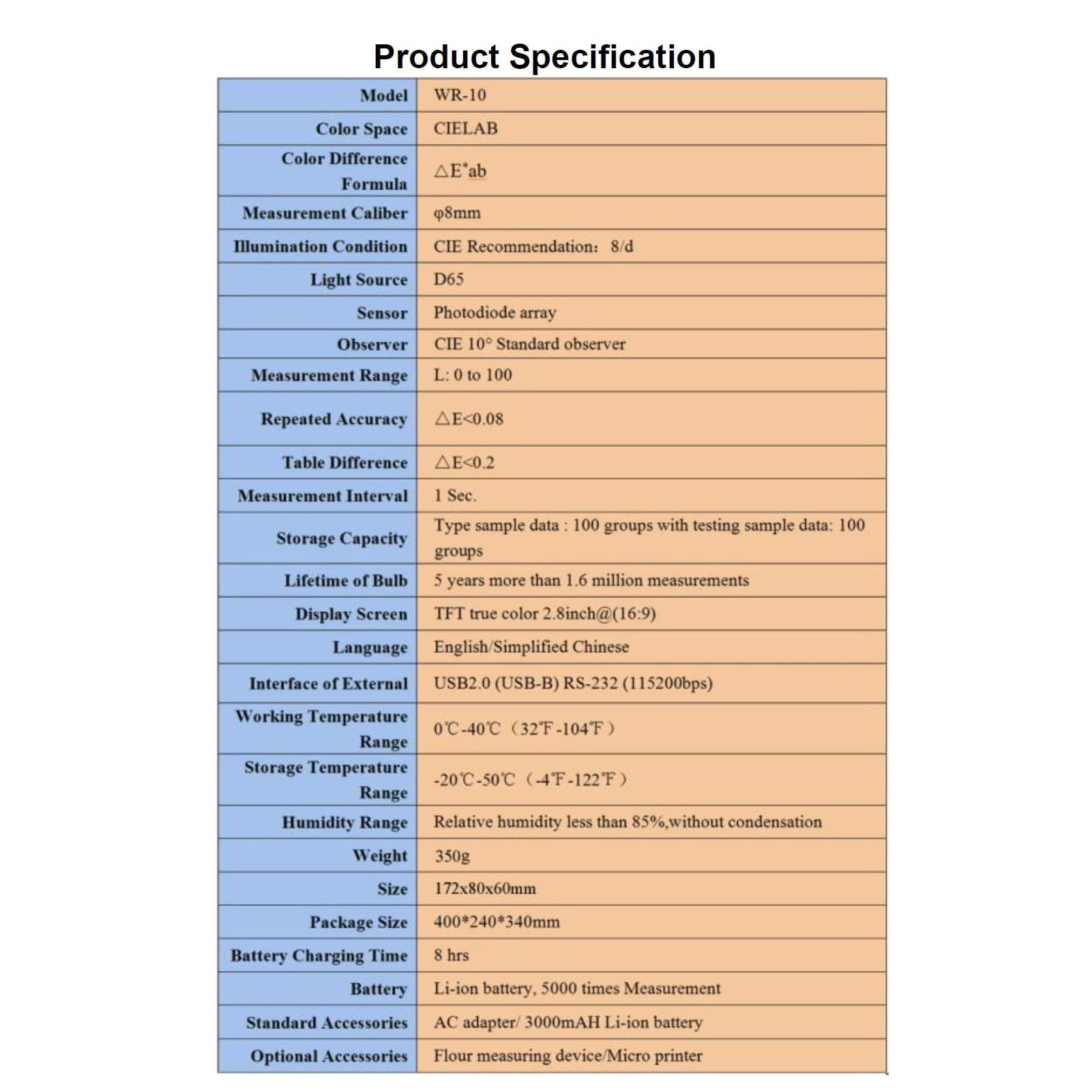

Model Number WR10
Display mode CIELAB,
Color difference formula E *ab
Illumination Condition CIE Recommendation:8/d
Light Source D65
Sensor Photodiode array
Measuring Aperture 8mm
Measuring Condition Observer:CIE 10 Standard observer
Measuring Range L:0-100
Repeated Accuracy E<0.08
Table Difference E <0.2
Measurement Time 1 second
Storage Capacity 100 standard samples and10000 test sample
Battery Power supply Li-ion battery, 5000 times Measurement
Lifetime of Bulb 5years more than 160 million measuring
Display screen TFT true color 2.8inch@(16:9)
Interface of External
USB2.0 (USB-B)
RS-232 (115200bps)
Working Temperature Range 0C-40C (32F-104F)
Storage Temperature Range -20C-50C (-4F-122F)
Humidity Range Relative humidity less than 85%,without condensation
Net Weight 700g
Dimension 199x68x90mm
Demension after package 400x240x340mm
Standard Accessory AC adapter/ 3000mAH Li-ion battery
Optional Accessory Flour measuring device/Micro printer
