WWZMDiB 15Pcs IR Infrared Sensor 3-Wire Reflective Photoelectric Module for Arduino

$ 37.75
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description
  • IR Infrared SensorWidely Used Robot obstacle avoidance, obstacle avoidance car, assembly line counting and black and white line tracking and many other occasions.
  • Operating Voltage3.3-5V (3.3V Recommended)
  • Detection angle35
  • Detection Distance230cm
  • Adjustable potentiometerAdjust clockwise to increase the detection distance; adjust the potentiometer counterclockwise to decrease the detection distance.


WWZMDiB 15Pcs IR Infrared Obstacle Avoidance Sensor Module 3-Wire Reflective Photoelectric for Arduino Smart Car Robot

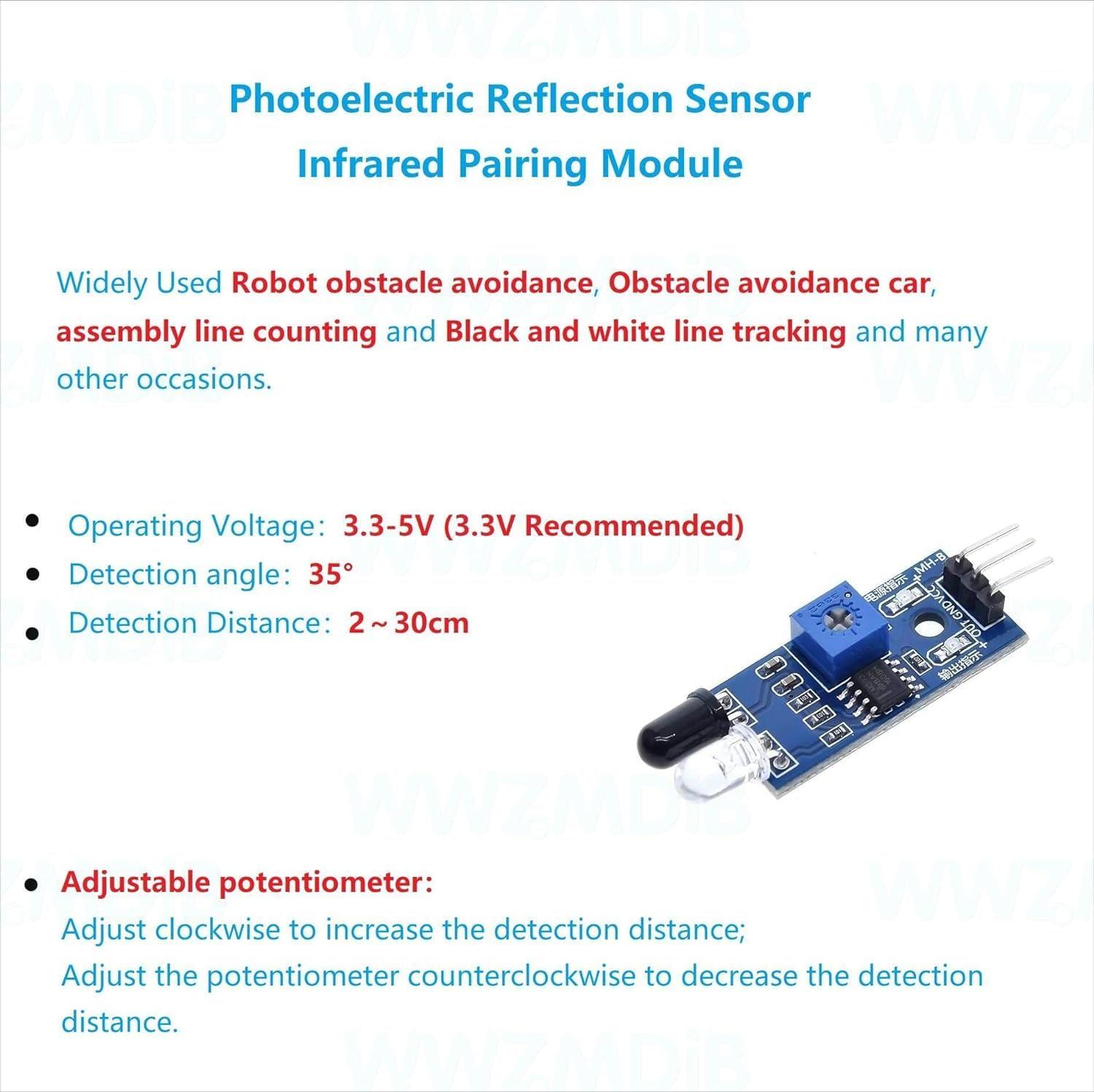

Photoelectric reflection sensor Infrared pairing moduleWidely Used Robot obstacle avoidance, obstacle avoidance car, assembly line counting and black and white line tracking and many other occasions.
Operating Voltage3.3-5V (3.3V Recommended)
Detection angle35
Detection Distance230cm
Adjustable potentiometerAdjust clockwise to increase the detection distance; adjust the potentiometer counterclockwise to decrease the detection distance.

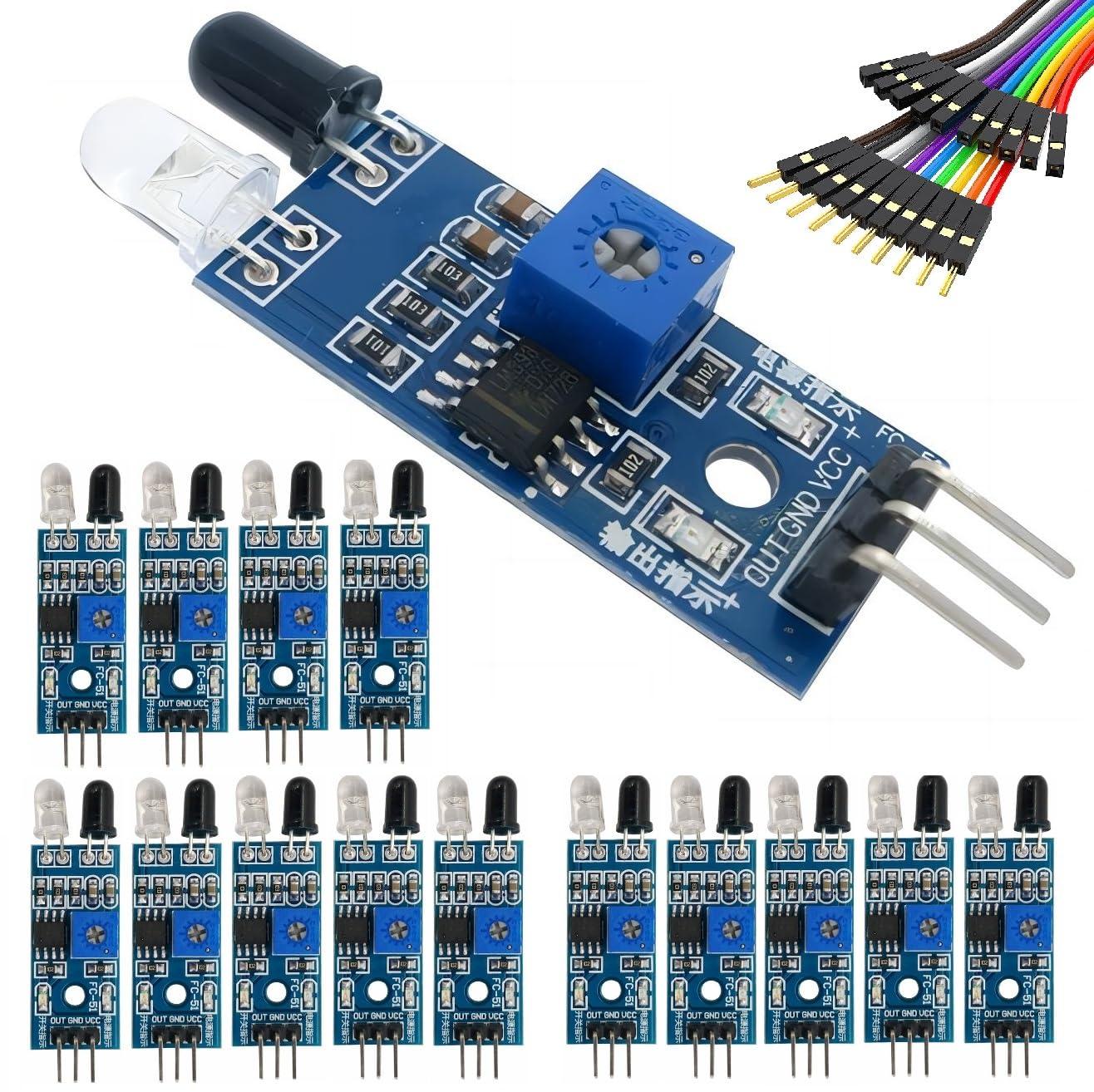

Package Included6Pcs Photoelectric reflection sensor Infrared pairing module
10Pcs Male to Female Jumper Wires 21cm/8 in
10Pcs Female to Female Jumper Wires 21cm/8 in.

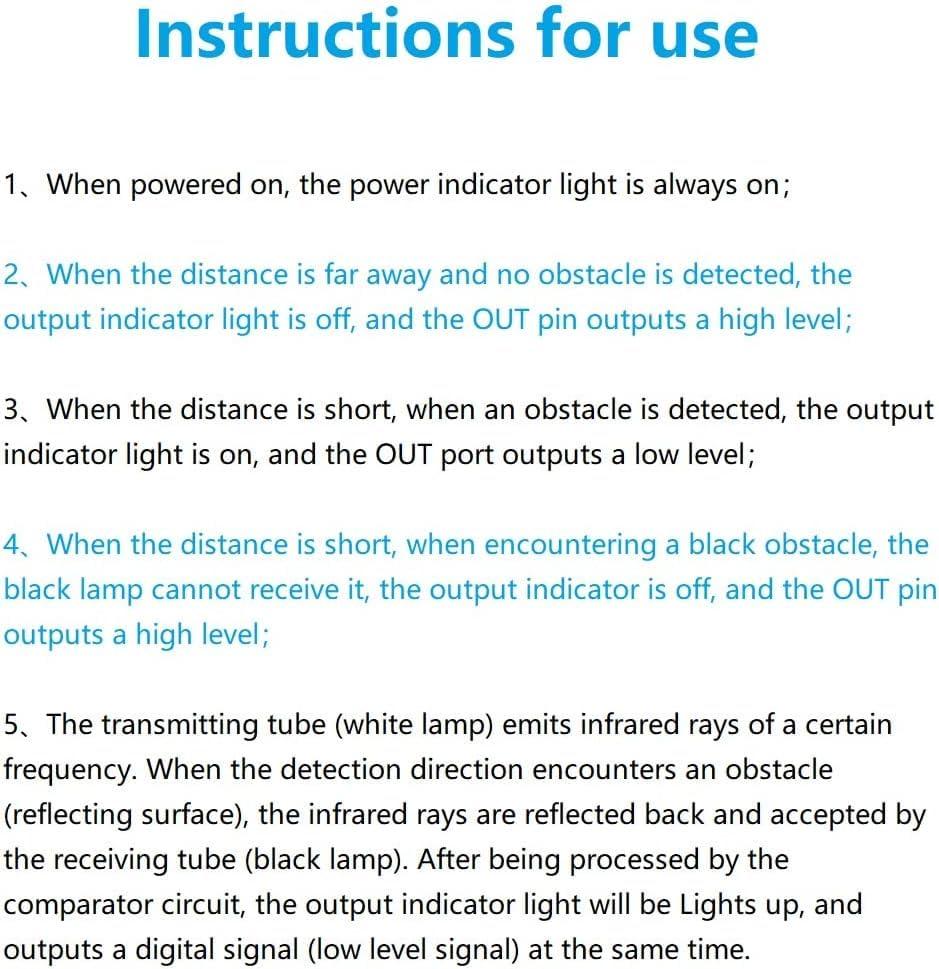

Instructions for use
1When powered on, the power indicator light is always on
2When the distance is far away and no obstacle is detected, the output indicator light is off, and the OUT pin outputs a high level
3When the distance is short, when an obstacle is detected, the output indicator light is on, and the OUT port outputs a low level
4When the distance is short, when encountering a black obstacle, the black lamp cannot receive it, the output indicator is off, and the OUT pin outputs a high level

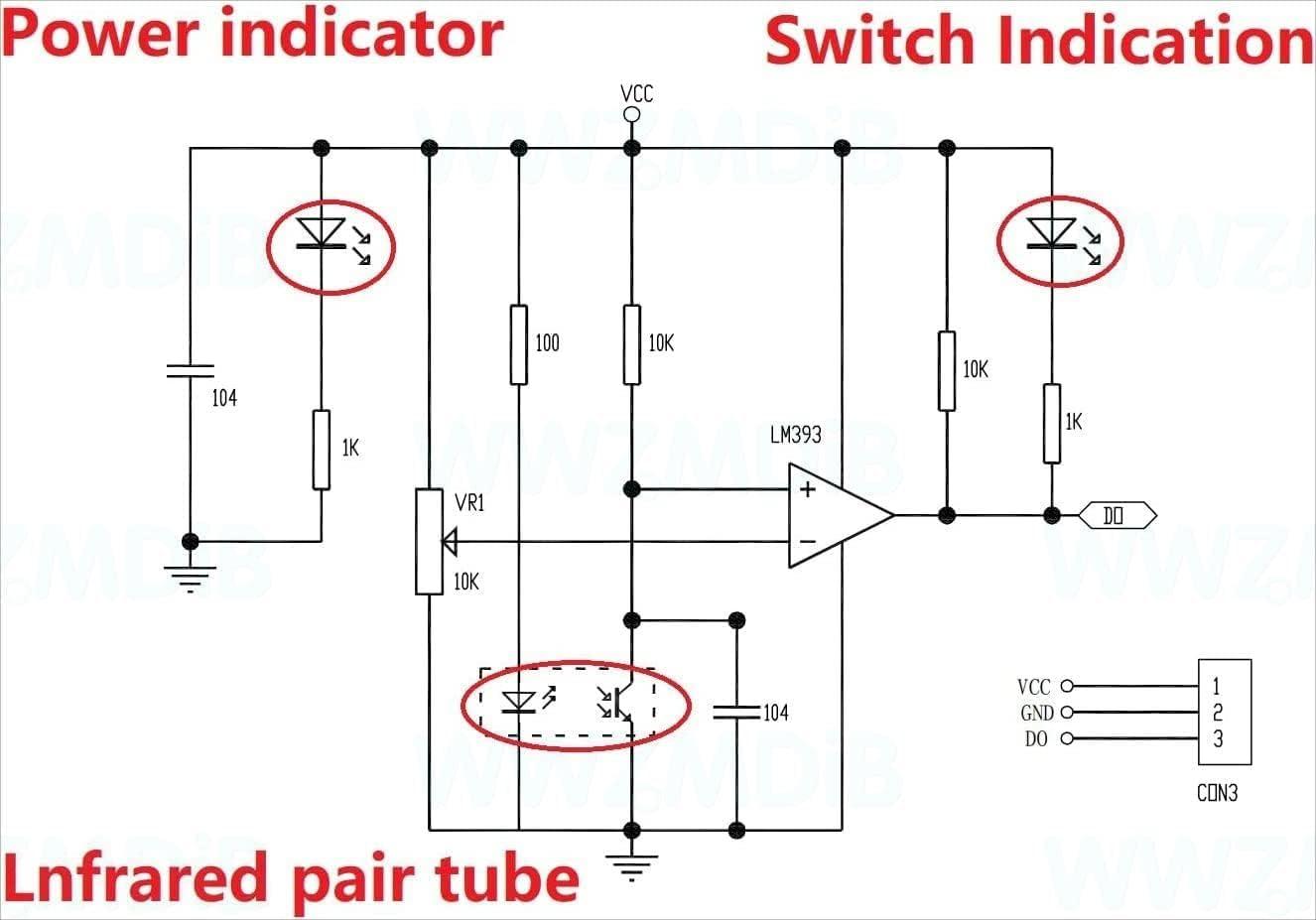

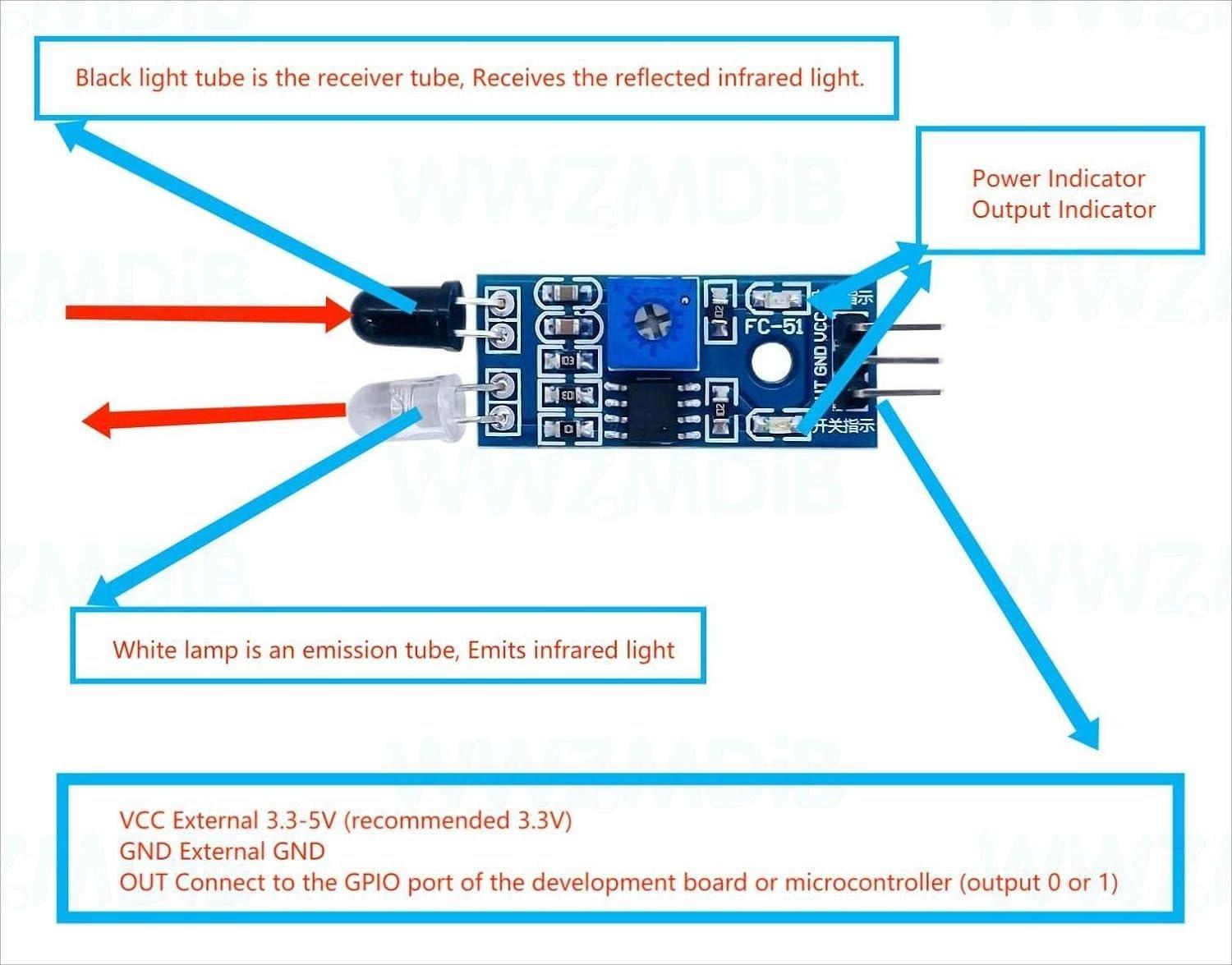

5The transmitting tube (white lamp) emits infrared rays of a certain frequency. When the detection direction encounters an obstacle (reflecting surface), the infrared rays are reflected back and accepted by the receiving tube (black lamp). After being processed by the comparator circuit, the output indicator light will be Lights up, and outputs a digital signal (low level signal) at the same time.
