Description
- Small logic analyzer uses the open-source software PulseView for the host computer, which is feature-rich and supports interpretation of over a hundred different protocols.
- 8 channels USB logic analyzer supports a maximum sampling rate of 24MHz and can simultaneously sample from 8 channels.
- 8-ch mini logic analyzer compatible with Windows/Linux/Mac platforms.
- With CY7C68013A logic analyzer, accepts a wide voltage signal input range: 0~5.5V, with VIH:>2V and VIL:<1.5V.
- Mini Logic analyzer features a Type-C USB interface and comes with on-board TVS protection and self-recoverable fuses.
Description
This product is a mini logic analyzer with a compact and delicate design. It offers rich functionality and supports a maximum sampling rate
of 24MHz (on the Linux platform). It also supports analysis of over a hundred different protocols. It is suitable for the daily development and
debugging needs of electronic engineers and can be used in various scenarios such as system timing analysis, performance analysis, and signal
debugging.
Package includes

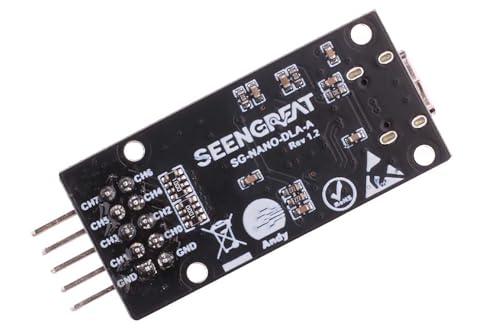

1. SG-NANO-DLA-A x 1
2. Copper post Screws pack x 1
3. Female-to-Female DuPont Wire 10P x 1
4. Male-to-Female DuPont Wire 10P x 1
