Description
- XOLORspace 66141 1x4 HDMI 2.0 Splitter distributes one HDMI source to two HDMI displays simultaneously.
- It is HDMI 2.0b and HDCP 2.2 standard. It supports resolution up to 4K 60Hz (4:4:4) and 8 bit HDR.
- It is with 4k to 1080p downscaler and can output 4k 60hz with HDR and 1080p simultaneously.

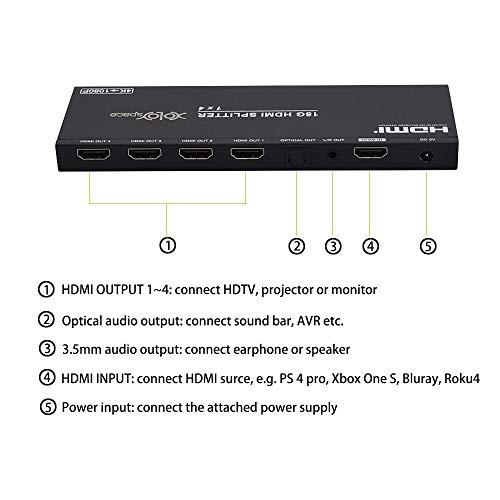

- This product supports audio extract from HDMI source to optical and analog output. It is ultra slim design suitable to be hide behind the TV.
- *ARC is not supported
HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
Video Bandwidth: 18Gbps
Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 4K60Hz 8-bit, 1080P 12-bit
Supports digital and analog audio extract output from HDMI source (*note: ARC is not supported) Supports output bypass and 4K->1080P downscaler function via dial switch on panel.
All OUTPUTS Audio EDID is synchronized

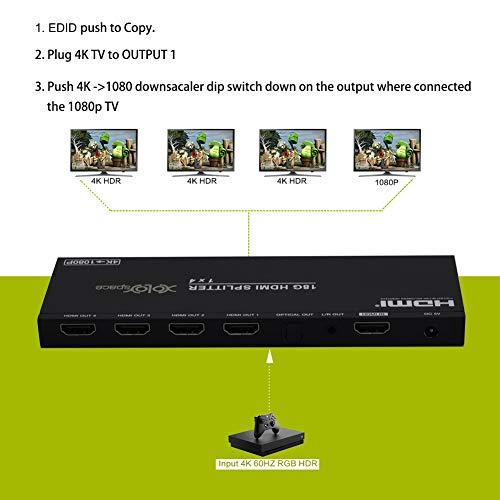

EDID can be selected COPY and AUTO modes via dial switch on panel.
(COPY: It copys OUT 1 port EDID setting to all outputs port;
AUTO: Compare OUT 1 ~4 EDID setting and output the best resolution to all outputs).
Supports HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats: LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
L/R Audio Formats: PCM 2.0
ESD Protection: Human-body Model: 8kV (Air-gap discharge) , 4kV (Contact discharge)
Dimensions: 180mm(W)*62mm(D)*14mm(H)
Weight: 227g
