Description

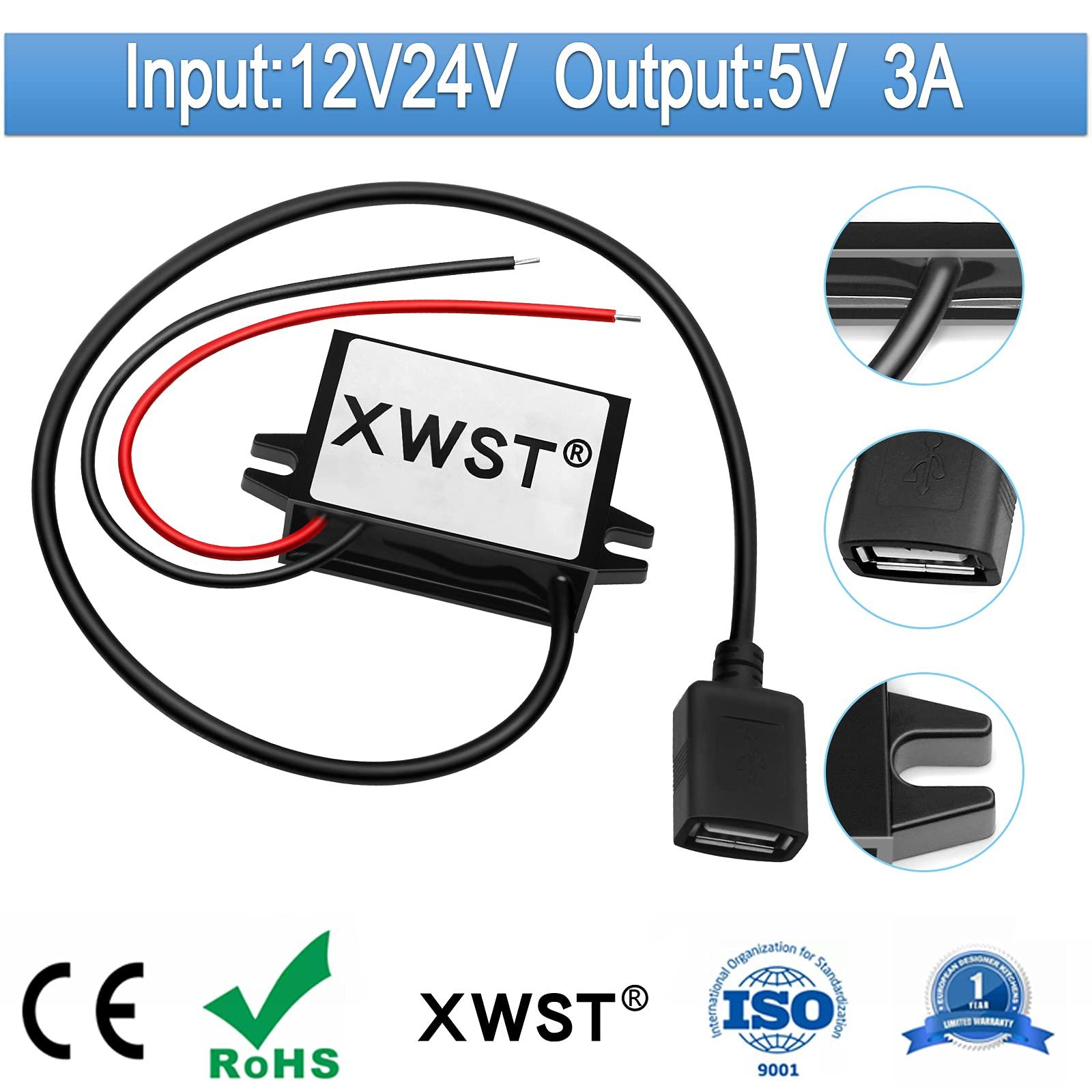

- PARAMETER --- XWST DC-DC converter input voltage range is DC 8~40V (12V 24V); output voltage is DC 5V with USB; output cable length 33cm;output current is 3A; output power is 15W.
- APPLICATION --- the 5v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.

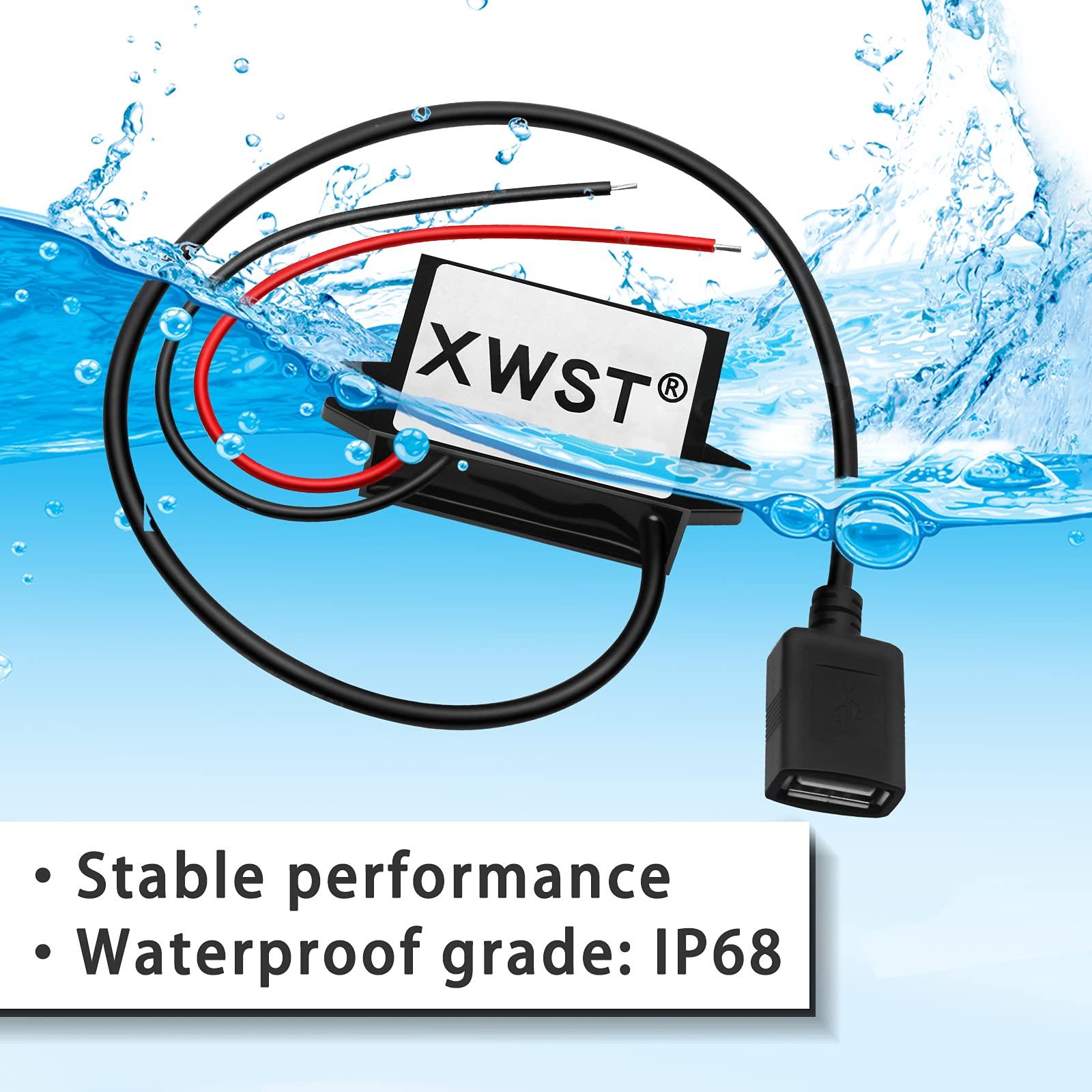

- PROTECTION --- this voltage buck comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.

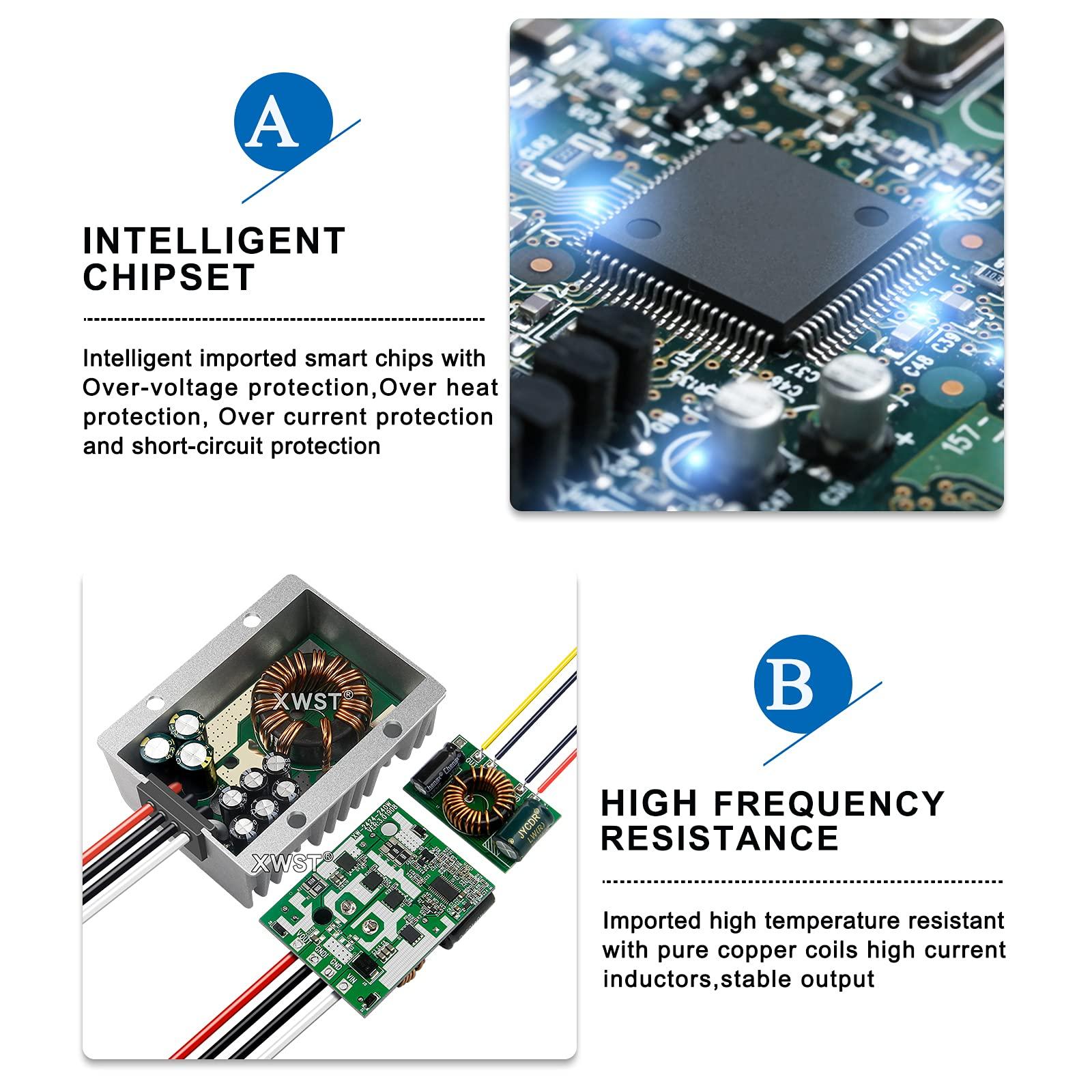

- FEATURE --- the buck power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
- NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.
XWST DCDC Power Supply Buck Module Technical Specification:
Input Voltage: DC 8V~40V (12V 24V)
Output Voltage: DC 5V
Output Current: 3A
Output Power: 15W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage 3%
Load Regulation: 3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65
Storage Temprature: -40~80
Operating Humidity: 10%~90%
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

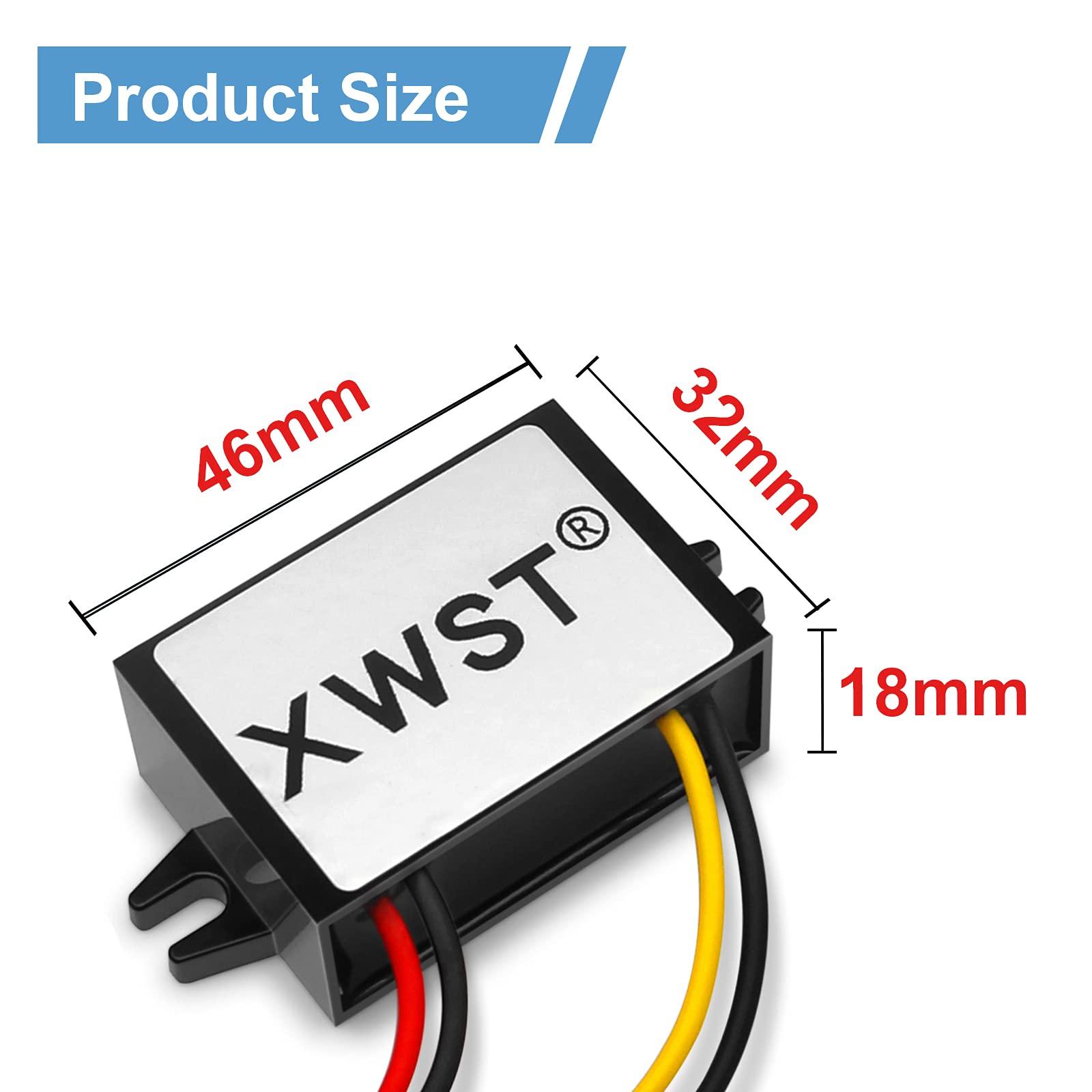

Dimension: 46mm x 32mm x 18mm
Weight:50g Material:ABS plastic shell
Note:

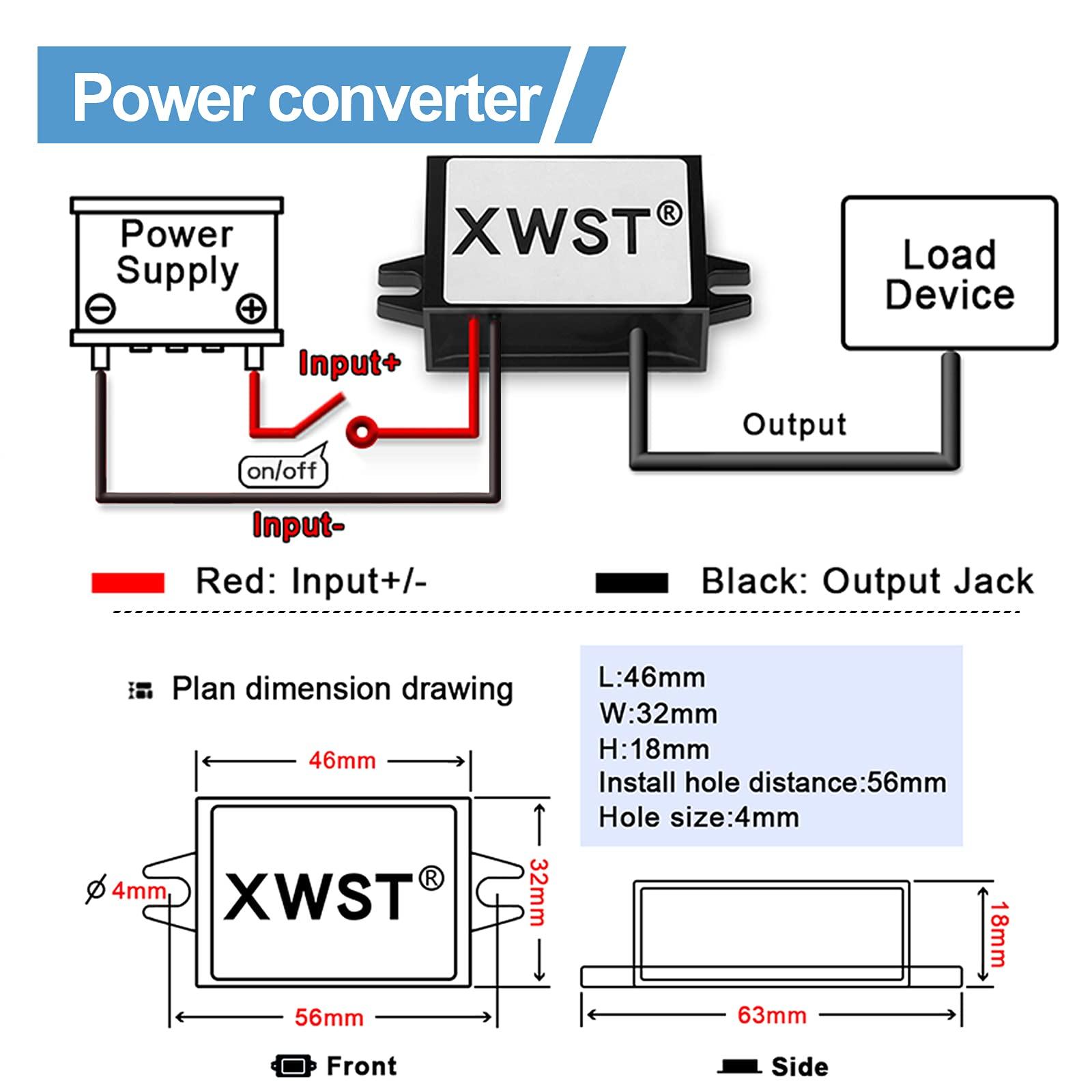

1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x DC-DC Converter
